Broken Exhaust Manifold Bolts: Your UK Fix Guide

Picture this: you're under the bonnet, ready for a routine fix, only to discover a snapped exhaust manifold bolt. It’s a common, infuriating scenario for many a UK car enthusiast or DIY mechanic. These tiny fasteners play a crucial role, sealing the exhaust manifold to the engine, and when they fail, the consequences range from annoying leaks to significant performance issues. But fear not, for this comprehensive guide is designed to equip you with the knowledge, tools, and techniques to tackle this stubborn problem head-on, predominantly focusing on effective methods that don't require a welder. Let's get your vehicle breathing easy again.

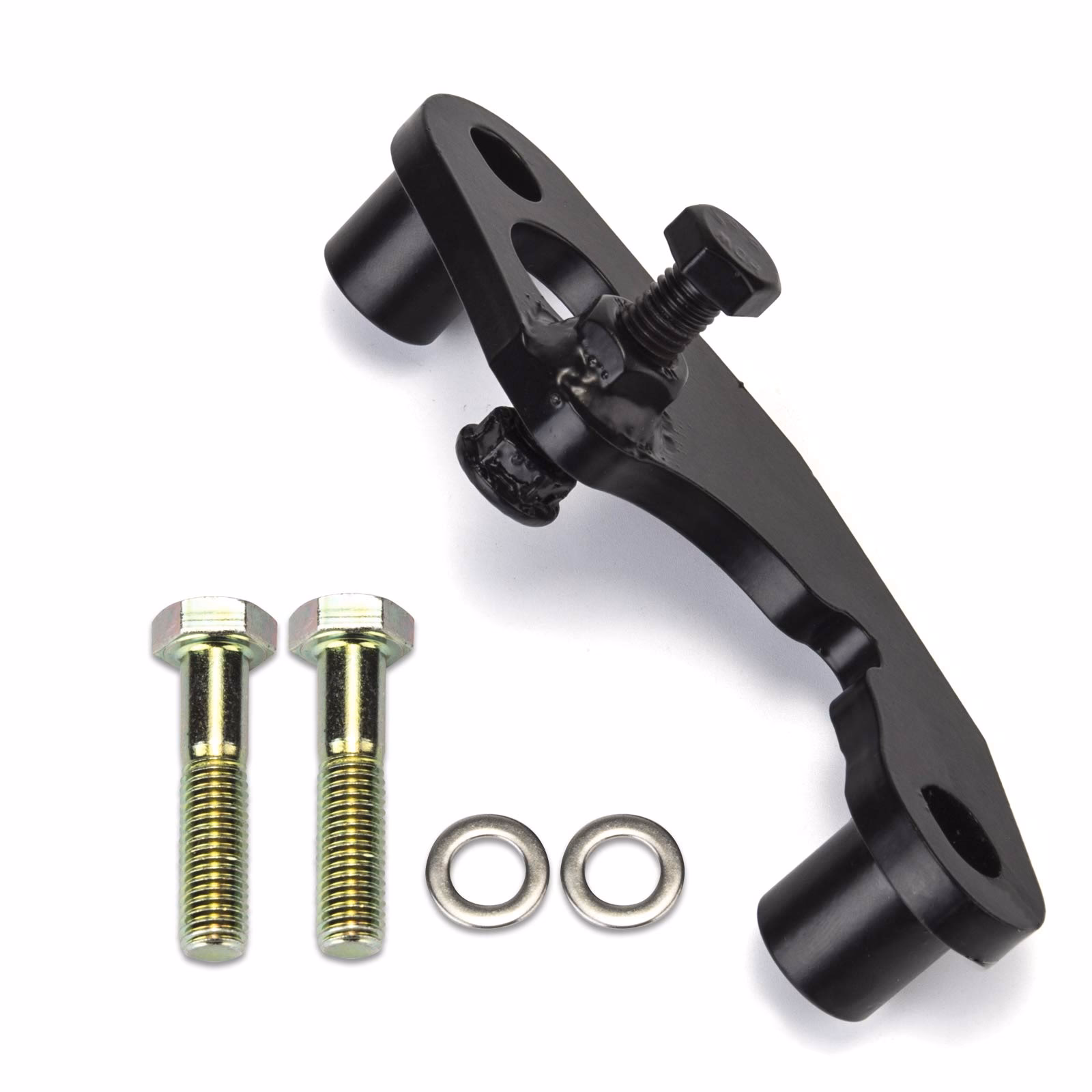

Understanding the Enemy: Why Exhaust Manifold Bolts Break

Before diving into the fix, it’s vital to understand why these seemingly robust bolts succumb to failure. Knowing the root cause not only helps in the repair but also in preventing future occurrences. The exhaust manifold is subjected to extreme conditions – blistering heat cycles, corrosive exhaust gases, and constant vibrations. These factors relentlessly attack the bolts, leading to their eventual demise.

The primary culprits include:

• Thermal Cycling: Constant heating and cooling of the engine cause the bolts to expand and contract. Over time, this cyclical stress weakens the metal, leading to fatigue and eventual fracture.
• Corrosion: Exposure to moisture, road salt, and exhaust gases can cause significant rust build-up. This corrosion weakens the bolt material and can 'weld' them in place, making them prone to snapping during removal.
• Over-tightening: While aiming for a secure fit, applying excessive torque during installation can stretch or even fracture the bolt, creating a weak point that will fail under stress.
• Vibration: The continuous vibrations from the engine and exhaust system can loosen bolts or, conversely, cause them to shear off if already weakened.
• Material Fatigue: Like any metal component under stress, the bolts simply wear out over time.

Ignoring a broken exhaust manifold bolt is never advisable. The immediate effect is an exhaust leak, which manifests as a loud, ticking or hissing noise from the engine bay, especially on acceleration. This leak can also lead to decreased engine performance, reduced fuel efficiency, and, crucially, can cause oxygen sensors to read incorrectly, potentially triggering your 'Check Engine' light with lean codes. More concerning still, exhaust fumes containing carbon monoxide can leak into the cabin, posing a serious health risk. Prompt action is, therefore, not just about vehicle performance, but about safety.

Spotting the Signs: Is Your Exhaust Manifold Bolt Broken?

Catching a broken bolt early can save a lot of headaches. While the ticking sound is often the most obvious giveaway, a thorough inspection can confirm your suspicions.

Here’s what to look for:

• Audible Clues: A distinct ticking or puffing sound from the engine, especially when cold or under acceleration, is a classic sign of an exhaust leak, often caused by a broken bolt. The sound might diminish as the engine heats up and the metal expands.
• Visual Inspection:
  • Look for black soot or carbon deposits around the exhaust manifold flange where it connects to the engine head. This is a clear indicator of exhaust gases escaping.
  • Inspect the bolts themselves. Are any missing? Do you see a bolt head but no stud protruding? Are there visible fractures, cracks, or heavy corrosion on the remaining bolts?
  • Check for loose nuts or studs. Sometimes, a bolt isn't completely snapped but has worked its way loose.
• Engine Performance: You might notice a slight decrease in power or fuel economy.
• Dashboard Warnings: An illuminated 'Check Engine' light, particularly if accompanied by fault codes related to oxygen sensor readings (e.g., lean conditions), can point towards an exhaust leak.

A comprehensive visual check, possibly aided by an inspection camera for tight spots, combined with listening for those tell-tale sounds, will usually confirm the issue.

Gearing Up: Essential Tools for the Task

Attempting to remove a broken exhaust manifold bolt without the right tools is a recipe for frustration and further damage. Investing in quality tools will pay dividends in the long run. Here’s what you’ll likely need:

• Safety First:
  • Safety goggles: Absolutely non-negotiable to protect your eyes from metal shards.
  • Heavy-duty gloves: To protect your hands from sharp edges and heat.
  • Respirator/Mask: Especially when dealing with old exhaust residue or grinding.
• Preparation & Access:
  • Wrenches/Sockets & Ratchets: For removing existing bolts and obstructions. Crowfoot wrenches can be useful for tight angles.
  • Penetrating oil: Brands like WD-40 Specialist Penetrant or PB Blaster are excellent. Crucial for loosening rusted bolts.
  • Heat Source: A propane or MAPP gas torch, or even an induction heating tool, can be invaluable for breaking rust bonds.
  • Wire brush: For cleaning threads and surfaces.
  • Air compressor: With a blow gun for clearing debris.
• Broken Bolt Removal:
  • Centre punch & Hammer: To create an indentation for accurate drilling.
  • Drill: A sturdy, variable-speed drill is essential. A cordless drill offers greater maneuverability.
  • Drill bits: High-quality cobalt or titanium-coated drill bits are recommended for drilling through hardened steel bolts. Crucially, a set of left-hand drill bits can be a game-changer, sometimes unscrewing the bolt as you drill.
  • Cutting oil: To lubricate drill bits, reduce friction, and prevent overheating during drilling.
  • Extractor tools: A set of screw extractors (often called 'easy-outs') and/or a dedicated stud extractor set. These are designed to grip the drilled hole and twist the bolt out.
  • Vise grips: For gripping any exposed part of the bolt.
  • Impact wrench/breaker bar: For applying sudden, strong force to loosen stubborn nuts or bolts.
• Cleaning & Reassembly:
  • Tap and Die Set / Thread Chaser: To clean and repair damaged threads in the engine block.
  • New Exhaust Manifold Gasket: Always replace the gasket when removing the manifold.
  • New Exhaust Manifold Bolts/Studs: Replace broken ones and consider replacing others if they show signs of wear.
  • Torque wrench: Absolutely essential for tightening the new bolts to the manufacturer’s specified torque settings, preventing future breakage.

Remember, patience and the right tools are your best allies in this repair.

The Repair Process: Step-by-Step Bolt Removal (No Welder Needed)

This section details the most common and effective methods for removing broken exhaust manifold bolts without resorting to welding, which often requires specialised equipment and expertise.

Step 1: Preparation and Access

Ensure the engine is completely cool before starting. Working on a hot engine is dangerous and can make bolts even more stubborn. Disconnect the battery for safety. Clear the work area, ensuring good lighting and removing any components that obstruct access to the exhaust manifold, such as heat shields, O2 sensors, or adjacent exhaust pipes. Use your socket set and wrenches for this. Take photos or make notes to remember how everything goes back together.

Generously apply a high-quality penetrating oil to all exhaust manifold bolts, especially the broken one. Let it soak for several hours, or even overnight if possible. This allows the oil to seep into the rusted threads, breaking down corrosion.

Step 2: Remove Intact Bolts and Manifold

Carefully loosen and remove any remaining intact exhaust manifold bolts. Use a suitable socket and a breaker bar if necessary. If a bolt feels incredibly tight, apply heat to the area around the bolt head (not the bolt itself, if possible) with your torch for a short period, then try to loosen it. The heat causes the surrounding metal to expand, potentially breaking the rust bond. Don't force it; if it's too tight, reapply penetrating oil and heat.

Once all accessible bolts are removed, gently pull the exhaust manifold away from the engine block. It might be stuck due to gasket residue or light corrosion. Use careful prying if needed, but avoid damaging the manifold or engine block surfaces.

Step 3: Tackling the Broken Bolt – Your Non-Welding Arsenal

Now for the main event. The approach depends on whether a portion of the broken bolt is still protruding or if it's snapped flush with the engine block.

Option A: Protruding Bolt (The Easier Scenario)

If there's enough of the bolt sticking out, you might be able to grip it. Clean the exposed stub thoroughly with a wire brush.

• Vise Grips/Locking Pliers: Clamp a pair of sturdy vise grips onto the stub as tightly as possible. Try to wiggle it back and forth gently, applying more penetrating oil if needed, then attempt to turn it counter-clockwise.
• Turbo Socket: If available, a turbo socket (or damaged bolt extractor socket) can grip round or damaged bolt heads/stubs. Tap it onto the stub and use a ratchet to turn.
• Heat Application: Apply heat to the area of the engine block around the bolt for about 30 seconds, then immediately try to turn the bolt with your vise grips or turbo socket. The rapid expansion and contraction can help break the rust bond. Repeat this cycle a few times.

Option B: Flush or Recessed Bolt (The Drilling Method)

This is the most common and challenging scenario. Precision is key here to avoid damaging the engine block threads.

1. Centre Punch: Use a centre punch and a hammer to create a small indentation exactly in the centre of the broken bolt. This prevents your drill bit from wandering.
2. Pilot Hole: Start with a small drill bit (e.g., 3mm or 1/8 inch), ensuring it's straight and perpendicular to the bolt's surface. Drill a pilot hole into the centre of the broken bolt. Apply cutting oil generously to the drill bit and the bolt as you drill. This lubricates the bit, reduces heat, and helps it cut more effectively. Drill slowly and with steady pressure, letting the bit do the work.
3. Increase Drill Bit Size (Gradually): Progressively increase the drill bit size. Each new bit should be slightly larger than the previous one, but always smaller than the actual diameter of the bolt (and thus the engine block threads). Continue applying cutting oil.
4. Using Left-Hand Drill Bits: This is a crucial step. Once you have a decent pilot hole, switch to a left-hand drill bit. These bits are designed to rotate counter-clockwise. As you drill, the bit may 'bite' into the broken bolt and, because it's turning counter-clockwise, it might actually unscrew the bolt itself. This is often the cleanest way to remove a broken bolt.
5. Extractor Tools (Easy-Outs): If the left-hand drill bit doesn't work, or if you don't have one, once you’ve drilled a hole of appropriate size (usually just smaller than the extractor itself), carefully insert a screw extractor. Tap it gently with a hammer to ensure it seats firmly. Then, use a tap wrench or a socket to slowly turn the extractor counter-clockwise. The extractor's tapered, reverse-threaded design will grip the inside of the drilled hole, allowing you to twist out the broken bolt. Be extremely careful not to over-torque or break the extractor inside the bolt – this creates a much harder problem to solve!
6. Welding a Nut (Advanced/Last Resort): While this guide focuses on non-welding methods, it's worth mentioning. If all else fails, an experienced MIG welder can carefully weld a nut onto the end of the broken bolt stub. The heat from welding helps loosen the bolt, and the welded nut provides a fresh surface to apply a wrench. This method is effective but carries risks (heat damage to surrounding components, poor weld penetration making it harder if it breaks again) and requires professional skill.

Step 4: Clean and Prepare Bolt Holes

Once the broken bolt is removed, thoroughly clean the bolt hole in the engine block. Use a wire brush or compressed air to remove any metal shavings, rust, or old gasket material. Inspect the threads for damage. If they are corroded or slightly damaged, use a tap (from a tap and die set) of the correct size to 'chase' or clean the existing threads. This ensures new bolts will thread in smoothly. For severely damaged threads, a thread repair kit like a Time-Sert might be necessary, which installs a new, strong steel insert into the hole.

Step 5: Reinstallation and Torque

Clean any gasket residue from both the manifold and the engine block mating surfaces. Place a new exhaust manifold gasket between the manifold and the engine block. Insert the new manifold bolts (or cleaned, intact old ones if reusing) and tighten them initially by hand until they are finger-tight. This ensures proper alignment.

Finally, and crucially, use your torque wrench to tighten all the bolts to the exact specifications found in your vehicle's service manual. Tighten in the recommended sequence (often a criss-cross pattern) to ensure even pressure. Over-tightening can lead to future bolt breakage, while under-tightening can cause leaks.

Safety Precautions and Best Practices

Your safety is paramount. Always adhere to these precautions:

• Always Wear PPE:Safety goggles and heavy-duty gloves are non-negotiable. Consider a mask/respirator.
• Cool Engine: Never work on a hot engine. Allow ample time for it to cool down.
• Ventilation: Ensure good ventilation, especially if using a torch or chemical penetrants.
• Fire Safety: Keep a fire extinguisher nearby if using a torch. Be aware of flammable materials (fuel lines, plastic components).
• Patience is a Virtue: Rushing leads to mistakes and further damage. Take your time with each step.
• Steady Hand: When drilling, maintain a steady hand and keep the drill perfectly straight to avoid damaging the engine block.
• Know Your Limits: If you're unsure at any point, or if the bolt is proving exceptionally stubborn, don't hesitate to seek professional help. A mechanic has specialised tools and experience to handle the most difficult extractions, potentially saving you from a much costlier repair.

Troubleshooting Common Challenges

Even with the right tools and knowledge, you might encounter some hurdles. Here’s how to address them:

• Stubborn Bolts That Won't Budge: Reapply penetrating oil and let it soak longer. Combine with heat cycles (heat, cool, reapply oil). A small hammer tapping on the bolt head (if exposed) can help vibrate rust loose.
• Damaged Exhaust Manifold: If the manifold itself cracks during the process, it will need to be repaired (welding) or replaced. Inspect it carefully before reinstallation.
• Difficulty Accessing the Break: Use flexible drill extensions, swivel sockets, or universal joints to reach tight spots. Sometimes, removing additional surrounding components might be necessary.
• Broken Bolt Pieces Falling into the Engine: While rare, if a piece of the bolt falls into an open port, it's critical to retrieve it before starting the engine. Use a magnet or a small vacuum.
• Drill Bit Breaks Inside the Bolt: This is a major headache. Tungsten carbide-tipped bits can sometimes drill through broken high-speed steel bits, but it’s extremely difficult and usually requires professional intervention. Prevention (sharp bits, cutting oil, slow speed, steady pressure) is key.

Comparison Table: Common Broken Bolt Removal Methods (Without Welding)

Here's a quick comparison of the primary non-welding methods for removing broken exhaust manifold bolts:

Frequently Asked Questions (FAQs)

Q: What causes exhaust manifold bolts to break?

A: They commonly break due to repeated heating and cooling cycles (thermal cycling), corrosion from road salt and exhaust gases, over-tightening during installation, and constant engine vibrations. These factors lead to material fatigue and eventual fracture.

Q: Why is it crucial to address broken exhaust manifold bolts promptly?

A: Prompt action prevents further damage to engine components, avoids reduced engine performance and fuel efficiency, mitigates loud exhaust noises, and, most importantly, prevents potentially dangerous exhaust fumes (like carbon monoxide) from entering the vehicle's cabin.

Q: When should I seek professional help for broken exhaust manifold bolts?

A: Consider professional assistance if you lack the necessary tools, experience, or confidence to perform the repair safely and effectively. This is especially true if the bolt is severely seized, if a drill bit or extractor breaks inside the bolt, or if you're uncomfortable with precision drilling near your engine.

Q: What safety precautions should I take when drilling out broken exhaust manifold bolts?

A: Always wear safety goggles and gloves. Ensure the engine is cool. Use a centre punch to guide your drill. Apply cutting oil to lubricate the drill bit and drill slowly and straight to prevent the bit from wandering or breaking. Maintain a clean work area and have a fire extinguisher if using heat.

Q: Can I remove broken exhaust manifold bolts without a welder?

A: Absolutely! This guide focuses on methods that do not require welding. Techniques like using penetrating oil, heat, left-hand drill bits, and extractor tools are highly effective for removing most broken bolts without needing a welder.

Q: How do you get a broken bolt out of a tight space?

A: For tight spaces, use flexible drill extensions, universal joints, or swivel sockets. Sometimes, strategically removing additional components (like engine mounts or suspension parts, if safe and feasible) can create more working room. Patience is key in cramped environments.

Q: How do you remove rusted 'welded' bolts without a welder?

A: Rusted bolts can feel 'welded' in place. The best non-welding methods involve liberal application of penetrating oil (allowing ample soak time, even overnight), followed by targeted heat cycles using a torch (heating the surrounding material, not just the bolt). This combination helps break the rust bond. Then, attempt removal with appropriate tools like vise grips, turbo sockets, or by drilling with left-hand drill bits.

Conclusion

You now possess a comprehensive understanding of how to safely and effectively tackle the frustrating problem of broken exhaust manifold bolts. From identifying the tell-tale signs to meticulously drilling out stubborn remnants and reassembling with precision, you're equipped for the challenge. Remember, the key lies in thorough preparation, selecting the right quality tools, understanding the various removal techniques – especially those that negate the need for a welder – and, crucially, prioritising safety at every turn.

While this can be a fiddly and time-consuming repair, the satisfaction of restoring your vehicle's smooth operation and preventing further damage is immense. Don't let a snapped bolt defeat you. With patience, precision, and the guidance provided here, you can confidently get your vehicle back on the road, breathing freely once more. Happy wrenching!
