Td5 Exhaust Manifold Stud Kits: A UK Guide

The Land Rover Td5 engine, a stalwart of many a Defender and Discovery 2, is renowned for its robust nature and off-road prowess. However, like any engine, it has its Achilles' heel. One particularly common and frustrating issue for Td5 owners is the exhaust manifold. Subjected to relentless heat cycles, the standard manifold is prone to warping, leading to a cascade of problems from irritating noises to performance degradation. This is where an uprated Td5 exhaust manifold stud kit, often paired with a high-performance manifold, becomes an indispensable upgrade.

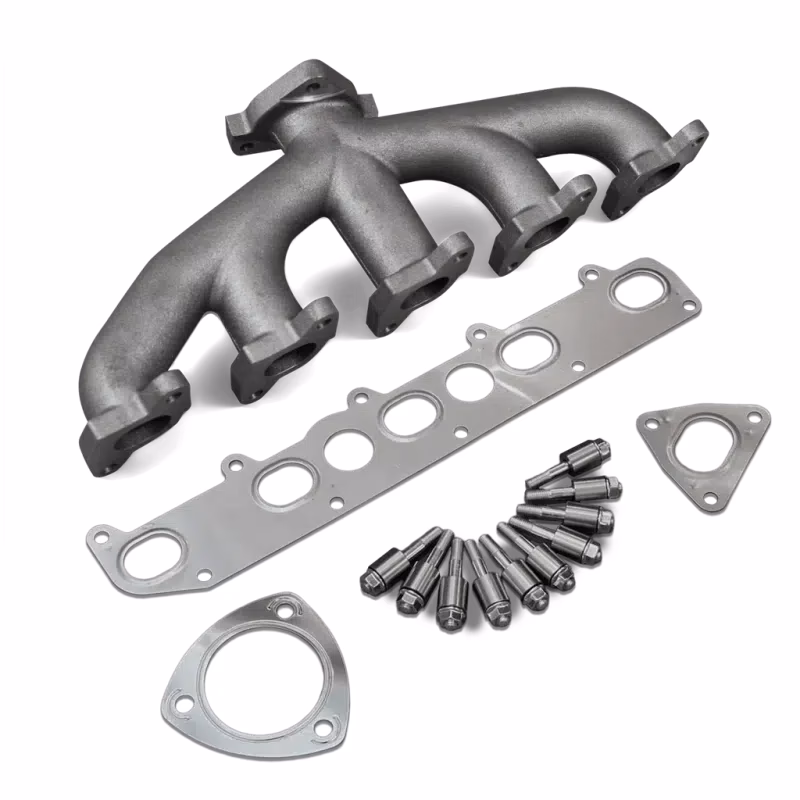

Understanding the Td5 Exhaust Manifold Stud Kit

At its core, a Td5 exhaust manifold stud kit is a comprehensive solution designed to address the inherent weaknesses of the original exhaust system components. It typically comprises not only an improved manifold but also a specially engineered set of studs and gaskets, all working in concert to provide superior longevity and performance.

The High-Flow Performance Manifold

Unlike standard manifolds, which are often susceptible to distortion under extreme temperatures, a high-flow performance manifold for the Td5 is engineered for resilience and efficiency. These manifolds are often cast with significantly thicker flanges, typically around 12mm, providing exceptional strength and rigidity. This robust construction is crucial because it prevents the manifold itself from warping, a common precursor to stud failure and exhaust leaks.

Beyond structural integrity, the design of these performance manifolds focuses on optimising gas flow. Improved gas flow means exhaust gases can exit the engine more efficiently, which in turn leads to several tangible benefits:

• Reduced Irregular Hot Spots: Better flow distributes heat more evenly across the manifold, preventing localised areas of extreme temperature that contribute to warping.
• Reduced Turbo Lag: A more efficient exhaust path allows the turbocharger to spool up faster, leading to a quicker response when you put your foot down. This reduction in turbo lag is particularly noticeable and appreciated by drivers.
• Eliminates Manifold Warping: The primary goal of the thicker cast design is to prevent the very issue that plagues standard manifolds. This is not merely a modified standard manifold; it's a purpose-built component designed to withstand the rigours of the Td5 engine environment.
• Improved Throttle Response: The overall efficiency gains from optimised gas flow translate directly into a more responsive and lively feel from the engine.

These performance manifolds are ideal for tuned vehicles, where the engine is producing more power and heat, but they also offer significant benefits to standard Td5 setups, enhancing their reliability and everyday drivability. Many high-quality kits also offer ceramic coating options in various colours, which further aids in heat management and offers a custom aesthetic.

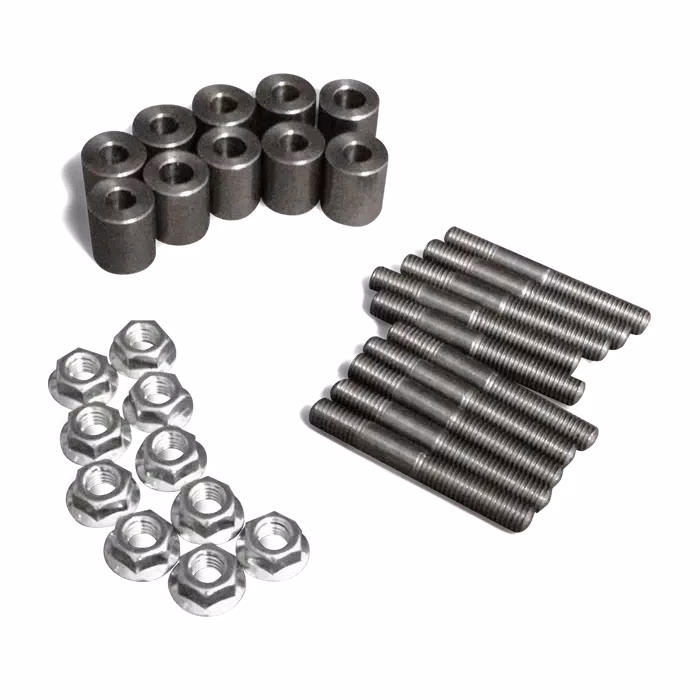

The Uprated Exhaust Manifold Stud Kit

Complementing the performance manifold is the uprated stud kit itself. This is a critical component designed specifically to prevent the notorious problem of studs breaking off in the cylinder head. This issue is frequently a direct consequence of manifold warping, which exerts immense stress on the studs, eventually causing them to shear.

The uprated studs are crafted from a higher grade material than standard studs, providing increased tensile strength and resistance to fatigue. Crucially, they are also typically longer than OEM studs and are supplied with expansion spacers and new flange nuts. The longer studs and spacers accommodate the thermal expansion and contraction that occurs within the exhaust system, reducing the stress on the studs. The nuts provided are also designed for optimal clamping force and longevity.

When fitting these new studs and nuts, it's vital to adhere to the correct torque specifications. For the Td5, the nuts should be tightened to 25 Nm (18 lbf.ft). This precise torque ensures adequate clamping without over-tightening, which could also lead to stud failure.

Included Gaskets

A complete kit will also include all necessary gaskets, ensuring a perfect seal and preventing leaks from day one. Typically, this includes:

• Manifold to head gasket
• Manifold to turbo gasket
• Turbo to exhaust downpipe gasket

These gaskets are just as important as the manifold and studs for ensuring a leak-free and efficient exhaust system.

The Dreaded Td5 Manifold Squeal: What Causes It?

One of the most common symptoms indicating a problem with your Td5 exhaust manifold is a distinctive high-pitched 'squeal' under heavy acceleration. This sound is not merely an annoyance; it's a clear indicator of an exhaust leak, almost invariably caused by a warped manifold pulling away from the cylinder head, or by broken/loose manifold studs.

As the engine heats up and cools down, the exhaust manifold expands and contracts. If the manifold is not robust enough (as is often the case with standard units), this continuous thermal cycling can cause it to distort and warp. When the manifold warps, it loses its flat mating surface against the cylinder head. This creates small gaps, allowing exhaust gases to escape under pressure, producing the characteristic squealing sound. The warping also places immense shearing forces on the manifold studs, leading to them eventually breaking, which exacerbates the leak and the noise.

The uprated stud kit, with its stronger material, longer design, and expansion spacers, directly addresses this stress. When combined with a warp-resistant performance manifold, it effectively eliminates the root cause of the squeal and the risk of future stud breakage.

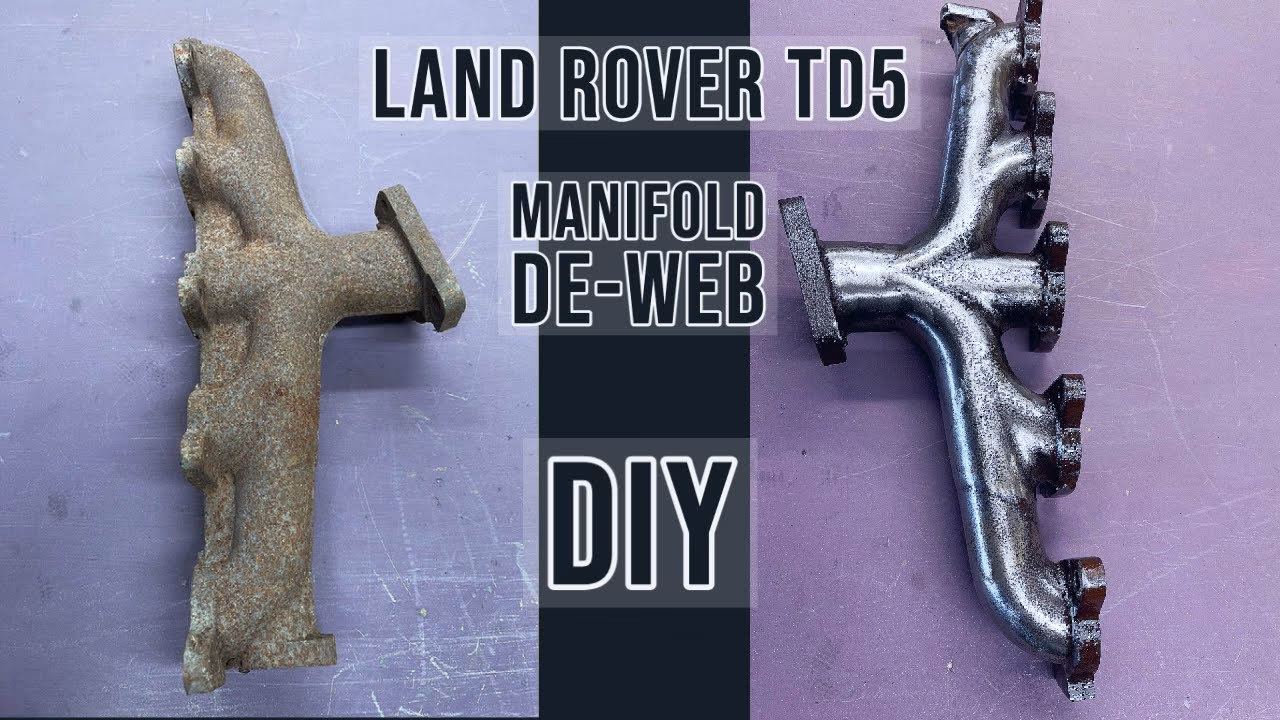

How to Fix Stuck Exhaust Manifold Studs

If you're upgrading your Td5's exhaust manifold or simply trying to replace a broken stud, you might encounter the challenging task of removing old, seized exhaust manifold studs. After years of exposure to extreme engine temperatures, rust, and corrosion, these studs can become virtually fused to the engine block. Patience and the right techniques are paramount. Here are several tried-and-tested methods to help you get those stubborn studs out:

Step 1: Hammer Time (Gentle Coaxing)

Sometimes, all a seized stud needs is a little persuasion. A few firm, sharp taps with a hammer directly onto the end of the stud can be surprisingly effective. The sudden jolt can help to break the bond that rust and corrosion have formed between the stud and the engine block. Be cautious not to hit too hard, as your goal is to break the seal, not to bend or snap the stud further. This method is best for studs that are seized but not yet broken flush with the surface.

Step 2: Leverage with a Cheater Bar

This is one of the simplest yet most effective tricks for stubborn fasteners. If you can get a spanner or socket onto the stud, adding a length of sturdy iron pipe to the handle of your wrench or ratchet will significantly increase your leverage. The longer the handle, the more torque you can apply with less effort, making it easier to loosen the seized stud. Once the stud begins to move, proceed carefully to prevent the pipe from slipping and potentially damaging other engine components. Always ensure a secure grip on the wrench and pipe.

Step 3: Penetrating Lubricant Spray

An industrial-strength penetrating lubricant spray is a mechanic's best friend when dealing with seized fasteners. These lubricants are designed to wick into tiny crevices, breaking down rust and corrosion. Apply the lubricant generously using a directional nozzle or straw, ensuring it gets directly between the exhaust manifold stud and the engine block. Avoid getting it on the stud head itself if you plan to use heat later, as some lubricants can be flammable. For best results, allow the penetrating lubricant to soak overnight. The longer it has to work, the better its chances of breaking the bond.

Step 4: Block Heating

The principle here is to expand the material around the stud, creating a slight gap that allows the stud to turn. Using a hand-held torch, carefully heat the engine block material directly surrounding the exhaust manifold stud. Get the area as hot as possible without causing damage to surrounding components. As the block heats up, it will expand, momentarily loosening its grip on the stud. You must work quickly once the block is hot, attempting to turn the stud before the heat transfers to the stud itself, causing it to expand as well. This method often requires patience, as you'll need to allow the block to cool down completely before repeating the process for subsequent studs.

Step 5: Fire and Ice (Thermal Shock)

This method employs the principle of thermal shock to break the rust bond. It's a faster alternative to block heating but requires more precision. Use your torch to heat the exhaust manifold stud itself directly. Get the stud as hot as possible, ideally to a dull red glow, but without deforming its shape. Immediately after heating, grab a pair of tongs and hold an ice cube directly onto the heated stud. You will hear hissing, see steam, and experience spluttering – this is normal. The rapid cooling causes the stud to contract suddenly and dramatically. Once the first ice cube has melted, apply a second ice cube for approximately one minute. The drastic and sudden change in the stud's temperature and its quick contraction will break the seal that rust has formed between the stud and the engine block. This thermal shock often provides the necessary release to free the most stubborn studs.

Always exercise extreme caution when using open flames and heat around engine components. Ensure proper ventilation, have a fire extinguisher nearby, and wear appropriate personal protective equipment, including heat-resistant gloves and eye protection.

Benefits of Upgrading Your Td5 Exhaust Manifold & Studs

Upgrading your Td5's exhaust manifold and stud kit isn't just about fixing a problem; it's about enhancing the overall performance and longevity of your Land Rover. Here's a summary of the compelling benefits:

• Enhanced Reliability: The primary benefit is eliminating the common issue of manifold warping and stud breakage, ensuring a more reliable and leak-free exhaust system.
• Improved Performance: Reduced turbo lag and enhanced throttle response contribute to a more enjoyable driving experience, whether on the road or tackling challenging terrain.
• Cost Savings: Preventing recurring issues like broken studs and exhaust leaks saves you time and money on future repairs.
• Reduced Noise: Say goodbye to that irritating exhaust squeal, ensuring a quieter and more refined engine operation.
• Durability: Higher-grade materials and thicker castings mean your new manifold and studs are built to last, enduring the harsh conditions under the bonnet.

Comparative Table: Standard vs. Uprated Td5 Manifold/Studs

Frequently Asked Questions (FAQs)

Q: What causes the squealing sound from my Td5 engine?

A: The high-pitched squeal, especially under heavy acceleration, is typically caused by a warped exhaust manifold creating a leak where it bolts to the cylinder head. This warping puts immense stress on the manifold studs, often leading to them breaking, which further exacerbates the exhaust leak and the characteristic squeal.

Q: Can I just replace the studs, or do I need the full manifold kit?

A: While you can technically replace just the studs, it's highly recommended to consider the full uprated manifold and stud kit. If your manifold has warped (which is often the underlying cause of stud breakage), simply replacing the studs will likely lead to the new studs failing again as the warped manifold continues to stress them. The full kit addresses the root cause by providing a warp-resistant manifold and studs designed to withstand thermal expansion.

Q: Is this kit suitable for a standard (non-tuned) Td5?

A: Absolutely. While ideal for tuned vehicles, the benefits of reduced turbo lag, improved throttle response, and significantly enhanced reliability are equally valuable for standard Td5s. It's a preventative measure that saves you from future headaches and potential repair costs.

Q: What torque should I apply to the manifold nuts?

A: When installing the uprated exhaust manifold stud kit, the nuts should be tightened to 25 Nm (18 lbf.ft). Always use a torque wrench to ensure accurate and even tightening, which is crucial for preventing future issues.

Q: Why are the uprated studs longer and come with expansion spacers?

A: The longer design and expansion spacers are crucial for accommodating the natural thermal expansion and contraction of the exhaust manifold as the engine heats up and cools down. This design significantly reduces the stress placed on the studs, preventing them from fatiguing and breaking, a common issue with standard studs that are often too short to properly manage these thermal movements.

Conclusion

For any Land Rover Td5 owner, understanding and addressing potential exhaust manifold issues is key to maintaining engine health and performance. An uprated Td5 exhaust manifold stud kit, combined with a high-flow performance manifold, represents a significant upgrade that offers not only a permanent solution to common problems like manifold warping and stud breakage but also tangible improvements in driveability and reliability. Investing in such a kit means saying goodbye to that irritating squeal and enjoying your Td5 for many more miles to come, with peace of mind that its exhaust system is built to withstand the rigours of the road and beyond.
