SRAM Code R Disc Brakes: Your Ultimate Guide

When it comes to controlling speed on the toughest trails, your bike's braking system is paramount. For riders tackling everything from challenging enduro stages to demanding downhill tracks and the added heft of electric mountain bikes, the need for reliable, powerful stoppers is non-negotiable. SRAM's Code family of brakes has long been a go-to choice for gravity-focused riders, renowned for their formidable stopping power. But what about the Code R, the entry-level offering in this high-performance lineage? Is it a good brake, and more importantly, should it be your next upgrade?

Unpacking the SRAM Code Family: Power at its Core

SRAM's Code brakes are purpose-built for serious stopping. At their heart, they feature robust four-piston calipers, a design choice that immediately signals their intent for high-demand applications. These aren't your average trail brakes; they're engineered to handle the sustained forces and heat generated during aggressive riding, ensuring consistent performance when you need it most. A notable innovation across the Code line is the 'head shield' technology, meticulously designed to manage heat and maintain braking integrity, regardless of how steep or long the descent.

The Code family offers different tiers, with the Code R representing the most accessible entry point. While it shares the core four-piston power and heat management principles with its siblings, it differentiates itself through a more streamlined lever design and fewer adjustability options compared to the more premium Code RSC. This strategic positioning makes the Code R a compelling option for riders seeking Code-level power without the top-tier price tag.

SRAM Code R vs. Code RSC: Understanding the Differences

To truly appreciate the Code R, it's helpful to understand where it stands in relation to its more expensive counterpart, the Code RSC. Both brakes deliver immense stopping power, but their lever mechanisms introduce distinct differences in feel and adjustability. The Code R employs SRAM's 'DirectLink' pivot, a straightforward design where the lever directly actuates the master cylinder. This results in a degree of lever free stroke before the pads engage the rotor, which for some riders might mean running their levers a touch further out to achieve their preferred bite point.

In contrast, the Code RSC features SRAM's 'SwingLink' technology. This clever cam system effectively reduces the dead stroke in the lever's movement, meaning the pads move further per unit of lever travel earlier in the stroke. The result is a more immediate and responsive feel at the lever, often preferred by riders who desire a very crisp, short lever throw to reach their bite point. Furthermore, the Code RSC offers external bite-point adjustment, a feature conspicuously absent on the Code R. This allows RSC users to fine-tune exactly where in the lever's travel the pads engage, a level of customisation that the Code R, with its budget-friendly focus, simply doesn't provide.

Despite these differences in lever feel and adjustability, it's crucial to note that both models ultimately deliver exceptional power. The choice largely boils down to whether you prioritise maximum customisation and a specific lever feel, or if you're content with a more direct, powerful, and cost-effective approach.

Key Differences at a Glance

A Deep Dive into the Code R's Specifications

The SRAM Code R might be the entry point, but it's packed with features that contribute to its robust performance. The lever blade itself is crafted from aluminium, providing a solid, reassuring feel under the finger. It's designed with a relatively straight profile, slightly longer than some competitors, culminating in an upturned end to help keep your finger securely in place during aggressive braking. The surface of the blade is smooth, offering a clean aesthetic and feel.

Adjustment on the Code R is limited to lever reach, but this is managed via a convenient external dial. While it provides a good range of adjustment, you might find it easier to rotate the dial if you push the lever blade out slightly while twisting. This small tip can save a bit of fiddling on the trail.

The brake attaches to your handlebar using SRAM's versatile Matchmaker clamp. This hinged, separate item securely holds the brake lever body with a T25 bolt. While some riders find the initial setup a bit fiddly – aligning the clamp and body while threading the bolt – once it's done, it provides a very clean cockpit. A major benefit of the Matchmaker system is its seamless integration with SRAM shifters or dropper levers, allowing for a single clamp to manage multiple controls. Even if you're running Shimano components, aftermarket adaptors are readily available, ensuring broad compatibility.

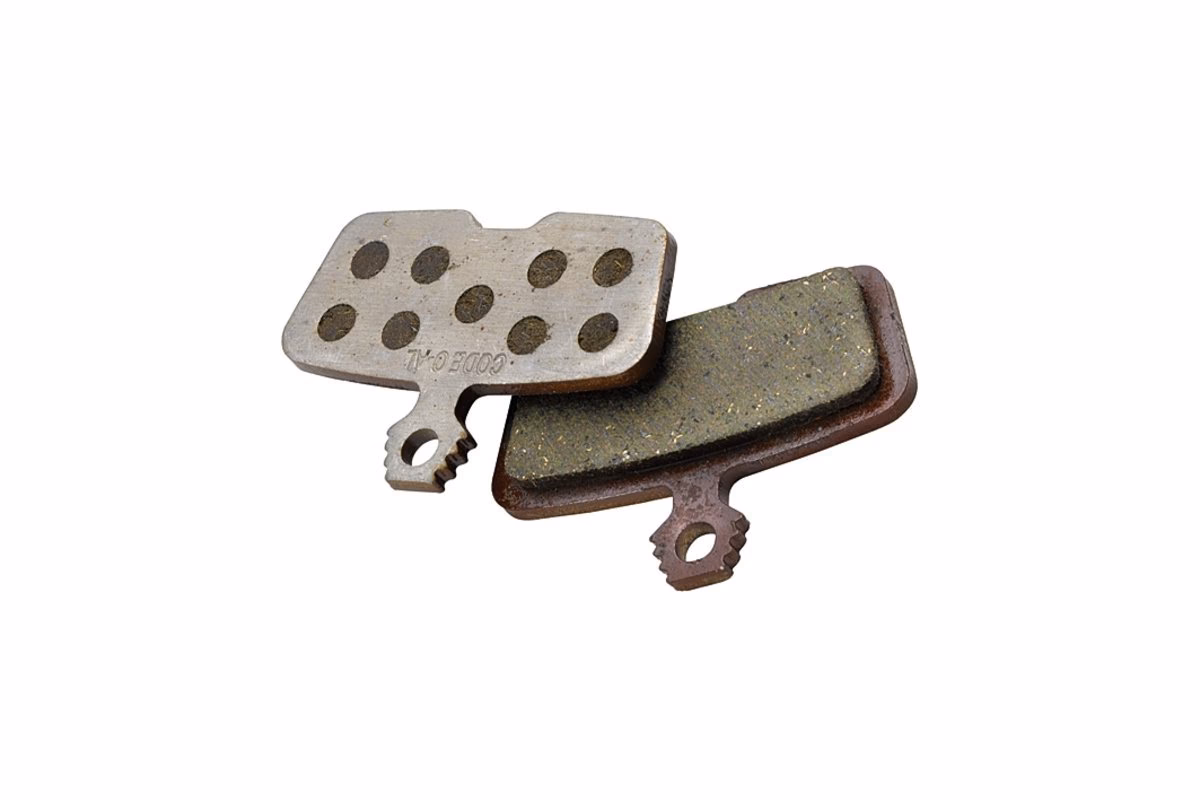

The caliper is a two-piece aluminium unit, housing a long sintered brake pad. These pads are securely held in place with a single bolt, making pad changes relatively straightforward. A crucial detail is the small metal heat shield that separates the leading edge of the pad's backing plate from the caliper body. SRAM proudly states that this can reduce caliper fluid temperatures by an impressive 20 degrees Celsius, a significant factor in preventing brake fade on long, sustained descents.

Hose routing is aided by an adjustable banjo connection where the hose leaves the caliper, allowing for optimal cable management at the rear end of your bike. Furthermore, SRAM's 'flip-flop' design for the brake lever means it can be used on either side of the handlebar, a feature that necessitates all Code R brakes come with a relatively long hose, ready to be cut to your specific bike's requirements. Cutting and bleeding the hoses is a straightforward process with the correct tools, facilitated by a neat barb-and-olive setup where the barb screws into the hose, and the olive screws onto the barb.

Bleeding Code R brakes is best performed using SRAM’s proprietary Bleeding Edge tool. While this does represent an additional expense, the system is designed for consistent, mess-free bleeds, significantly reducing oil spillage compared to other methods. The process might take a little longer in practice, but the reliability of the bleed is a worthwhile trade-off for optimal performance.

Performance on the Trail: Experiencing Code R Power

In real-world testing, particularly when paired with SRAM's HS2 rotors (which are specifically designed to enhance power and reduce noise), the Code R brakes truly shine. It's immediately apparent why Code brakes are so popular with gravity-fed riders: they offer power in buckets, backed up by commendable control. The ability to easily achieve maximum stopping force with just a single finger on the lever is a testament to their robust design and powerful hydraulics. I experienced next to no lever-body flex, contributing significantly to a crisp and direct feel at the lever, which is vital for precise braking.

As mentioned, due to the DirectLink pivot, there can be a noticeable amount of lever free stroke before the pads make contact with the rotor, particularly with a factory bleed. This isn't a flaw, but rather a characteristic of the design. Riders accustomed to less free stroke might find themselves running the levers a touch further out to achieve their preferred bite point. However, once the pads engage, the initial power is good but not overly grabby, which is crucial for maintaining front wheel grip on loose or slippery surfaces. As you pull the lever further, the full force of the brake comes through, building predictably in a linear fashion. Right at the end of the lever’s stroke, the power culminates in a veritable crescendo, providing some of the best maximum stopping force available. These brakes perform exceptionally well on both downhill bikes and heavy e-MTBs, confirming their suitability for the most demanding applications.

For their cost, the Code R brakes are, on the face of it, exceptional. Their widespread use on test bikes across the industry is a clear indicator of their popularity and trusted performance. This combination of significant stopping power and a relatively accessible price point makes them a highly attractive option for a wide range of riders.

The Importance of Maintenance for Consistent Performance

While the Code R offers outstanding performance, it's not entirely set-and-forget. A common observation among users, myself included, is that the caliper pistons can, over time, become a bit sticky. This is not unique to SRAM brakes but is a characteristic that requires occasional attention to ensure consistent, optimal performance. When pistons stick, their ability to self-adjust for pad wear is compromised. This means you might find the bite point gradually moving closer to the handlebar as pads wear down, necessitating more frequent lever-reach adjustments to compensate, especially given the absence of dedicated bite-point adjustment on the Code R.

Regular maintenance, such as carefully cleaning the pistons and applying a small amount of brake fluid or specific brake lubricant around them, can go a long way in keeping them moving freely within the caliper. This simple routine ensures that the pads advance correctly as they wear, maintaining a consistent lever feel and preventing the need for constant reach adjustments. Neglecting this maintenance can lead to a less predictable bite point and reduced overall braking efficiency over time. Investing a little time in care will significantly extend the life and performance consistency of your Code R brakes.

Is the SRAM Code R the Right Brake for You?

So, should you use SRAM Code R disc brakes? The answer largely depends on your riding style, priorities, and budget. If you're a gravity-focused rider – whether on an enduro bike, a downhill rig, or an e-MTB – and you demand serious, consistent stopping power without breaking the bank, the Code R is an outstanding choice. Its ability to deliver power in buckets, combined with good modulation and a solid lever feel, makes it a highly competent performer on the trails. It's a truly pocket-friendly option for the performance it provides.

However, if you're a rider who values ultimate adjustability, particularly external bite-point adjustment, or if you prefer a minimal lever free stroke right from the initial pull, then the pricier Code RSC might be a more suitable investment. For the Code R, you'll need to be prepared for the occasional piston maintenance to ensure they continue to perform consistently. This is a small trade-off for the excellent value and power they offer.

Ultimately, the Code R is not the lightest brake on the market, nor is it the most feature-laden. But in terms of sheer stopping power per pound spent, there are few brakes that can genuinely compete. As long as you stay on top of the straightforward maintenance of keeping those caliper pistons moving freely, the Code R will serve you reliably and powerfully for countless miles of demanding riding.

Frequently Asked Questions (FAQs)

Is SRAM Code R a good brake for downhill riding?

Absolutely. The SRAM Code R is part of SRAM's gravity-focused brake line. Its four-piston caliper design and ability to deliver immense stopping power make it highly suitable for the demands of downhill riding, offering the necessary control and fade resistance for long, steep descents. When paired with SRAM HS2 rotors, its performance is particularly impressive.

What is the main difference between SRAM Code R and Code RSC?

The primary difference lies in the lever design and adjustability. The Code R uses a DirectLink pivot, which results in more lever free stroke and lacks external bite-point adjustment. The Code RSC, on the other hand, features SwingLink technology, which reduces dead stroke and offers external bite-point adjustment, allowing for a more immediate and customisable lever feel.

Do I need a special tool to bleed SRAM Code R brakes?

Yes, SRAM recommends using their proprietary Bleeding Edge tool for bleeding Code R brakes. While it's an additional purchase, this tool is designed to make the bleeding process more consistent and cleaner, significantly reducing oil spillage compared to traditional methods.

Are SRAM Code R brakes powerful enough for an e-MTB?

Yes, definitely. Electric mountain bikes are heavier and can generate more speed, placing higher demands on braking systems. The SRAM Code R's robust four-piston design and powerful stopping capabilities are well-suited to handle the increased weight and speeds of e-MTBs, providing reliable and consistent braking performance.

Why do my SRAM Code R pistons get sticky, and how can I fix it?

It's a common characteristic for brake caliper pistons, including those on Code R, to become sticky over time due to dirt, debris, and brake dust accumulation. This can impact their ability to retract and advance properly. To fix this, you'll need to clean the pistons. Carefully push the pads back, clean around the exposed pistons with a clean cloth, and then gently actuate the lever to extend the pistons slightly. Clean them again, then apply a small amount of SRAM DOT brake fluid or a compatible piston lubricant around the piston seals before pushing them back into the caliper. Regular cleaning will help maintain smooth operation.

Can I use my existing rotors with SRAM Code R brakes?

While SRAM Code R brakes are compatible with most standard disc brake rotors, it's highly recommended to pair them with SRAM's HS2 rotors for optimal performance. The HS2 rotors are designed to complement the Code brakes, enhancing both power and reducing noise, leading to a superior braking experience.

The Bottom Line

The SRAM Code R is a truly great brake, especially when you consider its relatively pocket-friendly price point. It might not be the lightest option available, nor the most feature-laden, lacking the fine-tuning capabilities of its pricier RSC sibling. However, when it comes to raw, unadulterated stopping power, there are genuinely few brakes that can offer a better performance-to-cost ratio. This brake delivers the kind of power that inspires confidence on the steepest descents and under the most demanding conditions, making it a favourite among gravity riders and e-MTB enthusiasts alike.

Its consistent performance is a major selling point, provided you commit to a little bit of straightforward maintenance. Keeping those caliper pistons moving freely is key to ensuring the brake continues to adjust for pad wear effectively and maintains a consistent lever feel. If you're seeking a powerful, reliable, and economically sensible brake for aggressive riding, the SRAM Code R stands out as a formidable contender that won't disappoint.
