In the bustling world of vehicle maintenance, wheel alignment stands as a cornerstone service, crucial for ensuring optimal vehicle performance, prolonging tyre life, and enhancing driving safety. For any professional garage or workshop, investing in the right wheel alignment equipment is not just an expense; it's a strategic move that can significantly impact efficiency, customer satisfaction, and ultimately, profitability. But with a myriad of options available, discerning which system best suits your operational needs can be a daunting task. This comprehensive guide will navigate you through the various types of alignment equipment, highlight leading technologies, and provide essential considerations to help you make an informed decision.
Proper wheel alignment ensures that all four wheels are parallel to each other and perpendicular to the ground, according to the manufacturer's specifications. This precise adjustment influences how your vehicle handles, how long your tyres last, and even your fuel economy. Misaligned wheels can lead to uneven tyre wear, pulling or drifting, and increased fuel consumption, making a reliable alignment service an indispensable offering for any modern workshop.
Understanding the Different Types of Wheel Alignment Equipment
The evolution of wheel alignment technology has presented workshops with increasingly sophisticated tools. From traditional methods to cutting-edge digital systems, each type offers distinct advantages. Understanding these differences is key to selecting equipment that aligns with your service goals and budget.
1. Laser Alignment Equipment
Laser alignment systems represent a more traditional, yet still effective, approach to wheel alignment. These systems typically utilise laser beams to measure toe angles, providing a straightforward and relatively quick assessment. They come in configurations for both two-wheel and four-wheel alignment, making them versatile for various vehicle types and workshop needs.
- 2-Wheel Laser Aligner: Often considered a good entry-level option or for specific tasks, a 2-wheel laser aligner primarily focuses on the front axle. While it can identify basic toe issues, it doesn't provide a full picture of the vehicle's alignment geometry. It's generally more affordable and requires less space, making it suitable for smaller garages or home enthusiasts looking to perform basic checks.
- 4-Wheel Laser Aligner: A significant step up, the 4-wheel laser aligner provides a more comprehensive assessment by measuring all four wheels. This allows for adjustments that consider the thrust angle and ensures all wheels are tracking correctly. While still relying on laser technology, these systems offer a more complete solution for professional workshops dealing with a wider range of alignment issues. They are known for their simplicity of use and robust nature, often requiring less complex calibration than computerised systems.
Laser aligners are generally durable and can be a cost-effective solution for workshops that require reliable, no-frills alignment capabilities. They are a solid choice for those prioritising ease of use and a lower initial investment.
2. Mobile CCD Wheel Alignment Equipment (8-CCD Computerised)
Moving into the realm of computerised systems, CCD (Charge-Coupled Device) wheel aligners offer enhanced accuracy and data processing capabilities. An 8-CCD system, for instance, involves sensors mounted on each wheel, which communicate wirelessly with a central computer. These sensors measure various angles, including toe, camber, and caster, providing a detailed and comprehensive alignment report.
The 'mobile' aspect often refers to the flexibility of these systems, allowing them to be used in different bays or even mobile service vans. The computerised aspect means faster calculations and the ability to store vehicle specifications, compare measurements, and print detailed reports for customers. This level of detail and automation significantly improves service efficiency and customer understanding.

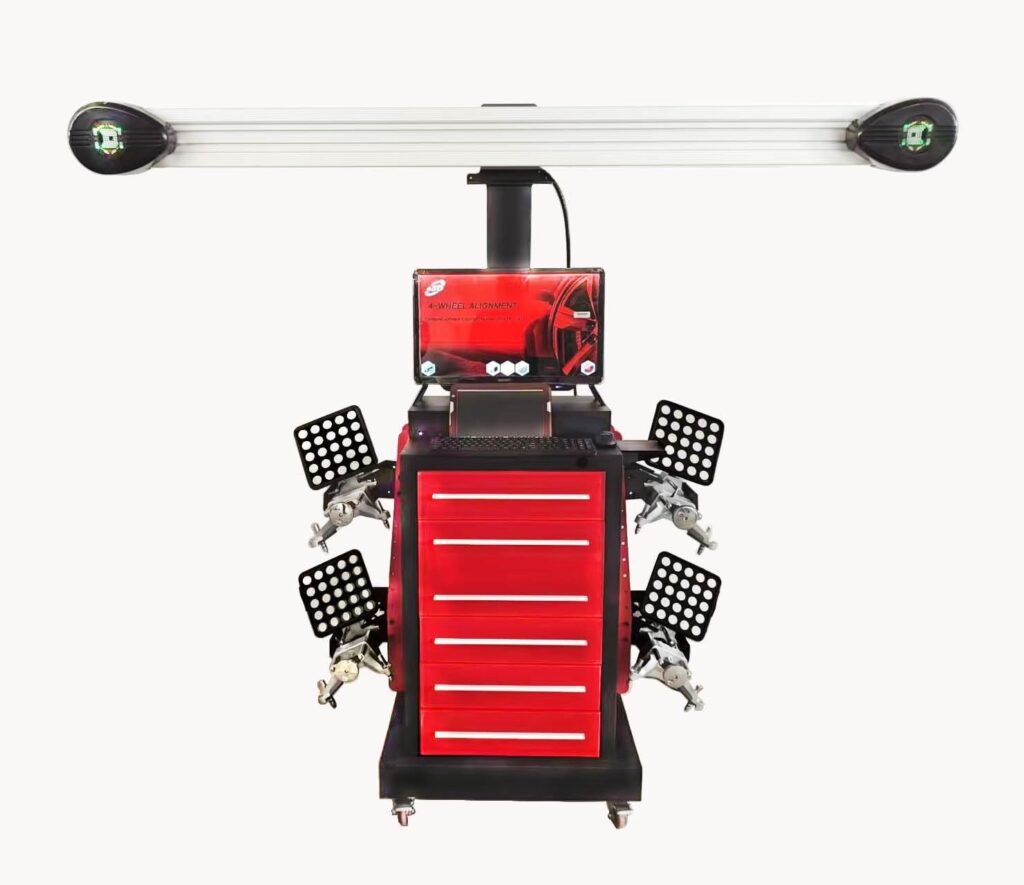

3. 3D Computerised Wheel Aligners (Imaging Alignment)
At the forefront of wheel alignment technology are 3D computerised or imaging alignment systems. These systems utilise advanced camera technology and reflective targets placed on each wheel. The cameras capture precise 3D images of the targets, allowing the computer to instantly calculate all alignment angles with incredible precision. This technology is renowned for its speed and accuracy, often delivering measurements in mere seconds.
The Hunter Elite TD system, for example, is highlighted as one of the most powerful four-wheel alignment systems available. It leverages imaging alignment to achieve the fastest measurement times with highly accurate results. Similarly, the Hunter WinAlign HS223 is noted for getting alignment measurements in as little as 70 seconds. This rapid data acquisition translates directly into increased workshop efficiency, allowing technicians to complete more alignments in a shorter timeframe, thereby boosting productivity and throughput.
3D systems often feature user-friendly interfaces, guided adjustment procedures, and comprehensive databases of vehicle specifications. They are ideal for high-volume workshops that demand the utmost in speed, accuracy, and detailed diagnostic capabilities.
Leading Brands and Their Contributions
When considering an investment in wheel alignment equipment, it's beneficial to be aware of the key players in the market known for their quality and innovation.
Hunter Alignment Systems
Hunter Engineering is globally recognised as a leader in automotive service equipment, and their wheel alignment systems are particularly esteemed. As mentioned, models like the Hunter Elite TD stand out for their advanced imaging technology, delivering unparalleled speed and accuracy. Their WinAlign software platform is powerful and intuitive, making complex alignment procedures straightforward for technicians. Hunter's commitment to innovation means their systems are often at the cutting edge, offering features that enhance productivity and diagnostic capabilities.
Ravaglioli (via Supalign)
Ravaglioli is described as Europe's leading manufacturer of workshop equipment and wheel alignment technology, often referred to as the 'gold standard' in the industry. Suppliers like Supalign, a division of the long-established JHM Butt brand in the UK, partner with Ravaglioli to supply their high-quality tools. This partnership ensures that workshops have access to robust, reliable, and technologically advanced equipment designed for demanding professional environments. Ravaglioli's reputation for durability and performance makes their systems a trustworthy choice for serious workshops.
Quicktrak (via Garage Equipment Online)
Quicktrak equipment, supplied by companies like Garage Equipment Online (GEO), is highlighted for its durability and outstanding reputation for producing high-quality wheel alignment equipment. GEO emphasizes its commitment to quality service and product reliability, ensuring that Quicktrak systems meet the stringent CE certification requirements and come with a full year manufacturer's warranty. Quicktrak's focus on maintaining high volumes of spare parts with a 24-hour delivery aim for replacement parts underscores their commitment to customer support and minimising downtime for workshops. Quicktrak offers a range suitable for home enthusiasts, track day racers, and professional mechanics alike, providing flexible solutions.
How to Choose the Right Wheel Aligner for Your Workshop
Selecting the optimal wheel alignment system requires careful consideration of several factors beyond just the technology itself. It's about finding a solution that integrates seamlessly with your operations and provides long-term value.
1. Assess Your Workshop's Needs and Budget
Before looking at specific models, determine your workshop's volume of alignment work, the types of vehicles you service (passenger cars, light commercial, heavy goods), and your available space. A high-volume workshop focusing on modern vehicles might benefit most from a fast 3D imaging system, while a smaller garage or specialist might find a robust CCD or laser system more appropriate. Establish a realistic budget that accounts for the initial purchase, installation, and ongoing maintenance.
2. Consider the Technology Level Required
As discussed, laser, CCD, and 3D imaging systems offer different levels of accuracy, speed, and features. For basic toe adjustments, a laser system might suffice. For comprehensive measurements and detailed reports, a CCD system is a good step up. For maximum efficiency, precision, and advanced diagnostics, a 3D imaging system is the top choice. Your choice should align with the level of service you intend to provide and your customer base's expectations.
3. Durability and Reliability
Workshop equipment is a significant investment, and you need it to withstand the rigours of daily use. Look for systems from reputable manufacturers known for their robust build quality and long operational life. Information about components, material quality, and user reviews can provide insight into a system's durability.
4. Manufacturer Support and Warranty
A comprehensive manufacturer's warranty is essential, providing peace of mind against defects or failures. Beyond the warranty, evaluate the manufacturer's or supplier's commitment to after-sales support. This includes technical assistance, troubleshooting, and the availability of replacement parts. A supplier with a strong reputation for customer service and readily available spare parts, like Quicktrak's commitment to 24-hour part delivery, can be invaluable in minimising downtime.
5. Training and Ease of Use
Even the most advanced system is only as good as the technician operating it. Inquire about training programmes offered by the supplier. Some suppliers, like Supalign, specifically highlight their wheel alignment training. An intuitive user interface and clear software guidance can significantly reduce the learning curve and improve operational efficiency. Systems that simplify complex procedures allow technicians to perform alignments quickly and accurately.
6. Calibration Tools and ADAS Compatibility
Modern vehicles are increasingly equipped with Advanced Driver-Assistance Systems (ADAS), such as lane-keeping assist and adaptive cruise control. Many ADAS sensors are linked to wheel alignment, meaning that after an alignment, these systems may also require recalibration. Some advanced wheel alignment systems or suppliers offer integrated ADAS calibration tools, or at least compatibility, making your workshop a one-stop shop for comprehensive vehicle servicing. This is a crucial consideration for future-proofing your investment.
7. Delivery and Installation Services
Consider whether the supplier offers professional delivery and installation services. Companies like Garage Equipment Online can supply, deliver, and install equipment with minimal fuss, ensuring that your new aligner is set up correctly and ready for immediate use. This can save you time and potential headaches, allowing you to focus on your core business.
Comparative Overview of Alignment Technologies
To further assist your decision, here's a brief comparison of the main types of wheel alignment technologies:
| Feature | Laser Aligner | CCD Computerised Aligner | 3D Imaging Aligner |
|---|---|---|---|
| Accuracy | Good for basic checks | Very Good, comprehensive data | Excellent, highest precision |
| Speed | Moderate | Fast, automated calculations | Extremely Fast (e.g., 70 seconds) |
| Ease of Use | Simple, manual adjustments | Automated, user-friendly software | Highly intuitive, guided procedures |
| Cost | Lowest initial investment | Mid-range investment | Highest initial investment |
| Features | Toe measurement primarily | Toe, camber, caster, thrust angle | Full geometry, advanced diagnostics, ADAS potential |
| Space Req. | Low | Moderate | Moderate to High (for camera towers) |
Frequently Asked Questions About Wheel Alignment Equipment
Q1: What's the main difference between 2-wheel and 4-wheel alignment systems?
A 2-wheel alignment system primarily focuses on adjusting the front wheels relative to the vehicle's centreline. While it corrects steering issues, it doesn't account for the rear wheels' alignment or how they track relative to the front. A 4-wheel alignment system, on the other hand, measures and adjusts all four wheels, ensuring they are parallel to each other and perpendicular to the ground. This provides a complete picture of the vehicle's alignment geometry, correcting issues like 'crabbing' and ensuring optimal tyre wear and handling for modern vehicles.
Q2: Why is computerised alignment considered superior to traditional methods?
Computerised alignment systems, particularly CCD and 3D imaging types, offer significant advantages over traditional manual methods. They provide faster measurements, superior accuracy due to advanced sensor or camera technology, and the ability to instantly compare readings against extensive vehicle specification databases. Furthermore, they generate detailed reports for customers, enhancing transparency and trust, and often guide technicians through the adjustment process, reducing human error.
Q3: Do I need a wheel alignment lift in addition to the aligner?
While some alignment systems can be used on a flat surface, a dedicated wheel alignment lift is highly recommended for professional workshops. These lifts are designed to provide a perfectly level surface, which is critical for accurate measurements, and often feature built-in turning plates and slip plates. Using a proper alignment lift significantly improves the efficiency and accuracy of the alignment process, making it safer and more convenient for technicians to work on the vehicle.
Q4: How important is after-sales support and spare parts availability?
After-sales support and the availability of spare parts are critically important. Equipment breakdowns can halt your operations, leading to lost revenue and frustrated customers. A supplier with a robust support network, readily available spare parts (ideally with quick delivery times), and responsive technical assistance ensures that any issues can be resolved swiftly, minimising downtime and protecting your investment. This ongoing support is often as crucial as the initial quality of the equipment itself.
Q5: Can wheel alignment equipment be used for ADAS calibration?
While wheel alignment equipment itself doesn't directly perform ADAS (Advanced Driver-Assistance Systems) calibration, it plays a foundational role. Many ADAS sensors, such as those for lane-keeping assist or adaptive cruise control, are sensitive to vehicle geometry. Therefore, a precise wheel alignment is often a prerequisite before ADAS calibration can be performed. Some advanced alignment systems are designed with ADAS compatibility in mind, offering integrated solutions or clear guidelines for the subsequent calibration process, allowing workshops to provide a complete service for modern vehicles.
In conclusion, choosing the right wheel alignment equipment is a pivotal decision for any automotive service provider. It's about balancing technological advancement with practical needs, considering factors like accuracy, speed, ease of use, durability, and crucial after-sales support. Whether you opt for a reliable laser system, a versatile CCD aligner, or the cutting-edge precision of a 3D imaging system, investing wisely will not only enhance your workshop's capabilities but also solidify your reputation as a provider of top-tier vehicle maintenance services. By carefully evaluating your requirements and understanding the market, you can ensure your garage is equipped to deliver the best possible wheel alignment service for years to come.
