For enthusiasts of classic cars, the dilemma often arises: how to retain the timeless appeal of vintage motoring while embracing the efficiency and reliability of modern technology? The answer frequently lies in upgrading the fuel delivery system. One of the most popular and accessible pathways to this modernisation is through Throttle Body Fuel Injection (TBI). This system offers a compelling bridge between traditional carburetted setups and advanced electronic fuel injection, providing a significant performance uplift with surprising ease of installation.
Historically, carburettors were the heart of fuel delivery, mixing air and fuel before it entered the engine. While iconic, they often presented challenges with cold starts, fuel economy, and consistent performance across varying conditions. TBI emerged as a direct replacement, designed to bolt directly onto existing intake manifolds, offering a much-needed upgrade without requiring a complete engine overhaul. It’s a solution that brings the precision of electronic fuel delivery to the familiar footprint of a four-barrel carburettor.
What is Throttle Body Fuel Injection (TBI)?
Throttle Body Fuel Injection, at its core, is an electronic fuel delivery system that replaces a traditional carburettor. Instead of relying on vacuum and venturi effect to draw fuel, TBI systems use electronically controlled fuel injectors mounted directly within a central throttle body unit. This unit typically bolts onto the same intake manifold as a carburettor, making it a relatively straightforward swap for many classic vehicles that originally featured a square bore or spread bore style four-barrel carburettor.
The primary function of the TBI unit is to regulate the airflow into the engine, much like a carburettor's throttle plates do. However, the crucial difference lies in the fuel delivery. Instead of a float bowl and jets, TBI employs one or two fuel injectors positioned above the throttle plates. These injectors spray a finely atomised mist of fuel directly into the incoming air stream, which then travels down the manifold runners to the cylinders. An electronic control unit (ECU), often integrated directly into the throttle body itself, manages the precise amount of fuel to be injected based on various engine parameters, such as engine speed, load, and oxygen levels in the exhaust.
This integrated ECU is a game-changer for simplicity. Unlike more complex multi-port fuel injection systems that often require a separate computer unit mounted within the vehicle's cabin or firewall, a TBI system with an integrated ECU keeps the wiring neat and tidy. Typically, only a handful of essential wires – often as few as four – are needed to get the system up and running, drastically simplifying the installation process for the average enthusiast.
TBI vs. Carburettors: A Modern Performance Upgrade
The decision to switch from a carburettor to a TBI system is often driven by a desire for improved performance, reliability, and efficiency. While carburettors have their charm, TBI offers several compelling advantages:
- Improved Cold Starts: Carburettors can be notoriously finicky on cold mornings, often requiring multiple cranks and manual choke adjustments. TBI systems, with their electronic control, prime the fuel system and adjust fuel delivery precisely for optimal cold starting, much like a modern car.
- Enhanced Fuel Economy: The precise electronic control of fuel delivery means less waste. TBI systems deliver only the necessary amount of fuel, leading to better fuel economy compared to carburettors, which can often run richer than ideal.
- Better Driveability: TBI adapts to varying altitudes and temperatures automatically, eliminating the need for constant tuning or jet changes. This results in smoother idle, better throttle response, and more consistent performance across different driving conditions.
- Reduced Emissions: More precise fuel control leads to a cleaner burn, which can significantly reduce harmful exhaust emissions, making your classic car more environmentally friendly.
- Reliability and Maintenance: TBI systems are generally more reliable and require less frequent adjustment and maintenance than carburettors, which can clog or go out of tune.
Here’s a comparative look:
| Feature | Carburettor | Throttle Body Fuel Injection (TBI) |
|---|---|---|
| Fuel Delivery Method | Mechanical (Venturi Effect) | Electronic (Injectors) |
| Cold Starts | Often difficult, requires choke | Consistent, immediate |
| Fuel Economy | Variable, often less efficient | Improved, precise control |
| Altitude Compensation | Manual adjustment (jetting) | Automatic |
| Performance Consistency | Can vary with conditions | More consistent |
| Tuning Complexity | Manual, mechanical adjustments | Electronic, often self-learning |
| Installation Complexity | Relatively simple for basic swap | Often simple, few wires, integrated ECU |
| Emissions | Generally higher | Generally lower |
Does FiTech Have a Fuel Injection System? Introducing FiTech's Innovative Solutions
Absolutely! FiTech Fuel Injection is a prominent innovator in the aftermarket EFI landscape, renowned for making electronic fuel injection accessible and straightforward for enthusiasts. While they offer versatile solutions, it's crucial to understand the distinction between a pure TBI system and a multi-port EFI system, as FiTech provides both, each with its unique advantages.
The initial description provided perfectly outlines FiTech's approach to TBI retrofits: a self-contained unit that replaces a carburettor, featuring an integrated ECU and minimal wiring (often just four wires). This design philosophy is central to FiTech's success – simplifying what was once considered a complex upgrade into a manageable DIY project.

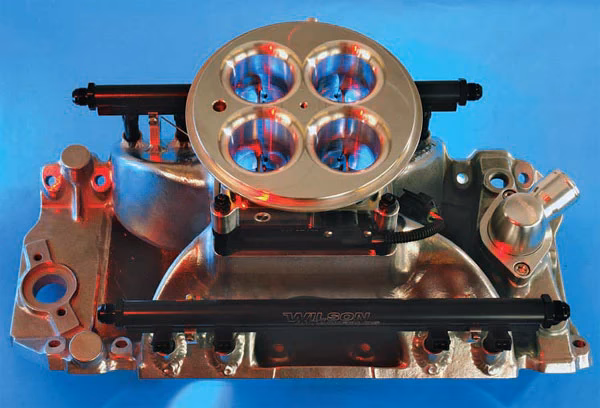

FiTech Go Port EFI Systems: A Step Beyond TBI
While FiTech excels at straightforward TBI conversions, they also push the boundaries with advanced systems like their FiTech BBC Oval Go Port EFI systems. This particular system, designed for high-performance Big Block Chevy oval port engines ranging from 500 to 1050 horsepower, is an example of a full *port-style EFI* system, not a traditional TBI. The distinction here is important:
- Port Injection: Unlike TBI, where injectors are in the throttle body, port injection systems have individual fuel injectors located at each intake port, spraying fuel directly into the cylinder head runner just before the intake valve. This provides even more precise fuel distribution to each cylinder, leading to superior performance, fuel atomisation, and power output, especially at higher RPMs.
The brilliance of FiTech's Go Port packages lies in how they combine the performance benefits of port-style EFI with the renowned simplicity of FiTech's integrated ECU and user-friendly design. Here’s what makes the Go Port system a game-changer:
- Complete System Integration: The Go Port system is comprehensive, including a Big Block Chevy Oval Port Intake Manifold, 8 high-impedance injectors, high-flow FiTech throttle bodies (yes, multiple, indicating a multi-port setup still uses a central throttle body for air control), an integrated ECU, sensors, a wiring harness, and gaskets.
- No External ECU Mounting: A significant advantage is that there's no bulky ECU to mount under your dashboard or on your firewall. Everything, including the wiring, is mounted directly on the manifold, eliminating unsightly harnesses draped across your engine bay.
- Simplified Wiring: Despite being a sophisticated port injection system, FiTech maintains its commitment to simplicity. The wiring remains super-simple, often requiring no more than four wires to get the entire system operational.
- User-Friendly Tuning: Perhaps one of the most revolutionary aspects is that no laptop is required, and absolutely no tuning experience is necessary. The kit comes with a hand-held touchscreen tuner with a suction cup windshield mount, allowing for easy, on-the-fly adjustments and monitoring. This empowers enthusiasts to achieve optimal performance without needing specialist knowledge or expensive software.
- Broad Application: Designed for applications making at least 6 inches of vacuum at idle, these systems are robust enough to handle significant power outputs while remaining drivable.
What’s Included in a FiTech Go Port EFI System?
The comprehensive nature of the FiTech Go Port EFI kit ensures that users have almost everything needed for a seamless conversion. A typical kit includes:
- (1) Die-cast throttle body
- (1) O2 bung kit
- (1) Hand-held controller
- (1) CTS sensor (Coolant Temperature Sensor)
- (1) Hand-held controller cable
- (1) CTS adapter
- (1) Windshield mount for the controller
- (1) Mini USB cable
- (1) 4+2-Pin Connector
- (1) O2 sensor (Oxygen Sensor)
- (1) Gasket kit
- (2) Fuel rails
- (8) Injectors (high impedance)
- (1) Aluminium intake manifold
While the hand-held controller makes external tuning unnecessary for most users, FiTech also provides pro-tuning laptop software for those who desire more in-depth customisation and fine-tuning, demonstrating their commitment to both simplicity and advanced capability.
Installation and Simplicity: The FiTech Promise
FiTech's core philosophy revolves around making high-performance fuel injection accessible. This is evident in their installation process, which stands in stark contrast to the perceived complexity of older EFI systems. The claim of "usually no more than four wires" is a testament to this commitment. These typically include connections for battery power, ignition, a fuel pump relay trigger, and an RPM signal. The integrated ECU eliminates the need for a separate mounting location and a complex wiring loom running through the vehicle.
Furthermore, the absence of a requirement for a laptop or tuning experience is a massive advantage. The included handheld controller guides the user through initial setup and provides real-time data, allowing for basic adjustments and monitoring. This simplicity means that even those with limited mechanical experience can confidently undertake an EFI conversion, unlocking modern performance and reliability for their beloved vehicles.
Common Questions About Fuel Injection Upgrades
Is Throttle Body Fuel Injection (TBI) truly better than a carburettor?
For most applications, yes. TBI offers significant improvements in cold starting, fuel economy, driveability, and emissions compared to a carburettor. While a perfectly tuned carburettor can perform well, TBI provides consistent, self-adjusting performance across a wider range of conditions without the need for constant manual intervention.
Can I install a FiTech EFI system myself?
Many FiTech users successfully install their systems themselves. The design prioritises ease of installation, with integrated ECUs, minimal wiring, and user-friendly handheld tuners. Basic mechanical skills, an understanding of automotive wiring, and adherence to the provided instructions are generally all that's required. FiTech also provides extensive tech videos and support to assist users.
Do I need a special fuel pump for a FiTech EFI system?
Yes, all electronic fuel injection systems require a high-pressure electric fuel pump, unlike carburettors which typically use low-pressure mechanical pumps. FiTech systems will specify the required fuel pressure and flow rates, and you will need to install an appropriate in-tank or external electric fuel pump system, often with a return line to the fuel tank.
What kind of vacuum does a FiTech Go Port system require at idle?
FiTech Go Port EFI systems are designed for applications making at least 6 inches of vacuum at idle. This specification helps ensure proper operation and compatibility with the system's self-learning capabilities, particularly for engines with more aggressive camshafts.
Is a laptop absolutely necessary for tuning FiTech systems?
For most users, especially those using the Go Port or TBI systems, a laptop is not required. The included handheld touchscreen tuner provides all the necessary functionality for initial setup, monitoring, and basic adjustments. However, FiTech does provide optional pro-tuning laptop software for advanced users who wish to delve deeper into customisation and fine-tuning of their engine's performance maps.
Conclusion
The evolution of fuel delivery systems has brought incredible advancements to the automotive world. Throttle Body Fuel Injection offers a fantastic entry point for classic car owners looking to modernise their ride without compromising its character. Companies like FiTech have taken this concept and run with it, developing not only straightforward TBI retrofits but also advanced port injection systems like the Go Port EFI. Their dedication to integrated design, minimal wiring, and user-friendly tuning has demystified the world of electronic fuel injection, making high-performance, reliable motoring accessible to everyone. Whether you're upgrading from a troublesome carburettor or seeking to unlock the full potential of a powerful engine, FiTech's innovative solutions offer a clear path to a smoother, more efficient, and ultimately more enjoyable driving experience.
