Audi BAM Engine: Unveiling Its 4-Cylinder Heart

The Audi BAM engine, a formidable variant of the legendary 1.8T family, holds a special place in the hearts of automotive enthusiasts across the UK and beyond. Renowned for its robust performance and tuning potential, this engine powered some of Audi's most engaging mid-range models, particularly the first-generation TT. But beyond its reputation, many keen drivers and mechanics often ponder the core specifications and intricacies of this unit, especially when considering maintenance, upgrades, or even complex component swaps. This comprehensive guide aims to demystify the BAM engine, covering its fundamental design, applications, and crucial compatibility details that every owner or prospective owner should know.

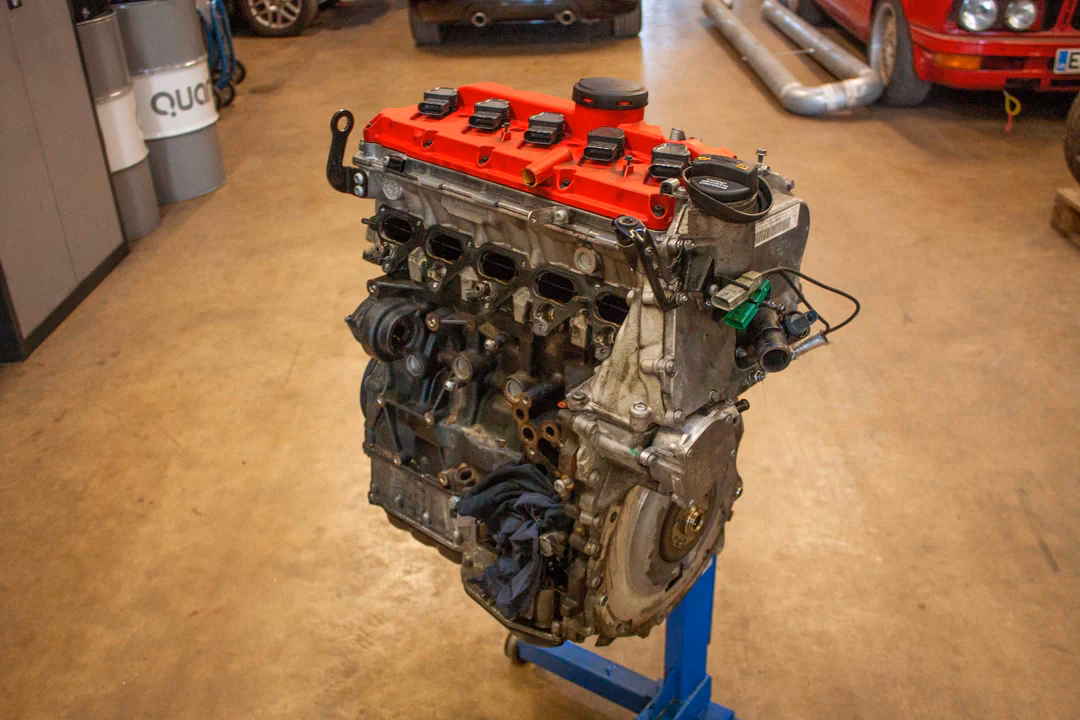

The Core of the Beast: How Many Cylinders Does a BAM Engine Have?

Let's cut straight to the chase: the Audi BAM engine is a 4-cylinder inline engine. This configuration is a cornerstone of its design, offering an excellent balance of power delivery, packaging efficiency, and manufacturing cost for a 1.8-litre displacement. While some might assume a larger engine for its impressive power output, the BAM engine cleverly utilises forced induction to achieve its performance figures, making the four-cylinder layout incredibly effective.

This 1.8-litre, four-cylinder, in-line engine is a testament to Audi's engineering prowess, showcasing how a relatively compact unit can deliver significant power. The inline configuration contributes to its smooth operation and inherent balance, crucial for a high-revving, turbocharged application. For many, the distinctive thrum of a well-tuned four-cylinder engine is part of the appeal, and the BAM certainly delivers on that front.

Key Technical Specifications of the BAM Engine

Delving deeper into the BAM's technical blueprint reveals why it's such a respected engine. It's not just the cylinder count, but the entire package that makes it special. Here's a breakdown of its core technical data:

The turbocharged nature of the BAM engine is its defining characteristic, allowing it to punch well above its weight in terms of power output. The 20-valve head (five valves per cylinder) is another notable feature, designed to maximise airflow into and out of the combustion chambers, contributing to its efficiency and performance. This DOHC setup ensures precise valve timing, which is critical for a high-performance engine.

Areas of Application and Production Period

The BAM engine enjoyed a relatively focused production run, primarily being installed in Audi's popular mid-range models from 1999 onwards. Its most notable application was undoubtedly within the first-generation Audi TT range, where it became synonymous with spirited driving and accessible performance.

• Initial Application: The 224 PS variant of the BAM engine first made its debut in the Audi TT Roadster 1.8 T quattro, exclusively paired with a manual gearbox. This combination offered an exhilarating open-top driving experience, with the quattro all-wheel-drive system ensuring excellent traction and handling.
• Peak Performance: The most potent iteration of the BAM engine, still producing 224 PS and 280 Nm of torque, was last fitted in 2001. This final application was in the Audi TT Coupé 1.8 T quattro, solidifying its legacy as a performance icon within the TT lineup.
• Environmental Compliance: Throughout its production, the BAM engine met the Euro 3 environmental standard, reflecting the emissions regulations of its era.

While its production period was concise, the impact of the BAM engine on the Audi TT's reputation for performance was significant. It provided a compelling blend of power, reliability (when properly maintained), and tunability that endeared it to a generation of enthusiasts.

Understanding Replacement Motor Costs

For owners facing engine issues, the cost of a replacement BAM engine is a significant consideration. The market for these units can vary, depending on condition, mileage, and whether you opt for a used, reconditioned, or new unit.

• Average Used Cost: A replacement BAM engine in good, used condition typically costs around £1,191. This figure represents an average and can fluctuate based on supply, demand, and the specific vendor. When purchasing a used engine, it's crucial to verify its history, mileage, and any known issues to avoid future complications.
• New or Reconditioned Options: For those seeking maximum peace of mind or a longer lifespan, a new or professionally reconditioned engine can be a more substantial investment. These units can cost up to £2,456, reflecting the labour and parts involved in bringing them back to factory specifications or supplying a brand-new assembly. Reconditioned engines often come with warranties, offering an added layer of security.

When budgeting for a replacement, always factor in labour costs for installation, as well as any ancillary components that might need replacing, such as timing belts, water pumps, or turbocharger components if not included with the engine itself.

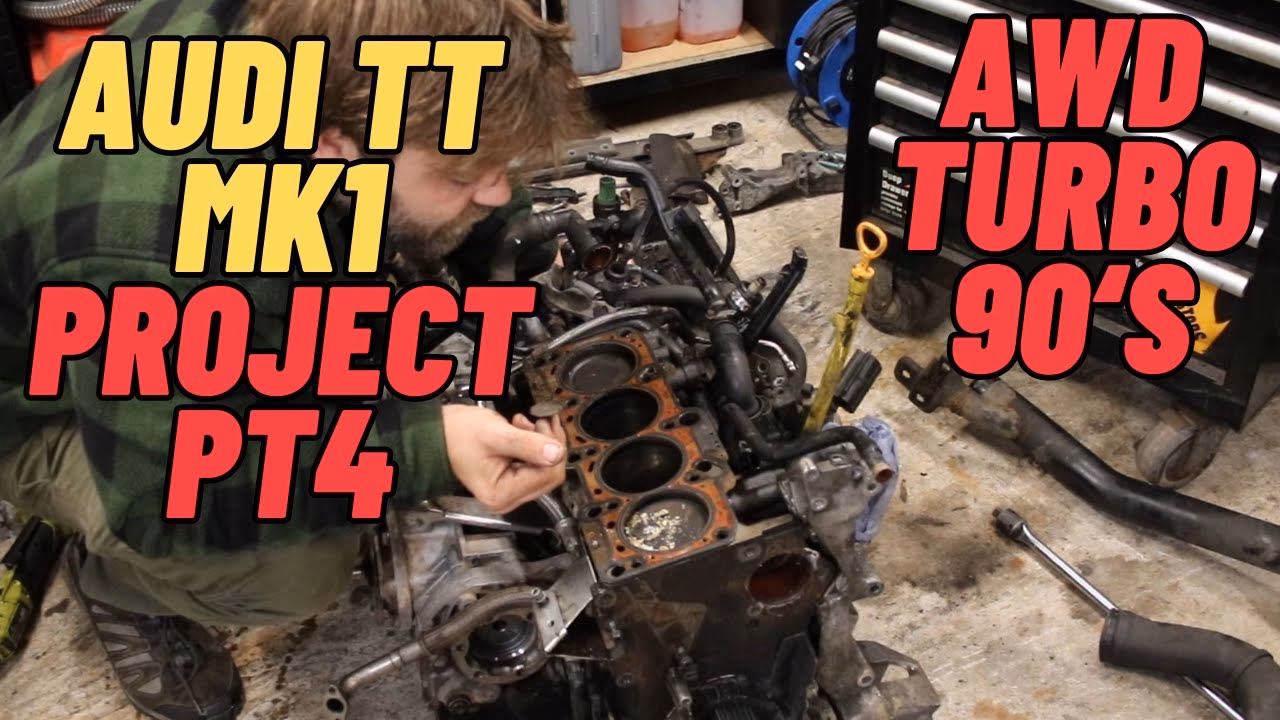

Can a BAM Head Fit an S3/225 TT? Navigating Head Compatibility

This is a common and critical question among 1.8T enthusiasts, particularly when undertaking engine repairs, upgrades, or custom builds. The short answer is often 'yes', but with several crucial caveats and considerations that cannot be overlooked. The head swap between different 1.8T variants, including the BAM, is possible, but requires careful attention to detail.

Distinguishing Engine Variants: Wrist-Pins and Beyond

One of the primary distinctions you must be aware of when considering head swaps, especially between lower-powered 180hp 1.8T engines and the more potent 225hp variants like the BAM, lies in the internal components:

• Wrist-Pin Size: Earlier 180hp engines typically feature smaller 19mm wrist-pins. In contrast, the higher-output engines, including APY, APX, AMK, BAM, and BFV, utilise larger 20mm wrist-pins. While this doesn't directly affect the head itself, it's a critical detail if you're considering a full engine build or swapping pistons/rods, as compatibility with the crankshaft and connecting rods is paramount.

Specifics for APY/APX Heads on BAM/225 TT

If you're considering using an APY or APX head on a BAM or 225 TT block, there are specific components that absolutely must be transferred or addressed:

• Inlet Cam Position Sensor: This sensor is vital for the engine's ECU to accurately determine the camshaft's position, which directly impacts fuel injection and ignition timing. It must be transferred from the original BAM head or replaced with the correct BAM-specific part.
• Variable Valve Timing (VVT): The VVT mechanism, which alters valve timing for optimal performance across the rev range, is also located on the head. Ensuring correct functionality and compatibility of the VVT system is crucial.
• Cam Cover and Coil Packs: While perhaps not strictly necessary for functionality in all cases, it's worth noting that APY/APX engines often feature bolt-down coil packs, which might necessitate transferring the cam cover to ensure proper fitment and retention of the coil packs. Always check your specific setup.

Addressing the Root Cause of Failure

Before even contemplating a head swap or engine replacement, it is absolutely paramount to understand and rectify the original cause of your engine's failure. Simply fitting a new head or engine without addressing the underlying issue will almost certainly lead to a repeat failure. This could involve investigating:

• Overheating issues
• Oil starvation
• Turbocharger failure
• Fuel delivery problems

Furthermore, consider where any broken bits of the original engine might have gone. Has your turbocharger been compromised? Are there metallic fragments in the coolant circuit, heater matrix, or oil circuit? All these systems must be thoroughly inspected and purged or replaced if contaminated. Karl (desertstorm), a well-known enthusiast, famously used a 150hp engine and meticulously fitted the correct BAM parts, demonstrating that with careful attention, such conversions are possible and can yield excellent results.

The Myth of Forged Internals and Large Port Heads

There has long been debate and misinformation regarding the internal components of various 225hp 1.8T engines. Many enthusiasts were convinced that BAM, AMK (210hp), and BFV (240hp S3/TT Quattro Sport) engines had significant internal differences, particularly concerning forged cranks or other 'stronger' components. However, expert consensus, including from figures like Bill @ Badger5, suggests that motor-wise, these engines were largely identical internally. The primary differences lay in the mapping and, in the case of the BFV, a different clutch and potentially a revised second gear.

The BFV, for instance, despite its higher factory power output, often had its unique map overwritten with a modified BAM map during upgrades, and its 'special' clutch was frequently replaced with a standard unit due to its limited durability. This highlights that much of the performance difference was achieved through software calibration rather than fundamentally different hardware.

Another point of contention is the 'large port head'. While it might sound like a performance advantage, many experts argue that these heads are largely unnecessary 'garbage' unless you're aiming for extreme power levels, typically north of 550bhp. For most road and even track applications below this threshold, the standard port heads are perfectly adequate and often provide better low-end and mid-range response due to higher gas velocity. Audi's decision to fit large port heads was, for many, a puzzling one, suggesting that bigger isn't always better in engine design.

Frequently Asked Questions About the Audi BAM Engine

Q1: How many cylinders does the Audi BAM engine have?

A1: The Audi BAM engine is an in-line 4-cylinder engine.

Q2: What Audi models was the BAM engine installed in?

A2: The BAM engine was primarily installed in mid-range Audi models, most notably the Audi TT Roadster 1.8 T quattro and the Audi TT Coupé 1.8 T quattro, from 1999 to 2001.

Q3: What is the power output of the BAM engine?

A3: The BAM engine produces 224 PS (approximately 221 bhp) and 280 Nm of torque.

Q4: Can I use a cylinder head from another 1.8T engine on a BAM block?

A4: Yes, a head from certain other 1.8T engines (like APY or APX) can fit, but you must transfer specific components such as the inlet cam position sensor and Variable Valve Timing (VVT) unit. Also, be aware of differences like wrist-pin sizes (19mm vs 20mm) between engine generations and cam cover types.

Q5: Are there significant internal differences between BAM, AMK, and BFV engines?

A5: Despite common belief, the internal motor components of BAM, AMK, and BFV engines are largely identical. The primary differences are in the engine mapping and, for the BFV, a different clutch and potentially a revised second gear, which often proved less durable than standard options.

Q6: What should I do if my BAM engine fails before considering a replacement?

A6: It is crucial to identify and fix the root cause of the engine failure. Additionally, thoroughly inspect and clean or replace any contaminated components in the turbocharger, coolant circuit, heater matrix, and oil circuit to prevent subsequent failures.

Conclusion

The Audi BAM engine, with its robust 4-cylinder, turbocharged 20V DOHC design, remains a highly sought-after and respected powerplant in the automotive world. Its specific applications in the Audi TT, combined with its impressive performance figures, have cemented its status. While considerations for replacement costs and, more complexly, head compatibility with other 1.8T variants require careful attention, understanding the nuances of this engine allows enthusiasts to make informed decisions. Whether you're maintaining an original example or embarking on a performance build, the BAM engine offers a rewarding experience, provided you respect its engineering and heed the advice of experienced specialists.
