Unleashing the BMW B48: Your Ultimate Tuning Guide

The BMW B48 engine is a powerhouse of modern automotive engineering, celebrated for its blend of performance, efficiency, and adaptability. As a successor to the N20, it carries forward a legacy of innovation, featuring technologies like double VANOS Valvetronic and a responsive twin-scroll turbocharger. This 2.0-litre inline-four unit, found in a wide array of BMW and MINI models, offers a remarkable platform for tuning, capable of delivering significant power increases with the right modifications. Whether you're looking to enhance your daily drive or build a track-focused machine, understanding the intricacies of B48 tuning, particularly concerning the ECU and plug-in modules, is crucial for achieving optimal results.

Understanding the B48 Engine: Power, Specs, and Variants

The B48 engine family boasts a diverse range of power outputs, from the 154hp variants to impressive figures exceeding 300hp in performance-oriented models. Its core design, a turbocharged inline-four, is complemented by advanced technologies such as direct fuel injection and variable valve timing, ensuring a balance between spirited performance and commendable fuel economy. The engine's compact and lightweight construction contributes to its agile handling and rapid acceleration, with some variants achieving 0-60 mph in as little as 4.6 seconds. Key specifications often include a closed-deck design and a longer stroke compared to its predecessor, aimed at improving fuel efficiency and overall engine refinement. The power differences between various B48 applications are largely dictated by electronic calibration, turbocharger specifications, and internal component strength, with some models benefiting from an overboost function for an additional torque surge.

The widespread adoption of the B48 across BMW's lineup, including the 1 Series, 2 Series, 3 Series, 4 Series, 5 Series, X1, X2, X3, X4, Z4, and even the Toyota Supra, highlights its versatility and robust design. Each application often features specific power outputs tailored to the vehicle's positioning within the BMW range.

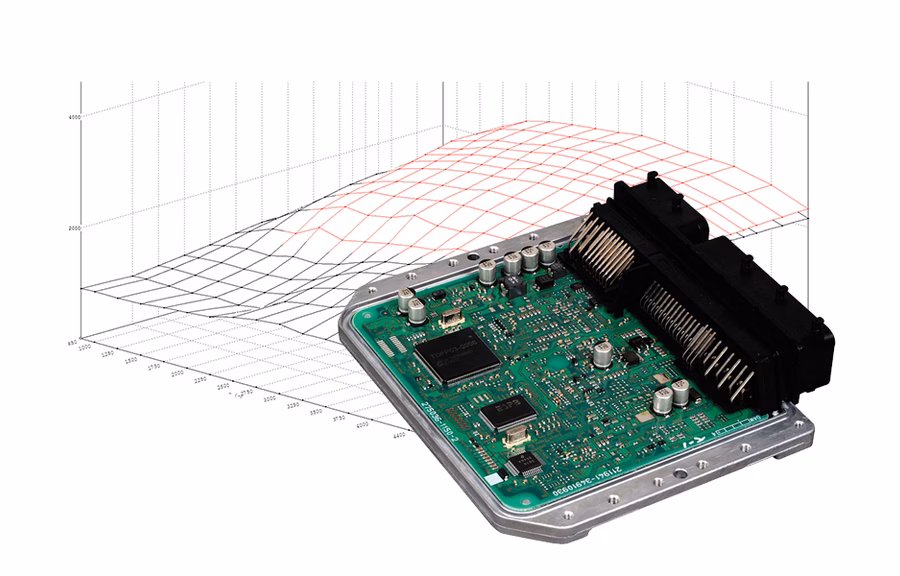

ECU Tuning and Plug-in Modules: The Heart of B48 Performance

When it comes to extracting more performance from your B48, modifying the Engine Control Unit (ECU) or utilising plug-in modules is paramount. These devices allow for recalibration of critical engine parameters such as fuel delivery, ignition timing, boost pressure, and VANOS phasing. This enables the engine to operate more aggressively, capitalising on its inherent capabilities and any supporting hardware modifications.

ECU Remapping (Flashing)

ECU remapping, often referred to as flashing, involves directly reprogramming the vehicle's stock ECU. This is a comprehensive approach that can unlock the full potential of your engine and any installed performance parts. A well-executed remap can optimise the engine's breathing, combustion, and overall efficiency, leading to substantial gains in both horsepower and torque. The process typically requires specialised software and hardware, and it's often best performed by experienced tuners who understand the nuances of the B48 platform.

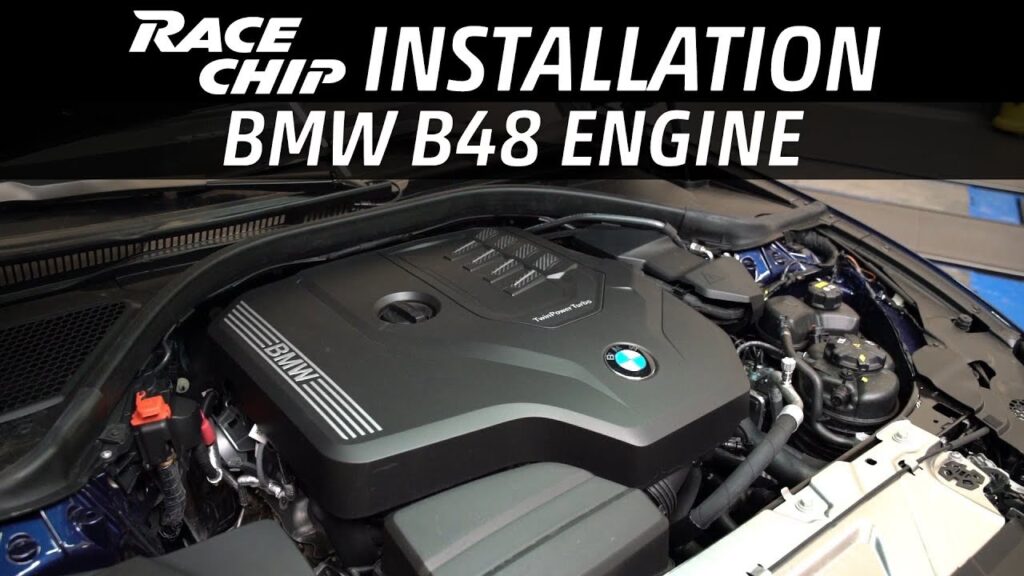

Piggyback ECUs and Plug-in Modules

For those seeking a more accessible or less permanent tuning solution, plug-in modules and piggyback ECUs offer an attractive alternative. These devices typically connect to existing sensors and the factory ECU, intercepting and modifying signals to alter engine behaviour. They are generally easier to install and can be removed without leaving a trace.

Popular Plug-in Modules for the B48:

• JB4 (Burger Motorsports):** Widely regarded as a leading plug-in tuner, the JB4 offers a user-friendly interface and significant performance gains. It connects to various sensors, including boost, MAP, and camshaft position, to manipulate boost targets and other parameters. Its ease of installation and comprehensive tuning maps make it a popular choice for many B48 owners.
• Dinan Sport/Elite: Dinan Engineering is a well-respected name in BMW tuning, and their Sport and Elite modules provide substantial power increases while maintaining a focus on reliability and drivability. These modules often integrate seamlessly with the vehicle's existing systems.
• Bootmod3: While often considered more of a flash tuning platform, Bootmod3 can also be used with certain OBD-II interfaces, offering a high degree of customisation and control. It's favoured by enthusiasts who want detailed control over their engine's parameters and the ability to load custom tunes.

The choice between a full ECU remap and a plug-in module often depends on your specific goals, budget, and desired level of control. While a remap can offer the ultimate in customisation, plug-in modules provide a convenient and often very effective way to enhance your B48's performance.

Essential B48 Tuning Modifications: Beyond the ECU

While ECU tuning is critical, maximising the B48's performance often requires supporting modifications. These upgrades ensure the engine can safely and efficiently utilise the increased power and torque.

Intake and Exhaust Systems

Upgraded Air Intakes: A high-flow air intake system, such as a panel filter or a full induction kit, can improve airflow to the turbocharger. While often not a significant power adder on their own, they complement other modifications by reducing restrictions and allowing the turbo to spool more effectively.

Performance Exhausts: An upgraded exhaust system, particularly a performance catalytic converter or a cat-back exhaust, can reduce backpressure and improve exhaust gas scavenging. This allows the turbocharger to perform more efficiently and can contribute to modest power gains, especially when combined with ECU tuning.

Turbocharger Upgrades

For substantial power increases, upgrading the factory turbocharger is often the most effective route. Options range from hybrid turbos, which utilise upgraded components within the stock housing, to full replacement units from manufacturers like BorgWarner, Garrett, and Pure Turbo. Turbo upgrades allow for higher boost pressures and greater airflow, directly translating to more power. It's important to consider the trade-offs between smaller, quicker-spooling turbos and larger units that offer higher peak power but may introduce more lag.

Intercooler Upgrades

A larger, more efficient intercooler is crucial for maintaining consistent intake air temperatures, especially when running increased boost levels. A cooler intake charge is denser, allowing for more oxygen to enter the combustion chamber and thus, more power. An upgraded intercooler helps to resist heat soak, ensuring that performance remains strong during prolonged spirited driving.

Fueling and Ignition System Enhancements

As power levels increase, so does the demand on the fuel system. Upgrading fuel injectors and potentially the fuel pump may be necessary to ensure adequate fuel delivery. Similarly, ensuring robust ignition components, such as spark plugs with a colder heat range, is vital to prevent misfires and detonation under increased cylinder pressures.

B48 Tuning Stages Explained

B48 tuning is often categorised into stages, reflecting the progression of modifications and the expected power gains:

• Stage 1: Typically involves ECU remapping or a plug-in module, possibly with a high-flow air filter. Gains are usually in the range of 30-50hp.
• Stage 2: Builds upon Stage 1 with the addition of a performance exhaust system (including a sports catalyst) and potentially an upgraded intake. Expect gains of 50-80hp.
• Stage 3: Involves more significant hardware changes, such as a turbocharger upgrade, an upgraded intercooler, and potentially fuel system enhancements. This stage can yield gains of 80hp and significantly more, depending on the specific components and tuning.
• Stage 4 and beyond: For extreme power builds, this can include internal engine upgrades (pistons, connecting rods), larger turbochargers, upgraded camshafts, and fully custom ECU solutions.

Common B48 Weak Spots and Reliability Considerations

While the B48 is a generally reliable engine, certain aspects warrant attention, especially when pushing beyond stock power levels:

• Carbon Build-up: As a direct-injection engine, the B48 can be susceptible to carbon deposits on the intake valves. Regular cleaning or specific intake cleaning procedures may be beneficial.
• Valve Springs: At significantly higher RPMs or with aggressive camshaft profiles, upgrading valve springs and retainers can prevent valve float and improve reliability.
• Engine Internals: For power outputs exceeding approximately 350-400hp, forged pistons and potentially a stronger crankshaft may be necessary to handle the increased cylinder pressures and stresses.
• Air Flow Sensor (MAF/AFM): With substantial airflow increases, the stock air flow sensor can become a restriction. Upgrading to a higher-rated sensor (e.g., a 4-bar MAP sensor) is often required for accurate tuning.

Maintaining a regular service schedule, using high-quality oil, and ensuring proper cooling are paramount for the longevity of a tuned B48 engine.

Frequently Asked Questions about B48 Tuning

Q1: Which plug-in module is best for my B48?
For ease of use and significant gains, the JB4 is an excellent starting point. For more advanced users wanting extensive customisation, Bootmod3 offers greater control.

Q2: Can I tune my B48 without other modifications?
Yes, a Stage 1 tune (ECU remap or plug-in module) can provide noticeable power gains on a stock B48 engine.

Q3: What are the typical power gains from a B48 tune?
A Stage 1 tune can typically add 30-50hp. Higher stages with supporting mods can yield much greater increases.

Q4: Do I need to upgrade my exhaust after tuning?
While not always essential for a Stage 1 tune, an upgraded exhaust will help the engine breathe better and complement higher stages of tuning, potentially unlocking more power.

Q5: How reliable is a tuned B48 engine?
With proper supporting modifications and a sensible tuning approach, a tuned B48 can remain very reliable. Pushing for extreme power without addressing crucial components can compromise reliability.

Conclusion

The BMW B48 engine provides an exceptional foundation for performance tuning. By understanding the capabilities of ECU remapping, plug-in modules like the JB4 and Bootmod3, and the importance of supporting hardware modifications, you can transform your B48-powered BMW or MINI into a truly exhilarating driving machine. Always prioritise quality components and professional tuning to ensure optimal performance and long-term reliability.
