Unravelling the B2 Molecular Orbital Diagram

Understanding the intricate world of chemical bonding can often feel like peering into a complex puzzle. While traditional theories like Lewis structures and Valence Bond Theory offer valuable insights, they sometimes fall short in explaining certain molecular behaviours, especially for diatomic molecules. This is where Molecular Orbital (MO) Theory steps in, providing a more sophisticated and accurate description of how atoms bond by considering the entire molecule as a single entity with its own set of orbitals. For the curious mind, delving into the Molecular Orbital diagram for B2, the boron molecule, offers a perfect opportunity to grasp these fundamental principles and appreciate the elegance of quantum mechanics in chemistry.

MO Theory posits that when atomic orbitals combine, they form new molecular orbitals that span the entire molecule. These molecular orbitals can be either bonding, where electron density is concentrated between the nuclei, strengthening the bond, or antibonding, where electron density is reduced between the nuclei, weakening the bond. For the B2 molecule, which is formed from two boron atoms, understanding its MO diagram is crucial for predicting its stability, bond order, and magnetic properties. Boron, with an atomic number of 5, has an electronic configuration of 1s²2s²2p¹. When two boron atoms come together to form B2, we primarily consider the valence electrons, which are the three electrons from the 2s and 2p orbitals of each boron atom. This means the B2 molecule has a total of six valence electrons to be placed into its molecular orbitals.

The Foundations of Molecular Orbital Theory

Before constructing the B2 MO diagram, it's essential to grasp the core concepts of MO theory. Unlike atomic orbitals, which are localised around individual atoms, molecular orbitals are delocalised over all atoms in a molecule. They are formed by the linear combination of atomic orbitals (LCAO). When two atomic orbitals combine, they always produce an equal number of molecular orbitals – specifically, one bonding orbital and one antibonding orbital. The bonding orbital is lower in energy than the original atomic orbitals, while the antibonding orbital is higher in energy.

There are two primary types of molecular orbitals formed from the overlap of atomic orbitals: sigma (σ) and pi (π) orbitals. Sigma bonds are formed by the head-on overlap of atomic orbitals (e.g., s-s overlap, s-p overlap, or p-p overlap along the internuclear axis). They result in electron density concentrated directly along the internuclear axis, similar to a single bond. Pi bonds, on the other hand, are formed by the sideways overlap of parallel p-orbitals. They result in electron density above and below the internuclear axis, contributing to double or triple bonds. Both sigma and pi molecular orbitals have corresponding antibonding (σ* and π*) counterparts, which have a nodal plane perpendicular to the internuclear axis between the nuclei.

The rules for filling molecular orbitals are akin to those for atomic orbitals: the Aufbau principle (fill from lowest energy to highest), the Pauli Exclusion Principle (each orbital can hold a maximum of two electrons with opposite spins), and Hund's Rule (when orbitals of equal energy are available, electrons fill them singly before pairing up). These principles are fundamental when populating the B2 molecular orbital diagram with its valence electrons.

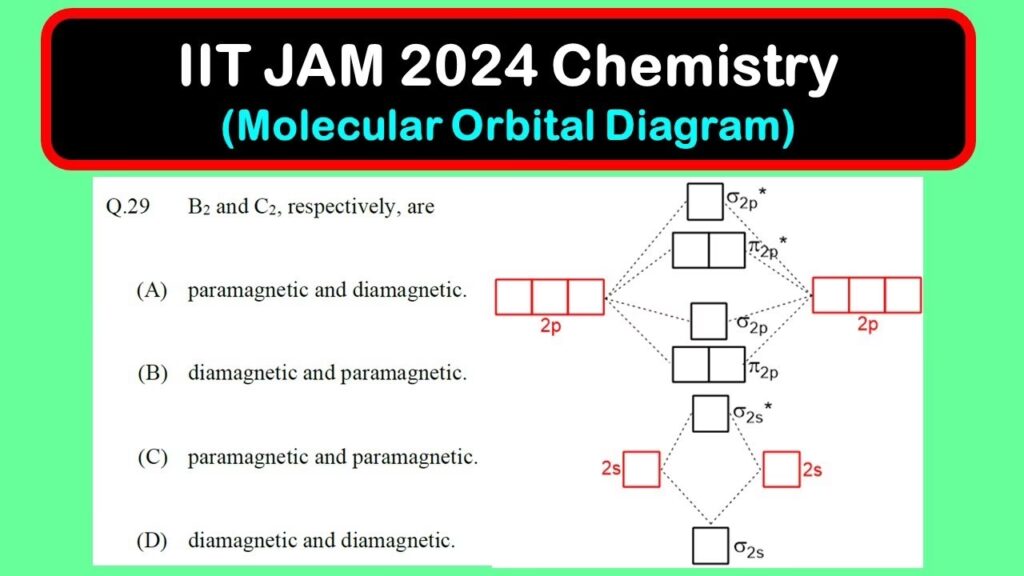

Constructing the B2 Molecular Orbital Diagram

For diatomic molecules composed of elements from the second period (like boron), the molecular orbital energy levels follow a specific order. There are two general MO diagrams for second-period homonuclear diatomic molecules. The first, which applies to Li2, Be2, B2, C2, and N2, features a particular ordering due to significant s-p mixing. The second, for O2 and F2, has a slightly different ordering. For B2, the relevant diagram is the one where the sigma 2p (σ2p) molecular orbital is higher in energy than the pi 2p (π2p) molecular orbitals. This s-p mixing phenomenon means that the 2s and 2p atomic orbitals interact more extensively, altering the expected energy order of the resulting molecular orbitals.

Let's consider the two boron atoms that form B2. Each boron atom has 3 valence electrons: two in the 2s orbital and one in the 2p orbital (2s²2p¹). Therefore, the B2 molecule has a total of 6 valence electrons (3 from each boron atom). We will fill these six electrons into the molecular orbitals derived from the 2s and 2p atomic orbitals.

The molecular orbital energy levels for B2, from lowest to highest energy, are typically as follows:

1. Sigma 2s (σ2s): Formed from the constructive overlap of the 2s atomic orbitals. This is a bonding orbital.
2. Sigma* 2s (σ*2s): Formed from the destructive overlap of the 2s atomic orbitals. This is an antibonding orbital.
3. Pi 2p (π2p): Formed from the sideways overlap of two 2p atomic orbitals. There are two degenerate (equal energy) π2p bonding orbitals.
4. Sigma 2p (σ2p): Formed from the head-on overlap of the 2p atomic orbitals along the internuclear axis. Due to s-p mixing, this orbital is higher in energy than the π2p orbitals for B2. This is a bonding orbital.
5. Pi* 2p (π*2p): Formed from the destructive sideways overlap of two 2p atomic orbitals. There are two degenerate π*2p antibonding orbitals.
6. Sigma* 2p (σ*2p): Formed from the destructive head-on overlap of 2p atomic orbitals. This is an antibonding orbital.

Now, let's fill the 6 valence electrons into these molecular orbitals following the rules:

• The first two electrons go into the σ2s bonding orbital.
• The next two electrons go into the σ*2s antibonding orbital.
• The remaining two electrons must be placed into the next available energy level, which for B2, are the two degenerate π2p bonding orbitals. According to Hund's Rule, these two electrons will occupy each of the two π2p orbitals singly, with parallel spins, rather than pairing up in one orbital.

At this point, all 6 valence electrons are placed. The higher energy orbitals (σ2p, π*2p, σ*2p) remain empty. This electron configuration in the molecular orbitals provides the basis for determining the molecule's properties.

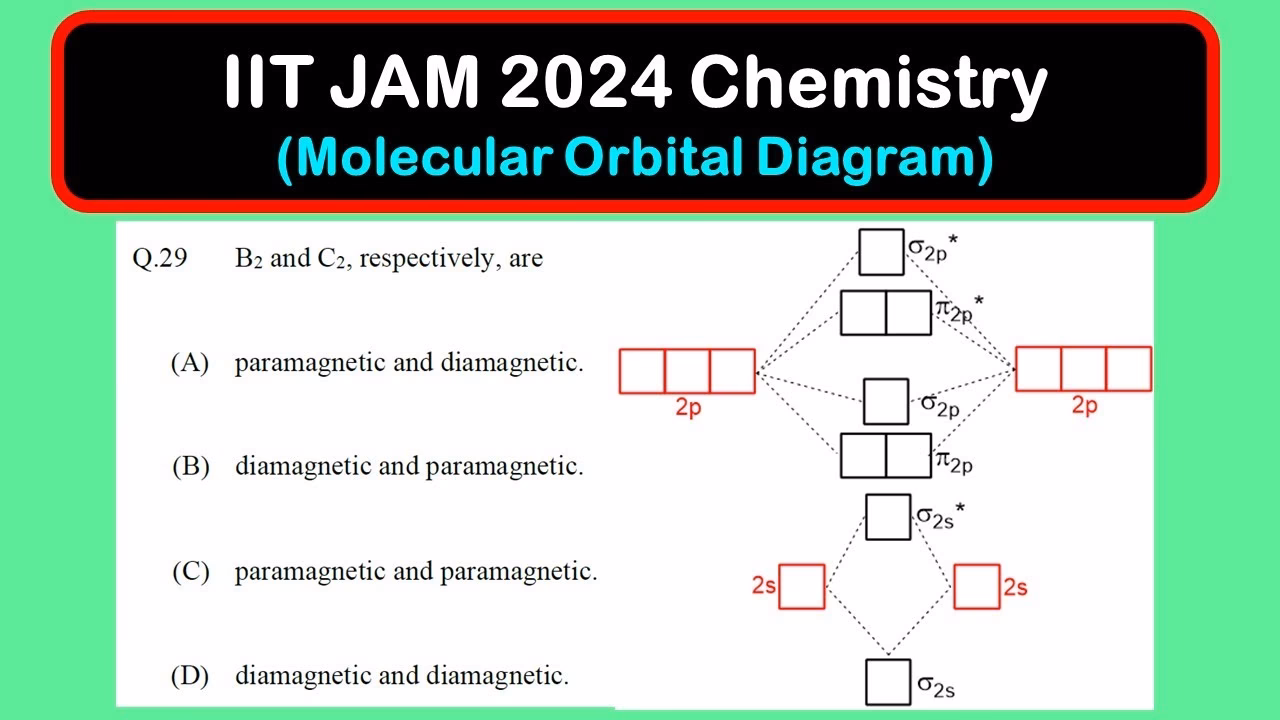

Calculating the Bond Order for B2

One of the most valuable insights derived from an MO diagram is the bond order. The bond order provides a quantitative measure of the number of chemical bonds between two atoms and is directly related to the stability and strength of the bond. A higher bond order generally indicates a stronger and shorter bond. The formula for calculating bond order from an MO diagram is:

Bond Order = 1/2 (Number of electrons in Bonding Molecular Orbitals - Number of electrons in Antibonding Molecular Orbitals)

Let's apply this to the B2 molecule based on its MO diagram:

• Electrons in Bonding Molecular Orbitals (BMOs):
• σ2s: 2 electrons
• π2p: 2 electrons (one in each of the two degenerate orbitals)
• Total BMO electrons = 2 + 2 = 4 electrons
• Electrons in Antibonding Molecular Orbitals (ABMOs):
• σ*2s: 2 electrons
• Total ABMO electrons = 2 electrons

Now, substitute these values into the bond order formula:

Bond Order for B2 = 1/2 (4 - 2)
Bond Order for B2 = 1/2 (2)
Bond Order for B2 = 1

A bond order of 1 indicates that there is a single bond between the two boron atoms in the B2 molecule. This is consistent with what we might expect from the simple valence electron count, but the MO diagram provides a deeper understanding of how these bonds are formed from specific molecular orbitals.

Magnetic Properties of B2

Another crucial property that can be determined from the molecular orbital diagram is the magnetic behaviour of a molecule. Substances can be classified as either paramagnetic or diamagnetic based on the presence or absence of unpaired electrons in their molecular orbitals.

• Paramagnetic: Molecules that have one or more unpaired electrons are attracted to an external magnetic field.
• Diamagnetic: Molecules where all electrons are paired are weakly repelled by an external magnetic field.

Looking at the B2 MO diagram, we observed that the last two valence electrons were placed singly into the two degenerate π2p bonding orbitals, according to Hund's Rule. This means that the B2 molecule has two unpaired electrons. Because of these unpaired electrons, the B2 molecule is paramagnetic. This is a significant finding that cannot be predicted by simpler bonding theories like Lewis structures, which would typically depict B2 with a single bond and all electrons paired. Experimental evidence confirms that B2 is indeed paramagnetic, highlighting the predictive power of MO Theory.

Comparative Insight: B2 vs. Other Diatomics

To further appreciate the unique characteristics of B2, let's briefly compare its MO-derived properties with other common homonuclear diatomic molecules from the second period. This comparison illustrates how the number of valence electrons dictates the bond order and magnetic behaviour.

As seen in the table, B2 stands out with its paramagnetic nature despite having a single bond, a characteristic it shares with O2. This highlights the importance of the specific energy ordering of molecular orbitals and Hund's rule in determining magnetic properties.

Frequently Asked Questions About B2 and MO Diagrams

Why is the sigma 2p orbital higher in energy than the pi 2p orbitals for B2?

For lighter second-period diatomic molecules (like B2, C2, N2), there is significant mixing between the 2s and 2p atomic orbitals. This phenomenon, known as s-p mixing, causes the σ2p molecular orbital to be pushed to a higher energy level than the π2p molecular orbitals. For heavier elements (like O2, F2), this s-p mixing is less pronounced, and the conventional order (σ2p lower than π2p) is observed. This distinction is crucial for correctly drawing and interpreting the MO diagrams for these molecules.

How does the MO diagram explain why B2 is stable despite having a bond order of 1?

A bond order of 1 indicates the presence of a single bond, which contributes to stability. While a bond order of 0 (like in He2 or Be2) would mean the molecule is unstable and unlikely to form, a bond order of 1 is sufficient for a stable diatomic molecule. The MO diagram for B2 clearly shows a net gain in bonding electrons over antibonding electrons, leading to a stable molecule. The fact that it's paramagnetic doesn't detract from its stability, but rather describes an additional electronic property.

What does it mean for B2 to be paramagnetic?

Paramagnetism means that the B2 molecule contains unpaired electrons. In the case of B2, the MO diagram shows two unpaired electrons in the two degenerate π2p bonding orbitals. These unpaired electrons give the molecule a net magnetic moment, causing it to be weakly attracted to an external magnetic field. This is a direct consequence of Hund's rule, which dictates that electrons fill degenerate orbitals singly before pairing up.

Can MO theory predict bond length and bond strength?

Yes, indirectly. While MO theory doesn't directly calculate bond length or strength, the calculated bond order provides a strong correlation. A higher bond order generally corresponds to a shorter bond length and a stronger bond. For example, N2 has a bond order of 3 and is known for its very strong and short triple bond, while B2 has a bond order of 1, indicating a weaker and longer single bond by comparison.

Why do we only consider valence electrons in MO diagrams?

The core electrons (those in inner shells, like the 1s electrons in boron) are much closer to the nucleus and are held more tightly. Their atomic orbitals are significantly lower in energy and do not overlap effectively to form molecular orbitals with electrons from other atoms. Therefore, they do not participate directly in chemical bonding and are usually omitted from simplified MO diagrams, as their contribution to the overall bonding and properties of the molecule is negligible compared to the valence electrons.

In conclusion, the Molecular Orbital diagram for B2 offers a profound insight into the nature of chemical bonding. By meticulously placing its six valence electrons into the carefully ordered molecular orbitals, we deduce a bond order of 1, indicating a single bond between the boron atoms. More strikingly, the presence of two unpaired electrons in the π2p orbitals reveals B2's paramagnetic nature, a property that simpler theories cannot explain. This comprehensive understanding underscores the power and necessity of MO Theory in modern chemistry, providing a robust framework for predicting and explaining the behaviour of molecules at a fundamental level.
