When embarking on any outdoor construction project, from a new driveway to a garden patio or a simple pathway, the foundation is paramount. While the finished surface often gets all the attention, the layers beneath are what truly determine the longevity and stability of your project. One of the most critical, yet often overlooked, components of this foundational layering is the sub-base. Understanding what a sub-base is, why it's important, and how it's constructed will equip you with the knowledge to ensure your outdoor spaces stand the test of time and weather.
What Exactly is a Sub-Base?
In essence, a sub-base is a layer of granular material strategically placed beneath the main structural layer (the base course) of an outdoor foundation. Its primary purpose is to provide a stable, load-bearing platform that distributes weight evenly and prevents the layers above from sinking or shifting. Think of it as the unsung hero of your driveway or patio, working diligently beneath the surface to maintain its integrity. It sits directly above the subgrade, which is the prepared natural ground, and below the base course, which is the layer that directly supports the final surface material (like tarmac, block paving, or concrete).
The Importance of a Well-Constructed Sub-Base
The significance of a proper sub-base cannot be overstated. Without it, your outdoor foundation would be vulnerable to a host of problems. Here are the key reasons why this layer is so vital:
1. Load Distribution
The sub-base acts as a crucial intermediary layer, taking the weight from the traffic or pedestrian use on the surface and spreading it out over a much larger area of the subgrade. This prevents concentrated pressure points that could otherwise lead to cracking, subsidence, or rutting of the final surface. For driveways, where vehicles place significant weight, this load distribution is absolutely critical for preventing damage.
2. Drainage
Granular sub-base materials are inherently permeable, allowing water to drain through them. This is incredibly important for preventing water from accumulating beneath the surface. Water trapped within the foundation layers can freeze in winter, expanding and causing damage (frost heave), or saturate the ground, reducing its load-bearing capacity. Effective drainage provided by the sub-base ensures the foundation remains stable in all weather conditions.
3. Frost Protection
As mentioned, water in the ground can freeze and expand, causing significant damage to foundations. By allowing water to drain away efficiently, the sub-base helps to protect the structure from frost heave, particularly in colder climates. The depth and type of sub-base can be specified based on local frost penetration levels.
4. Preventing Subgrade Contamination
The sub-base acts as a barrier, preventing fine particles from the subgrade (like soil and clay) from mixing with the more open-graded base course material. If the subgrade materials were to mix with the base course, it would reduce the base course's ability to drain and compact effectively, compromising the overall strength of the foundation.
5. Providing a Level and Stable Platform
Once the subgrade is prepared, it might not be perfectly level or uniformly stable. The sub-base provides a fresh, consistent surface upon which the subsequent layers can be laid accurately. It helps to smooth out any minor imperfections in the subgrade, ensuring a true and level base for the road or paving structure.
Materials Used for Sub-Bases
The most common materials used for sub-bases are crushed, angular aggregates. The angular nature of the particles allows them to interlock effectively when compacted, creating a stable and strong layer. Here are some typical materials:

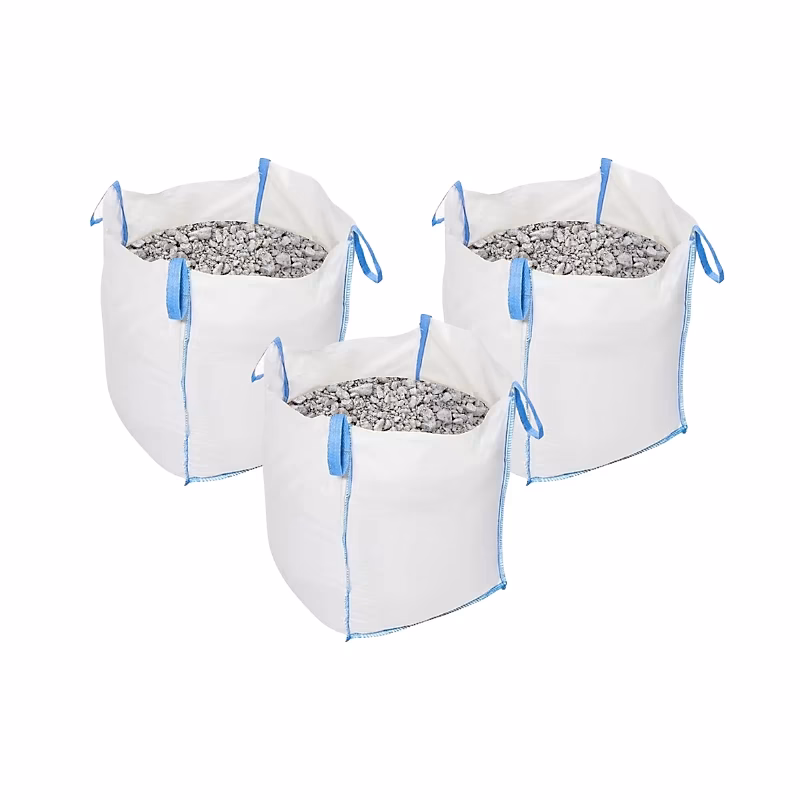

- MOT Type 1: This is a widely used and highly effective sub-base material in the UK. It's a blend of crushed stone and smaller aggregate particles, graded to create a dense, stable, and permeable layer. It's specified by the Department for Transport (DfT) and is suitable for a wide range of applications, including highways, car parks, and driveways. Its interlocking properties are excellent, providing a very firm foundation.
- Crushed Concrete: Recycled crushed concrete can also be used as a sub-base. It provides good load-bearing capacity and drainage, and its use is environmentally friendly as it diverts waste from landfill. It's often a more economical option than virgin aggregate.
- Crushed Hardcore: This is a general term for reclaimed building materials, which can include crushed bricks, asphalt, and other inert materials. While it can be used as a sub-base, its suitability depends on the consistency and quality of the material. It may not offer the same performance as MOT Type 1 or good quality crushed concrete.
- Gravel/Ballast: Clean, single-sized gravel or ballast can be used as a sub-base, particularly for less demanding applications or as a blinding layer. However, it typically lacks the angularity and particle interlock of crushed stone, meaning it may not provide the same level of stability under heavy loads.
| Material | Key Characteristics | Typical Applications | Pros | Cons |
|---|---|---|---|---|
| MOT Type 1 | Crushed stone, angular, well-graded particle size | Highways, driveways, patios, car parks | Excellent load bearing, good drainage, stable, interlocks well | Can be more expensive than recycled options |
| Crushed Concrete | Recycled, angular, varying gradings | Driveways, pathways, garden bases | Cost-effective, environmentally friendly, good load bearing | Quality can vary, may contain impurities if not processed correctly |
| Crushed Hardcore | Mixed recycled building materials | Less demanding applications, lower traffic areas | Economical, diverts waste | Variable performance, potential for soft materials, less predictable drainage |
| Gravel/Ballast | Rounded or sub-angular, single-sized | Light traffic paths, blinding layer | Good drainage, readily available | Poor load bearing, particles do not interlock, can be displaced easily |
The Process of Installing a Sub-Base
Proper installation is as crucial as choosing the right material. The process typically involves the following steps:
- Excavation: The area for your driveway, patio, or path is excavated to the required depth. This depth will depend on the type of surface, the expected loads, and local conditions (e.g., frost depth). The excavated area is called the formation.
- Subgrade Preparation: The exposed subgrade is then compacted to provide a firm and stable base. Any soft spots or unsuitable material are removed and replaced.
- Laying the Sub-Base: The chosen sub-base material is delivered and spread evenly over the prepared subgrade, typically in layers of 100-150mm (4-6 inches).
- Compaction: Each layer of sub-base material is thoroughly compacted using a vibrating plate compactor or a roller. This process is vital for interlocking the aggregate particles and achieving the required density and stability. Multiple passes are usually necessary.
- Levelling: The compacted sub-base layer is checked for level and adjusted as needed to ensure a true surface for the next layer.
- Laying the Base Course: Once the sub-base is compacted and level, the base course material (often crushed stone or aggregate with a different grading, like MOT Type 2) is laid and compacted on top.
The thickness of the sub-base layer is critical. For a typical domestic driveway, a sub-base of at least 150mm (6 inches) is recommended, often laid in two compacted layers. For heavier loads or more demanding conditions, this thickness might increase to 200mm (8 inches) or more.
Where Can I Buy Sub-Base?
Sub-base materials are readily available from several sources. Your primary options include:
- Builders' Merchants: Local builders' merchants are a common and convenient place to purchase sub-base materials, especially for smaller domestic projects. They often stock MOT Type 1 and crushed concrete.
- Aggregates Suppliers: For larger quantities or specific types of aggregate, specialist aggregates suppliers are the best choice. They can often deliver in bulk directly to your site.
- Quarries: If you are undertaking a very large project, you might consider sourcing directly from a quarry, although this is less common for typical DIY or smaller trade projects.
When purchasing, ensure you specify the type of sub-base you need (e.g., MOT Type 1) and the quantity. Most suppliers will be able to advise you on the correct amount based on the dimensions of your project.
Frequently Asked Questions About Sub-Base
Q1: How deep should my sub-base be?
A1: For a standard domestic driveway, a minimum compacted depth of 150mm (6 inches) is generally recommended. For heavier loads, areas with poor soil conditions, or regions with significant frost heave, a greater depth (200mm or more) may be required. Always consult with local building regulations or a professional if unsure.
Q2: Can I use just one layer of sub-base?
A2: While technically possible, it is best practice to lay sub-base in multiple compacted layers (e.g., two layers of 75mm or 100mm). This ensures better compaction and a more uniform, stable foundation.
Q3: What is the difference between sub-base and base course?
A3: The sub-base is the lower layer, providing bulk and initial load distribution above the subgrade. The base course is the layer directly beneath the final surface. It's typically a cleaner, more precisely graded aggregate (like MOT Type 2) designed to provide a smooth, stable platform for the final surface material and to contribute further to load distribution and drainage.
Q4: Is sub-base essential for a garden path?
A4: For a simple, lightly used garden path, a very well-compacted subgrade might suffice in some cases, especially on very stable, free-draining soil. However, for longevity, to prevent sinking, and to ensure good drainage, a shallow sub-base (e.g., 100mm of MOT Type 1 or crushed concrete) is highly recommended, even for paths.
Q5: What happens if I don't install a proper sub-base?
A5: Skipping or inadequately installing the sub-base can lead to premature failure of your driveway, patio, or path. You may experience sinking, cracking, uneven surfaces, pooling water, and damage caused by frost heave. In short, it will significantly reduce the lifespan and performance of your project.
In conclusion, the sub-base is a fundamental element in the construction of any durable outdoor surface. By understanding its role, choosing the right materials, and ensuring proper installation, you are laying the groundwork for a project that will not only look good but also perform reliably for many years to come. Don't underestimate the power of this foundational layer – it's the key to a successful and long-lasting outcome.
