Rear Axle Oil Explained

The differential is a cornerstone of your vehicle's drivetrain, working tirelessly to ensure that power is distributed evenly to each wheel. This ingenious mechanism is what allows you to navigate corners smoothly, preventing the jarring, rattling, and skidding that would otherwise occur. Without a differential, your wheels would be locked together, forced to rotate at the same speed, making turns a perilous undertaking and significantly increasing the risk of losing control. Differentials are ubiquitous in modern vehicles, found in the front, rear, or sometimes both ends of a car, depending on its design and intended purpose.

The Function of the Differential

When a vehicle turns, the outer wheel travels a greater distance than the inner wheel. The differential's primary function is to compensate for this difference in rotational speed, allowing each wheel to spin at its own pace while still receiving power. This is achieved through a clever arrangement of gears within the differential housing. Without this crucial component, the drivetrain would experience immense stress, leading to wheel hop and damage to the transmission and tyres. The smooth, controlled turning we take for granted is a direct result of the differential's sophisticated engineering.

Front vs. Rear Differential Oil Requirements

The type of oil required for a differential can vary, particularly between front and rear axle configurations. For vehicles with a front differential, often integrated into a transaxle unit, a more fluid oil is typically recommended. This usually falls within the SAE 75W-80 viscosity range, often a fully synthetic formulation. This lighter oil is designed to flow easily and provide adequate lubrication for the gears and bearings in these often more compact units.

However, when we turn our attention to the rear differential, the requirements often shift. Rear differentials, particularly in rear-wheel-drive or four-wheel-drive vehicles, tend to handle more substantial torque and are subjected to different operating stresses. Consequently, they generally require a thicker, more robust lubricating oil. The common recommendation for a rear differential is an oil with a viscosity of SAE 90. This thicker oil provides better protection under higher loads and temperatures, ensuring the longevity and smooth operation of the differential gears.

Understanding Oil Viscosity (SAE Grades)

The Society of Automotive Engineers (SAE) assigns viscosity grades to engine oils and gear oils to indicate their thickness or resistance to flow. For gear oils, you'll commonly see grades like 75W-80, 75W-90, 80W-90, and 85W-140. The 'W' stands for 'Winter,' indicating the oil's performance at lower temperatures. A lower 'W' number means the oil is thinner when cold, allowing for easier starting and better lubrication during initial warm-up. The second number represents the oil's viscosity at operating temperature.

So, while SAE 75W-80 is a lighter gear oil suitable for some front differentials, SAE 90 is a heavier gear oil, meaning it's thicker at operating temperature and better suited for the demands placed on many rear differentials. It's crucial to use the oil viscosity specified in your vehicle's owner's manual, as using the wrong type can lead to inadequate lubrication, increased wear, and potential damage.

Why is the Right Oil So Important?

The differential operates in a demanding environment, with gears constantly meshing and rotating at varying speeds. The lubricating oil serves several critical functions:

• Lubrication: It reduces friction between moving parts, preventing metal-on-metal contact and minimising wear.
• Cooling: As gears work, they generate heat. The oil absorbs this heat and carries it away from critical components.
• Cleaning: The oil helps to flush away small metal particles and debris that can accumulate over time, keeping the internal components clean.
• Corrosion Protection: It forms a protective barrier on metal surfaces, preventing rust and corrosion.

Using the correct type and grade of differential oil is paramount. Too thin an oil might not provide adequate protection under heavy loads, leading to premature wear. Conversely, an oil that is too thick can increase drag, reduce fuel efficiency, and may not lubricate effectively at lower temperatures.

When to Change Your Differential Oil

Differential oil doesn't last forever. Over time, it can break down due to heat, contamination, and shear forces. The general recommendation is to change the differential oil periodically. While the exact interval varies by manufacturer and driving conditions, a common guideline is every 30,000 to 50,000 miles, or as specified in your owner's manual. Towing heavy loads, frequent driving in extreme temperatures, or off-road use may necessitate more frequent changes. Regularly checking the fluid level and condition can also indicate when a change is due.

Signs Your Differential Oil Needs Changing:

• Whining or humming noises: Especially noticeable when accelerating or decelerating.
• Rough shifting or clunking sounds: Indicates potential issues with gear lubrication.
• Burning smell: Could be a sign of overheating due to insufficient or degraded oil.
• Leaking oil: A visible leak around the differential housing or axle seals.

DIY Differential Oil Change: A Brief Overview

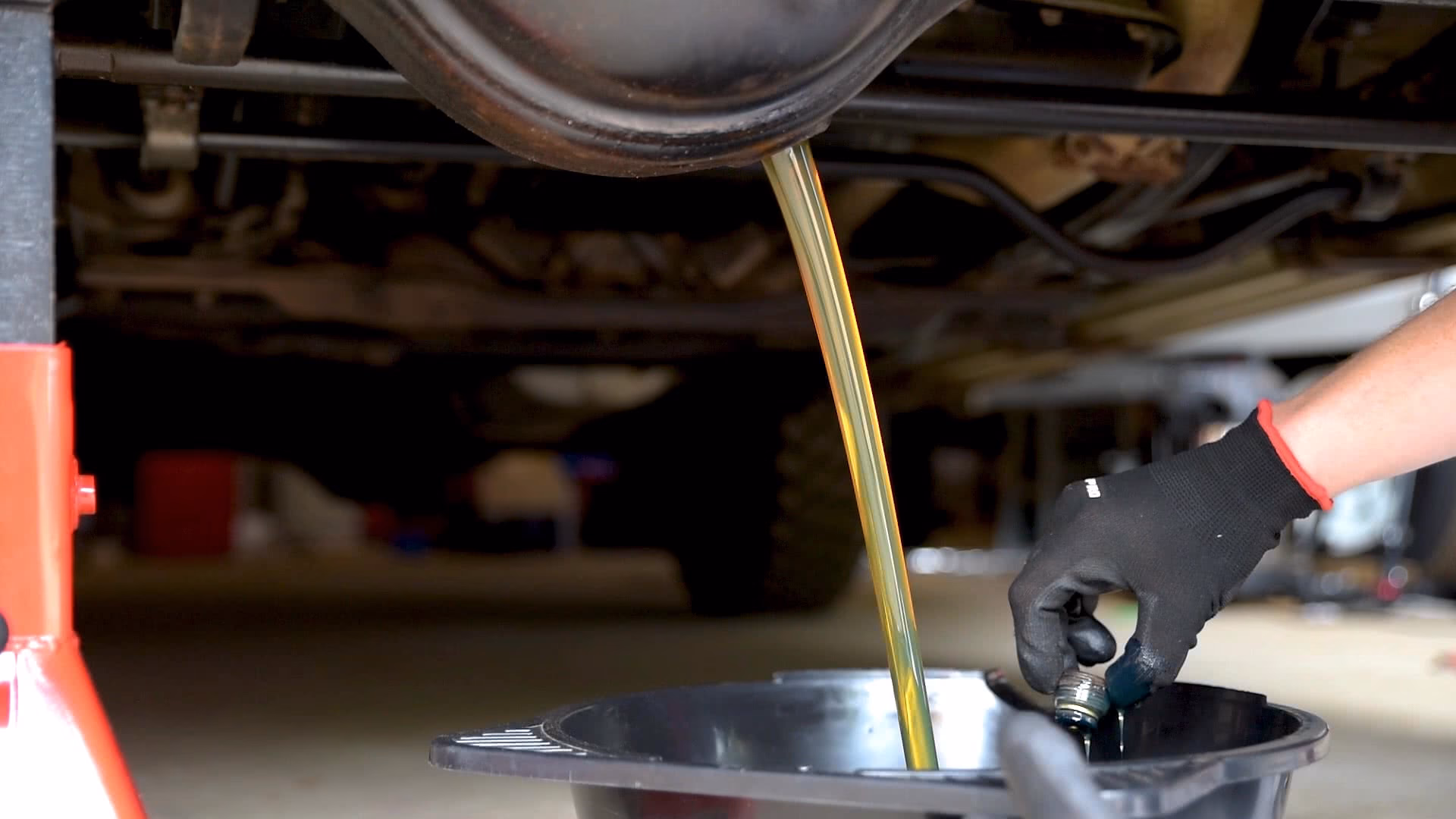

While it's often a task best left to professionals, a basic understanding of the process can be helpful. You'll typically need to locate the differential drain plug and fill plug. After draining the old oil, the fill plug is removed, and new oil is added until it reaches the level of the fill plug opening. It's essential to use the correct type and amount of oil. Always consult your vehicle's service manual for specific instructions and safety precautions.

Common Differential Oil Types

Here's a general comparison of common differential oil types:

Frequently Asked Questions

Q1: Can I use engine oil in my differential?
No, engine oil is not designed for the high-pressure, high-shear environment of a differential. Differential oil has specific additives to protect the gears.

Q2: What happens if I don't change my differential oil?
Over time, the oil degrades, losing its lubricating properties. This can lead to increased wear, overheating, and eventual failure of the differential components.

Q3: Do all differentials use the same type of oil?
No, as discussed, viscosity and formulation requirements can vary significantly between front and rear differentials, and even between different vehicle models. Always check your owner's manual.

Q4: What is a limited-slip differential (LSD) and does it need special oil?
Yes, LSDs often require a special 'friction modifier' additive in the gear oil to ensure they function correctly. Using regular gear oil in an LSD can prevent it from engaging properly.

In conclusion, understanding the specific oil requirements for your vehicle's rear axle is vital for its performance and longevity. Always refer to your owner's manual for the precise specifications and follow the recommended maintenance schedule to keep your differential running smoothly.
