SRAM DB5 Brakes: The Unsung Hero of Stopping Power

In the fast-paced world of cycling components, it's often the flagship products that grab all the headlines, leaving their equally competent, but more budget-friendly, siblings to toil in relative obscurity. This narrative perfectly encapsulates the story of the SRAM DB5 brake. When SRAM unveiled their groundbreaking Guide series, the industry buzzed with well-deserved praise for a brake system that finally put an end to the notorious performance quirks of previous 'A' brand brakes often bundled with SRAM-equipped bikes. Yet, the Guide's quiet achiever, the DB5, barely warranted a whisper.

Typically found as original equipment (OE) on mid-range bikes, those priced between £1,200 and £2,000, the DB5 was designed to step into the shoes of the Avid Elixir 5. Consequently, your local bike shop might not have championed its virtues with the same fervour as its pricier counterparts. However, this lack of fanfare belies a truly excellent product. The DB5 benefits immensely from the technological 'trickle-down' effect, inheriting much of the innovation from the high-performance Guide line, alongside some of the more reliable aspects of the older Avid designs. The result? Not only is the DB5 a genuinely capable brake, but it's also remarkably affordable on the aftermarket. It's a testament to its value that it arguably deserved a far grander introduction.

The Evolution: From Avid to SRAM Branding

SRAM’s strategic decision to launch the DB line of brakes alongside the Guide series marked a significant shift in their product branding. This move saw their mid-range and high-end brake systems transition from the long-standing Avid brand name directly into the SRAM umbrella. This realignment was a deliberate effort to create a more cohesive and unified brand identity across their entire product portfolio, ensuring that all premium components were clearly associated with the SRAM name itself. While Avid had a storied history, the move aimed to consolidate and simplify the brand message for consumers, making it clear that these advanced braking solutions were integral to the broader SRAM ecosystem.

The DB5, in particular, was positioned as the direct successor to the widely used Avid Elixir 5 within SRAM's revamped brake lineup. This meant it needed to deliver comparable, if not superior, performance at a competitive price point, appealing to a vast segment of the cycling market. The challenge was to integrate new advancements while retaining the cost-effectiveness crucial for OE specification on popular bike models.

Understanding the DB5's Core Design

At first glance, the DB5 shares a familiar silhouette with its predecessor, the Elixir 5, particularly concerning its caliper design. Both brakes feature a robust 2-piston caliper, utilising 21mm pistons – a tried and tested configuration known for its balance of power and modulation. The fixed-position cable port on the caliper also remains consistent, simplifying routing for bike manufacturers and mechanics alike. This continuity in caliper design means that much of the fundamental stopping power and feel would be familiar to riders transitioning from the Elixir 5.

However, the most significant and transformative difference lies in the lever assembly. The new DB5 lever is strikingly similar, in fact, almost identical, to the lever found on the acclaimed SRAM Guide R brake. This is where the 'trickle-down' technology truly shines. The critical takeaway here is that the internal components, the very heart of the brake's hydraulic system, are precisely the same as those found in the higher-tier Guide R. This means the DB5 benefits from the superior feel, modulation, and reliability that made the Guide series so popular.

The primary distinction between the DB5 and the Guide R lever is the method of reach adjustment. While the Guide R boasts a convenient tool-free reach adjust, allowing for on-the-fly customisation, the DB5 employs a tooled reach adjust. This requires an Allen key to set the lever position. For many riders, especially those who set their lever reach once and rarely change it, this is a minor compromise given the substantial cost saving and the identical internal performance. It's a pragmatic design choice that keeps the price down without sacrificing core braking performance.

The Centerline Rotor Revolution: A Game Changer

One of the most impactful advancements accompanying the new SRAM DB and Guide lines, and a major departure from the older Avid series, is the introduction of SRAM’s new Centerline rotors. Our extensive ride tests of both the Guide and DB5 brakes consistently highlighted the Centerline rotors as one of the greatest improvements to the overall braking package. This is particularly true for those familiar with the infamous 'turkey gobble' noise that plagued the older G-series rotors, a sound that could often be as unsettling as it was annoying. The Centerline rotors effectively eliminate this characteristic noise, providing a much quieter and more consistent braking experience.

To understand the engineering behind this significant improvement, we spoke with James Alberts, SRAM Product Manager. He elucidated the meticulous design process: “Rotor development, like all of our products, is driven by engineering. Industrial Designers are always part of the development team, but when optimizing a rotor for thermal, noise, and power performance, small changes to geometry can make a huge difference. CenterLine’s design came directly from the minds of our engineers and was tested and optimized by engineering with our ID team being informed. What’s notable is that it looks different, but the aesthetic is the direct result of engineering.” This insight underscores that the Centerline rotor's unique appearance is not merely cosmetic; it is a direct consequence of rigorous engineering focused on optimising thermal management, reducing noise, and enhancing overall braking power. The improved heat dissipation and vibration damping characteristics are key to their superior performance.

Why Centerline Rotors Matter for Your DB5

While SRAM sells the DB5 brake (per wheel) for an attractive MSRP of £99, this price typically does not include the rotor. Consumers are given the flexibility to choose their preferred rotor size, or even opt for other brands. However, it's crucial to understand that straying from the recommended Centerline rotors means potentially missing out on the full performance benefits that make the DB5 truly shine. The synergy between the DB5 caliper and the Centerline rotor is significant for achieving optimal noise reduction and thermal management.

When questioned about why some bikes might still be spec’d with older G2 rotors, James Alberts clarified: “OE’s choose the rotor they wish to pair with a brake, however most bikes you will see with a DB5 brake will come with CenterLine rotors. The noise reduction and thermal management performance of CenterLine rotors make them a popular choice. It’s worth noting that CenterLine rotors are backwards compatible as well, so they will work with brakes we produced before Guide and DB5.” This confirms that while cost-saving measures might lead some manufacturers to use older rotors, the vast majority recognise the clear advantages of the Centerline. As a consumer, if you're acquiring a new bike with DB5 brakes, it's highly advisable to confirm that it comes equipped with Centerline rotors to ensure you experience the brake's full potential.

Key Specifications and Features

The SRAM DB5 is a well-rounded brake system designed for a broad range of mountain biking disciplines, primarily XC (Cross Country) and TR (Trail) riding. Its specifications highlight its robust construction and user-friendly features:

• Weight: Approximately 410g (per wheel, without rotor)
• Lever Material: Durable Aluminium
• Caliper Design: 2-piston caliper (for reliable stopping power)
• Finish Options: Gloss Black, White
• Rotor Recommendation: Centerline (for optimal performance)

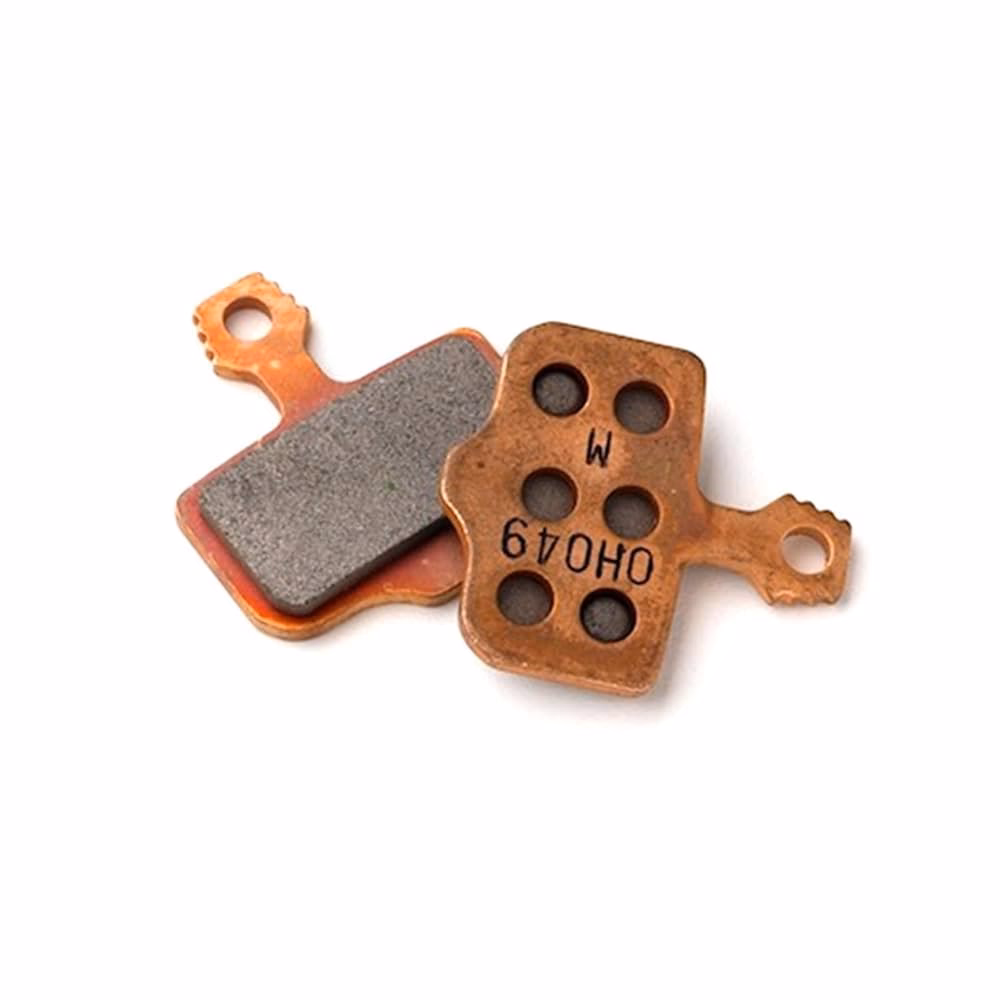

• Pad Type: Steel-backed Organic (offers a good balance of power and modulation with minimal noise)
• Fluid Type: DOT 5.1 (known for its high boiling point and consistent performance)
• Mount: Ambidextrous (can be mounted on either left or right side)
• Adjustments: Tooled Reach Adjust, Banjo Adjust (for hose routing)
• Special Features: Piggyback Reservoir (for consistent fluid volume and easier bleeding), MatchMaker X compatible (for integrated cockpit setups)
• Rotor Sizes Available: 140mm (rear-specific), 160mm, 170mm, 180mm, 200mm
• Pad Replacement: Tool-Free Pad Replacement (simplifies maintenance)

The availability of the DB5 in a white finish also adds a touch of aesthetic flexibility for bike builders and riders looking to match their bike's colour scheme.

SRAM DB5 vs. Avid Elixir 5: A Comparative Look

While the SRAM DB5 is designed as a direct replacement for the Avid Elixir 5, understanding their key differences and similarities can help appreciate the advancements made. Here's a brief comparison:

This table clearly illustrates that while the caliper remains largely consistent, the significant upgrade in the lever's internal design, coupled with the superior Centerline rotors, positions the DB5 as a substantial improvement over its Avid predecessor.

Frequently Asked Questions About the SRAM DB5

Is the SRAM DB5 a good brake?

Absolutely. Despite its lower price point and less marketing fanfare, the SRAM DB5 is a very capable and reliable brake. It benefits significantly from the trickle-down technology from SRAM's higher-end Guide series, particularly the lever internals and the excellent Centerline rotors, which provide strong, consistent, and quiet stopping power.

What's the main difference between the DB5 and the Guide R?

The primary difference lies in the lever's reach adjustment mechanism. The DB5 uses a tooled reach adjust, meaning you need an Allen key to adjust the lever's distance from the handlebar. The Guide R, conversely, features a tool-free reach adjust for quicker, on-the-fly adjustments. Internally, the critical components of the lever are effectively the same, offering similar braking performance and feel.

Can I use older rotors with my SRAM DB5 brakes?

Yes, Centerline rotors are backwards compatible, and the DB5 caliper will work with older G-series or G2 rotors. However, for optimal performance, especially in terms of noise reduction and thermal management, SRAM highly recommends pairing the DB5 with Centerline rotors. Using older rotors may reintroduce issues like the 'turkey gobble' noise.

What type of brake fluid does the SRAM DB5 use?

The SRAM DB5 uses DOT 5.1 brake fluid. It's crucial to use the correct DOT fluid as specified by SRAM, as mixing DOT fluids or using mineral oil can damage the brake system.

Is the DB5 suitable for aggressive downhill riding?

While the DB5 offers strong performance, its 'Intended Use' is primarily listed as XC (Cross Country) and TR (Trail). For very aggressive downhill or enduro riding, where sustained braking and extreme heat management are critical, higher-end brakes like the SRAM Code or Guide RE (which feature larger pistons and more robust calipers) might be more appropriate. However, for general trail riding and light enduro, the DB5 is more than sufficient.

Why did SRAM phase out the Avid brand for mid and high-end brakes?

SRAM transitioned its mid and high-end brakes from the Avid brand to the SRAM brand to create a more unified and cohesive product lineup. This strategic move aligns their premium braking solutions more directly with the overall SRAM ecosystem, simplifying branding for consumers and reinforcing the company's commitment to delivering high-performance components under a single, strong brand name.

The Unsung Hero: A Verdict on the SRAM DB5

In conclusion, while the SRAM Guide brakes deservedly captured much of the cycling world's attention upon their release, the DB5 quietly emerged as a truly exceptional product. It embodies the best of SRAM's engineering advancements, delivering the sophisticated lever internals of the Guide R and the transformative performance of the Centerline rotors, all wrapped up in an incredibly accessible package. For riders looking for a significant upgrade in braking performance without breaking the bank, or for those acquiring a new bike in the mid-range category, the DB5 is a shining gem.

Its ability to provide powerful, consistent, and quiet stopping power, largely due to the meticulous design of the Centerline rotors and the advanced lever internals, makes it an outstanding choice. When you're considering your next bike, or perhaps an aftermarket brake upgrade, make sure to give the SRAM DB5 the attention it deserves. Just remember to verify that it's paired with those crucial Centerline rotors – they truly are a huge part of what makes this brake great. The DB5 proves that you don't always need the most expensive component to achieve excellent performance on the trails.
