DIY Rear Brake Pad Change: Toyota Avensis T27 Estate

Maintaining your vehicle's braking system is paramount for safety on the road. Worn brake pads can compromise stopping distances and even lead to dangerous situations. While it might seem daunting, changing your rear brake pads on a Toyota Avensis III Estate (T27) is a manageable DIY task for many home mechanics, potentially saving you a considerable amount on garage labour costs. This detailed guide will walk you through the entire process, ensuring you have the knowledge and confidence to get the job done correctly and safely.

Your brakes are a critical safety component, so if you're ever unsure about any step, it's always best to consult a qualified mechanic. However, with the right tools, a methodical approach, and a keen eye for detail, you can successfully replace your rear brake pads and restore your Avensis's stopping power.

Understanding Your Rear Brakes on the Toyota Avensis T27

The Toyota Avensis III Estate (T27) typically features disc brakes on all four wheels. The rear calipers, unlike many front calipers, often incorporate the parking brake mechanism directly. This means that retracting the piston requires a special tool that rotates as it pushes, rather than just pushing straight in. Understanding this distinction is key to a smooth replacement process.

When Should You Change Your Rear Brake Pads?

Knowing when to replace your brake pads is crucial for both safety and preventing further damage to your braking system. Here are the common indicators:

• Squealing or Grinding Noises: Most modern brake pads have a small metal wear indicator that creates a high-pitched squeal when the pads are low. A grinding noise indicates the pads are completely worn, and the metal backing plate is rubbing against the brake disc – this requires immediate attention.
• Reduced Braking Performance: If your car takes longer to stop or the brake pedal feels spongy, your pads might be worn.
• Visual Inspection: Regularly inspect your pads. If the friction material is less than 3mm thick, it's time for a replacement.
• Warning Light: Some Avensis models may have an electronic wear sensor that illuminates a warning light on your dashboard.

Rear pads often wear slower than front pads, but they still require regular inspection and timely replacement.

Essential Tools and Materials You'll Need

Before you begin, gather all the necessary tools and new components. Having everything to hand will make the process much smoother.

• New rear brake pads (ensure they are specific for your Toyota Avensis III Estate T27)
• Car jack and axle stands (never work under a car supported only by a jack)
• Wheel brace (for loosening wheel nuts)
• Torque wrench
• Brake caliper wind-back tool (essential for rear calipers with integrated parking brake – Tool No. 09960-100100 is a specific Toyota tool for this, but a generic wind-back kit will often work)
• Wire brush
• Brake cleaner spray
• Copper grease or specific brake lubricant (for pad contact points, not friction material)
• Flat-head screwdriver or pry bar
• Socket set and spanners (typically 12mm, 14mm, 17mm)
• Pliers (for parking brake cable)
• Safety glasses and work gloves
• Wheel chocks
• Drain pan or old rags (for potential brake fluid overflow)

Safety First: Crucial Precautions

Working on your vehicle's brakes involves critical safety components. Always prioritise safety above all else.

• Ensure your vehicle is on a flat, level surface.
• Engage the parking brake (if working on the front) or chock the wheels (if working on the rear).
• Use robust axle stands to support the vehicle after jacking it up. Never rely solely on a jack.
• Wear safety glasses to protect your eyes from debris and brake dust.
• Wear gloves to protect your hands and avoid getting brake dust or fluid on your skin.
• Brake dust can contain harmful asbestos fibres if working on very old vehicles, though modern pads are typically asbestos-free. Still, avoid inhaling it.
• Do not open the brake fluid reservoir cap unless necessary, and be careful not to spill brake fluid, as it can damage paintwork.

Step-by-Step Guide to Changing Rear Brake Pads on Your Avensis T27

This guide will focus on one side; the process is identical for the other side.

Step 1: Prepare the Vehicle

Park your Toyota Avensis on a firm, level surface. Place wheel chocks in front of the front wheels to prevent any movement. If your vehicle has an automatic transmission, put it in 'Park'; for manual, put it in first gear. Loosen the wheel nuts on the rear wheel you're working on slightly while the vehicle is still on the ground. This prevents the wheel from spinning when you try to loosen them later.

Step 2: Lift and Secure the Vehicle

Using your car jack, carefully lift the rear of the vehicle until the wheel is off the ground. Position an axle stand securely under the vehicle's chassis near the jacking point. Slowly lower the vehicle onto the axle stand, ensuring it's stable. Repeat for the other side if you plan to work on both simultaneously, or just raise one side if you prefer.

Step 3: Remove the Wheel

With the vehicle safely supported, fully unscrew the wheel nuts and carefully remove the wheel. Place it aside, ideally under the chassis as an extra safety measure.

Step 4: Inspect Existing Brakes

Before removing anything, take a moment to inspect the existing brake components. Check the condition of the brake disc for excessive wear, deep scoring, or warping. Look at the brake lines for any cracks or leaks. Note how the old pads are seated in the caliper carrier.

Step 5: Detach the Parking Brake Cable

This is a crucial step for the Avensis T27 rear brakes. Locate the parking brake cable attached to the rear brake caliper lever. Using a pair of pliers, carefully detach the cable from its lever. This usually involves compressing a spring or unhooking a small retaining clip. Make sure the cable is free and won't be under tension during the rest of the process.

Step 6: Remove the Caliper Bolts

The rear brake caliper is typically held in place by two guide pin bolts at the back. These are often covered by rubber boots. Using the appropriate socket or spanner (often 12mm or 14mm), loosen and remove these two bolts. You might need to hold the guide pin itself with another spanner to prevent it from turning.

Step 7: Detach the Rear Brake Caliper from Caliper Carrier

Once the guide pin bolts are removed, the caliper should be loose. Carefully pry it off the caliper carrier. You may need a flat-head screwdriver to gently persuade it if it's stuck. Do not let the caliper hang by the brake hose, as this can damage the hose. Support it with a piece of wire or bungee cord, or rest it on a suitable surface nearby.

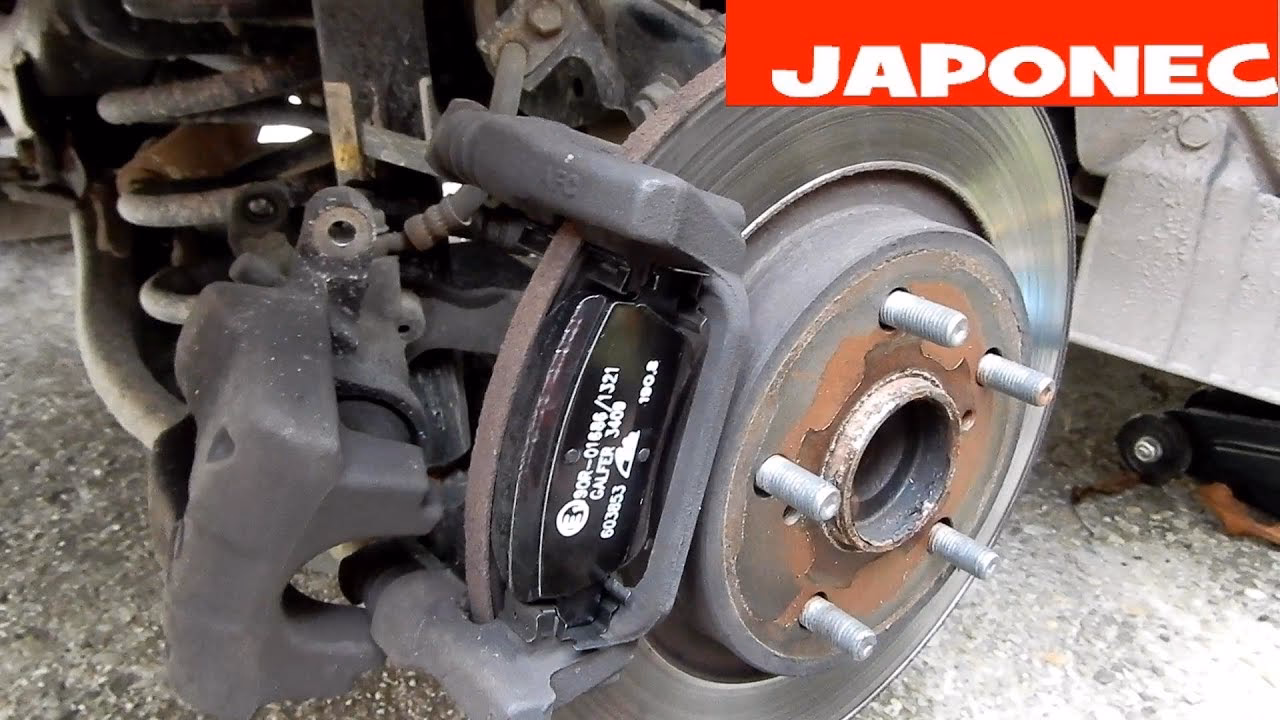

Step 8: Remove Old Brake Pads

The old brake pads will now be loose within the caliper carrier. Simply slide them out. If you intend to re-use them (though it's highly recommended to always fit new pads), ensure they are marked to enable them to be re-fitted to their original positions.

Step 9: Clean the Caliper Carrier

Using a wire brush, thoroughly clean the caliper carrier, especially where the brake pads sit. Remove any rust, dirt, or old grease. Finish with brake cleaner to ensure a clean surface. This prevents new pads from sticking and ensures smooth movement.

Step 10: Retract the Caliper Piston

This is where the special tool comes in. The rear brake piston on the Avensis T27 needs to be rotated as it's pushed back into the caliper body. Attach your brake caliper wind-back tool (e.g., Tool No. 09960-100100 or a generic equivalent) to the caliper piston. Rotate the tool clockwise (for the right side of the car, anti-clockwise for the left side on some models, check your specific tool instructions) while simultaneously pushing the piston back into its bore until it's fully retracted. This creates space for the thicker new pads. Keep an eye on the brake fluid reservoir; if it's full, some fluid may overflow, so have a rag ready.

Step 11: Install New Brake Pads

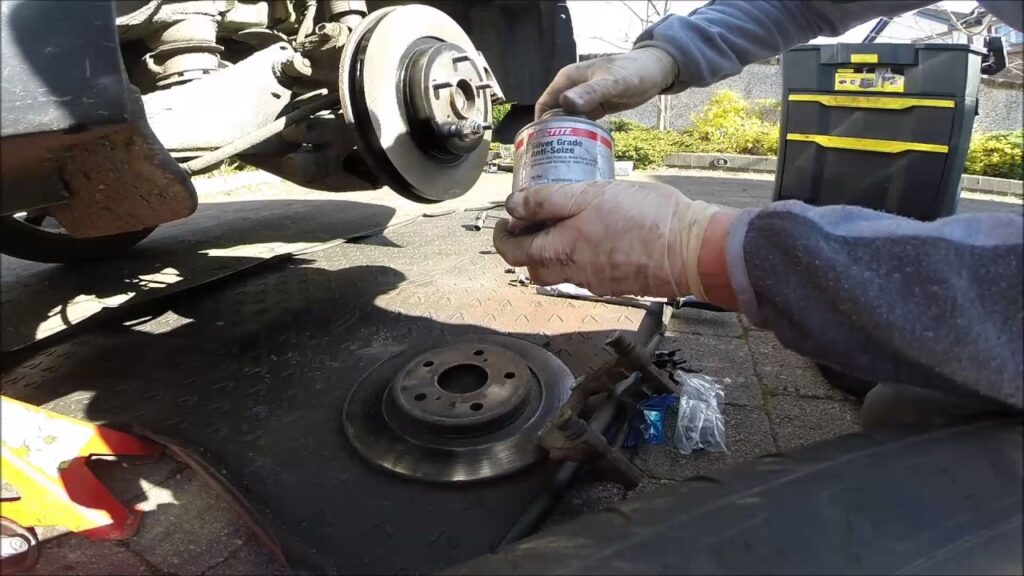

Apply a thin layer of copper grease or specific brake lubricant to the metal contact points on the back of the new brake pads and the caliper carrier where the pads slide. Ensure no grease gets on the friction material itself. Install the new pads into the caliper carrier, making sure they sit flush and can slide freely.

Step 12: Reattach the Caliper

Carefully slide the caliper back over the new pads and onto the caliper carrier. Ensure the guide pins align with the holes. Reinsert the two guide pin bolts and tighten them by hand first to avoid cross-threading. Then, use your torque wrench to tighten them to the manufacturer's specified torque setting (consult your Avensis service manual if available, typically around 25-35 Nm). Do not overtighten.

Step 13: Reconnect Parking Brake Cable

Reattach the parking brake cable to the caliper lever. Ensure it is securely fitted and operates smoothly.

Step 14: Reinstall the Wheel and Lower Vehicle

Place the wheel back onto the hub, aligning the bolt holes. Hand-tighten the wheel nuts. Lift the vehicle slightly with the jack to remove the axle stand, then fully lower the vehicle to the ground. Once on the ground, use your torque wrench to tighten the wheel nuts to the manufacturer's specified torque (typically around 100-120 Nm for the Avensis). Tighten them in a star pattern to ensure even pressure.

Step 15: Repeat for the Other Side

Follow all the above steps for the other rear wheel.

Step 16: Post-Installation Procedure (Crucial!)

Once both sides are done and the wheels are torqued:

1. Get into the car and, with the engine off, pump the brake pedal several times until it feels firm. This pushes the caliper pistons out and seats the new pads against the discs.
2. Check the brake fluid reservoir level. Top up if necessary with the correct DOT-rated fluid for your Avensis.
3. Start the engine and re-check the brake pedal feel. It should be firm.
4. Take the car for a short, gentle test drive in a safe area, applying the brakes lightly several times to ensure everything is working correctly.

Brake Pad Types: A Quick Comparison

When choosing new pads for your Avensis, you'll typically encounter a few types:

For your Toyota Avensis T27, high-quality semi-metallic or ceramic pads are generally recommended for a good balance of performance, longevity, and noise.

When to Consider Replacing Brake Discs

While this guide focuses on pads, it's worth noting that discs also wear out. You should consider replacing your brake discs if:

• They are below the minimum thickness specified by the manufacturer.
• They have deep grooves or scoring.
• They are warped, causing vibration when braking.
• They show signs of severe rust or corrosion.

It's generally good practice to replace discs when replacing pads if the discs are significantly worn, as new pads on worn discs can lead to reduced performance and premature pad wear.

Frequently Asked Questions (FAQs)

How long do rear brake pads last on a Toyota Avensis T27?

The lifespan of rear brake pads can vary greatly depending on driving style, road conditions, and pad material. Typically, rear pads can last anywhere from 30,000 to 70,000 miles, often longer than front pads due to less braking force applied to the rear.

Do I need special tools for the rear calipers on my Avensis?

Yes, absolutely. Because the rear calipers on the Avensis T27 often integrate the parking brake mechanism, you will need a brake caliper wind-back tool. This tool rotates the piston as it pushes it back into the caliper, which is different from a simple compression tool used on many front calipers. The specific Toyota tool number is 09960-100100, though universal kits are widely available.

Can I just replace one side's brake pads?

No. Always replace brake pads in pairs (both rear wheels or both front wheels). Replacing only one side will lead to uneven braking force, pulling the vehicle to one side, and could be extremely dangerous.

What is 'bedding in' new brake pads?

Bedding in, or 'break-in', is a process that conditions new brake pads and discs to work together optimally. It involves a series of controlled stops from moderate speeds, allowing the pad material to transfer evenly onto the disc surface. Follow the instructions provided with your new brake pads, but typically it involves 5-10 moderate stops from 50-60 mph down to 10 mph, without coming to a complete stop, allowing the brakes to cool between runs.

Is it safe to do this myself if I'm not an experienced mechanic?

If you follow this guide carefully, have the correct tools, and understand the safety precautions, changing your rear brake pads can be a rewarding DIY task. However, if you are at all unsure or uncomfortable at any point, it is always best to consult a professional mechanic. Your safety and the safety of others on the road depend on properly functioning brakes.

Conclusion

Replacing the rear brake pads on your Toyota Avensis III Estate (T27) is a maintenance task that, with careful attention to detail and adherence to safety protocols, can be successfully completed at home. By following these steps, you not only save money but also gain a deeper understanding of your vehicle's mechanics, ensuring your Avensis remains safe and reliable on the UK's roads. Remember, proper maintenance is key to a long and safe driving experience.
