Your Car's AC Clutch: How It Works & What To Do When It Fails

When the sun’s beating down, a working air conditioning system in your car isn't just a luxury; it's often a necessity for comfort and safety. However, if your vehicle’s air conditioning isn’t blowing cold air, and you suspect the system isn't even engaging, the AC compressor clutch is likely at the heart of the problem. This critical component is responsible for activating the compressor, which is what allows your AC to cool the air effectively. Without the clutch engaging, the compressor remains dormant, leaving you in a hot car.

In this comprehensive guide, we'll delve into the intricacies of the AC compressor clutch, explaining its function and how it operates. We’ll also meticulously cover the most common reasons why this essential component might not be engaging, providing you with clear diagnostic steps and practical solutions to get your AC system back in working order. Whether you're a seasoned DIY mechanic or just starting, understanding these principles will empower you to tackle AC issues with confidence.

What is an AC Compressor Clutch?

The AC compressor clutch is an integral part of your vehicle's air conditioning system, specifically located on the front of the AC compressor itself. Its primary function is to connect and disconnect the AC compressor from the engine's continuously rotating serpentine belt pulley. Think of it as a sophisticated on/off switch for your compressor. When you activate your car's AC, the clutch engages, allowing the compressor to spin and circulate refrigerant. When the AC is off, or not needed, the clutch disengages, stopping the compressor and saving engine power.

How Does the AC Clutch Work?

The operation of the AC clutch is a fascinating blend of mechanical and electrical engineering. When you press the AC button inside your vehicle’s cabin, an electrical signal is sent to a magnet coil located within the AC compressor clutch assembly. This signal provides direct current (DC) power to the coil, which in turn generates a powerful magnetic field.

This magnetic field is crucial. It pulls the clutch plate, which is attached to the compressor shaft, into firm contact with the continuously spinning pulley. Once connected, the rotational force of the engine's serpentine belt is transferred through the pulley to the clutch plate, causing the compressor's internal components to begin rotating. This rotation is what drives the compressor to circulate and pressurise the refrigerant, initiating the cooling process. When the AC is turned off, the power to the magnet coil is cut, the magnetic field dissipates, and the clutch plate springs away from the pulley, stopping the compressor's rotation.

Why Isn't Your AC Clutch Engaging? Common Causes Explored

When your AC clutch fails to engage, it's often a symptom of a deeper issue within the air conditioning system. Here’s a detailed look at the most common culprits:

Low Refrigerant Level

Perhaps the most frequent reason for a non-engaging AC clutch is an insufficient level of refrigerant. The AC system operates under specific pressure ranges. If the refrigerant level drops too low, usually due to a leak, the low-pressure switch in the system detects this. To protect the compressor from damage, this switch will prevent the clutch from engaging, effectively shutting down the AC system. It’s a built-in safety mechanism. Without the correct amount of refrigerant, the system cannot cool efficiently, and the clutch won't activate.

Electrical System Faults (Fuse, Relay, Wiring)

The AC system, while mechanical in its core function, relies heavily on its electrical system. A damaged wire, a blown fuse, or a faulty relay can interrupt the vital power supply to the AC clutch's magnet coil. If the magnet coil doesn't receive power, it cannot generate the magnetic field needed to pull the clutch into engagement. This is a common starting point for diagnosis, as a simple fuse replacement can often resolve the issue.

Faulty Pressure Switches

Modern AC systems utilise high and low-pressure switches to monitor the system's integrity. These switches act as safeguards. If either the high-pressure switch detects abnormally high pressure (e.g., due to a blockage) or the low-pressure switch detects dangerously low pressure (e.g., due to a leak), they will send a signal to the vehicle's computer (ECM/PCM) to prevent the clutch from engaging. A defective pressure switch itself can also malfunction, erroneously signalling a problem and preventing clutch activation even if system pressures are normal.

Worn or Damaged Clutch Components (Coil, Plate, Pulley)

Over time, the physical components of the AC clutch can wear out. The clutch coil, responsible for generating the magnetic field, can burn out due to overheating or age, becoming too weak to pull the clutch plate. Similarly, the clutch plate and the pulley surface can become smooth or worn, reducing the necessary friction for proper engagement. If the clutch plate's tensioner rod becomes stiff or the air gap between the plate and pulley becomes excessive, the magnet coil may not be able to bridge the gap and engage the clutch effectively.

Compressor Issues (Worn or Seized)

In some cases, the problem isn't the clutch itself but the compressor it's designed to activate. If the AC compressor is internally worn, seized, or has a faulty bearing, it creates excessive resistance that prevents the clutch from engaging properly, or it might engage but then slip. A seized compressor is a serious issue that often requires complete replacement of the compressor unit.

Control System Malfunctions (AC Button, Control Module)

The signal to engage the AC clutch originates from your vehicle's control system. A malfunctioning AC button on the dashboard or a defective climate control module (which is essentially a small computer) can fail to send the necessary signal to the clutch. Diagnosing these issues usually requires a diagnostic scanner to check for fault codes related to the climate control system.

Other System Blockages/Leaks (Evaporator, Condenser, Lines)

While not directly part of the clutch, issues in other AC system components can indirectly affect clutch engagement. For instance, a leaking evaporator coil (cooling coil) inside the dashboard or a damaged condenser can lead to refrigerant loss, triggering the low-pressure switch. Similarly, a blocked expansion valve or a broken suction pipeline can disrupt refrigerant flow, causing pressure imbalances that prevent the clutch from engaging.

Faulty Engine Temperature Switch

Modern vehicles' Engine Control Modules (ECMs) manage various functions, including the AC system. The engine coolant temperature switch plays a role here. If this switch malfunctions or if the engine starts to overheat, it sends an 'overheat' signal to the ECM. In response, the ECM may automatically cut off the power supply to the AC compressor as a protective measure, preventing the clutch from engaging and reducing strain on the engine.

Troubleshooting Table: Common AC Clutch Issues at a Glance

How to Diagnose a Non-Engaging AC Compressor Clutch

Before attempting any repairs, a thorough diagnosis is essential to pinpoint the exact cause of the problem. Follow these steps carefully:

1. Initial Inspection: Start by visually inspecting the AC compressor and its wiring. Look for any obvious signs of damage, such as frayed wires, corrosion on connectors, or a loose serpentine belt.
2. Check Electrical Connections and Fuses: Locate your vehicle's fuse box (usually under the bonnet or inside the cabin). Find the fuse designated for the AC compressor or AC clutch and inspect it. If it's blown, replace it with a fuse of the correct amperage. Also, check the AC relay in the fuse box; you can often swap it with a similar relay (e.g., from the horn) for a quick test.
3. Test Power Supply to the Compressor:
   • First, ensure the engine is off and disconnect the wire connector from the AC compressor.
   • Start the engine and turn on the AC system from the cabin controls.
   • Using a multimeter set to DC voltage, check for power (around 12V) at the wire coming from the vehicle's electrical system (ECM side) to the compressor connector.
   • If there's no power, the issue lies upstream in the wiring, fuse, relay, or control module. You'll need to trace the wiring back from the compressor.
4. Check the Ground Connection: While checking power, also ensure the compressor has a good ground connection. Use your multimeter to check for continuity between the compressor's ground wire (if separate) and the vehicle's chassis.
5. Manually Test the Clutch Coil: This step helps determine if the clutch coil itself is functioning.
   • With the engine off, disconnect the wire connector from the AC compressor.
   • Carefully connect a jumper wire from the positive terminal of your vehicle's battery directly to the single positive wire on the AC compressor's clutch coil connector.
   • You should hear a distinct 'click' or 'clunk' sound as the magnet engages the clutch plate. If you hear the click and the clutch plate pulls in, your clutch and magnet coil are likely functional, indicating the problem is with the power supply coming from the ECM or earlier in the circuit. If you hear nothing, the coil is probably burnt out or faulty.
6. Check Refrigerant Levels: If the electrical checks pass, the next step is to check the refrigerant level. This typically requires specialised gauges that connect to the high and low-pressure service ports. Low pressure indicates a leak or undercharge.
7. Inspect Clutch Gap: With the engine off, visually inspect the gap between the clutch plate and the pulley. An excessive gap (usually more than 0.020-0.025 inches, consult your vehicle's manual for exact specs) can prevent engagement.

Step-by-Step Fixes for AC Compressor Clutch Problems

Once you've diagnosed the root cause, you can proceed with the appropriate repair. Some fixes are simple DIY tasks, while others may require professional assistance or specialised tools.

1. Address Electrical Issues (Wiring, Fuse, Relay):
   • Wiring: Inspect all wires connected to the AC system for damage or corrosion. Repair any frayed wires by splicing in new sections, or replace severely corroded connectors.
   • Fuse: If the AC fuse is blown, replace it with one of the correct rating. Never use a fuse with a higher amperage, as this can cause more severe electrical damage.
   • Relay: Test the AC relay using a multimeter or by swapping it with a known good relay of the same type. Replace it if it's defective.
2. Inspect for Refrigerant Leaks and Recharge:
   • If low refrigerant was the issue, you must first find and repair the leak. This often requires a leak detector or adding UV dye to the system.
   • After repairing any leaks, the system must be properly evacuated (vacuumed) to remove air and moisture, then recharged with the recommended type and amount of refrigerant. This typically requires professional equipment and expertise.
3. Examine AC System Components:
   • Check other components like the condenser, expansion valve, suction lines, receiver dryer, and cooling coil for clogs, damage, or leaks.
   • If any are found to be faulty, they will need to be repaired or replaced.
4. Test and Replace the AC Clutch Magnet Coil:
   • If your diagnosis pointed to a burnt-out or faulty clutch magnet coil, this component will need to be replaced. This often involves removing the front of the compressor or the entire compressor, depending on the vehicle.
   • Ensure the new coil matches the specifications for your compressor.
5. Inspect the Clutch and Pulley Surface:
   • If the clutch plate or pulley surfaces are worn, rusted, or contaminated with oil, they won't provide adequate friction for engagement.
   • In some cases, the clutch assembly (plate, pulley, and coil) can be replaced as a unit. If the compressor bearing is seized, the entire compressor may need replacement.
6. Check the Serpentine Belt:
   • Ensure the serpentine belt that drives the compressor is in good condition and properly tensioned. A worn, loose, or broken belt won't be able to spin the compressor pulley.
   • Replace the belt if necessary, and ensure it's tightened to manufacturer specifications.
7. Adjust the Clutch Gap:
   • If the clutch air gap is too wide, it can be adjusted by adding or removing shims behind the clutch plate. This requires precision and adherence to manufacturer specifications, often involving special tools.

Manually Engaging Your AC Compressor Clutch: A Temporary Check

Manually engaging the AC compressor clutch is a diagnostic step, not a permanent fix, used to determine if the clutch coil and mechanical parts are functional. To do this, you'll need a jumper cable or a 2 to 3-metre piece of wire. With the engine off and the vehicle's ignition in the 'off' position:

1. Locate the single wire connector leading to the AC compressor's clutch coil. Disconnect it.
2. Connect one end of your jumper wire to the positive terminal of your car's battery.
3. Carefully touch the other end of the jumper wire to the pin inside the AC compressor's single wire connector (the one leading directly into the compressor).
4. You should hear a distinct 'click' sound as the clutch engages. This indicates that the clutch coil and the mechanical components of the clutch are working correctly. The problem then lies in the electrical signal reaching the compressor from the car's system (e.g., fuse, relay, wiring, control module).

Important Safety Note: Be extremely careful when working with electrical connections and the car battery to avoid short circuits or electric shocks. Ensure the engine is off to prevent accidental engagement of other components.

Servicing Your AC Compressor Clutch: A Detailed Guide

Servicing the AC compressor clutch can be a complex procedure, often requiring specialised tools and a good understanding of automotive mechanics. While some clutch components can be replaced individually, it's crucial to understand the steps involved. This guide outlines the general process for common compressor types. Always refer to your specific vehicle's service manual for precise instructions and torque specifications.

General Removal Procedure

1. Safety First: Disconnect and isolate the negative battery cable to prevent accidental electrical activation.
2. Access the Compressor: Remove the accessory drive belt that powers the AC compressor. Depending on your vehicle, you might need to raise and support the vehicle for better access.
3. Disconnect Electrical: Disconnect the engine wire harness from the AC compressor clutch field coil connector.
4. Compressor Support (If Necessary): If the clutch cannot be serviced in situ, you may need to remove the bolts securing the AC compressor to the engine and carefully support the compressor to access the clutch components.
5. Remove Clutch Plate:
   • Locate the compressor shaft bolt in the centre of the clutch plate.
   • Use a band-type oil filter wrench or a strap wrench to hold the clutch plate from rotating while you remove the bolt.
   • Caution: Do not pry between the clutch plate and the pulley, as this can cause damage.
   • Carefully tap the clutch plate lightly with a plastic mallet to release it from the compressor shaft splines. Be mindful of any small shims that may be located behind the clutch plate; these are crucial for proper air gap adjustment later. Keep them safe.
6. Remove Pulley and Bearing Assembly:
   • Using snap ring pliers, remove the snap ring that secures the pulley and bearing assembly to the front of the AC compressor.
   • Carefully remove the pulley and bearing assembly. It might come off by hand, or require a two-jaw puller if it's stubborn.
7. Remove Clutch Field Coil:
   • Using snap ring pliers, remove the snap ring that secures the compressor clutch field coil to the front of the AC compressor.
   • Carefully remove the field coil, noting its orientation and the routing of its wire lead.

General Installation Procedure

Installation is essentially the reverse of removal, but with critical attention to detail, particularly regarding snap rings and clutch air gap.

1. Install Clutch Field Coil:
   • Position the new (or old, if reusing) AC clutch field coil squarely onto the front of the AC compressor, ensuring any dowel pins align with holes on the compressor. Make sure the wire lead is routed correctly to avoid pinching.
   • Using snap ring pliers, install the snap ring that secures the field coil. Ensure it is fully and properly seated in its groove. The bevelled side of the snap ring should typically face outwards.
2. Install Pulley and Bearing Assembly:
   • Position the pulley and bearing assembly onto the front of the AC compressor. You may need to gently tap it into place with a block of wood or a special installation tool until it bottoms out against the compressor housing.
   • Using snap ring pliers, install the snap ring that secures the pulley and bearing assembly. Again, ensure it is fully and properly seated.
3. Install Clutch Plate and Shims:
   • Reinstall the original shims onto the compressor shaft. If using a new clutch plate or compressor, you may need to start with a trial stack of shims as recommended by the manufacturer (e.g., 2.54 mm or 0.010 in.).
   • Install the clutch plate onto the compressor shaft.
   • Install the compressor shaft bolt and tighten it to the manufacturer's specified torque (e.g., 19 N.m or 168 in.lbs.).
4. Measure and Adjust Clutch Air Gap:
   • This is a critical step for proper clutch function. With the clutch plate assembled tight against the shims, measure the air gap between the clutch plate and the pulley and bearing assembly.
   • Use a feeler gauge to measure this gap in several places around the clutch. The recommended air gap typically ranges from 0.35 mm to 0.60 mm (0.014 to 0.024 in.), but always consult your vehicle's specific manual.
   • If the gap is not within specifications, add or subtract shims as needed until the correct air gap is obtained. This may involve removing the clutch plate again to adjust shims.
5. Reconnect and Reassemble:
   • Carefully route the compressor clutch field coil wire lead and connect it to the engine wire harness.
   • Reinstall the AC compressor (if removed) and secure it with its retaining bolts, tightening to specifications.
   • Install the accessory drive belt and ensure it's tensioned correctly.
   • Reconnect the negative battery cable.
6. Clutch Break-in: After installation, perform the clutch break-in procedure as outlined in your vehicle's manual. This usually involves running the AC for a period to ensure proper seating of components.

Disclaimer: Servicing the AC compressor clutch can be challenging and requires attention to detail. If you are not comfortable performing these steps, it is highly recommended to seek assistance from a qualified mechanic. Incorrect installation or adjustment can lead to premature clutch failure or damage to the entire AC compressor.

AC Compressor vs. Clutch Replacement: What's Best?

When faced with a faulty AC compressor clutch, a common dilemma arises: should you replace just the clutch, or the entire AC compressor unit? The decision often hinges on several factors, including cost, convenience, and the underlying cause of the failure.

Replacing only the clutch is generally a much more cost-effective option, as the clutch assembly itself is significantly cheaper than a full compressor. If the diagnosis clearly points to a clutch-specific issue (e.g., a burnt-out coil, worn clutch plate, or incorrect air gap) and the compressor itself is otherwise healthy, then replacing just the clutch is a viable and budget-friendly solution.

However, if the compressor is old, showing signs of internal wear (such as noise, resistance when turning the pulley by hand, or a history of issues), or if the clutch failed due to a seized compressor, then replacing the entire compressor unit is often the more prudent choice. While more expensive upfront, a new compressor comes with a new clutch and typically offers greater reliability, reducing the likelihood of further AC issues down the line. In cases of compressor clutch failure, especially if the compressor has high mileage or unknown history, replacing the entire compressor is often advisable to avoid potential inconvenience during future journeys.

Driving Without an Engaged AC Compressor Clutch

You can certainly drive your car even if the AC compressor clutch isn't engaging. The AC compressor is not essential for the vehicle's engine operation or its ability to move. The pulley on the front of the compressor, which the serpentine belt runs on, will continue to rotate freely regardless of whether the clutch is engaged or not. This means your engine's other accessories (like the alternator, power steering pump, and water pump) will continue to function normally.

The only consequence of a non-engaging AC clutch is that your car's air conditioning system will not produce cold air. If you're comfortable driving without AC, or if it's not a priority at the moment, there's no immediate mechanical harm in continuing to drive with a faulty clutch. However, it's advisable to address the issue eventually if you wish to restore your car's cooling capabilities, especially before warmer weather sets in.

Conclusion

The AC compressor clutch is a small but mighty component, pivotal to the comfort provided by your vehicle's air conditioning system. When it fails to engage, the common culprits range from simple electrical faults like a blown fuse or faulty relay to more complex issues such as low refrigerant levels due to leaks, or even internal problems within the compressor itself. A systematic diagnosis, involving checks of electrical connections, refrigerant pressure, and the clutch's mechanical integrity, is key to identifying the precise problem.

While some fixes, like replacing a fuse, are straightforward, others, such as addressing refrigerant leaks or replacing the compressor, require professional tools and expertise. Understanding the function of the clutch and the various reasons for its failure empowers you to make informed decisions about your car's maintenance, ensuring your AC system is ready to provide cool relief whenever you need it.

Frequently Asked Questions (FAQs)

How do I get my AC compressor clutch to engage?

To manually test engagement, disconnect the compressor's wire connector. Then, using a jumper cable, momentarily apply 12V power directly from the battery's positive terminal to the single positive wire of the AC compressor's clutch coil. You should hear a distinct click. If it clicks, the clutch mechanism is likely fine, and the issue is electrical upstream (fuse, relay, wiring, control module).

Should I replace the AC compressor or just the clutch?

This depends on the diagnosis and your budget. Replacing only the clutch is far less expensive if the compressor itself is in good condition and the clutch is the sole point of failure (e.g., burnt coil, worn plate). However, if the compressor is old, noisy, seized, or the clutch failed due to an internal compressor issue, replacing the entire compressor is often the more reliable long-term solution, though it's a more costly affair.

Can you drive without an AC compressor clutch?

Yes, you can drive without the AC compressor clutch engaging. The compressor's pulley will continue to spin freely, allowing the serpentine belt to power other engine accessories. The only consequence is that your car's air conditioning system will not produce cold air. There's no immediate mechanical harm to the vehicle from driving with a disengaged or faulty AC clutch.

Do I need to replace the A/C compressor clutch?

You only need to replace the A/C compressor clutch if it is confirmed to be faulty after proper diagnosis. Common signs indicating a need for replacement include the clutch not engaging despite receiving power, excessive noise when trying to engage, or visible wear/damage to the clutch plate or pulley surfaces. Often, if the compressor itself is failing, replacing the entire compressor unit, which includes a new clutch, is recommended.

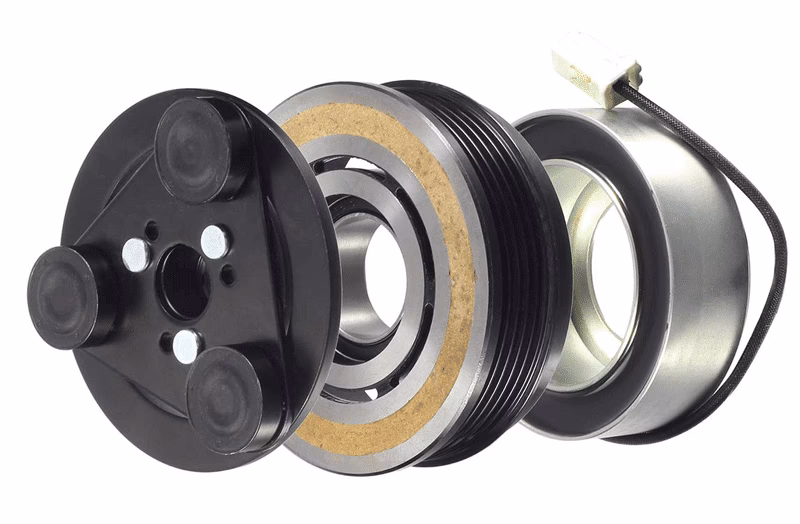

How do I service the A/C compressor clutch?

Servicing the A/C compressor clutch typically involves disconnecting the battery, removing the accessory drive belt, disconnecting the electrical connector, and then carefully removing the clutch plate, pulley, and field coil using snap ring pliers and sometimes specialised pullers. Installation is the reverse, with crucial steps like ensuring snap rings are properly seated and precisely measuring/adjusting the air gap between the clutch plate and pulley. Due to the precision required and the potential for system damage, it's often best left to experienced mechanics or those with the correct tools and knowledge.
