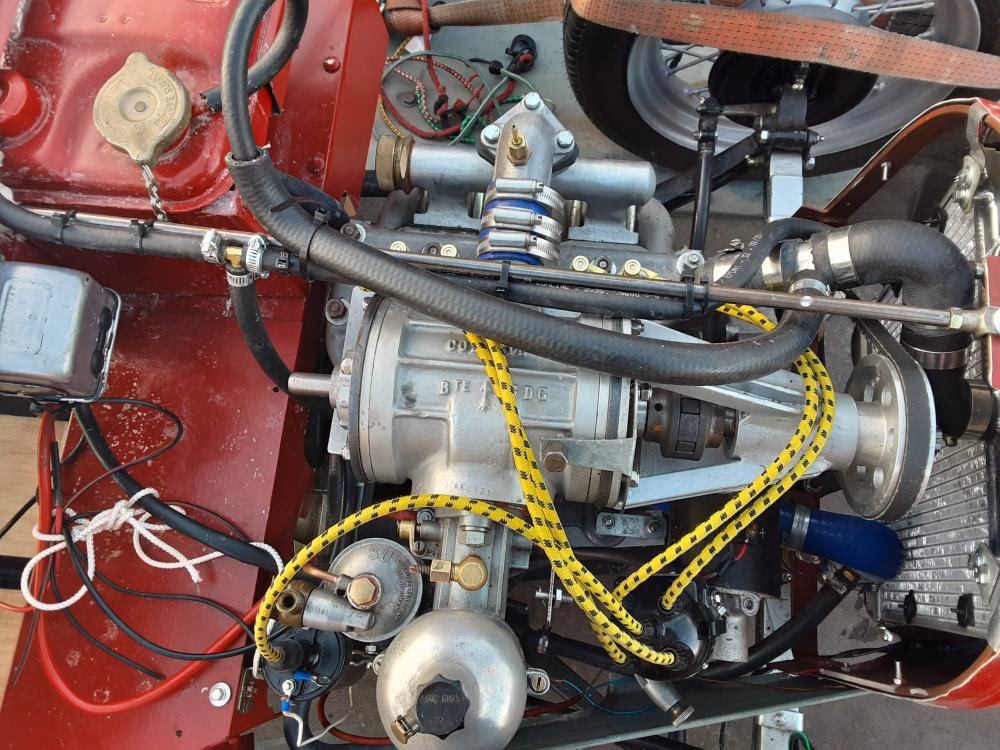

Austin Seven Engine Reassembly Guide

Reassembling an Austin Seven engine can be a rewarding, albeit intricate, process. While numerous comprehensive guides exist, this article aims to highlight key considerations and practical tips for a successful rebuild, drawing upon established knowledge and practical experience. It's important to note that this guide is not exhaustive but focuses on critical stages of the reassembly process.

Fitting the Crankshaft

The crankshaft installation begins with a prepared crankcase and front main bearings. The crankshaft is threaded through the rear main bearing aperture. It is recommended to warm the front of the crankcase using a hot air gun to facilitate this. With the crankcase positioned vertically on its bell-housing and the crankshaft tail supported, the front angular contact bearings can be carefully tapped into place. Ensure the faces marked 'thrust' are oriented towards each other and that all surfaces are lightly oiled. Gentle persuasion with a brass drift and a medium-weight hammer is preferred over brute force to avoid damaging the bearing races or retaining lips. If the correct bearings and spacers are used, the outer front race should protrude slightly above its housing. Secure the bearing retaining plate with its locking tab washers.

Next, the front crankshaft timing gear is fitted, ensuring the woodruff key is correctly positioned. A new tab washer is added, and bending its extremity slightly beforehand can aid in locking the 'starting' nut later. With the front bearing retaining plate secured and the starting dog nut tightened, a crucial check for pre-load on the front angular contact bearings can be performed by gently wagging the free rear end of the crankshaft. There should be no perceptible play.

Temporarily positioning the cylinder block can verify the central alignment of the crankshaft's big-end journals with the cylinder bores, confirming the correct assembly of the crankcase, front bearings, and any spacers. Attention then turns to the rear main bearing. The inner race must fit snugly onto the crankshaft, and the bearing housing should be undamaged. Warming the housing aids in driving the outer race home. This assembly is then fitted into the rear of the crankcase, using the thinner of the two gaskets, smeared with a suitable sealant like Blue Hylomar. Ensure all holes align and that the oil drain hole is correctly positioned and clear of sealant. Drift the inner race firmly against the rear crankshaft flange, ensuring the rollers enter the outer race without binding. The oil thrower, with its dish facing away from the engine, is positioned, followed by the oil retention plate, preferably one with a modern lip-seal. This is secured with the thicker gasket and four shallow head set screws with locking tab washers. Shallow heads are essential to prevent fouling the flywheel.

Fitting the Block and Piston Clearance

Given the age of Austin Seven cylinder blocks, and potential skimming of their top surfaces, it is vital to check piston-to-head clearance before final assembly. This requires a trial fit with pistons attached to connecting rods, though without little-end bolts or piston rings at this stage. Using old big-end bolts and nuts is recommended for this dry build.

For two-bearing A7 engines, if the block or crankcase top surfaces have been machined, a trial assembly will reveal the necessary piston clearance. This is particularly critical for high-compression cylinder heads. Ideally, there should be a clearance of 0.005 to 0.010 inches (5-10 thou') between the piston crown at Top Dead Centre (TDC) and the top of the block. Combined with a traditional copper/fibre head gasket (around 0.050" compressed), this allows the engine to rev safely. Modern, thinner gaskets (as little as 0.030") necessitate careful assessment. If clearance is insufficient, an aluminium shim plate of appropriate thickness (e.g., 0.010" or 0.020") can be fitted between the block and crankcase.

Machining piston crowns is another option, but it's generally inadvisable for modern slipper pistons with shallow lands above the top ring. Machining pistons for identical weight also adds complexity. Crankshaft whip is generally less of a concern with modern replacement crankshafts, potentially allowing for lower clearances.

The choice of gasket between the block and crankcase also influences clearance. A traditional paper gasket with sealant on both sides is often effective. Alternatively, ensuring perfectly flat, degreased mating surfaces and using a thin smear of Hylomar can also work well. Silicone gaskets, while oil-tight, may require periodic tightening of the holding-down nuts, potentially affecting tappet clearances.

To improve gas flow, a slight rounding or chamfering of the block's edge leading into the bore can be beneficial. The limit for this modification is dictated by the position of the top compression ring at TDC. An additional 0.020" clearance is a good safety margin. The chamfer width should correspond to the head gasket dimensions and be consistent on all four bores. Again, modern slipper pistons offer limited scope for this due to their shallower piston land.

Fitting the Pistons and Rings

Piston Ring Gaps: Opinions vary, but a gap of 0.003 to 0.004 inches is generally satisfactory, provided it's consistent. New rings often require filing to achieve the desired gap. A simple jig with a central groove for a file can aid in this, ensuring the ring is held square. Rings are fragile, so careful filing is essential. Check the gap by placing the ring on an old piston to ensure it's square to the bore and measuring with feeler gauges.

Piston and Con-rod Assembly: Pistons can now be fitted to the connecting rods. The gudgeon pins must be a firm, but not binding, sliding fit in the little-ends. Align the grooves in the pins with the little-end screws and secure them with new HT screws, shake-proof washers, and a medium-strength Loctite on degreased threads. Prevent Loctite from contaminating the gudgeon pin. Tighten the little-end screws firmly, using a high-quality spanner for maximum engagement. Slipper pistons often provide better access to these screws.

Ring Fitting: Fit the piston rings according to supplier instructions. Be careful not to scratch the piston lands; using thin brass shim stock can help slide the rings into place. Modern pistons with narrower rings exert less bore pressure, reducing friction and making fitting easier.

Assembly Method: While conventional methods involve fitting piston/con-rod assemblies into the block with oil baffles in place before joining the block and crankcase, it can be easier to ensure the big-ends can pass down the cylinder bores first. This allows for a more straightforward assembly.

Fitting the Camshaft

If your existing timing gears are in good condition, they can be reused. Otherwise, select suitable gears. Ideally, the crankcase will have markings indicating the centreline dimension between the camshaft and crankshaft bores. Matching gears from a collection of spares, avoiding worn specimens, and achieving satisfactory meshing through trial and error is key. Good meshing is indicated by smooth rotation without tight spots and a consistent backlash of 0.002 to 0.003 inches. Some slight noise is acceptable with slightly larger clearances (e.g., 0.006 inches).

Set the longitudinal clearance of the front camshaft bearing by bolting the cam pinion in place and measuring with a feeler gauge. Aim for approximately 0.002 inches. Excessive clearance can lead to engine rumble. Reduce clearance by rotating the camshaft gear on its taper with fine grinding paste, followed by thorough cleaning. If clearance is insufficient, a small amount can be removed from the back face of the gear on a lathe.

Refit the rear camshaft bearing into the back of the crankcase using a thin gasket and sealant, ensuring the lubrication hole aligns with the oil feed gallery. Lubricate the camshaft and insert it into the crankcase, taking care not to dislodge the centre bearing rollers. A tie-wrap can be used to temporarily hold the centre rollers in place. If using a high-lift camshaft, milling material from the top of the tappet guides might be necessary to prevent adjuster clash.

As the camshaft is inserted, the tie-wrap holding the rollers will be pushed clear and can be snipped off. Secure the camshaft with its setscrew, using a fibre or Dowty washer to prevent oil leaks. Finally, check the alignment of the two timing gears using a straight edge. Corrections can be made by adding shims or machining the rear boss of the crankshaft pinion. Once aligned, firmly tighten the crankshaft 'starting nut' and lock its tab washer.

Key Considerations Summary

Cleanliness: Meticulous cleanliness is paramount throughout the entire reassembly process to prevent contamination and ensure component longevity.

Lubrication: All moving parts and bearing surfaces must be adequately lubricated with appropriate engine oil during assembly.

Torque Settings: Adhere to specified torque settings for all fasteners, especially critical items like the main bearing cap bolts and cylinder head studs.

Component Alignment: Precise alignment of crankshaft, camshaft, and timing gears is essential for smooth operation and to prevent premature wear.

Piston Clearance: Correct piston-to-head and piston-to-bore clearances are vital for preventing damage, particularly with high-compression setups.

Frequently Asked Questions

Q1: What is the correct piston-to-head clearance for an Austin Seven engine?
For standard engines, aim for 0.005 to 0.010 inches. This may need adjustment based on the cylinder head and gasket used.

Q2: How do I check for crankshaft bearing pre-load?
With the front bearings and starting nut secured, gently waggle the free end of the crankshaft. There should be no detectable play.

Q3: What is the recommended piston ring gap?
A gap of 0.003 to 0.004 inches is generally recommended, ensuring consistency at all piston positions.

Q4: Can I reuse old timing gears?
Only if they are in excellent condition with minimal wear. Check for smooth meshing and consistent backlash.

Q5: What is the purpose of the tie-wrap for the camshaft rollers?
It temporarily holds the centre camshaft rollers in place during installation, preventing them from falling out and ensuring they engage correctly with the outer race.
