Understanding and Replacing Your Rear Axle Seals
The rear axle seals are crucial components of your vehicle's drivetrain, responsible for preventing differential fluid from leaking out and contaminants from entering the axle housing. Over time, these seals can degrade due to heat, age, and wear, leading to leaks. A leaking axle seal can result in low differential fluid levels, which can cause significant damage to your axle and differential if left unaddressed. This guide will walk you through the process of identifying the need for replacement and performing the replacement yourself, ensuring your vehicle's drivetrain remains well-lubricated and protected.
When to Consider Replacing Your Rear Axle Seals
The most common indicator of a failing rear axle seal is the presence of differential fluid on the inside of your wheels or on the brake components. You might notice a distinct greasy residue or even smell the gear oil. Another sign can be a noticeable whine or humming noise coming from the rear of your vehicle, particularly when turning, which could indicate a lack of lubrication due to a leaking seal. It's also wise to inspect your axle seals during routine maintenance, especially if your vehicle has high mileage or has been subjected to heavy use, such as towing or off-roading. If you're unsure about the condition of your bearings, it's often best to replace them as a preventative measure, as they will need to be removed to access the seal anyway.
Essential Tools and Materials
Before you begin, gather all the necessary tools and materials to ensure a smooth and efficient replacement process. Having everything on hand will prevent interruptions and potential frustration. Here's a list of commonly required items:
- New Rear Axle Seals: Ensure you have the correct seals for your specific vehicle make and model.
- Differential Fluid: You'll need to replenish the fluid after the job. Check your owner's manual for the correct type and quantity.
- Axle Bearing Puller (J 29712 or equivalent): This specialized tool is essential for removing the axle shaft and bearing assembly.
- Hydraulic Press: Required to press the old bearing off and the new bearing back onto the axle shaft.
- Heavy Steel Tubing or 'Drift': A piece of steel tubing with a diameter matching the inner race of the bearing is useful for re-installing the hub.
- Wrenches and Sockets: For removing lug nuts, axle nuts, and brake components.
- Pry Bar: To help separate components if they are seized.
- Hammer: For gently tapping components into place.
- Brake Cleaner: To clean components after removal.
- Rags and Shop Towels: For cleaning up spills and excess fluid.
- Gloves and Safety Glasses: To protect yourself from grease and potential hazards.
- New O-ring and Paper Gasket: For re-sealing the axle housing.
- New Lock Tab: If the original has been used multiple times.
Step-by-Step Replacement Process
Replacing rear axle seals can be a complex task, and while this guide provides general steps, always consult your vehicle's specific service manual for detailed instructions and torque specifications. It's also recommended to tackle this job on both sides of the vehicle simultaneously, as the seals on the other side are likely to be in a similar condition.
1. Preparation and Safety
Begin by ensuring your vehicle is safely supported on jack stands. Engage the parking brake and block the wheels that remain on the ground. Loosen the lug nuts on the rear wheels before lifting the vehicle. Once lifted, remove the rear wheels.
2. Accessing the Axle Shaft
You will need to remove the brake drum or caliper and rotor to access the axle shaft. Depending on your vehicle, this may involve removing a few bolts. Once the brake components are out of the way, you can proceed to remove the axle shaft.
3. Removing the Axle Shaft and Bearing
This is where the specialized tools come into play. For vehicles with a 9.75-inch axle, such as some Chevrolet models, you'll use a bearing puller (like the J 29712) installed into the axle housing behind the axle bearing. Tighten the nut on the puller to extract both the axle shaft seal and the front wheel bearing. Note that only one of the axle nuts might be a left-handed thread, so be mindful of this during removal.
If you don't have a specific puller, you might be able to use the stud holes as a standoff to partially dislodge the hub. However, a substantial puller will likely be needed to complete the removal. You may also require a distance piece to place under the screw of the puller for the final portion of the extraction.
4. Replacing the Axle Seal and Bearing

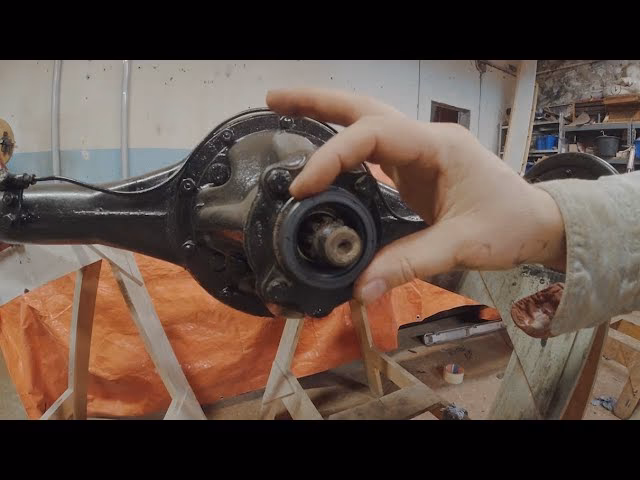

With the axle shaft removed, you'll need a hydraulic press to remove the old bearing. Once the bearing is pressed off, you can access and remove the old axle seal. Thoroughly clean the axle shaft and the area where the new seal will be pressed.
Before installing the new seal, it's crucial to check the condition of the axle bearing. Spin the bearing by hand; it should feel smooth and rotate without any grinding noises or excessive play. If you have any doubts about its condition, it's highly recommended to replace it. Since you've already removed the hub to get to the seal, replacing the bearing now will save you the trouble of repeating the process later if it fails prematurely.
To install the new seal, carefully press it into the axle housing using appropriate tools. For re-installing the hub and bearing assembly, a hydraulic press is ideal. If you don't have a press, you can use a piece of heavy steel tubing with a diameter matching the inner race of the bearing as a 'drift' to carefully hammer the hub back onto the axle housing. Ensure it's seated correctly.
5. Reassembly
Once the new seal and bearing are installed, slide the axle shaft back into the housing. Replace the O-ring and the paper gasket, ensuring the O-ring stays in place during installation. If the lock tab on the axle nut has been used on all its sides, replace it with a new one. Reinstall the brake components, torque all fasteners to the manufacturer's specifications, and re-mount the wheel. Don't forget to pre-grease the lip of the new seal before installation; this helps it seat properly and prevents damage during initial rotation.
6. Refilling Differential Fluid
After reassembling everything, it's time to refill the differential with the correct type and amount of gear oil. Check your owner's manual for the specific fluid requirements. Ensure the fill plug is accessible and fill the differential until the fluid reaches the bottom of the fill plug hole.
Common Pitfalls and Tips
Plan for Both Sides: It's almost always a good idea to replace both rear axle seals at the same time. The wear on one side is often indicative of the wear on the other.
Check Bearing Condition: Don't skip the bearing inspection. Replacing a worn bearing during the seal job will save you significant time and effort down the line.
Lubricate the Seal Lip: Always apply a thin layer of grease to the lip of the new seal before installation. This prevents it from tearing or binding during its first rotation.
Proper Seating: Ensure the seal is pressed in perfectly straight. A crookedly installed seal will likely leak.
Torque Specifications: Adhere strictly to the torque specifications for all nuts and bolts. Overtightening or undertightening can lead to component failure.
Frequently Asked Questions
Q1: How long does it take to replace rear axle seals?
A1: For an experienced DIYer, it can take anywhere from 2 to 4 hours per side. If you're new to this type of work, it might take longer, especially if you encounter seized components.
Q2: Can I drive with a leaking axle seal?
A2: It's not recommended. Driving with a leaking axle seal can lead to a critical shortage of differential fluid, potentially causing severe damage to your axle and differential. It's best to address the issue as soon as possible.
Q3: What happens if the axle bearing is bad?
A3: A bad axle bearing can cause noise, vibration, and eventually, the wheel could seize or the axle could break. It's a critical component for the smooth operation of your vehicle.
Q4: Do I need a special puller for the axle shaft?
A4: Yes, a bearing puller designed for axle bearings is highly recommended for safe and effective removal. Using incorrect tools can damage the axle shaft or housing.
Q5: What type of fluid do I need for my differential?
A5: Always consult your vehicle's owner's manual for the specific type and viscosity of differential fluid required. Using the wrong fluid can cause damage.
By following these steps and taking the necessary precautions, you can successfully replace your rear axle seals and ensure the longevity of your vehicle's drivetrain.
