Audi TT Mk3 Oil Change Guide

DIY Oil Change for Your Audi TT Mk3 (8S) and TTS

Keeping your Audi TT Mk3, whether it's a standard TT or the more potent TTS, running smoothly is paramount for its longevity and performance. One of the most fundamental maintenance tasks you can undertake yourself is an oil change. This guide will walk you through the process, ensuring you have the knowledge and confidence to tackle it at home. A regular oil change is crucial for lubricating your engine's moving parts, reducing friction, and preventing premature wear. Fresh oil also helps to keep your engine clean by suspending dirt and contaminants, which are then removed during the oil drain. For the Mk3 TT and TTS models, it's generally recommended to change the oil every 10,000 miles or 12 months, whichever comes first, though this can vary based on driving conditions.

Preparing for the Oil Change

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process much smoother and prevent interruptions. It's also a good idea to check your car's owner's manual for specific oil type and capacity recommendations. The Mk3 TT/TTS typically holds 5.75 quarts (approximately 5.4 litres) of oil. Using the correct grade and amount of oil is vital for optimal engine health.

Tools and Materials You'll Need:

• New engine oil (check your owner's manual for the correct specification, typically a synthetic 5W-30 or 5W-40).
• New oil filter (ensure it's the correct part number for your Mk3 TT/TTS).
• Oil filter wrench (suitable for the size of your oil filter).
• Drain pan or container (large enough to hold at least 6 quarts of used oil).
• Funnel.
• Socket set and ratchet (for removing the undertray and drain plug).
• Torque wrench (recommended for tightening the drain plug and oil filter).
• Gloves (to protect your hands).
• Rags or paper towels.
• Jack and jack stands (if you need to lift the car for better access).
• Wheel chocks (for safety if lifting the car).
• New drain plug crush washer (highly recommended to prevent leaks).

Step-by-Step Oil Extraction and Replacement

1. Warm Up the Engine

For easier oil extraction, it's best to have your engine slightly warm. Run the engine for about 5-10 minutes. This thins the oil, allowing it to flow more freely and ensuring more of the old oil is drained. Do not run the engine until it's piping hot, as this can be dangerous due to the extreme heat of the oil and engine components.

2. Access the Oil Drain Plug and Filter

Depending on your Mk3 TT/TTS, you may need to remove an engine undertray to access the oil drain plug and the oil filter. This is usually secured by a series of bolts. Use the appropriate socket from your socket set to remove these bolts. Once the undertray is off, you'll have clear access to the oil sump and filter housing.

3. Locate and Remove the Engine Cover (if applicable)

On some Mk3 TT/TTS models, there might be an engine cover that needs to be removed first. The provided information suggests removing it by firmly pulling upwards to disengage the securing nubbins. Be gentle but firm to avoid breaking any clips.

4. Check the Current Oil Level

Before draining, it's good practice to check the oil level using the dipstick. The Mk3 TT/TTS typically holds 5.75 quarts (around 5.4 litres). Knowing your starting point helps you estimate how much oil you've removed and how much new oil to add. If you were about half a quart low, as mentioned, you'd expect to drain approximately 5.25 quarts.

5. Drain the Old Oil

Position your drain pan directly underneath the oil drain plug. Using the correct size socket, carefully loosen and remove the drain plug. Be prepared for the warm oil to start flowing out immediately. Allow the oil to drain completely. This can take several minutes. Once the flow has slowed to a drip, wipe the drain plug clean and fit a new crush washer onto it. This washer is crucial for creating a good seal and preventing leaks. Reinstall the drain plug and tighten it. Crucially, use a torque wrench if possible, and tighten it to the manufacturer's specified torque (usually found in the service manual). Overtightening can strip the threads in the oil pan, while undertightening can lead to leaks.

6. Remove the Old Oil Filter

Locate the oil filter. It's usually a canister-type filter. Place your drain pan underneath it, as some residual oil will likely spill out when you remove it. Use an oil filter wrench to loosen the filter. Once it's loose enough, you should be able to unscrew it by hand. Be careful as it will be full of oil.

7. Prepare and Install the New Oil Filter

Before installing the new filter, take a small amount of your new engine oil and coat the rubber gasket on the top of the new filter. This helps to ensure a good seal and makes it easier to remove the filter at the next service. It also prevents the rubber gasket from sticking to the engine block. Screw the new filter on by hand until the gasket makes contact with the engine block. Then, tighten it an additional three-quarters of a turn to one full turn, or according to the instructions on the filter or in your service manual. Again, avoid overtightening.

8. Refill with New Oil

Once the drain plug is securely in place and the new oil filter is fitted, you can begin refilling the engine with fresh oil. Remove the oil filler cap (usually marked with an oil can symbol). Insert your funnel into the filler neck and carefully pour in the recommended amount of new oil. Start with slightly less than the full capacity (e.g., 5 quarts if the capacity is 5.75 quarts). This allows you to check the level before adding the final amount.

9. Check the Oil Level and Run the Engine

Replace the oil filler cap. Start the engine and let it run for a few minutes. The oil pressure warning light on your dashboard should go out shortly after starting. While the engine is running, check for any leaks around the drain plug and the oil filter. After a few minutes, turn off the engine and wait for about 5-10 minutes for the oil to settle back down into the sump. Now, pull out the dipstick, wipe it clean, reinsert it fully, and pull it out again to check the oil level. It should be within the marked range, ideally close to the 'MAX' mark without exceeding it. Add more oil in small increments if necessary, rechecking the level after each addition until it's correct. Do not overfill.

10. Reinstall Undertray and Final Checks

If you removed an undertray, reattach it securely by refitting all the bolts. Dispose of the used oil and old filter responsibly at a local recycling centre or auto parts store. Keep a record of the date and mileage of the oil change.

Common Pitfalls and Tips

Overtightening the drain plug or filter is a common mistake that can lead to costly repairs. Always use a torque wrench if possible, or be mindful of the snugness when tightening by hand. Forgetting to replace the crush washer on the drain plug is another frequent oversight that can result in oil leaks. Always fit a new one. Using the wrong type or grade of oil can compromise engine performance and protection. Always consult your owner's manual. Not letting the old oil drain completely will mean that old, dirty oil remains in the system, diluting the fresh oil. Be patient during the draining process.

Frequently Asked Questions

Q1: How often should I change the oil in my Audi TT Mk3?

A: Generally, every 10,000 miles or 12 months, but always refer to your owner's manual for the most accurate recommendation based on your driving habits and conditions.

Q2: What type of oil does the Mk3 TT/TTS use?

A: Typically, a high-quality synthetic oil such as 5W-30 or 5W-40 that meets Audi's specific oil standards (e.g., VW 504 00 / 507 00). Always check your manual.

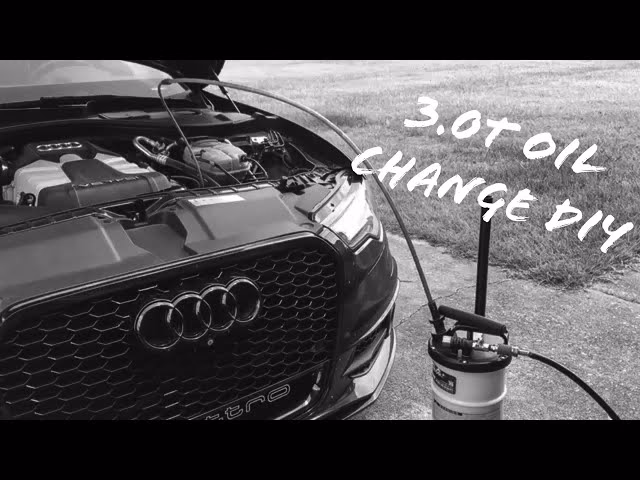

Q3: Can I use an oil extractor instead of draining from the sump?

A: While some vehicles are designed for oil extraction via the dipstick tube, it's generally recommended to drain the oil from the sump plug for a complete flush, as extraction may not remove all the old oil and sediment from the bottom of the sump.

Q4: Where can I dispose of used engine oil?

A: Most local garages, auto parts stores, and civic amenity sites (tip/recycling centres) accept used engine oil for recycling.

Performing your own oil changes can save you money and give you a greater understanding of your vehicle's maintenance needs. With the right tools and a careful approach, you can successfully keep your Audi TT Mk3 or TTS running optimally for years to come.
