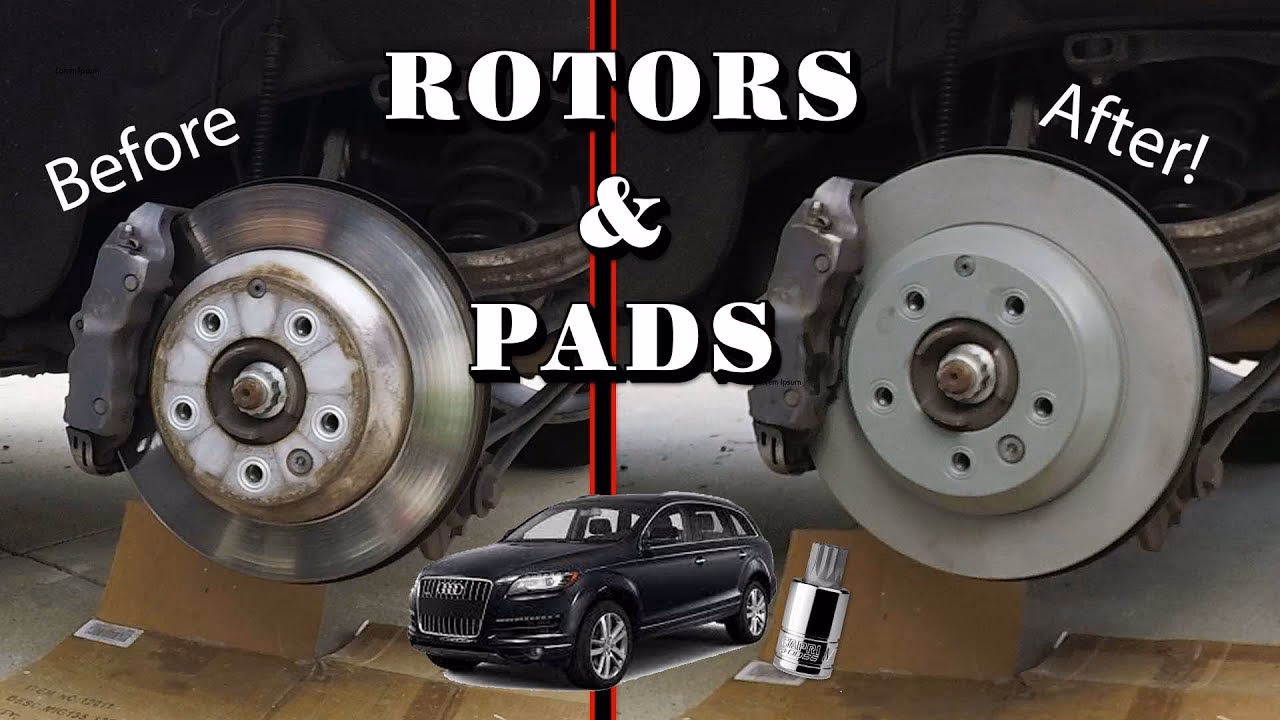

DIY: Replacing Your Car's Brake Rotor Pads

Your vehicle's braking system is arguably its most critical safety feature. Among its components, brake rotor pads play a fundamental role, converting kinetic energy into thermal energy through friction to slow and stop your car. Over time, these pads wear down, reducing braking effectiveness and potentially leading to dangerous situations. Understanding when and how to replace them is not just about maintenance; it's about ensuring your safety and the safety of others on the road. This guide will take you through the precise steps to replace your brake rotor pads, offering detailed insights and practical advice for a successful DIY job.

Ignoring worn brake pads can lead to more extensive and costly repairs, such as damaged brake rotors or even caliper issues. Moreover, compromised braking performance significantly increases your stopping distance, making accidents far more likely. By tackling this task yourself, you gain valuable mechanical experience, save money on labour costs, and ensure your vehicle is in top stopping condition.

Understanding Your Braking System

Before diving into the replacement process, a basic understanding of how your braking system works is beneficial. When you press the brake pedal, hydraulic fluid is pushed through lines to the brake calipers. The caliper, essentially a clamp, contains one or more pistons that push the brake pads against the spinning brake rotor. This friction causes your wheels to slow down. Brake pads are designed to be a sacrificial component, wearing down over time to protect the more expensive rotor. Knowing this helps you appreciate the critical role each part plays.

Signs It's Time for New Pads

Recognising the warning signs of worn brake pads is crucial. Here are the most common indicators:

• Squealing or Grinding Noises: Most modern brake pads have a small metal indicator that squeals when they're worn down to a certain point. A grinding noise typically means the pads are completely worn, and metal is rubbing against metal, potentially damaging the rotors.
• Reduced Braking Performance: If your car takes longer to stop, or you have to press the brake pedal harder than usual, your pads might be worn.
• Vibrations: Vibrations in the steering wheel or brake pedal when braking can indicate warped rotors, but can also be exacerbated by worn pads.
• Visual Inspection: You can often see the brake pads through the wheel spokes. If the pad material looks thin (less than 3mm), it's time for a replacement.
• Brake Warning Light: Some vehicles have sensors that trigger a dashboard warning light when pads are excessively worn.

Essential Tools and Safety First

Before you begin, gather all the necessary tools and ensure you have a safe working environment. Safety is paramount when working under a vehicle.

Tools You'll Need:

• Jack and Jack Stands
• Wheel Chocks
• Lug Wrench or Breaker Bar with Socket
• C-Clamp or Brake Piston Compression Tool
• Flat Blade Screwdriver
• Wire Brush
• Brake Cleaner
• High-Temperature Brake Grease (e.g., silicone-based)
• New Brake Pads (ensure they are the correct type for your vehicle)
• Gloves and Safety Glasses
• Torque Wrench (highly recommended)
• Hook Tool or Small Probe
• Drain Pan (for potential brake fluid overflow)

Safety Precautions:

• Always work on a flat, stable surface.
• Engage the parking brake and place wheel chocks behind the rear wheels (if working on the front) or in front of the front wheels (if working on the rear).
• Never rely solely on a jack; always use sturdy jack stands to support the vehicle.
• Wear appropriate personal protective equipment, including gloves and safety glasses.
• Be mindful of hot components if the car has recently been driven.
• Avoid getting brake fluid on painted surfaces, as it can damage the paint.

Step-by-Step: Rotor Pad Replacement

1. Prepare the Vehicle

With your vehicle parked on a flat surface, engage the parking brake. Loosen the lug nuts on the wheel you'll be working on, but don't remove them yet. Use your jack to lift the vehicle, then carefully position the jack stand(s) under a secure part of the vehicle's frame or designated jack points. Slowly lower the vehicle onto the stands. Once safely supported, remove the lug nuts completely and take off the wheel.

2. Initial Brake Fluid Management

Before you do anything else, open the bonnet and locate your brake fluid reservoir. Do not refill reservoir yet. As you push the brake pistons back into the caliper, brake fluid will be pushed back up into the reservoir. If the reservoir is full, this can cause an overflow, potentially spilling corrosive brake fluid onto engine components or paintwork. If the reservoir is already near the 'Max' line, you might want to carefully remove a small amount of fluid using a clean turkey baster or syringe, depositing it into a sealed container for proper disposal.

3. Preparing to Remove Old Pads (Initial Retraction)

To make the caliper removal easier, you can slightly retract the old pads now. Using a flat blade screwdriver, carefully insert the screwdriver into the vented portion of the rotor, between the rotor and the brake pad. Gently lever back the pads just a bit. This action will push the caliper pistons slightly back, creating a tiny bit of extra clearance and reducing the tension on the caliper, which can make unbolting it easier. Be careful not to damage the rotor surface or the pad.

4. Remove the Caliper and Old Pads

Now, you need to remove the brake caliper. Depending on your vehicle, there will typically be two caliper guide pin bolts or mounting bolts at the rear of the caliper. These are usually 12mm, 14mm, or 15mm. Use the appropriate socket and a ratchet or breaker bar to loosen and remove these bolts. Once the bolts are out, the caliper should be able to pivot upwards or be lifted off the rotor. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a bungee cord, wire, or a sturdy hook to suspend the caliper from a nearby suspension component, ensuring the brake hose is not under tension.

With the caliper out of the way, you can now remove the pads. The old pads will simply slide out of the caliper bracket. Note how they were installed, as the new ones will go in the same way.

5. Inspect and Clean

With the old pads removed, it's an ideal time for inspection and thorough cleaning.

• Inspect the rubber seals and the pistons: Carefully inspect the rubber dust boots around the caliper pistons for any tears, cracks, or signs of leakage. If you see any damage, the caliper will need to be rebuilt or replaced. Also, check the piston faces for corrosion. The pistons should look clean and smooth.
• Clean the Caliper Bracket: Use a wire brush and brake cleaner to thoroughly clean the caliper bracket where the pads sit. Remove all rust, dirt, and old lubricant. This ensures the new pads can slide freely.
• Clean out the bolts with a hook tool or probe so that the driver will fully seat: This refers to the bores for the caliper guide pins (if applicable) or the caliper mounting bolts. Over time, dirt, rust, and old grease can accumulate in these bores, preventing the bolts from fully seating or the guide pins from sliding smoothly. Use a hook tool or a small probe to scrape out any debris. Follow up with brake cleaner. This step is crucial for ensuring proper bolt torque and free movement of the caliper.
• Lubricate Guide Pins: If your caliper uses guide pins, remove them, clean off all old grease, and apply a thin, even coat of high-temperature brake grease (silicone-based) to the pins. Ensure they slide smoothly in their boots.

6. Retract the Caliper Pistons

Before installing new, thicker pads, you must fully retract the caliper pistons into their bores. This creates enough space for the new pads. While the initial screwdriver method provided some space, a C-clamp or a dedicated brake piston compression tool is the proper way to do this. Place an old brake pad (or a piece of wood) against the piston face to protect it, then use the C-clamp to slowly and steadily push the piston back until it's flush with the caliper body. For multi-piston calipers, you may need a specific tool to retract all pistons simultaneously. For calipers with parking brake mechanisms, a special wind-back tool might be required to rotate and push the piston back.

7. Install New Brake Pads

Carefully unpack your new brake pads. Many new pads come with shims or anti-squeal shims. Install these onto the back of the new pads as per the manufacturer's instructions. Apply a thin layer of high-temperature brake grease to the points where the pads slide in the caliper bracket and to the back of the shims (where they contact the caliper piston or caliper body). Do not get grease on the friction material of the pads or the rotor surface. Slide the new pads into the caliper bracket, ensuring they are correctly seated.

8. Reinstall the Caliper

Carefully lower the caliper over the new pads and rotor. Align the caliper mounting holes with the holes on the caliper bracket. Reinsert the caliper guide pin bolts or mounting bolts. Tighten them by hand first to ensure they are not cross-threaded. Then, use your torque wrench to tighten them to the vehicle manufacturer's specified torque settings. These specifications are crucial for safety and can usually be found in your car's service manual or an online repair database.

9. Reinstall the Wheel and Final Checks

Reattach the wheel, hand-tighten the lug nuts, and remove the jack stands. Lower the vehicle completely to the ground. Now, use your lug wrench or torque wrench to tighten the lug nuts to the manufacturer's specified torque in a star pattern to ensure even pressure.

Before starting the engine, get inside the car and slowly pump the brake pedal several times. You'll notice the pedal feels soft at first. This is normal, as you are pushing the pistons out to meet the new pads. Continue pumping until the pedal feels firm. This also pushes brake fluid from the reservoir back into the caliper. Now, check the brake fluid reservoir. Top it up to the 'Max' line with the correct type of brake fluid if necessary. Double-check all connections and ensure there are no leaks.

Post-Replacement Checks and Bedding-In

After replacing your brake pads, it's crucial to perform a 'bedding-in' procedure. This process properly seats the new pads to the rotors, optimising braking performance and longevity, and preventing premature wear or noise. The exact procedure can vary slightly by pad manufacturer, but a common method involves:

1. Driving at a moderate speed (e.g., 30-40 mph).
2. Applying the brakes moderately (not harshly) to slow down to about 10 mph. Do not come to a complete stop.
3. Repeat this process 5-10 times, allowing a few minutes between each stop for the brakes to cool slightly.
4. After the last stop, drive for a few miles without using the brakes much to allow them to cool down completely.

During this process, you might notice a slight smell or some smoke from the brakes; this is normal. Avoid hard braking or sustained braking immediately after installation.

Brake Pad Materials Comparison

Understanding the different types of brake pad materials can help you make an informed choice for your driving needs.

Frequently Asked Questions (FAQs)

How often should I replace my brake pads?

The lifespan of brake pads varies significantly depending on driving habits, vehicle type, and pad material. Generally, front brake pads last between 30,000 to 70,000 miles, while rear pads can last longer, often 50,000 to 100,000 miles. However, it's best to check them every 10,000 to 12,000 miles or during routine service.

Can I replace just one side's brake pads?

No, you should always replace brake pads in pairs on the same axle (both front or both rear). This ensures even braking force and prevents your vehicle from pulling to one side when braking, which can be dangerous.

Do I need to replace my rotors every time I change pads?

Not necessarily. Rotors should be inspected for wear, warping, and minimum thickness. If they are within specifications and free from significant grooves or run-out, they can often be reused. However, it's common practice to either machine (resurface) the rotors or replace them, especially if they show signs of wear or if you are installing new pads that require a perfectly flat surface for optimal bedding-in.

What does 'bedding in' new brake pads mean?

Bedding in, also known as 'burnishing', is a process that transfers a thin, even layer of friction material from the new pads onto the rotor surface. This creates a compatible friction layer that optimises braking performance, reduces noise, and ensures a longer lifespan for both pads and rotors. Skipping this step can lead to poor braking, squealing, and premature wear.

Why is my brake pedal soft after replacing the pads?

A soft brake pedal immediately after pad replacement is usually normal. It takes several pumps of the pedal to push the caliper pistons out and bring the new pads into contact with the rotors. If the pedal remains soft after repeated pumping and a short drive, or if it sinks to the floor, it could indicate air in the brake lines, a leak, or an issue with the master cylinder. In such cases, the brake system may need to be bled, or further inspection is required by a professional.

Conclusion

Replacing your car's brake rotor pads is a manageable DIY task that can save you money and give you a deeper understanding of your vehicle. By following these steps carefully, prioritising safety, and performing the crucial bedding-in procedure, you can restore your vehicle's braking performance and drive with confidence. If at any point you feel unsure or encounter unexpected difficulties, do not hesitate to consult a qualified mechanic. Your safety on the road depends on it.
