B9 Brake Wear Sensor Circuit Explained

Understanding the intricacies of your vehicle's braking system is paramount for both safety and optimal performance. The brake wear sensor circuit, in particular, plays a crucial role in alerting you to the need for new brake pads before they cause significant damage to your rotors. For owners of the B9 model, comprehending this circuit is a valuable piece of knowledge. This article will delve into the standard circuit configuration for the B9, highlighting key components and their connections, and will also explore the specific adaptations made for the high-performance RS models equipped with ceramic brakes.

The Standard B9 Brake Wear Sensor Circuit

The typical brake wear sensor circuit on a B9 Audi is designed to be straightforward yet effective. At its core, the system relies on sensors that physically wear down as the brake pads do. When a pad reaches a critical thickness, the sensor makes contact with the brake disc, completing a circuit and triggering a warning light on your dashboard. This proactive alert is a lifesaver, preventing costly damage and, more importantly, ensuring your braking capability remains uncompromised.

Let's break down the standard circuit:

• J519 (Gateway Module): This is the central hub for many of the vehicle's electronic systems, including the brake wear warning light. It initiates the signal and monitors the circuit's integrity.
• T73a Pin 20 (Black Wire): This is the primary connection point from the J519 module. A robust black wire carries the signal to the front left wheel sensor. The use of a specific pin on a connector like T73a ensures a secure and reliable connection.
• G34 (Front Left Wear Sensor): This is the first sensor in the standard circuit. It is typically positioned on the inner side of the front left brake pad. As the pad wears down, this sensor will eventually make contact with the brake disc.
• G37 (Rear Right Wear Sensor): Following the front left sensor, the circuit extends to the rear right wheel housing. Here, the G37 sensor is located, usually on the rear right brake pad. This sensor also operates on the same principle of physical wear triggering an electrical connection.
• Chassis Ground (Rear Right Wheel Housing): The circuit is completed by connecting to the vehicle's chassis ground, specifically located within the rear right wheel housing. This grounding point is essential for the electrical current to flow, allowing the J519 module to detect a completed circuit and illuminate the warning lamp.

It's important to note that most vehicles, including the standard B9, typically have wear sensors on at least the front axle. The inclusion of a rear sensor in this description suggests a comprehensive system or a specific configuration for certain B9 variants. The principle remains the same: a worn pad triggers the sensor, and the sensor completes the circuit to the control module.

Ceramic Brakes and the RS Model Variation

Audi's RS models are renowned for their enhanced performance, and this often extends to their braking systems. When equipped with ceramic brakes, the B9 platform sees a modification to the standard wear sensor circuit. Ceramic brake systems are designed for extreme heat resistance and longevity, often outperforming traditional cast-iron brakes in demanding conditions. However, the wear detection mechanism still needs to be integrated.

For the RS models featuring ceramic brakes, the circuit is adapted to include an additional sensor:

• G35 (Front Right Wear Sensor): In this performance-oriented setup, a G35 sensor is incorporated into the circuit. Crucially, it is placed *between* the G34 (front left) and G37 (rear right) sensors. This sequential placement ensures that the system can monitor wear on both front wheels independently, providing more precise information. The G35 sensor is situated on the front right brake pad.

The modified circuit for RS models with ceramic brakes would therefore look like this:

J519 > T73a pin 20 (black wire) > G34 (front left wear sensor) > G35 (front right wear sensor) > G37 (rear right wear sensor) > chassis ground on rear right wheel housing.

This arrangement allows for a more granular monitoring of brake pad wear, a fitting characteristic for a high-performance vehicle.

Why is this Circuit Important?

The brake wear sensor circuit is a critical safety feature. Ignoring the warning light can lead to:

• Reduced Braking Performance: Worn-out brake pads lose their effectiveness, significantly increasing stopping distances. This is particularly dangerous in emergency situations.
• Damage to Brake Rotors: If brake pads wear down to the metal backing plate, they will quickly and severely damage the brake rotors. Replacing rotors is considerably more expensive than replacing brake pads.
• Increased Repair Costs: The cascading damage from ignoring brake wear can result in much higher repair bills than addressing the issue promptly.

Identifying Brake Pad Wear

While the warning light is the primary indicator, there are other signs of worn brake pads:

• Squealing or Grinding Noises: Many brake pads have a small metal tab called a wear indicator that will squeal when the pads are low. A grinding noise often indicates that the pads have worn down to the metal backing.
• Longer Stopping Distances: If you notice your car taking longer to stop than usual, it's a clear sign that your brakes are not performing optimally.
• Vibrations or Pulsations: This can indicate warped rotors, which can be a consequence of severely worn pads.

Table: Standard vs. RS Ceramic Brake Wear Sensor Circuit

Frequently Asked Questions (FAQs)

Q1: How many brake wear sensors does a B9 typically have?

A1: The standard B9 usually has at least one front brake wear sensor (G34). Some configurations may include a rear sensor (G37). RS models with ceramic brakes will have sensors on both front wheels (G34 and G35) and often a rear sensor (G37).

Q2: Can I replace the brake wear sensors myself?

A2: Yes, replacing brake wear sensors is a relatively straightforward DIY task for many home mechanics. They are typically clipped onto the brake caliper or pad assembly and can be replaced when the brake pads are changed. Ensure you purchase the correct part for your specific B9 model and year.

Q3: What does it mean if the brake warning light stays on after replacing the pads and sensors?

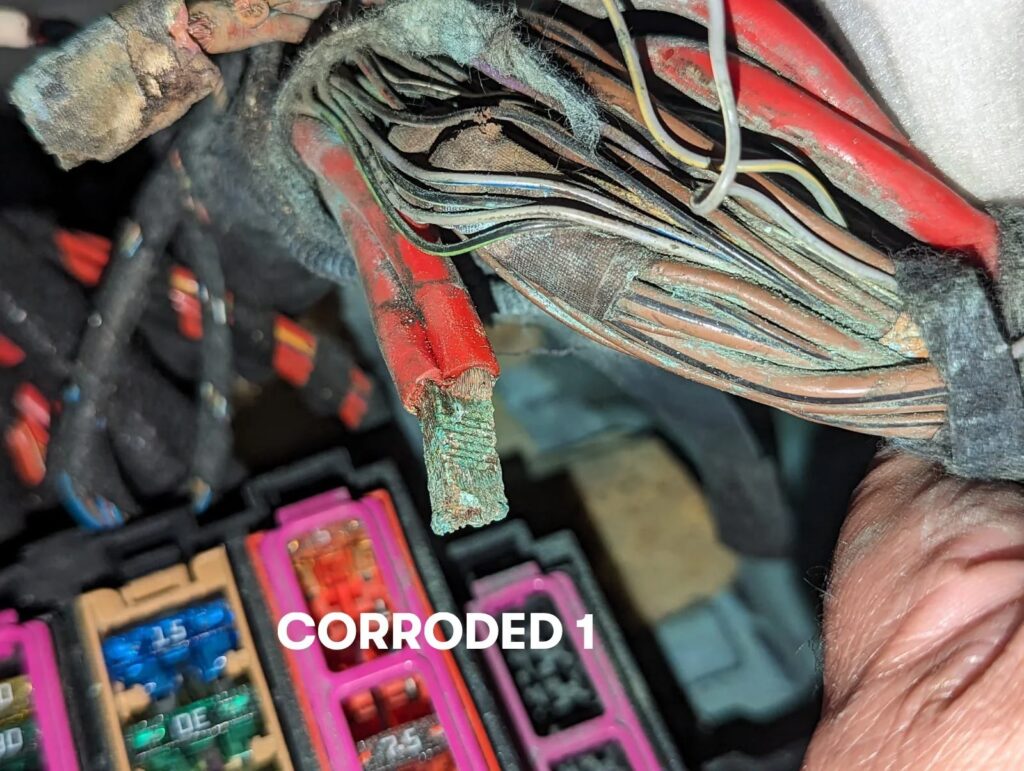

A3: If the brake warning light remains illuminated after replacing the pads and sensors, it could indicate a fault elsewhere in the circuit, such as a damaged wire, a faulty connector, or an issue with the J519 module itself. It's advisable to have the system checked by a qualified mechanic.

Q4: Are ceramic brake sensors different from standard ones?

A4: While the function is the same (detecting wear), the physical design and material composition of wear sensors for ceramic brakes may differ slightly to withstand the higher operating temperatures and potentially different wear characteristics of ceramic pads.

Q5: Does the J519 module need to be reset after replacing sensors?

A5: Typically, the J519 module will detect the new sensors and the completed circuit automatically. However, in some cases, a diagnostic scan tool might be necessary to clear any stored fault codes related to the previous sensor failure.

Conclusion

The brake wear sensor circuit, whether in its standard configuration or adapted for high-performance ceramic brakes on RS models, is a vital component of your B9's safety system. By understanding how it works and what the warning signs mean, you can ensure that your braking system is always in optimal condition, providing the confidence and security you need every time you drive. Regular checks and prompt replacement of worn components are key to maintaining the integrity and performance of your vehicle's brakes.
