Audi's 0B5 DL501 DSG: A Deep Dive

When it comes to automotive engineering, Audi has consistently pushed boundaries, and few components exemplify this better than their advanced transmissions. Among these, the Audi 0B5, also known by its internal code DL501, stands out as a true game-changer. Introduced in 2008, this 7-speed Dual-Clutch Transmission (DSG) was specifically designed to meet the evolving demands for both exhilarating performance and impressive fuel economy in Audi's premium longitudinal-engined vehicles. It marked a significant leap forward from previous designs, offering a sophisticated blend of rapid gear changes and refined driving dynamics that quickly became a hallmark of the Audi experience.

Understanding the Dual-Clutch Revolution

At its core, the 0B5 DL501 is a Dual-Clutch Transmission, a technology that has redefined automatic gear shifting. Unlike traditional automatic transmissions that use a torque converter, or manual gearboxes that rely on a single clutch, a DSG system employs two separate clutches. One clutch manages the odd-numbered gears (1, 3, 5, 7) and reverse, while the other handles the even-numbered gears (2, 4, 6). This ingenious setup allows the next gear to be pre-selected and ready to engage even before the current gear is disengaged. For instance, when accelerating in third gear, the fourth gear is already engaged on its clutch, waiting to be seamlessly activated. This pre-emptive action results in incredibly fast and smooth gear changes with virtually no interruption in power delivery, providing a driving sensation that blurs the lines between a manual and an automatic.

The Longitudinal Advantage and Audi's Vision

A key characteristic of the 0B5 (DL501) is its longitudinal orientation. This design choice is particularly significant for Audi, as it allows the transmission to be mounted inline with the engine, a common configuration for their quattro all-wheel-drive systems and larger, more powerful vehicles. This longitudinal layout helps in achieving better weight distribution, which is crucial for handling and stability, especially in high-performance driving scenarios. The integration of the 0B5 with Audi's renowned quattro system ensures that the power is efficiently distributed to all four wheels, maximising traction and control in various driving conditions. The decision to develop a dedicated longitudinal DSG highlighted Audi's commitment to offering the benefits of dual-clutch technology across their entire range, including those models where a transverse DSG like the DQ250 or DQ500 wouldn't be suitable due to packaging or power handling requirements.

Performance, Efficiency, and the Seven-Speed Spread

The 0B5's 7 gear ratios are not just a number; they are meticulously engineered to provide a wide spread that directly contributes to its superior performance and efficiency. A wider gear spread means that the engine can operate within its optimal power band for longer periods, whether you're accelerating hard or cruising on the motorway. The lower gears provide strong acceleration and torque, making the car feel incredibly responsive from a standstill, while the higher gears allow the engine to run at lower RPMs during cruising, significantly reducing fuel consumption and cabin noise. This combination ensures that drivers experience both the exhilarating punch of a sports car and the economical practicality of an everyday vehicle. The seamless transitions between gears, thanks to the dual-clutch mechanism, further enhance the driving experience, making every journey incredibly smooth and engaging.

Key Features and Engineering Marvels

• Integrated Mechatronic Unit: This is the brain of the 0B5 transmission, combining the electronic control unit (ECU) with the hydraulic valve body. It precisely controls clutch engagement, gear selection, and oil pressure, ensuring optimal performance and efficiency.
• Wet Multi-Plate Clutches: Unlike dry clutch systems, the 0B5 uses a pair of wet multi-plate clutches that are bathed in transmission fluid. This fluid provides essential cooling and lubrication, allowing the clutches to handle higher torque loads and offering superior durability and smoother engagement, especially under demanding conditions.
• Compact Design: Despite housing seven gears and two clutches, the 0B5 is remarkably compact, allowing for efficient packaging within the vehicle's chassis.
• High Torque Capacity: Designed to handle the powerful engines found in many Audi models, the 0B5 boasts a robust construction capable of managing substantial torque output, making it suitable for a wide range of Audi's performance-oriented vehicles.

Common Audi Applications

Since its introduction, the 0B5 (DL501) transmission has been widely adopted across various Audi models, particularly those with longitudinal engine layouts and quattro all-wheel drive. These include, but are not limited to, the Audi A4, A5, A6, A7, and Q5, especially those fitted with more powerful petrol and diesel engines. Its versatility and robust design have made it a cornerstone of Audi's drivetrain strategy for their mid-to-high range vehicles, delivering a premium driving experience consistent with the brand's image.

Maintenance and Longevity of Your 0B5 DSG

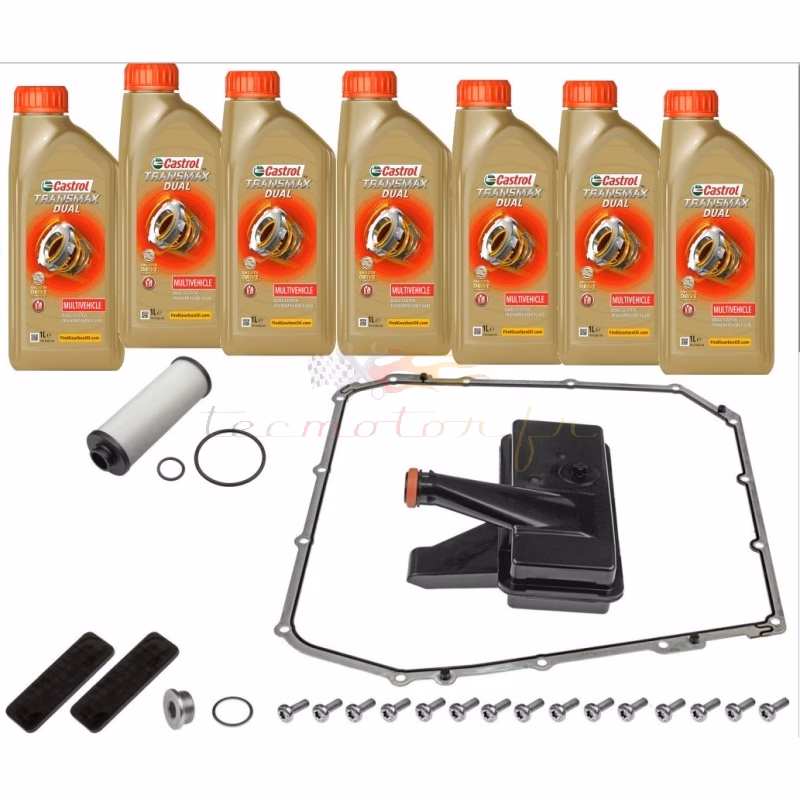

Like any sophisticated piece of engineering, the 0B5 DL501 requires proper maintenance to ensure its longevity and continued optimal performance. The most critical aspect of maintenance for this wet-clutch DSG is the regular replacement of its transmission fluid and filter. The fluid not only lubricates the gears but also cools the clutches and provides the hydraulic pressure for the mechatronic unit. Over time, this fluid degrades and accumulates metallic particles from normal wear, which can impair performance and accelerate wear on internal components.

Audi typically recommends a specific service interval for the 0B5 DSG fluid and filter change, often around every 38,000 miles (60,000 kilometres) or every four years, whichever comes first. It is crucial to use only the genuine Audi-specified transmission fluid (often referred to as 'DSG oil' or 'gearbox oil') and filter, as using incorrect fluid can lead to severe damage and costly repairs. While DIY fluid changes might seem appealing, the precise filling procedures, temperature calibration, and diagnostic tool requirements often necessitate professional service.

Tips for Extending Transmission Life:

• Regular Fluid & Filter Changes: Adhere strictly to the manufacturer's recommended service schedule.
• Avoid Creeping in Traffic: In heavy traffic, try to avoid prolonged 'creeping' where the clutch is constantly slipping. It's often better to come to a complete stop or move at a steady pace.
• Use 'P' for Parking: Always engage 'P' (Park) on a level surface and engage the handbrake. On inclines, engage the handbrake first, then select 'P' to avoid putting strain on the parking pawl.
• Gentle Starts: While the DSG is designed for quick launches, repeated aggressive starts can accelerate clutch wear.

Troubleshooting Common Issues

While the 0B5 DL501 is a robust transmission, like all mechanical components, it can develop issues over time. Recognising common symptoms can help you address problems early:

• Harsh or Jerky Shifts: This can indicate low fluid levels, contaminated fluid, or an issue with the mechatronic unit or clutches.
• Slipping Gears: If the engine revs increase but the car doesn't accelerate proportionally, it could be a sign of clutch wear or hydraulic pressure issues.
• Warning Lights: A transmission warning light on your dashboard is a clear indicator that professional diagnosis is needed.
• Unusual Noises: Whining, clunking, or grinding noises from the transmission area should be investigated immediately.
• Loss of Power/Limp Mode: The transmission might enter 'limp mode' to prevent further damage, severely limiting vehicle speed and performance.

In most cases, a specialised diagnostic tool (like VCDS for Audi) is required to accurately pinpoint the cause of a transmission issue, as many problems are electronic or hydraulic in nature rather than purely mechanical. Always seek advice from an Audi specialist or a qualified transmission expert for diagnosis and repair.

Comparison: 0B5 DSG vs. Other Transmissions

Key Specifications of the Audi 0B5 (DL501)

Frequently Asked Questions About the 0B5 DSG

Q: Is the Audi 0B5 (DL501) a reliable transmission?
A: Generally, yes, the 0B5 is considered a robust transmission, especially when properly maintained. Like any complex component, it can have specific failure modes, but regular fluid and filter changes are key to its longevity.

Q: What is the typical service interval for the 0B5 DSG fluid change?
A: Audi typically recommends a fluid and filter change for the 0B5 DSG every 38,000 miles (60,000 kilometres) or every four years, whichever comes first. Always check your specific vehicle's service schedule.

Q: Can I perform the 0B5 DSG fluid change myself?
A: While possible for experienced DIYers, it's highly recommended to have the 0B5 fluid and filter change performed by a qualified technician. It requires specific tools, precise fluid levels, and often temperature calibration using diagnostic software.

Q: What are the common signs of an 0B5 DSG problem?
A: Common signs include harsh or jerky shifts, slipping gears, unusual noises (whining, clunking), delayed engagement, or a transmission warning light on the dashboard.

Q: How does the 0B5 compare to Audi's S Tronic?
A: S Tronic is Audi's marketing name for its Dual-Clutch Transmissions. The 0B5 (DL501) is specifically the 7-speed longitudinal S Tronic gearbox used in many of their larger models. So, the 0B5 is a type of S Tronic.

Q: Can the 0B5 DL501 transmission be repaired, or does it need to be replaced?
A: Many issues with the 0B5, especially those related to the mechatronic unit or clutch packs, can often be repaired by specialists. Full replacement is usually a last resort for severe internal damage.

Q: Is the 0B5 DSG suitable for high-performance driving?
A: Absolutely. The 0B5 is designed to handle significant power and torque, providing lightning-fast shifts that are ideal for spirited driving and performance applications. Its wet-clutch design helps dissipate heat effectively under stress.

Conclusion

The Audi 0B5 (DL501) 7-speed DSG transmission stands as a testament to Audi's engineering prowess, seamlessly blending high performance with impressive fuel efficiency. Its longitudinal layout, sophisticated dual-clutch mechanism, and seven precisely spaced gear ratios have made it a cornerstone of the driving experience in numerous Audi models. By understanding its design, appreciating its capabilities, and committing to its proper maintenance, owners can ensure that this remarkable piece of automotive technology continues to deliver the smooth, rapid, and engaging drive it was designed for, for many years to come. It’s a complex but incredibly rewarding component that truly elevates the Audi driving experience.
