G34 Pad Sensor Wiring Guide

Understanding the G34 Pad Sensor Circuit

The G34 pad sensor, often referred to as a brake pad wear indicator, is a crucial component in modern vehicles. Its primary function is to alert the driver when the brake pads have reached a critical wear limit, necessitating replacement. This proactive warning system enhances safety by preventing potential damage to brake rotors and ensuring optimal braking performance. Understanding how this sensor is wired and how it functions is essential for both DIY enthusiasts and professional mechanics. This article will delve into the specifics of connecting and troubleshooting the G34 pad sensor, using a 2009 model as a reference point.

The Role of the G34 Pad Sensor

Brake pads are designed to wear down over time with repeated use. The G34 sensor is integrated into the brake system to monitor this wear. Typically, it's a small electrical contact that, when the brake pad material has worn down to a certain point, makes contact with the brake disc or rotor. This completes an electrical circuit, triggering a warning light on the dashboard – often a symbol of a brake disc with exclamation marks or the words "Brake Wear" or "Check Brakes". Early detection of worn brake pads is vital for maintaining safe stopping distances and avoiding more costly repairs down the line, such as replacing damaged brake discs.

Wiring the G34 Pad Sensor: A Step-by-Step Approach

Based on the provided wiring diagram for a 2009 vehicle, the connection of the G34 pad sensor involves several key components and pathways. Let's break down the circuit:

Module J519 and its Connectors

The central hub for many vehicle electronic functions, including the brake pad wear sensor circuit, is the J519 module. This is often referred to as the Onboard Power Supply Control Unit. In the context of the G34 sensor, two specific connectors on the J519 module are relevant:

• Connector T32b: This connector plays a role in sending the signal from the J519 module to the sensor. Specifically, pin 9 on the T32b connector is designated for the pad sensor circuit.
• Connector T17m: This connector is involved in the ground side of the circuit. Pin 17 on the T17m connector is where the ground line connects back to the J519 module.

The G34 Pad Sensor Itself

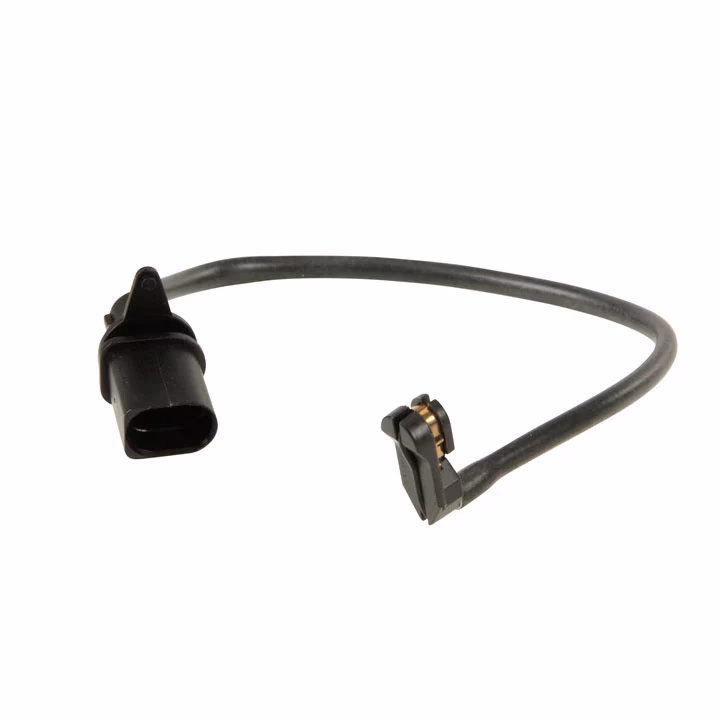

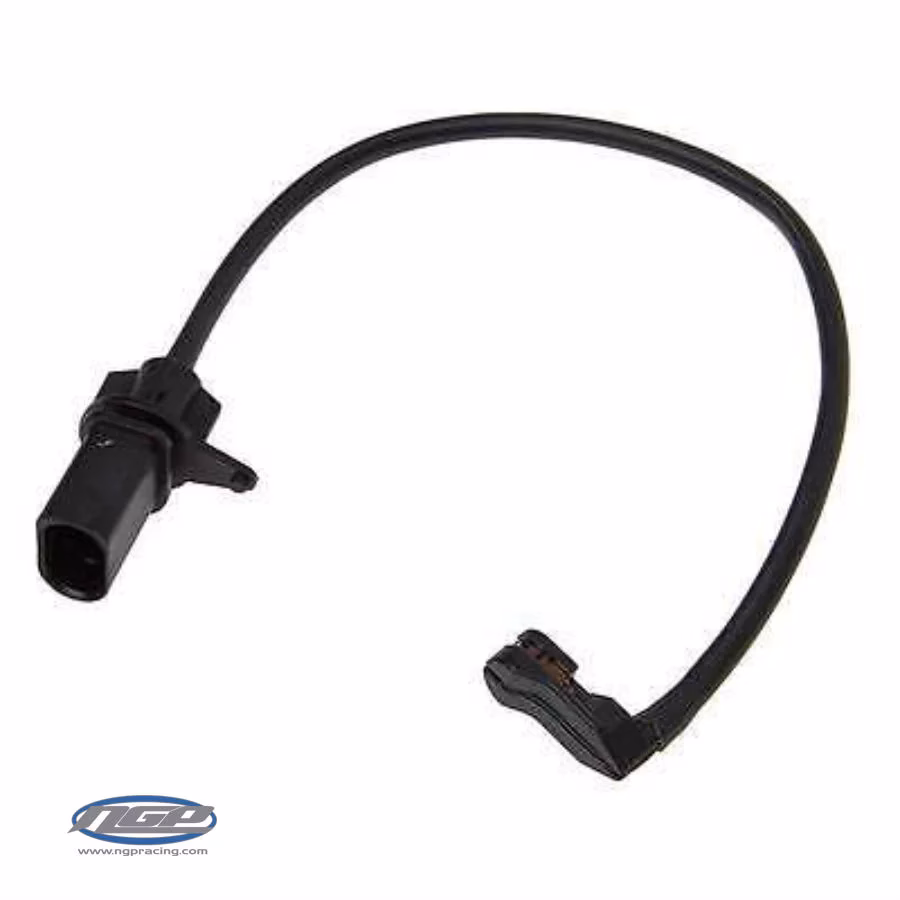

The G34 pad sensor is the component that physically interfaces with the brake pad. It typically has two connection points:

• Pin 2: This pin connects directly to the J519 module. Following the diagram, this would be the signal wire originating from J519 connector T32b pin 9.
• Pin 1: This pin is the ground connection for the sensor. It connects to a ground point that is also linked back to the J519 module via connector T17m pin 17.

The Grounding Pathway

The wiring diagram indicates a specific grounding strategy for this circuit. The ground line from the G34 sensor (pin 1) is not just a single point of connection. It also connects to the J519 module at connector T17m pin 17. Furthermore, this shared ground line ultimately connects to the vehicle's chassis. The diagram specifies the left A-pillar as the chassis connection point. This means that both the sensor's ground and the return path to the J519 module are physically anchored to the vehicle's body at this location.

Visualising the Circuit

To better understand the flow, imagine the circuit as follows:

1. A positive voltage supply originates from the J519 module (T32b pin 9).
2. This voltage travels through a wire to the G34 pad sensor (pin 2).
3. When the brake pad is worn, the sensor's contact is made, completing the circuit.
4. The circuit then returns to ground via the G34 sensor (pin 1).
5. This ground wire leads to the left A-pillar chassis connection.
6. From the A-pillar, the ground path continues back to the J519 module (T17m pin 17).

It is crucial that all these connections are secure and that the grounding points are clean and free from corrosion to ensure the circuit operates correctly.

Common Issues and Troubleshooting

Several issues can lead to the brake pad wear warning light illuminating or failing to illuminate when it should. Here are some common problems and how to approach them:

1. Faulty Sensor

The most straightforward cause of an illuminated warning light is a worn-out brake pad that has correctly triggered the sensor. However, the sensor itself can also fail prematurely. If the sensor is physically damaged or its internal contact mechanism is faulty, it might send a false signal or fail to send a signal at all.

2. Wiring Problems

Given the complexity of automotive wiring, breaks, shorts, or corroded connections are common culprits.

• Wire Breaks: A break in the wire between the J519 module and the sensor, or in the ground wire, will interrupt the circuit. This could be due to vibration, abrasion, or damage from road debris.
• Short Circuits: If a wire is damaged and touches another wire or a metal part of the vehicle, it can create a short circuit, potentially leading to erratic behaviour or a constant fault signal.
• Corrosion: Especially at grounding points, corrosion can significantly increase resistance or completely break the electrical path. The connection at the left A-pillar is a common area to inspect for corrosion.

3. Faulty J519 Module

While less common, the J519 module itself could be malfunctioning. This is usually the last resort for diagnosis after all other possibilities have been ruled out.

Diagnostic Steps

When faced with a brake pad wear warning light, a systematic diagnostic approach is recommended:

Step 1: Visual Inspection

Start with a thorough visual inspection of the brake pads themselves. If they are visibly worn down to the wear indicator level, the sensor has done its job. Replace the pads and the sensor (as they are often replaced as a pair and the sensor is usually destroyed upon removal). If the pads appear to have plenty of life left, proceed to inspect the sensor and wiring.

Step 2: Sensor Inspection

Carefully remove the brake pad sensor. Check for any physical damage to the sensor, its wiring, or the connector. Ensure the sensor is properly seated within the brake pad.

Step 3: Wiring Continuity and Resistance Test

This is where a multimeter is essential. You'll need to test the continuity of the wires and check for resistance.

• To J519 (T32b pin 9): With the sensor disconnected from the J519 module, test the resistance between the sensor's pin 2 and J519 connector T32b pin 9. If the sensor is new or has not yet worn, there should be infinite resistance (open circuit). If the pad is worn, there should be very low resistance (closed circuit).
• To Ground (Pin 1): Test the resistance between the sensor's pin 1 and a known good chassis ground. This should be very low resistance. Also, test the resistance between J519 connector T17m pin 17 and the same chassis ground. Again, this should be very low resistance.
• Wiring Integrity: You can also test for shorts to ground or voltage by checking resistance between the signal wire (sensor pin 2) and ground. If you find continuity, there's a short.

Step 4: Checking the Ground Point

Inspect the grounding point at the left A-pillar. Ensure the connection is clean, tight, and free from rust or corrosion. If necessary, clean the connection point and re-secure the ground wire.

Step 5: Using Diagnostic Tools

Modern vehicles often store fault codes related to sensor issues. Using an OBD-II scanner or a more advanced diagnostic tool can provide specific error codes related to the G34 sensor circuit, helping to pinpoint the problem more quickly.

Replacing the G34 Pad Sensor

When replacing the G34 pad sensor, it's important to use the correct part for your vehicle. The process typically involves:

1. Safely jacking up the vehicle and removing the wheel.
2. Locating the brake caliper and the existing sensor.
3. Carefully unclip/unplug the old sensor from its holder and the wiring harness. Note that the sensor itself is often a consumable part of the brake pad assembly and will likely need to be cut or broken free if it hasn't already been triggered.
4. Install the new sensor into the brake pad. Ensure it is seated correctly and will make contact with the rotor when the pad wears.
5. Connect the new sensor to the vehicle's wiring harness.
6. Reassemble the wheel and lower the vehicle.
7. Clear any fault codes using a diagnostic tool and test drive to ensure the warning light is off.

Table: Common G34 Sensor Circuit Faults

Frequently Asked Questions (FAQs)

Q1: Can I drive with the brake wear warning light on?

While your vehicle is still capable of braking, it is strongly advised not to drive for extended periods with the brake wear warning light illuminated. It indicates that your brake pads are critically worn, which can compromise your vehicle's stopping ability and potentially damage other brake components like the rotors. It's best to address the issue as soon as possible.

Q2: Do I need to replace the sensor every time I replace the brake pads?

It is highly recommended to replace the brake pad wear sensor whenever you replace the brake pads, especially if the warning light was already on. The sensor is designed to be a sacrificial component; once it triggers the warning light, it's often damaged in the process and will not function correctly again. Even if the light wasn't on, it's good practice to replace it as it's a relatively inexpensive part that ensures the system remains functional.

Q3: What is the difference between the front and rear brake pad sensors?

In many vehicles, the front and rear brake pads have separate sensors, and they might not be interchangeable. The wiring and specific part numbers can differ. Always consult your vehicle's service manual or a parts specialist to ensure you are using the correct sensor for the correct axle.

Q4: How do I reset the brake wear warning light after replacing the sensor?

After replacing the worn component(s) and ensuring the wiring is correct, the fault memory in the J519 module usually needs to be cleared. This is typically done using a diagnostic scan tool. Simply replacing the sensor without clearing the fault code may leave the warning light illuminated.

Conclusion

The G34 pad sensor circuit, while seemingly simple, is a vital safety feature. Understanding its wiring, potential failure points, and diagnostic procedures is key to maintaining your vehicle's braking system. By following the steps outlined in this guide, you can effectively troubleshoot and address issues related to the G34 pad sensor, ensuring your vehicle remains safe and reliable on the road. Always refer to your specific vehicle's service manual for the most accurate information and procedures.
