Haldex Service: Audi A3 Costs & Necessity

For many Audi A3 owners, especially those with the renowned Quattro all-wheel-drive system, the term 'Haldex' is a familiar one, though its exact purpose and maintenance requirements might remain a mystery. The Haldex system is a sophisticated piece of engineering vital for distributing power to all four wheels, ensuring optimal traction and handling. Neglecting its upkeep can lead to costly repairs and a significant degradation in your vehicle's performance. This comprehensive guide will delve into the necessity of Haldex oil and filter service for your Audi A3, what the service involves, and the typical costs you can expect in the UK.

The Audi A3, particularly models equipped with the Quattro all-wheel-drive system, relies on a Haldex coupling to manage power delivery to the rear axle. Unlike traditional mechanical differentials, the Haldex system is an electronically controlled, hydraulically operated clutch pack that intelligently engages the rear wheels when needed, providing superior grip in various driving conditions. For instance, a 2009 Audi A3 Quattro, as highlighted by many owner manuals, explicitly states the requirement for regular Haldex oil changes, typically every 40,000 miles or every four years, whichever comes first. This proactive maintenance is not merely a suggestion; it's a critical component of ensuring the longevity and efficiency of your vehicle's drivetrain.

Understanding the Haldex System in Your Audi A3

The Haldex unit, often referred to as the 'Haldex differential' although technically a coupling device, is usually attached to the rear differential. It's found in many transverse-engine Audi models, including the A3, S3, RS3, TT, and Q3, which utilise the Quattro system. Its primary function is to transfer power to the rear wheels only when necessary, making it an 'on-demand' all-wheel-drive system. This intelligent engagement helps to improve fuel economy compared to permanent AWD systems while still providing the benefits of enhanced traction when accelerating, cornering, or driving on slippery surfaces.

Inside the Haldex unit, a series of clutch plates operate in a bath of specialised oil. This oil, along with a dedicated filter, ensures the smooth and efficient operation of these clutches. Over time, the oil degrades due to heat and friction, and the filter can become clogged with microscopic metallic particles generated by the clutch plates. This degradation directly impacts the system's ability to engage and disengage the rear wheels effectively, potentially leading to a loss of traction, delayed power delivery, or even complete failure of the Haldex unit.

Why Haldex Service is Absolutely Crucial

Imagine your Audi A3's Quattro system as a finely tuned orchestra, with the Haldex unit being its conductor. If the conductor is ailing, the performance suffers. Neglecting the Haldex service can lead to several severe consequences:

• Reduced All-Wheel Drive Performance: The most immediate impact is a noticeable decline in the Quattro system's effectiveness. You might experience wheel spin on slippery surfaces or a general feeling of instability, as the rear wheels aren't engaging as promptly or effectively as they should.
• Increased Wear and Tear: Contaminated oil and a clogged filter force the Haldex pump and clutch pack to work harder, accelerating wear. This can lead to premature failure of the pump, clutch plates, or even the entire unit.
• Warning Lights: In many cases, a malfunctioning Haldex system will trigger warning lights on your dashboard, such as the ABS, ESP, or even the all-wheel-drive system warning light. Ignoring these can lead to more severe damage.
• Costly Repairs: A complete Haldex unit replacement can be incredibly expensive, often running into thousands of pounds. Regular, preventative maintenance is a fraction of this cost and can save you a significant sum in the long run. The Haldex pump, which is often the first component to fail due to neglected oil changes, is also a costly item to replace on its own.

What Does a Haldex Oil and Filter Service Entail?

A typical Haldex service is more than just a simple oil drain and refill. It's a precise procedure that ensures the system operates correctly. Here's what's usually involved:

1. Vehicle Preparation: The vehicle is typically lifted to allow access to the Haldex unit, which is located at the rear axle.
2. Oil Drain: The old, degraded Haldex oil is drained from the unit. This oil often appears dark and sludgy, indicating its contamination.

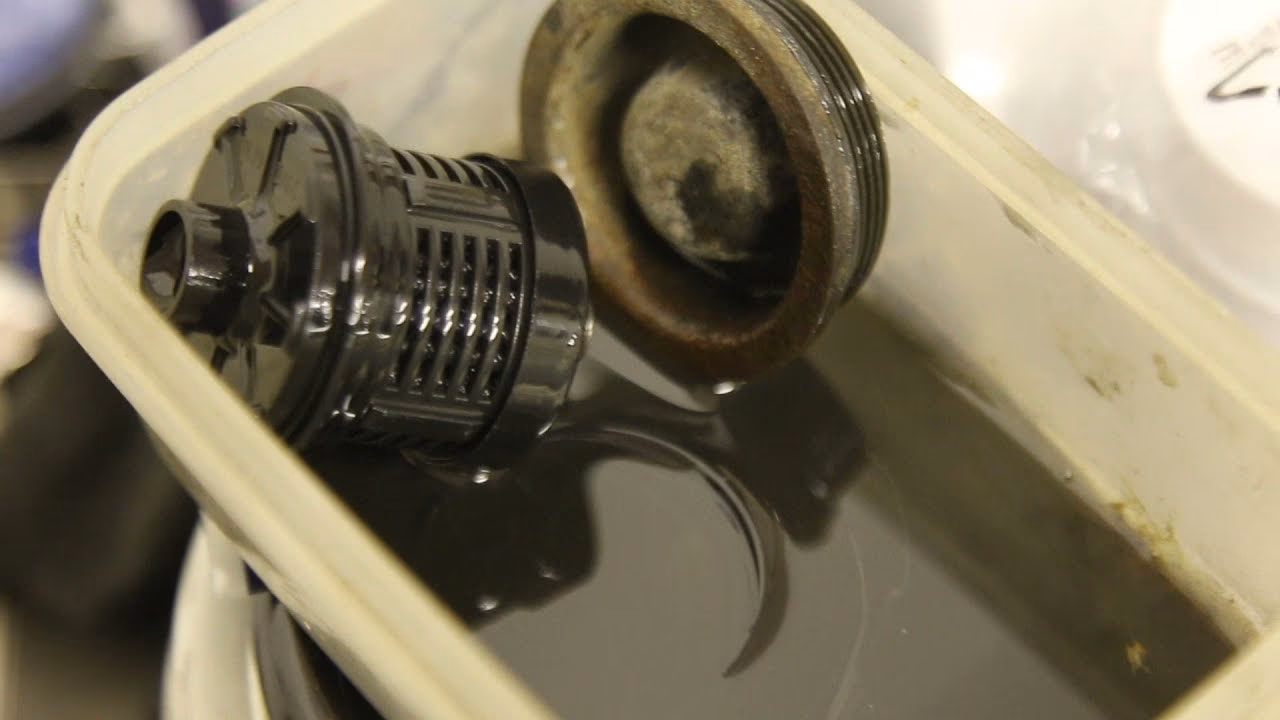

3. Filter Replacement: The Haldex filter is removed and replaced with a new, genuine or approved aftermarket filter. This step is critical as the filter traps wear particles. Some Haldex generations have an internal filter that is not easily replaceable, requiring pump removal. It's important to know which generation your Audi A3 has.
4. Haldex Pump Inspection/Cleaning (Optional but Recommended): Often, the Haldex pump is removed and inspected for debris. Sometimes, a small mesh filter or screen on the pump itself can become clogged, and cleaning this can be vital for proper operation.
5. Refill with Specific Haldex Oil: The unit is refilled with the correct volume of brand-specific Haldex fluid. It's crucial to use only the manufacturer-recommended oil, as generic fluids can cause significant damage to the sensitive clutch pack.
6. System Bleed/Adaptation (if required): After refilling, some systems may require a diagnostic tool to cycle the pump and bleed any air from the system, or to reset adaptation values.
7. Leak Check: The technician will check for any leaks around the drain and fill plugs.

Haldex Oil & Filter Service Cost in the UK

The cost of a Haldex oil and filter service for your Audi A3 in the UK can vary based on several factors, including the type of garage, your geographical location, and the specific generation of Haldex system your car has (as some generations have more complex filter replacements). Generally, you can expect the cost to fall within the following ranges:

Cost Breakdown:

• Parts Cost:
  • Haldex Oil (typically 1 litre bottle): £30 - £60 (OEM specific fluid is essential)
  • Haldex Filter Kit (includes filter and sometimes a new O-ring/gasket): £25 - £50
  • Total Parts: £55 - £110
• Labour Cost:
  • The job typically takes between 1 to 2 hours, depending on the mechanic's experience and the complexity of accessing the Haldex unit on your A3.
  • Independent Specialist Garage: £60 - £100 per hour.
  • Main Audi Dealership: £100 - £150+ per hour.

Estimated Total Cost Ranges:

It's important to note that these are estimates. Always obtain a direct quote from your chosen garage. Some garages might offer a 'Haldex service' that only includes an oil change, omitting the filter replacement. Always confirm that both the oil and filter will be changed, and inquire about the inspection or cleaning of the Haldex pump's mesh filter, as this is a common point of failure.

DIY vs. Professional Haldex Service

For the mechanically inclined, a DIY Haldex service might seem like an attractive option to save money. However, there are significant considerations:

While DIY can save money, the precision required for Haldex service, particularly concerning the correct oil type, torque settings, and potential need for diagnostic tools (like VCDS for pump activation or fault clearing), makes professional service by a reputable specialist garage highly advisable. Incorrect service can lead to immediate or long-term damage to the Haldex unit, costing far more than the initial savings.

Signs Your Haldex Needs Attention Beyond Service Intervals

Even if you're diligent with your service schedule, it's wise to be aware of symptoms that might indicate an issue with your Haldex system:

• Loss of Traction: Especially noticeable during acceleration or on slippery surfaces, where the front wheels spin excessively without the rear wheels engaging.
• Grinding or Whining Noises: These sounds coming from the rear of the vehicle, particularly during turns or acceleration, can indicate failing bearings or clutch issues within the Haldex or rear differential.
• Delayed Engagement: A noticeable lag before the rear wheels engage when extra traction is needed.
• Warning Lights: As mentioned, illuminated warning lights on the dashboard related to ABS, ESP, or AWD.
• Error Codes: A diagnostic scan will often reveal specific error codes related to the Haldex control unit or pump.

If you experience any of these symptoms, it's crucial to have your Audi A3 inspected by a qualified mechanic immediately to prevent further damage.

Frequently Asked Questions About Haldex Service

How often should Haldex oil be changed on an Audi A3?

Audi recommends changing the Haldex oil and filter every 40,000 miles or every four years, whichever comes first. This interval is crucial for the longevity of the system.

Can I do a Haldex oil change myself?

While technically possible, it is not recommended for most DIYers due to the specific tools required, the need for exact fluid type and volume, and the potential requirement for diagnostic tools to cycle the pump or reset adaptations. Incorrect procedures can lead to costly damage.

What happens if I don't change the Haldex oil?

Neglecting Haldex service can lead to oil degradation and filter clogging, causing the Haldex pump to fail, clutch pack wear, loss of all-wheel drive functionality, and potentially very expensive repairs or even complete unit replacement.

What oil does Haldex use?

Haldex units require a specific, specially formulated Haldex fluid. It is crucial to use only genuine OEM Haldex oil or an equivalent approved by the manufacturer. Using standard gear oil or an incorrect fluid will damage the system.

Is the Haldex service part of a regular Audi A3 service?

No, the Haldex oil and filter service is typically a separate maintenance item with its own specific interval. It's not usually included in standard 'minor' or 'major' service packages unless specifically requested or part of a comprehensive 40,000-mile service.

Does every Audi A3 have Haldex?

No. Only Audi A3 models equipped with the Quattro all-wheel-drive system feature a Haldex unit. Front-wheel-drive Audi A3 models do not have this system.

Conclusion

The Haldex all-wheel-drive system is a cornerstone of your Audi A3 Quattro's performance and safety. Regular Haldex oil and filter service, adhering strictly to the manufacturer's recommended intervals of 40,000 miles or four years, is not an option but a vital aspect of preventative maintenance. While the cost might seem like an extra expense, it pales in comparison to the potential repair bills for a neglected or failed unit. Investing in proper Haldex maintenance ensures that your Audi A3 continues to deliver its legendary Quattro performance, providing you with confidence and grip on every journey.
