Engine Oil Dipstick: Decoding Your Oil Level

Understanding your car's engine oil level is one of the most fundamental yet often overlooked aspects of vehicle maintenance. Just as blood is vital for the human body, engine oil is the lifeblood of your car's engine, ensuring smooth operation, reducing wear, and dissipating heat. A simple dipstick check can provide a wealth of information about your engine's health and prevent potentially catastrophic damage. This guide will walk you through the nuances of checking your engine oil, interpreting the dipstick markings, and understanding why maintaining the correct oil level is paramount for the longevity and performance of your vehicle.

Many modern vehicles come with sophisticated electronic oil level sensors, but the traditional dipstick remains an invaluable, reliable tool for verification. Knowing how to use it correctly is a skill every car owner should possess. Ignoring your oil level can lead to severe engine wear, overheating, and ultimately, a costly breakdown. Let's delve into the specifics of what those markings on your dipstick truly mean.

Understanding Your Engine Oil Dipstick Zones

Your engine oil dipstick typically features a series of markings, often indicating a 'Full' or 'Max' level and an 'Add' or 'Min' level. Based on the information provided, we can define three critical zones:

• Zone A (Maximum Level): This is the upper limit of the oil level. If your oil indicator is at or above Zone A, you should absolutely not add oil. Overfilling your engine with oil can be just as detrimental as having too little. Excess oil can lead to foaming (aeration), which reduces its lubricating properties, increases pressure on seals, and can even cause damage to catalytic converters. Always ensure your oil level does not exceed Zone A.
• Zone B (Optimal Operating Range): This zone typically lies between Zone A and a lower mark, which we'll call Zone C. This is the ideal range where your engine oil should reside. If your oil level falls within Zone B, your engine has sufficient lubrication for normal operation. While it's generally good, if the level is closer to the lower end of Zone B (approaching Zone C), it's advisable to consider topping up to bring it more comfortably into the middle or upper part of Zone B. The aim is to keep the oil level consistently within this optimal range without crossing the maximum threshold.
• Zone C (Minimum Level / Add Oil Immediately): This is the lower limit. If your oil level falls to or below Zone C, it indicates that your engine oil is dangerously low. Running an engine with insufficient oil can lead to inadequate lubrication, increased friction, overheating, and severe engine wear, potentially resulting in complete engine failure. If your dipstick shows oil in Zone C, you must add the correct type and amount of oil immediately before driving your vehicle further.

Why Correct Oil Level is Absolutely Critical

Engine oil serves multiple vital functions within your car's engine:

• Lubrication: It creates a protective film between moving parts, preventing metal-on-metal contact and reducing friction and wear.
• Cooling: Oil absorbs heat from engine components and dissipates it as it circulates, helping to regulate engine temperature.
• Cleaning: It carries away dirt, sludge, and microscopic metal particles, keeping the engine clean.
• Sealing: Oil helps to seal the gap between the piston rings and cylinder walls, ensuring proper compression.
• Corrosion Protection: It protects internal engine components from rust and corrosion.

An incorrect oil level compromises all these functions. Too little oil leads to insufficient lubrication, causing excessive wear, overheating, and potential engine seizure. Too much oil, as mentioned, can cause foaming, reduced lubrication, and can damage seals and other components due to increased pressure. Maintaining the correct level is crucial for engine longevity and peak performance.

How to Accurately Check Your Engine Oil

Checking your engine oil is a simple process, but it needs to be done correctly to ensure an accurate reading. Follow these steps:

1. Park on Level Ground: Ensure your car is parked on a flat, level surface. Checking on a slope can give a false reading.
2. Engine Off and Cool: For the most accurate reading, the engine should be off and ideally cool. If you've just driven, wait at least 10-15 minutes for the oil to drain back into the sump. Some manufacturers recommend checking with the engine warm but off for a few minutes; consult your car's manual for specific instructions.
3. Locate the Dipstick: The dipstick typically has a brightly coloured handle (often yellow or orange) and is usually located near the front or side of the engine. Refer to your car's owner's manual if you cannot find it.
4. Remove and Clean: Pull the dipstick out completely. Use a clean cloth or paper towel to wipe off all the oil from the metal stick.
5. Re-insert Fully: Push the dipstick back into its tube until it's fully seated.
6. Remove and Read: Pull the dipstick out again and observe the oil level. The oil mark should fall between Zone A (Max) and Zone C (Min), ideally within Zone B.
7. Top Up if Necessary: If the oil is at or below Zone C, or if it's low within Zone B, you'll need to add oil. Unscrew the oil filler cap (usually located on top of the engine, often with an oil can symbol). Add small amounts of the correct type of engine oil (refer to your owner's manual for the correct viscosity and specification), waiting a few minutes between additions for the oil to settle, and re-checking the dipstick until the level is within Zone B, without exceeding Zone A.

Comparing Oil Level Scenarios and Actions

To summarise the actions required based on your dipstick reading, consider the following table:

When to Top Up or Change Your Engine Oil

Engine oil doesn't last forever. Over time, it degrades, accumulates contaminants, and its lubricating properties diminish. Most manufacturers recommend oil changes at specific mileage intervals or timeframes (e.g., every 10,000 miles or annually, whichever comes first). However, engines can consume oil between changes, especially older engines or those under heavy use. It's good practice to check your oil level at least once a month, or before a long journey, to ensure it remains in Zone B. If you find yourself frequently topping up, it could indicate an underlying issue like an oil leak or excessive engine oil consumption, which should be investigated by a qualified mechanic.

Frequently Asked Questions About Engine Oil

Here are some common questions drivers have regarding engine oil levels:

How often should I check my engine oil?

It's recommended to check your engine oil at least once a month, and always before a long journey. Regular checks help you monitor consumption and spot potential issues early.

What type of oil should I use for topping up?

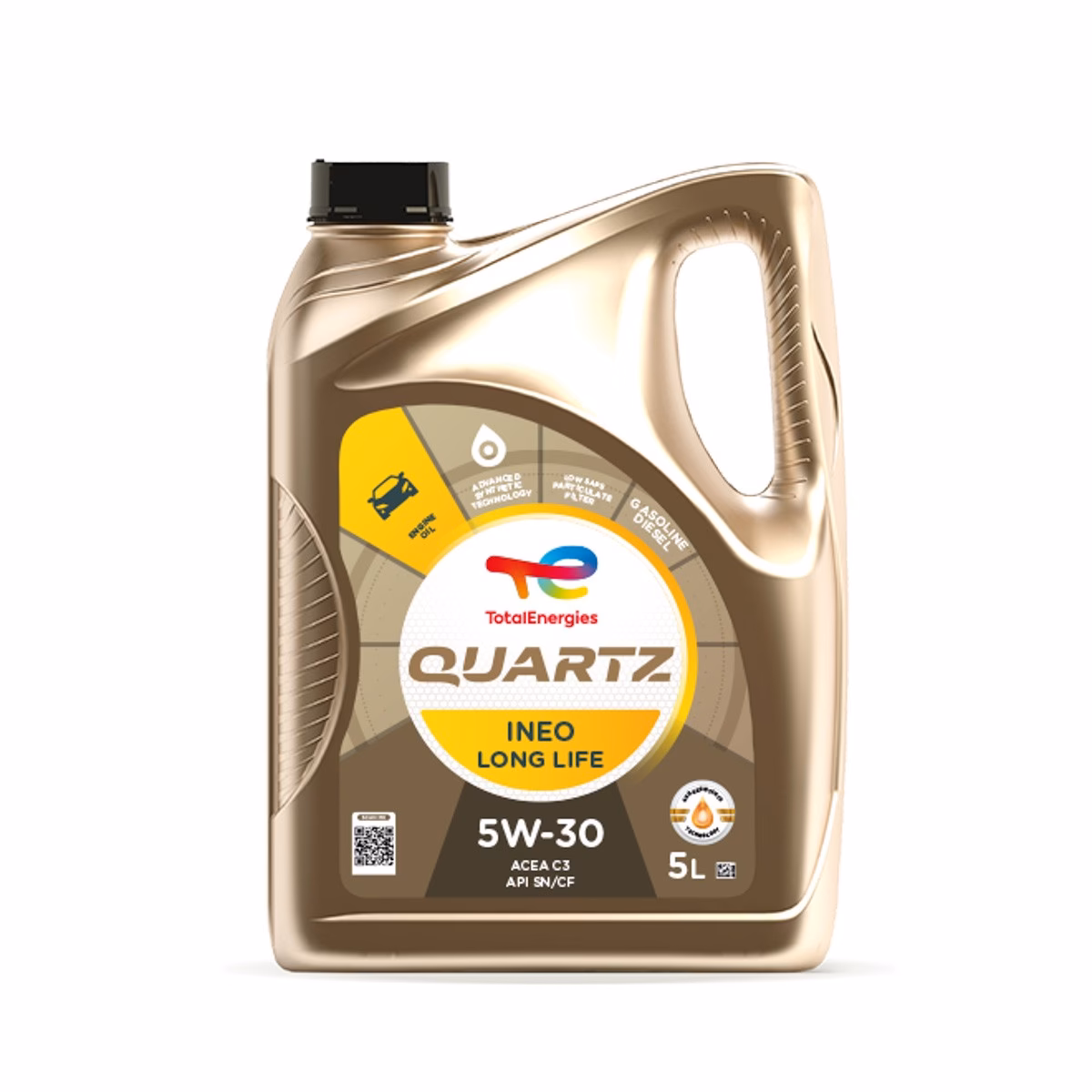

Always refer to your car's owner's manual for the specific oil type, specification (e.g., ACEA A3/B4, API SN), and viscosity (e.g., 5W-30, 10W-40) recommended by the manufacturer. Using the wrong oil can damage your engine. It's best to use the same type and brand that is already in the engine.

Can I mix different types of engine oil?

While generally not recommended as a long-term solution, mixing small amounts of different brands of the same specification and viscosity oil for a top-up in an emergency is usually acceptable. However, for a full oil change, stick to one type. Never mix synthetic oil with conventional oil unless the product explicitly states it's compatible, though most modern oils are designed to be miscible.

What happens if I overfill my engine with oil?

Overfilling can lead to several problems: the crankshaft can churn the excess oil into a foam, reducing its lubricating effectiveness. It can also increase pressure within the engine, potentially blowing seals and causing leaks. In severe cases, it can damage the catalytic converter. If you've significantly overfilled, it's best to drain some of the excess oil.

Why is my engine consuming oil?

Some oil consumption is normal, especially in older engines or those with higher mileage. However, excessive consumption could indicate worn piston rings, valve seals, or an external oil leak. If you're constantly topping up, have a mechanic inspect your vehicle.

What if my oil looks dark or murky on the dipstick?

Engine oil naturally darkens over time as it picks up contaminants and combustion by-products. A dark colour doesn't necessarily mean it's bad, but it does indicate it's doing its job. However, if it looks milky or has metal flakes, that's a sign of a serious problem (like coolant contamination or severe engine wear) and requires immediate professional attention.

Conclusion

Regularly checking your engine oil level and understanding the meaning of Zone A, B, and C on your dipstick is a simple yet profoundly effective way to ensure the health and longevity of your vehicle's engine. It's a quick habit that can save you significant time, money, and stress in the long run. Don't wait for a warning light to appear; make dipstick checks a routine part of your car care regimen. Your engine will thank you for it.
