Draining Your Honda CR-V Gearbox Oil

Maintaining your Honda CR-V's gearbox is paramount to its longevity and overall performance, yet it's often an overlooked aspect of vehicle care. The gearbox, or transmission as it's commonly known, is a complex system of gears and fluid that ensures your engine's power is efficiently transferred to the wheels. Over time, the fluid within this system degrades, losing its lubricating properties and accumulating contaminants. This can lead to increased wear, rough shifting, and even catastrophic failure if left unaddressed. Draining and refilling your gearbox oil is a crucial preventative measure that can save you significant money and hassle in the long run. While it might seem like a daunting task, with the right tools, a bit of patience, and this comprehensive guide, you can confidently undertake this essential maintenance yourself, ensuring your CR-V continues to provide reliable and smooth journeys for years to come.

It's important to note that Honda CR-Vs primarily feature automatic gearboxes, though some older models may have a manual option. This guide will focus predominantly on the automatic gearbox fluid drain and refill process, as it is the most common, but we will highlight key differences for manual gearboxes where applicable. Understanding the specific type of gearbox your CR-V possesses is the first step in ensuring you follow the correct procedure and use the appropriate fluid.

Understanding Your Honda CR-V's Gearbox

Before you even think about getting under your vehicle, it's vital to understand the type of gearbox your Honda CR-V has. Most CR-Vs from the late 1990s onwards are equipped with automatic transmissions, specifically Honda's own multi-clutch automatic gearboxes or, in later models, Continuously Variable Transmissions (CVTs). Each type requires a specific fluid and slightly different procedures for fluid changes. Manual gearboxes, while less common in CR-Vs, exist and use a different type of fluid entirely. Always consult your owner's manual to confirm your vehicle's specific gearbox type and the recommended fluid.

Why Gearbox Oil Changes Are Crucial

Just like engine oil, gearbox fluid plays a critical role in your vehicle's operation. It lubricates moving parts, dissipates heat, and in automatic transmissions, acts as a hydraulic fluid to facilitate gear changes. Over time and mileage, this fluid breaks down due to heat and friction. It can become contaminated with microscopic metal particles from normal wear and tear, reducing its effectiveness. Old, degraded fluid can lead to:

• Rough or delayed gear shifts.
• Increased wear on internal components.
• Overheating of the gearbox.
• Reduced fuel efficiency.
• Ultimately, premature gearbox failure, which is an incredibly expensive repair.

Regular fluid changes ensure that your gearbox has fresh, clean fluid, allowing it to operate smoothly and efficiently, extending its lifespan considerably. Think of it as preventative medicine for one of your car's most vital and costly components.

Tools and Materials You'll Need

Having the right tools before you start will make the job much smoother and safer. Here's a comprehensive list:

Essential Tools Checklist

Recommended Fluid Types for Honda CR-V Gearboxes

Using the correct fluid is paramount. Honda gearboxes are particularly sensitive to fluid type. Never use generic or universal transmission fluid unless explicitly stated in your owner's manual that it meets Honda's specifications. Always refer to your CR-V's owner's manual for the precise recommendation for your model year.

It's always best to purchase genuine Honda fluids from a Honda dealer or a reputable parts supplier to ensure compatibility and quality.

Safety First: Preparing for the Job

Working under a vehicle can be dangerous if proper precautions aren't taken. Your safety is the top priority:

1. Park on a level surface: Ensure the vehicle is on firm, level ground.
2. Engage the parking brake: Firmly apply the parking brake.
3. Chock the wheels: Place wheel chocks behind the rear wheels (if lifting the front) or in front of the front wheels (if lifting the rear).
4. Lift the vehicle: Use your vehicle jack to slowly and carefully lift the front of the CR-V to gain access to the gearbox.
5. Secure with jack stands: Once lifted, immediately place sturdy jack stands under appropriate frame points or designated jacking points. Lower the vehicle onto the stands. Never work under a vehicle supported only by a jack.
6. Wear protective gear: Don your safety glasses and gloves.
7. Allow the engine to cool: While some prefer the fluid to be slightly warm to drain better, ensure the engine and exhaust components are cool enough to touch safely to avoid burns.

Step-by-Step Guide: Draining the Gearbox Oil (Automatic Transmission)

This procedure applies to most Honda CR-V automatic gearboxes. The gearbox is typically located on the driver's side of the engine bay, connecting to the engine.

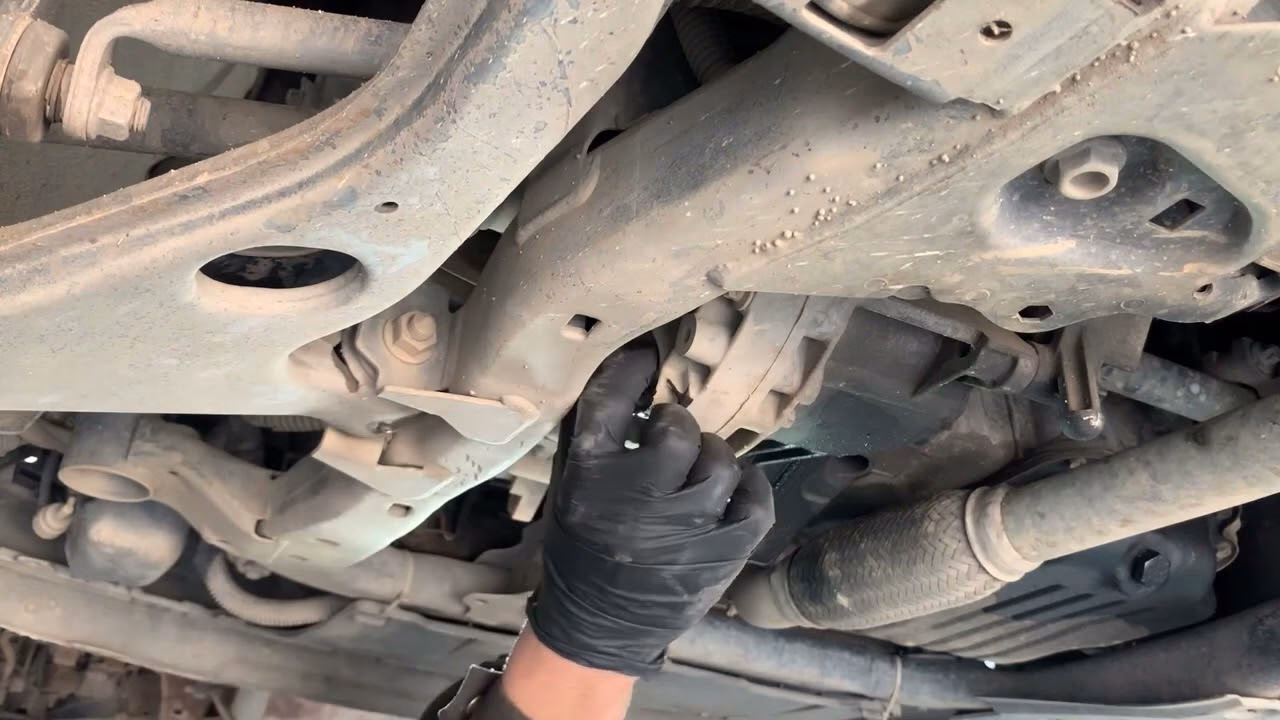

1. Locate the Drain Plug: Get under the vehicle. The automatic gearbox drain plug is usually located on the bottom of the gearbox casing. It often looks like a large bolt, often a square drive or a large hex bolt (e.g., 17mm or 19mm). It might be slightly recessed. The drain plug for the automatic gearbox is distinct from the engine oil drain plug, which is on the engine oil pan.
2. Position the Drain Pan: Place your drain pan directly underneath the drain plug. Ensure it's large enough to hold the entire fluid capacity of your gearbox (typically 2.5-3.5 litres for a drain and refill).
3. Remove the Drain Plug: Using the correct socket or square drive, carefully loosen the drain plug. Be prepared for the fluid to come out quickly once the plug is removed. The fluid will likely be dark brown or black, which is normal for used fluid. Allow all the fluid to drain completely. This can take 10-15 minutes.
4. Inspect the Drain Plug and Washer: The drain plug often has a magnet on its tip to collect metallic particles. Wipe it clean. Any fine sludge is normal, but large metal shavings could indicate a more serious internal issue. Always replace the old crush washer with a new one. This is critical for preventing leaks.
5. Reinstall the Drain Plug: Once the fluid has fully drained, reinstall the drain plug with the new crush washer. Hand-tighten it first, then use your torque wrench to tighten it to the manufacturer's specified torque setting. This is crucial to prevent both leaks and damage to the gearbox casing. Consult your service manual for the exact torque specification (typically around 49 Nm or 36 lb-ft for Honda ATF drain plugs).
6. Locate the Fill Plug/Dipstick: For most Honda automatic gearboxes, the fill point is accessed via the transmission fluid dipstick tube, usually located on the top of the gearbox, often with a yellow or orange handle. Pull out the dipstick.
7. Refill the Gearbox: Insert the long, flexible funnel into the dipstick tube. Slowly pour in the new, correct type of Honda gearbox fluid. Refer to your owner's manual for the exact refill capacity. A drain and refill typically replaces only about 30-40% of the total fluid, as much remains in the torque converter and cooler lines. For a typical CR-V, this is usually between 2.5 and 3.5 litres. Pour slowly to avoid air pockets and spills.
8. Check the Fluid Level: Once you've added the specified amount, start the engine. With the engine running and the vehicle on level ground, shift through all the gears (P-R-N-D-2-1) pausing briefly in each. Then, return to Park (P). With the engine still running (and warm, if possible), re-check the fluid level using the dipstick. The level should be between the 'min' and 'max' marks. Add small amounts of fluid as needed until the correct level is reached. Do not overfill.
9. Lower the Vehicle: Carefully raise the vehicle off the jack stands, remove the stands, and then lower the vehicle completely.
10. Test Drive and Re-check: Take your CR-V for a short test drive to allow the new fluid to circulate. Drive for 5-10 minutes, ensuring the gearbox shifts smoothly. After the drive, re-check the fluid level on level ground with the engine running and warm. Adjust if necessary.

Manual Gearbox Fluid Drain (Brief Overview)

For manual gearboxes, the process is similar but uses different plugs and fluid. You'll typically find a separate drain plug at the bottom and a fill plug on the side of the gearbox casing. The fill plug is often higher up, allowing you to fill until the fluid starts to weep out of the fill hole, indicating it's full. Always use Honda MTF.

Disposing of Used Oil Responsibly

Never pour used gearbox oil down the drain or into the ground. It is a hazardous waste and must be disposed of properly. Most local recycling centres, auto parts stores, or garages will accept used oil for free. Store it in a sealed container (like the old fluid bottles) until you can take it for disposal.

Common Pitfalls and Troubleshooting Tips

• Stripped Drain Plug: Be careful when loosening and tightening. Use the correct size socket and a torque wrench. If stripped, you may need to use a special tool or seek professional help.
• Leaks After Refill: Check the drain plug washer. Ensure it's new and torqued correctly. Also check the fill point.
• Incorrect Fluid Level: Both underfilling and overfilling can cause problems. Always check the level precisely as per the manual (engine running, warm, on level ground for automatics).
• Wrong Fluid Type: Using the wrong fluid can cause severe damage. Double-check your owner's manual.
• No Fluid Coming Out: Ensure you've located the correct drain plug. If the plug is off and nothing comes out, your gearbox is likely empty, indicating a severe leak that needs immediate attention.

When to Change Your Gearbox Oil: Service Intervals

Honda often suggests different intervals for gearbox fluid changes. For automatic transmissions, many recommend changing the fluid every 60,000 to 100,000 miles (approximately 96,000 to 160,000 km) under normal driving conditions, or more frequently (e.g., every 30,000 to 50,000 miles / 48,000 to 80,000 km) if you frequently drive in severe conditions (heavy towing, stop-and-go traffic, very hot climates). For manual transmissions, intervals can be similar or slightly longer. Always consult your specific Honda CR-V's owner's manual or service schedule for the most accurate recommendations for your vehicle's year and gearbox type. Adhering to these intervals is key to maintaining your gearbox's health.

Honda CR-V Gearbox Fluid Capacity (Approximate)

It's vital to know the approximate capacity for a drain and refill. Note that a full flush capacity is higher, but a DIY drain only removes a portion.

Always purchase slightly more fluid than the drain and fill capacity, just in case you need to top up or account for spillage.

Frequently Asked Questions (FAQs)

Q: How often should I change my CR-V gearbox oil?

A: For most Honda CR-Vs with automatic transmissions, the recommended interval is typically every 60,000 to 100,000 miles (or 96,000 to 160,000 km) under normal driving conditions. If you engage in heavy-duty use (towing, frequent stop-and-go, extreme temperatures), consider changing it every 30,000 to 50,000 miles (48,000 to 80,000 km). Always refer to your owner's manual for precise recommendations.

Q: Can I use generic transmission fluid in my Honda CR-V?

A: Absolutely not. Honda gearboxes, especially automatics and CVTs, are highly sensitive to the specific friction modifiers and properties of their proprietary fluids (ATF-DW1, HCF-2, MTF). Using generic or 'universal' fluids that do not explicitly state they meet Honda's specific requirements can lead to shifting problems, accelerated wear, and ultimately, costly gearbox failure. Always use genuine Honda fluid or an approved equivalent that specifically states compliance with Honda's specifications.

Q: What are the signs of low or bad gearbox oil?

A: Common signs include delayed or rough shifting, a burning smell (indicating overheating fluid), grinding noises from the gearbox, slipping gears, or a noticeable drop in fuel economy. If you experience any of these symptoms, check your fluid level and condition immediately.

Q: Is draining enough, or do I need a gearbox flush?

A: A simple drain and refill replaces only a portion of the total fluid (typically 30-40% for automatics), as much fluid remains in the torque converter and cooler lines. A 'flush' (or fluid exchange) uses specialised equipment to replace nearly all the fluid. While a flush provides a more complete change, it's generally recommended for gearboxes that have been regularly maintained. If your gearbox fluid is severely contaminated or has never been changed, a flush can sometimes dislodge debris and cause issues in an already worn gearbox. For DIYers, multiple drain and refills over a short period (e.g., 500-1000 miles apart) can effectively refresh a large percentage of the fluid without the risks associated with a flush.

Q: Can I do this job myself if I'm not very mechanically inclined?

A: Draining and refilling gearbox fluid on a Honda CR-V is considered a moderately easy DIY task, provided you have the right tools, knowledge, and prioritise safety. The most critical aspects are ensuring the vehicle is securely supported, using the correct fluid, and tightening the drain plug to the proper torque. If you're uncomfortable with any step or lack the necessary tools (especially a torque wrench), it's always best to have a qualified mechanic perform the service.

By following this guide, you're not just performing a maintenance task; you're investing in the longevity and reliability of your Honda CR-V. Regular gearbox oil changes are a small price to pay for the peace of mind that comes with a well-maintained vehicle.
