DIY Brake Overhaul: A Comprehensive Guide

The prospect of replacing your car's brake pads and discs can seem daunting, especially when faced with eye-watering quotes from main dealerships. However, taking on this task yourself is not only incredibly satisfying but can also lead to significant savings. Many motorists, like yourself, decide to take the plunge into DIY maintenance, and for good reason. Brakes are, without doubt, one of the most critical safety components of your vehicle, so getting it right is paramount. This guide aims to equip you with the knowledge and confidence to successfully tackle the replacement of your front and rear brake pads and discs, specifically addressing common queries and potential tricky spots for models like the Vauxhall Astra J 1.6 CDTi.

Before you begin, remember that patience, attention to detail, and the right tools are your best friends. This isn't a race; it's a precision job that directly impacts your safety and that of others on the road. Let's dive in and get those brakes sorted!

Why DIY Your Brakes? The Savings and Satisfaction

The primary motivator for many to undertake a DIY brake job is the substantial cost saving. Dealerships and independent garages charge for parts at a mark-up, but the bulk of the cost often comes from labour. By doing the work yourself, you eliminate this labour charge entirely. For a full front and rear disc and pad replacement, you could easily save hundreds of pounds. Beyond the financial benefits, there's immense satisfaction in knowing you've successfully completed a vital maintenance task on your own vehicle. It's a fantastic way to learn more about your car and develop valuable mechanical skills.

Understanding Your Brake System: The Essentials

Before grabbing your spanners, it's helpful to have a basic understanding of how your car's braking system works. At its core, it's a hydraulic system that converts the force from your foot on the pedal into clamping power on the wheels. When you press the pedal, brake fluid is pushed through lines to the brake callipers. Inside the callipers, pistons push the brake pads against the spinning brake discs (rotors). The friction generated slows and stops the vehicle.

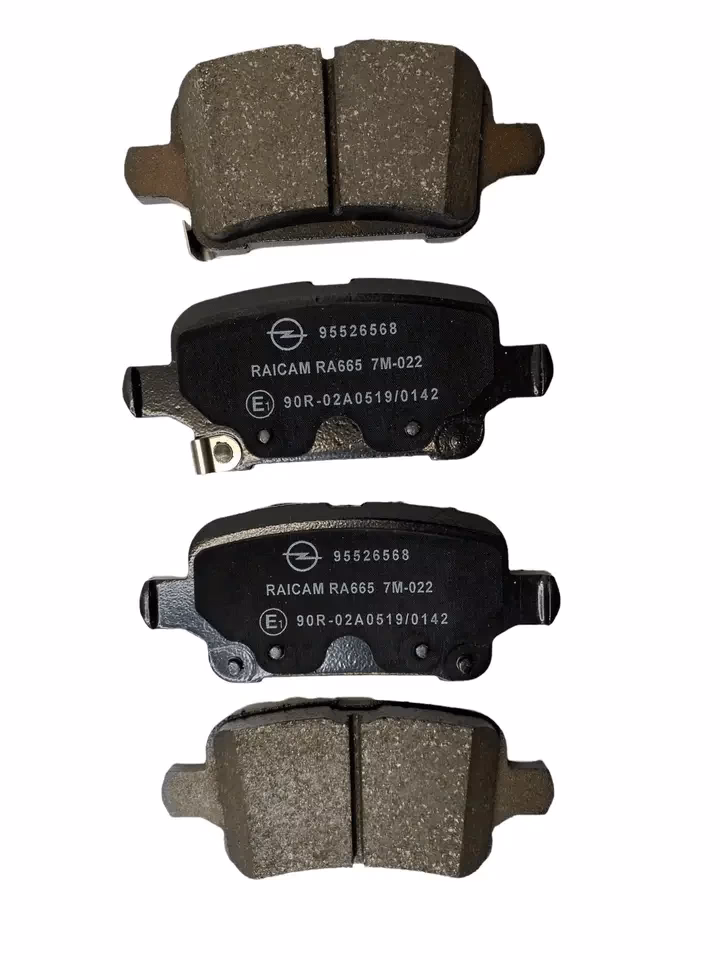

• Brake Pads: These are consumable friction materials. They wear down over time due to the constant rubbing against the discs.
• Brake Discs: These are metal plates that rotate with your wheels. Pads clamp onto them to create friction. Discs can warp, wear thin, or develop grooves over time.
• Brake Callipers: These house the pistons and pads. They are responsible for applying the clamping force to the discs.
• Brake Fluid: A hydraulic fluid that transfers force from the pedal to the callipers. It's crucial to the system's operation and should be checked periodically.

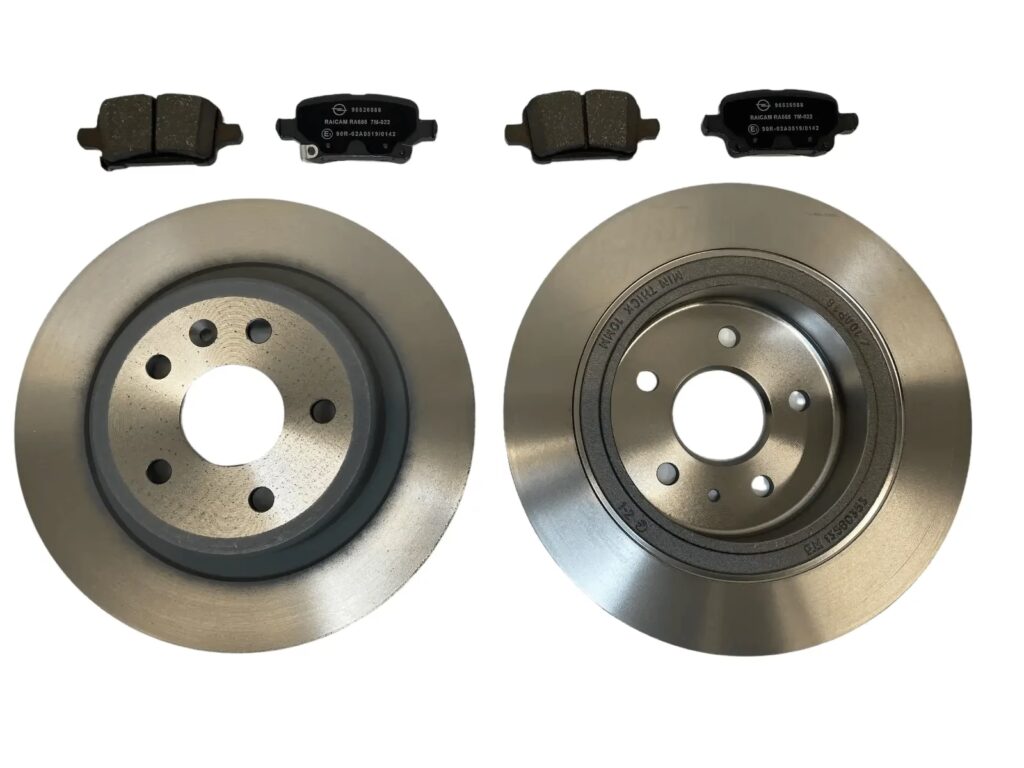

For a complete overhaul, replacing both pads and discs is often recommended. New pads need a perfectly flat, clean surface to bed-in correctly, which new discs provide. Mixing old, worn discs with new pads can lead to reduced braking performance, premature pad wear, and unwanted noise.

Selecting the Right Parts: Is Pagid a Good Choice?

You've identified Pagid as your preferred brand for front discs, rear discs, and both front and rear pads. Pagid is a highly reputable German brand, well-regarded in the automotive industry for producing high-quality braking components. They supply parts to original equipment manufacturers (OEMs) as well as the aftermarket, meaning their products often meet or exceed OEM standards. For a DIY job, choosing a trusted brand like Pagid is an excellent decision, as it offers peace of mind regarding performance and durability.

However, the crucial step is to ensure these parts are the correct fit for your specific vehicle: a 2014 (136 plate) Vauxhall Astra J 1.6 CDTi Elite Nav on 17-inch rims. Vehicle manufacturers often produce different brake sizes for the same model, depending on engine size, trim level, and even wheel size. Larger wheels can sometimes accommodate larger brake setups. To absolutely confirm compatibility, you should:

1. Check Part Numbers: Compare the Pagid part numbers you've found with your car's specific details using a reputable online parts catalogue (e.g., Euro Car Parts, GSF Car Parts, or Pagid's own catalogue). Input your vehicle's registration number (or VIN) to pull up the exact parts recommended for your car.
2. Verify Dimensions: Ensure the diameter, thickness, and number of bolt holes for the discs match your existing ones. For pads, check the shape and any clips or sensors.

Given your car is an Elite Nav model with a 1.6 CDTi engine, it's likely to have standard brake sizes for that powertrain, but always double-check. The 17-inch rims are a good indicator, as some smaller rims might restrict larger brake setups, but this is less common for standard factory options.

Note: Lifespans are highly dependent on driving style, environment, and vehicle type. Your 42,000 miles on original parts is well within the expected replacement window.

Essential Tools for the Job

Having the right tools makes all the difference. Here’s a checklist of what you'll need:

The Step-by-Step Guide: Front Brakes

Always work on one wheel at a time to keep the other side as a reference. Ensure your car is on a flat, stable surface, and the handbrake is engaged.

1. Safety First: Chock the wheels you are not working on. Loosen the wheel nuts slightly while the car is on the ground.
2. Lift and Secure: Jack up the front of the car at the designated jacking points and place axle stands securely under the vehicle. Lower the car onto the stands.
3. Remove Wheel: Fully remove the loosened wheel nuts and take off the wheel.
4. Access the Caliper: The brake caliper will be visible. Identify the two caliper slider bolts (usually at the back of the caliper). These are typically 13mm or 15mm. You may need to hold the pin itself with a spanner while undoing the bolt.
5. Remove Caliper: Undo the two slider bolts. The caliper should then pivot or lift off the disc. Do not let the caliper hang by its brake hose, as this can damage the hose. Support it with a piece of wire or bungee cord hooked to the suspension spring.
6. Remove Old Pads: The old pads will either fall out or can be easily pulled from the caliper bracket. Note how they are oriented.
7. Remove Caliper Carrier (Bracket): This is the larger metal bracket that bolts to the hub and holds the caliper. It's usually secured by two larger bolts (often 18mm or 19mm) that are typically very tight. You'll need a breaker bar for these. Remove this carrier.
8. Remove Old Disc: The old disc might be held on by a small Torx screw or a retaining clip. Remove this, and the disc should pull straight off. If it's seized, a few taps with a rubber mallet on the centre of the disc (avoiding the hub) can help.
9. Clean the Hub: Thoroughly clean the hub surface where the new disc mounts using a wire brush. Any rust or debris here can cause disc run-out and vibration.
10. Fit New Disc: Place the new disc onto the hub, ensuring it sits flush. Re-install any retaining screws or clips. Clean the new disc with brake cleaner to remove the protective oil coating.
11. Clean and Lubricate Caliper Carrier: Clean the caliper carrier thoroughly, especially where the brake pads slide. Apply a thin layer of copper grease or dedicated brake grease to these contact points and the slider pins (if removed, clean and re-grease them). Ensure the rubber boots on the slider pins are intact.
12. Fit New Pads to Carrier: Install the new brake pads into the caliper carrier. Ensure they slide freely. Be mindful of any wear indicators or clips.
13. Retract Piston: This is a critical step. For front calipers, a standard C-clamp or a dedicated piston compressor tool will push the piston back into the caliper body. Open your brake fluid reservoir cap before doing this to allow the fluid level to rise. Push the piston back slowly and steadily until it's fully seated.
14. Re-install Caliper: Carefully place the caliper back over the new pads and disc. Re-install and tighten the two caliper slider bolts.
15. Re-install Caliper Carrier: Bolt the caliper carrier back to the hub. Tighten these large bolts to the manufacturer's specified torque wrench settings.
16. Re-install Wheel: Put the wheel back on, hand-tighten the wheel nuts.
17. Lower Vehicle: Lift the car off the axle stands, remove the stands, and fully lower the vehicle.
18. Final Torque: Using your torque wrench, tighten the wheel nuts to the manufacturer's specified setting (usually around 110-120 Nm for most cars).

The Step-by-Step Guide: Rear Brakes (Astra J Specifics)

Rear brakes on modern cars, especially those with electronic parking brakes (EPB), often present a unique challenge for piston retraction. The Astra J 1.6 CDTi is likely to have an EPB, which means you cannot simply push the piston back.

1. Repeat Steps 1-6 from Front Brakes: Chock, lift, secure, remove wheel, access caliper, remove caliper.
2. Rear Caliper Piston Retraction (The Tricky Bit for Astra J): This is where the manual pushing method won't work. For an Astra J with EPB, the piston needs to be rotated *and* pushed simultaneously. You will need a specific piston wind-back tool kit that has adapters for different caliper types. The tool screws the piston back in. Alternatively, if your car has a fully electronic EPB (where there's no physical cable), you may need an OBD-II diagnostic tool to put the EPB into 'service mode' or 'maintenance mode' before the piston can be retracted. Attempting to force the piston back without the correct procedure can damage the EPB motor or the caliper itself. Always check your car's specific workshop manual for the exact procedure for your model year and EPB type.
3. Continue with Disc and Pad Replacement: Once the piston is retracted, proceed with steps 7-15 from the front brake guide: Remove caliper carrier, remove old disc, clean hub, fit new disc, clean and lubricate caliper carrier, fit new pads, re-install caliper, re-install caliper carrier, re-install wheel.
4. Lower Vehicle and Final Torque: Repeat steps 16-18 from the front brake guide.

Post-Installation Procedures and Pro Tips

• Pump the Brake Pedal: Before starting the engine or driving, get into the car and pump the brake pedal repeatedly until it feels firm. This pushes the pistons out and seats the pads against the new discs.
• Check Brake Fluid: After pumping the pedal, check the brake fluid reservoir. The level should be between MIN and MAX. Top up if necessary, using the correct DOT-rated fluid (usually DOT 4 for an Astra J).
• Bedding-In New Brakes: This is a crucial step for optimal performance and longevity. Drive gently for the first 100-200 miles, avoiding hard braking. Find a safe, open road and perform several moderate stops from around 50-60 mph down to 10-20 mph, allowing the brakes to cool between stops. Do not come to a complete stop with hot brakes, as this can imprint pad material onto the disc and cause judder.
• Listen and Feel: Pay attention to any unusual noises (squealing, grinding) or vibrations. A slight initial squeal is sometimes normal during bedding-in, but persistent noise or a spongy pedal indicates a problem.
• Bleeding Brakes: You generally do not need to bleed the brakes after just changing pads and discs, provided you didn't open any hydraulic lines. However, if the pedal feels spongy after pumping it, or you accidentally opened a bleeder nipple, you will need to bleed the system to remove any air.
• Torque Specs: Always use a torque wrench! This is non-negotiable for safety. Look up the specific torque values for your Astra J's wheel nuts, caliper slider bolts, and caliper carrier bolts. Incorrectly tightened bolts can lead to serious safety issues.

Common Pitfalls and How to Avoid Them

• Incorrect Piston Retraction (Rear Brakes): As discussed, this is the biggest potential pitfall for your Astra J. Ensure you have the correct wind-back tool or diagnostic scanner for the EPB.
• Damaged Brake Hoses: Never let the caliper hang by the brake hose. Always support it.
• Contaminated Discs/Pads: Avoid getting grease or oil on the friction surfaces of the new discs or pads. Always clean new discs with brake cleaner.
• Cross-Threading Bolts: Start all bolts by hand to ensure they are correctly threaded before using a ratchet.
• Ignoring Torque Specs: Under-tightening can lead to bolts loosening; over-tightening can strip threads or break bolts.
• Uneven Hub Surface: Failing to thoroughly clean the hub before fitting the new disc can cause wobbles and vibrations.

By taking your time, following these steps, and using the correct tools, you'll be able to successfully replace your brake pads and discs. The initial investment in tools will quickly pay for itself, and you'll gain invaluable experience. Remember, when in doubt, consult a professional, but with careful preparation, this is a highly achievable DIY project for the keen motorist.

Frequently Asked Questions (FAQs)

Q: Do I need to bleed the brakes after changing pads and discs?
A: Generally, no, not if you don't open the hydraulic lines. The fluid is only pushed back into the reservoir when retracting the piston. However, if your pedal feels spongy afterward, or you suspect air has entered the system, then bleeding is necessary.

Q: How do I 'bed-in' new brakes?
A: Drive gently for the first 100-200 miles. Then, perform several moderate stops from medium speed (e.g., 50 mph down to 10 mph), allowing brakes to cool between stops. Avoid sudden, hard braking or prolonged braking. Never hold the brake pedal down firmly when the brakes are hot after a bedding-in cycle, as this can warp discs or leave pad deposits.

Q: Why is my brake pedal soft after the change?
A: A soft or spongy pedal usually indicates air in the brake lines. This can happen if the piston was retracted too quickly, fluid level dropped too low, or if a bleeder nipple was opened. You will need to bleed the brake system to remove the air.

Q: Can I just change pads, or do I need discs too?
A: While you can sometimes just change pads, it's highly recommended to change discs at the same time, especially if the discs are worn, grooved, or at their minimum thickness. New pads require a perfectly flat surface to bed-in correctly, and using them on old, worn discs can lead to reduced performance, noise, and premature wear of the new pads.

Q: What's the difference between front and rear brake jobs?
A: The main functional difference is that front brakes typically do about 70-80% of the braking work, so they wear faster and are often larger. The procedural difference, especially on modern cars like your Astra J, often involves the rear calipers having an integrated electronic parking brake (EPB) or a handbrake mechanism that requires a specific wind-back tool or diagnostic procedure for piston retraction, unlike the simpler push-back method for most front calipers.

Q: What is a piston wind-back tool and why do I need it for my Astra?
A: A piston wind-back tool is a specialised tool used to retract brake caliper pistons. For rear calipers, especially those with an integrated handbrake mechanism (like on many Astra J models, particularly with EPB), the piston needs to be rotated as it's pushed back, not just pushed. The tool provides the necessary rotational and pushing force to safely retract the piston without damaging the caliper or EPB mechanism.
