Astra J Braking System: A Comprehensive Guide

When it comes to vehicle safety, few components are as critical as the braking system. For owners of the popular Vauxhall/Opel Astra J, understanding the nuances of its brakes is paramount. Unlike some simpler systems, the Astra J's braking setup isn't a 'one-size-fits-all' affair. The specific brake disc and pad sizes can vary significantly depending on the engine size, trim level, and even the original market specification of your vehicle. This guide will delve into the various braking configurations you might encounter on an Astra J, helping you to identify the correct parts and ensure your vehicle remains safe and efficient on the road.

The Astra J, produced between 2009 and 2015, saw a wide array of engine choices, from economical 1.4-litre petrol units to powerful 2.0-litre diesels and the high-performance VXR models. Each of these variants, with their differing power outputs and vehicle weights, required a braking system appropriately matched to its demands. This means that simply asking 'What size are Astra J brakes?' will often lead to a less than precise answer, as the range is quite broad.

Understanding Astra J Brake Variations

The primary distinctions in Astra J braking systems are typically found in the diameter and thickness of the brake discs, and consequently, the size of the brake pads and callipers. Generally, more powerful engines and heavier vehicles will be equipped with larger brake components to dissipate heat more effectively and provide greater stopping power. It’s crucial to remember that fitting incorrect brake components can severely compromise your vehicle's safety and performance, potentially leading to premature wear, reduced braking efficiency, or even catastrophic failure.

Front Brake Disc Sizes

The front brakes are responsible for the majority of the vehicle's stopping power, often handling 70% or more of the braking force. Therefore, they tend to be larger and more robust than the rear brakes. For the Astra J, common front disc diameters include:

• 276mm: Typically found on smaller engine variants, such as the 1.4 (non-turbo), 1.6 (non-turbo), and some 1.3 CDTi models. These are often solid discs, meaning they are a single piece of metal without internal ventilation, though some may be vented.
• 300mm: A common size for mid-range engines, including the 1.4 Turbo, 1.6 Turbo, 1.7 CDTi, and some 2.0 CDTi models. These are almost always vented discs, featuring an internal structure that helps to cool them during braking, reducing fade.
• 321mm: Often seen on higher-spec 2.0 CDTi models and certain sports trims (excluding VXR). These larger vented discs provide superior heat dissipation and stopping performance for more powerful versions.
• 355mm: Exclusively found on the high-performance Astra J VXR. These are significantly larger, high-performance vented and often drilled discs designed to handle the immense power and speed of the VXR model. They typically utilise a more robust four-piston calliper setup.

Rear Brake Disc Sizes

Rear brakes play a crucial role in vehicle stability during braking and contribute to overall stopping power. While generally smaller than the front brakes, their size also varies based on the vehicle's specification:

• 268mm: Common across many Astra J variants, particularly those with smaller to mid-range engines. These are usually solid discs, but some specific models might have vented versions.
• 292mm: Found on more powerful models, including many 2.0 CDTi variants and some higher-spec petrol engines. These are typically vented discs, offering better heat management than the smaller solid discs.
• 315mm: Specific to the Astra J VXR, these larger vented discs complement the powerful front braking system, ensuring balanced and effective stopping under extreme conditions.

Identifying Your Astra J's Brake Size

Given the variety, how can you be sure which braking system your Astra J has? The most reliable methods involve checking your vehicle's specific details:

1. VIN (Vehicle Identification Number) Check: This is the most accurate method. Most reputable parts suppliers and Vauxhall dealerships can use your VIN to look up the exact specifications of your vehicle, including the original brake component sizes.
2. Registration Number Check: Similar to a VIN check, entering your vehicle's registration number into online parts databases or at a parts store can often identify the correct components.
3. Physical Measurement: If you are replacing your brakes, you can physically measure the diameter of your existing brake discs. Remember to measure accurately from one edge to the opposite edge across the centre. Also, note the thickness of the disc, as this is another critical dimension.
4. Original Parts Numbers: If you have the original brake discs or pads, their part numbers can be cross-referenced to identify the correct replacements.

Never rely solely on the year or general model of your Astra J. Always verify using one of the above methods to ensure you purchase the correct brake components.

Comparative Table of Common Astra J Brake Disc Sizes

The table below provides a general overview of common brake disc sizes for various Astra J engine types. Please remember this is a guide, and individual vehicle specifications may vary.

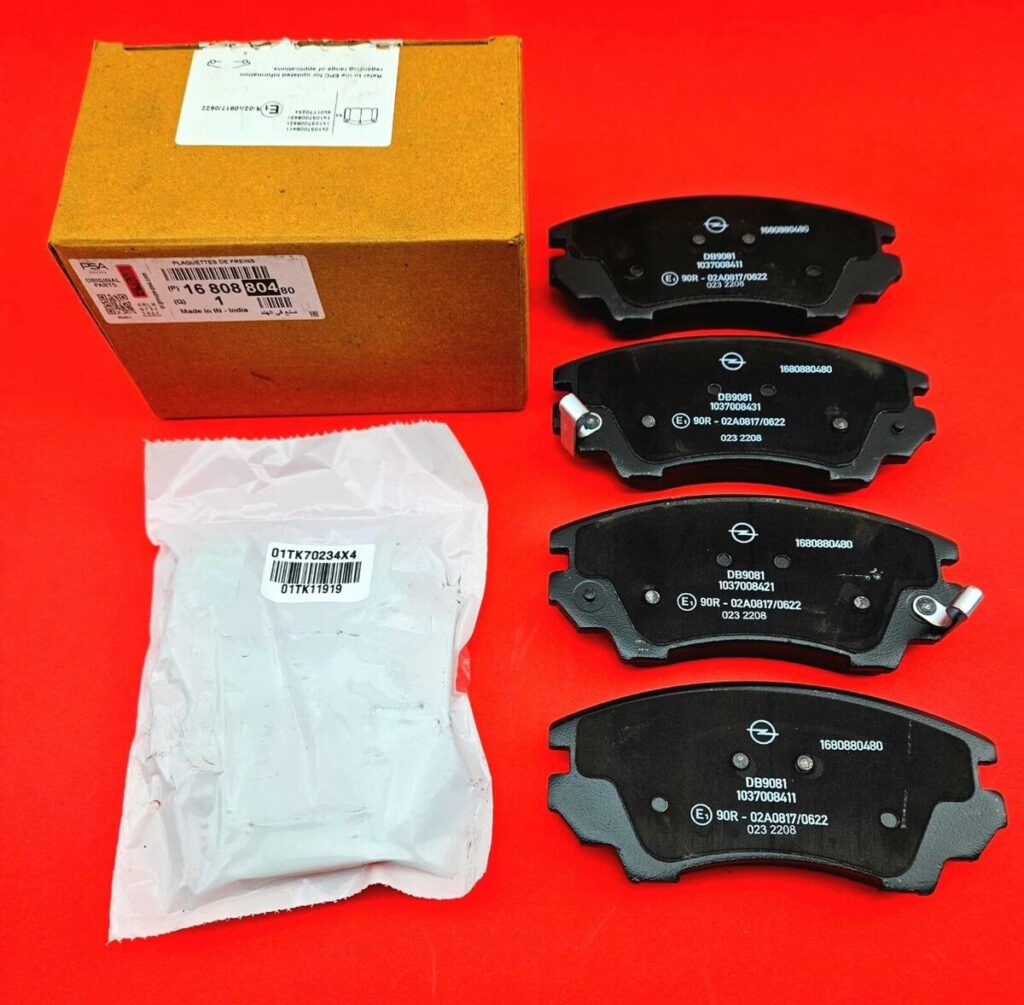

Brake Pad Considerations

Just as brake discs vary, so too do the brake pads. Different disc sizes will naturally require different pad shapes and sizes to fit correctly within the calliper. Furthermore, the material composition of brake pads can vary significantly, impacting performance, noise, and dust production. Options include:

• Organic/Non-asbestos Organic (NAO): Quieter, less aggressive on discs, but can have lower friction coefficients, especially when cold.
• Semi-Metallic: Good all-round performance, effective cold or hot, but can be noisier and produce more dust.
• Low-Metallic NAO: A compromise, offering better braking than NAO with less noise and dust than semi-metallic.
• Ceramic: Excellent performance, very low dust, quiet, and long-lasting, but often more expensive.

For most standard Astra J models, good quality semi-metallic or low-metallic NAO pads from reputable brands (like Brembo, Bosch, Textar, Ferodo, Pagid, ATE) will provide excellent performance and longevity. VXR models, however, will typically require high-performance pads designed to withstand extreme temperatures and forces.

Maintenance and Lifespan

Regardless of your Astra J's specific brake size, regular inspection and timely maintenance are crucial. Brake discs and pads are wear items and will need replacing periodically. Signs of worn brakes include:

• A grinding or squealing noise when braking.
• A pulsing sensation through the brake pedal.
• Increased stopping distances.
• The vehicle pulling to one side when braking.
• A soft or spongy brake pedal.
• Warning lights on the dashboard (e.g., brake pad wear indicator).

It is generally recommended to replace both discs and pads on an axle (i.e., both front or both rear) at the same time to ensure even braking performance. Brake fluid also needs regular replacement, typically every two years, as it absorbs moisture over time, which can reduce its boiling point and lead to a spongy pedal.

Upgrading Your Astra J Brakes

For owners seeking enhanced braking performance, particularly those with tuned engines or who engage in more spirited driving, upgrading the braking system can be a worthwhile consideration. This can involve:

• Performance Pads and Discs: Switching to higher-friction pads and drilled or grooved discs for better initial bite and heat dissipation.
• Braided Hoses: Replacing standard rubber brake hoses with braided steel lines can reduce pedal sponginess by preventing hose expansion under pressure.
• Big Brake Kits (BBK): For significant upgrades, a BBK involves larger callipers, discs, and pads. This is a common upgrade for VXR models or those looking to convert a standard Astra J to a VXR-level braking system, though it requires careful research regarding wheel clearance and compatibility.

Always consult with a qualified mechanic or specialist before undertaking any significant brake upgrades to ensure compatibility and safety.

Frequently Asked Questions (FAQs)

Q1: How often should I change the brakes on my Astra J?

There's no fixed interval, as it depends heavily on driving style, mileage, and conditions. Generally, front pads might last 20,000-40,000 miles, and rear pads 40,000-60,000 miles. Discs typically last for two sets of pads, but this can vary. Regular inspections during servicing are the best way to determine when replacement is needed.

Q2: Can I just replace the brake pads and not the discs?

It's generally recommended to replace both the discs and pads on an axle at the same time. While you can sometimes get away with just pads if the discs are well within their minimum thickness and perfectly flat, fitting new pads to worn or lipped discs can lead to reduced braking performance, noise, and rapid wear of the new pads.

Q3: Are aftermarket brake parts as good as genuine Vauxhall parts?

Many aftermarket brands produce excellent quality brake components that meet or exceed OEM specifications. Brands like Brembo, Bosch, ATE, Textar, and Ferodo are highly regarded. The key is to choose reputable brands and ensure the parts are correct for your specific vehicle specification. Avoid unbranded or excessively cheap components, as they may compromise safety.

Q4: What are the signs that my Astra J's brake fluid needs changing?

Brake fluid absorbs moisture over time, which lowers its boiling point and can lead to a spongy pedal feel, especially under heavy braking. While there isn't always an obvious warning sign beyond a loss of performance, a common recommendation is to change brake fluid every two years, regardless of mileage, to maintain optimal braking performance and prevent corrosion within the system.

Q5: Is it normal for Astra J brakes to squeal?

A slight squeal can sometimes be normal, especially when brakes are cold or after washing, due to surface rust. However, persistent or loud squealing usually indicates worn brake pads (the wear indicator rubbing against the disc) or glazed pads/discs. A grinding noise indicates metal-on-metal contact, meaning pads are completely worn and urgent replacement is needed.

In conclusion, the braking system on your Vauxhall Astra J is a sophisticated assembly with various configurations tailored to different engine and trim levels. While the exact Astra J braking system size depends on your specific model, understanding these variations and knowing how to correctly identify the parts for your vehicle is essential for maintaining safety and optimal performance. Always prioritise quality components and professional installation to ensure your Astra J stops reliably every time you apply the brakes.
