Astra H Braking System: A Comprehensive Guide

The braking system in any vehicle is arguably its most critical safety feature, and the Vauxhall/Opel Astra H, a popular choice on UK roads, is no exception. Understanding how your Astra H's brakes function, what components are involved, and how to maintain them is not just good practice – it's essential for your safety and the longevity of your vehicle. This comprehensive guide will delve deep into the intricacies of the Astra H's braking system, providing you with the knowledge needed to ensure it remains in peak condition.

From daily commutes to emergency stops, your Astra H's brakes are constantly working, converting kinetic energy into heat through friction to bring your vehicle to a controlled halt. This intricate dance involves a sophisticated network of mechanical, hydraulic, and electronic components, all working in harmony. Ignoring the signs of brake wear or neglecting routine maintenance can lead to dangerous situations and costly repairs down the line. Let's explore what makes your Astra H stop.

The Core Components of Your Astra H's Braking System

To truly understand how your Astra H stops, it's vital to know the individual components that make up its braking system. While specific configurations might vary slightly depending on the engine size and trim level, the fundamental principles and components remain consistent across most Astra H models.

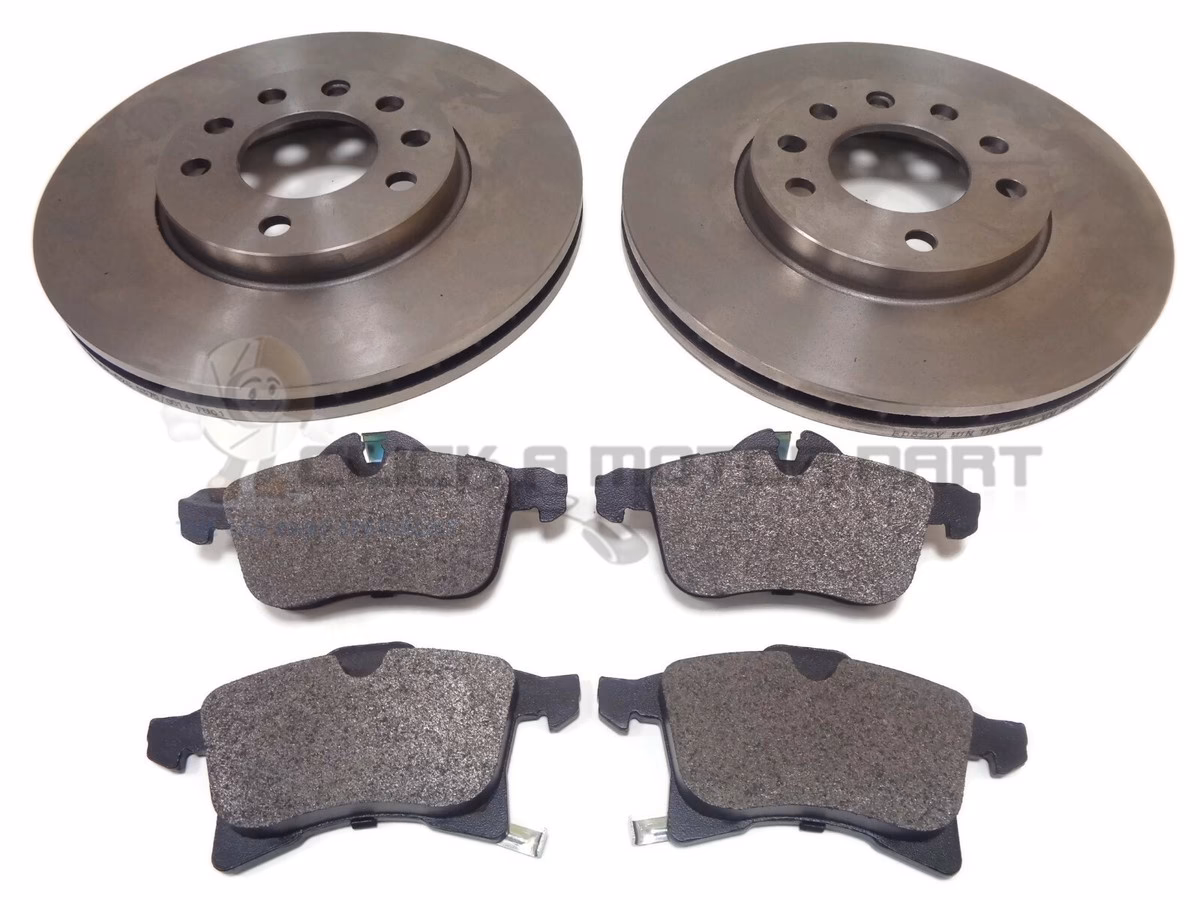

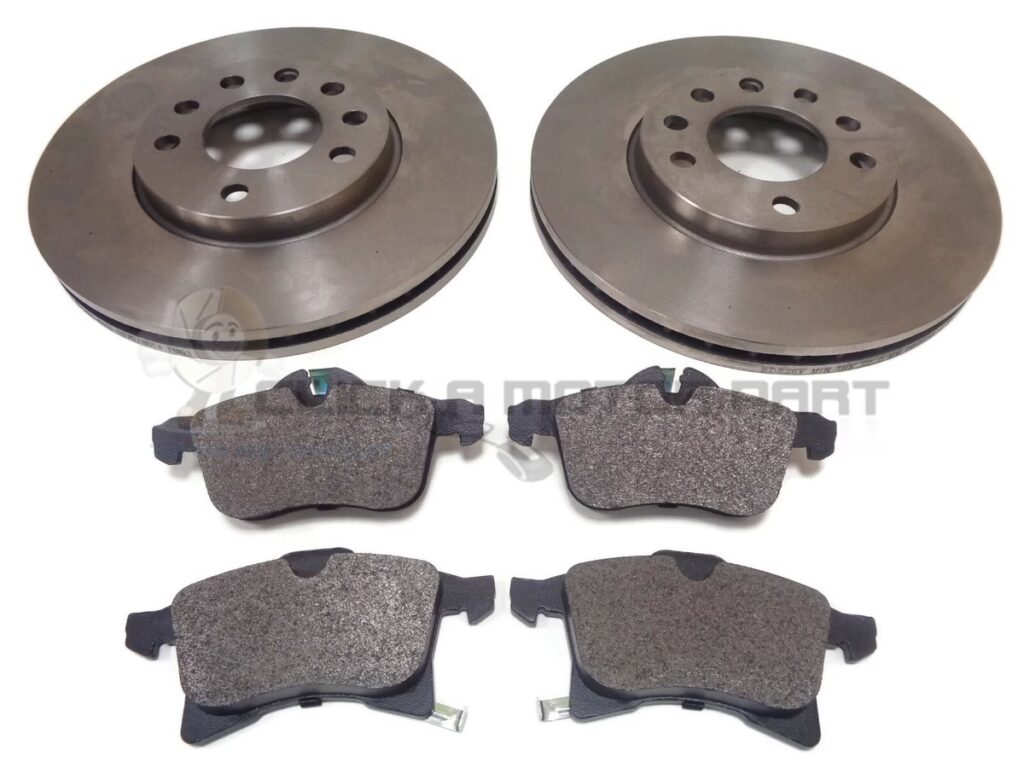

Brake Discs (Rotors)

Often referred to as brake rotors, brake discs are the circular metal plates attached to your vehicle's wheel hub. When you press the brake pedal, the brake pads clamp onto these discs, creating friction that slows down the wheel. Astra H models typically feature vented discs on the front axle, which have a gap between two disc surfaces to allow for better cooling and dissipate heat more effectively, crucial for preventing brake fade during heavy use. Rear discs may be solid or, on some base models, drum brakes. Disc condition is paramount; warped or excessively worn discs can lead to vibrations and reduced braking efficiency.

Brake Pads

Brake pads are consumable friction materials designed to press against the brake discs. They consist of a steel backing plate with a friction material bonded to it. The composition of this friction material varies, influencing braking performance, noise, and longevity. Over time, these pads wear down, and regular inspection is necessary to determine when they need replacing. Most Astra H models utilise a warning system, either an electrical sensor or an audible squealer, to alert you when pads are nearing their minimum thickness.

Brake Calipers

The brake caliper is the assembly that houses the brake pads and the pistons. When hydraulic pressure is applied, the pistons within the caliper push the brake pads onto the disc. Astra H models typically use floating calipers, which move slightly to ensure even pressure application. Calipers are crucial for translating hydraulic force into mechanical clamping force. Sticking or seizing calipers can lead to uneven pad wear, reduced braking, or even a dragging brake.

Brake Fluid

Brake fluid is the hydraulic medium that transmits the force from your brake pedal to the calipers. It's a non-compressible fluid that operates under high pressure and temperature. Over time, brake fluid can absorb moisture from the atmosphere, which lowers its boiling point. If the fluid boils, it creates compressible vapour bubbles in the lines, leading to a 'spongy' pedal feel and significantly reduced braking effectiveness. Regular brake fluid changes are a critical, often overlooked, maintenance item.

Brake Lines and Hoses

Rigid metal brake lines run along the vehicle's chassis, connecting the master cylinder to flexible rubber brake hoses at each wheel. These hoses allow for the movement of the suspension and steering without compromising the hydraulic connection. It's vital to inspect these lines and hoses for corrosion, cracks, bulges, or leaks, as any compromise can lead to brake fluid loss and total brake failure.

Master Cylinder

The master cylinder is the heart of the hydraulic braking system. When you press the brake pedal, it converts the mechanical force into hydraulic pressure, pushing brake fluid through the lines to the calipers. Modern master cylinders, like those in the Astra H, are typically 'tandem' designs, meaning they have two separate circuits. This provides a safety redundancy: if one circuit fails, you'll still have some braking capability on the other circuit.

Brake Booster (Servo)

Also known as the brake servo, this component uses engine vacuum (or an electric pump on some modern systems) to multiply the force you apply to the brake pedal, making it much easier to stop the vehicle. Without the booster, pressing the brake pedal would require significantly more effort to achieve effective braking. A failing booster can result in a very hard brake pedal.

How the Astra H's Braking System Works

The process of bringing your Astra H to a halt is a marvel of engineering. Here's a simplified breakdown:

1. Pedal Depression: When you press the brake pedal, the force is amplified by the brake booster.
2. Hydraulic Pressure Generation: This amplified force pushes a piston in the master cylinder, creating hydraulic pressure in the brake fluid.
3. Fluid Transmission: The pressurised brake fluid travels through the rigid brake lines and flexible hoses to the calipers at each wheel.
4. Piston Actuation: Inside the calipers, the hydraulic pressure pushes pistons outwards.
5. Friction Creation: These pistons force the brake pads against the brake discs.
6. Stopping Power: The friction generated between the pads and discs converts the vehicle's kinetic energy into heat, slowing down and eventually stopping the wheels.

Advanced Braking Technologies in the Astra H

Beyond the fundamental hydraulic system, the Astra H incorporates several electronic systems to enhance safety and control, especially in challenging driving conditions.

Anti-lock Braking System (ABS)

The ABS prevents the wheels from locking up during hard braking. Sensors at each wheel monitor wheel speed. If a wheel begins to lock, the ABS module rapidly modulates the brake pressure to that specific wheel, allowing it to continue rotating. This maintains steering control and reduces stopping distances on slippery surfaces. If your ABS warning light illuminates, it indicates a fault within the system, though your conventional brakes may still function.

Electronic Brakeforce Distribution (EBD)

EBD works in conjunction with ABS to optimise braking force applied to each wheel based on road conditions, vehicle load, and weight transfer during braking. For instance, it can apply more braking force to the rear wheels when the vehicle is heavily loaded, ensuring balanced and efficient braking.

Electronic Stability Programme (ESP) / Traction Control (TC)

While primarily focused on vehicle stability and traction, ESP (or ESC, Electronic Stability Control) and TC (Traction Control) often utilise the braking system to achieve their goals. If the system detects a loss of traction or an impending skid, it can selectively apply brakes to individual wheels to help steer the vehicle back on its intended path. Most Astra H models came with ESP as standard or as an optional extra.

Common Braking System Issues and Symptoms

Recognising the signs of brake trouble early can save you from more significant problems and ensure your safety. Here are some common symptoms:

• Squealing or Grinding Noises: A high-pitched squeal often indicates worn brake pads (due to an integrated wear indicator). A metallic grinding sound suggests that the pads are completely worn, and the metal backing plates are rubbing against the discs, which can cause significant damage to the discs.
• Vibrations or Pulsations: A pulsing sensation through the brake pedal or steering wheel during braking usually points to warped brake discs. This occurs when discs overheat and cool unevenly, causing irregularities in their surface.
• Soft or Spongy Brake Pedal: A pedal that feels soft, travels too far, or sinks slowly to the floor often indicates air in the hydraulic system, a brake fluid leak, or a faulty master cylinder.
• Hard Brake Pedal: If the pedal requires excessive force to achieve braking, it's typically a sign of a failing brake booster (servo) or a vacuum leak in the system.
• Vehicle Pulling to One Side: If your Astra H pulls to the left or right when braking, it could be due to a sticking caliper, unevenly worn pads on one side, or a blockage in a brake line.
• Illuminated Warning Lights: The brake system warning light (red exclamation mark in a circle) usually indicates low brake fluid or a handbrake applied. The ABS light signifies an issue with the anti-lock braking system. The ESP light indicates a fault with the electronic stability programme.
• Burning Smell: A strong, acrid burning smell after braking can indicate overheating brakes, often from heavy use or a dragging caliper.

Maintenance and Inspection Tips for Your Astra H's Brakes

Regular maintenance is key to a reliable braking system. Here's what you should be doing:

Regular Visual Inspections

Periodically inspect your brake pads and discs. You can often see the outer edge of the brake pads through the wheel spokes. Look for visible wear, cracks, or deep grooves on the discs. Pads should have at least a few millimetres of friction material remaining. Pay attention to any uneven wear across the pad or disc.

Brake Fluid Level and Condition

Check the brake fluid level in the reservoir under the bonnet regularly. It should be between the 'min' and 'max' marks. If it's consistently low, you might have a leak that needs immediate attention. Also, note the colour of the fluid. New brake fluid is typically clear or light amber. Dark, murky fluid indicates contamination and absorption of moisture, meaning it's time for a flush.

Brake Fluid Replacement

Vauxhall generally recommends replacing brake fluid every two years, regardless of mileage. This is crucial because brake fluid is hygroscopic, meaning it absorbs moisture from the air. Water in the system lowers the fluid's boiling point and can lead to internal corrosion of brake components.

Pad and Disc Replacement

Brake pads and discs are wear items. Pads typically need replacing more frequently than discs. The lifespan depends heavily on driving style (e.g., city driving with frequent stops wears them faster than motorway driving). Always replace pads as an axle set (both front or both rear) to ensure even braking. It's often recommended to replace discs when replacing pads if the discs are significantly worn, scored, or below their minimum thickness specification.

Bleeding the Brake System

If air enters the brake lines (e.g., after replacing a component or if the fluid level runs critically low), the system will need to be bled. This process involves forcing fluid through the system to expel any trapped air, restoring a firm pedal feel.

Checking Brake Hoses and Lines

During services, mechanics will inspect the flexible brake hoses for cracks, bulges, or signs of deterioration. They will also check the rigid metal lines for corrosion, especially in areas exposed to road salt and debris.

Brake Pad Types Comparison

When it comes to replacing your Astra H's brake pads, you'll encounter a few common types, each with its own characteristics:

Frequently Asked Questions About Astra H Brakes

How often should I change my Astra H's brake fluid?

Most manufacturers, including Vauxhall, recommend changing brake fluid every two years, regardless of mileage. This is because brake fluid absorbs moisture over time, which degrades its performance and can lead to corrosion.

When should I replace my brake pads?

Brake pad lifespan varies greatly depending on driving style and conditions. However, most pads have wear indicators. If you hear a squealing noise when braking (from the wear indicator) or a grinding noise, or if your brake warning light comes on, it's time for replacement. Visually, if the friction material is down to 3mm or less, it's time to replace them.

What does the ABS light on my dashboard mean?

The ABS warning light indicates a fault within the Anti-lock Braking System. While your conventional brakes should still function, the ABS feature (which prevents wheel lock-up) will be disabled. It's important to have this checked by a qualified mechanic as soon as possible.

Can I replace my Astra H's brake pads and discs myself?

While it is possible for a competent DIY mechanic with the right tools and knowledge, working on brakes is a safety-critical task. Incorrect installation can lead to brake failure. If you are unsure, it is always best to have brake work performed by a qualified professional.

Why are my Astra H's brakes squealing?

Squealing brakes can be caused by several factors: worn brake pads (the wear indicator), new pads not properly 'bedded in', contamination on the pads or discs (e.g., grease or oil), or cheap/low-quality pads. If the squeal is accompanied by a grinding noise, it indicates severely worn pads and urgent attention is needed.

My brake pedal feels spongy. What could be wrong?

A spongy brake pedal typically indicates air in the hydraulic system or a loss of brake fluid due to a leak. It could also point to a failing master cylinder. This is a serious safety concern and requires immediate inspection and repair by a mechanic.

Understanding and maintaining your Astra H's braking system is paramount for your safety and the longevity of your vehicle. By paying attention to the signs of wear, adhering to recommended maintenance schedules, and addressing any issues promptly, you can ensure your Astra H continues to provide reliable and safe stopping power for many years to come.
