The intricacies of automotive design and regulation are vast, and one area that often requires careful consideration is the turning circle of a vehicle. For those involved in vehicle manufacturing, design, or even urban planning, understanding these regulations is paramount. This article delves into the necessity of conforming to European turning circle regulations, particularly in the context of Type Approved vehicles, and explores the wider implications for vehicle design and road infrastructure.
What is a Turning Circle?
The turning circle, often referred to as the kerb-to-kerb turning circle or the swept path, is the diameter of the smallest circle that a vehicle can turn without its wheels crossing the boundary of the circle. It's a critical measurement that dictates a vehicle's manoeuvrability, especially in confined spaces like urban streets, car parks, and residential areas.
Type Approval and Turning Circle Regulations
Vehicles seeking Type Approval within the European Union must adhere to a stringent set of regulations designed to ensure safety, environmental protection, and harmonisation across member states. Among these regulations are those pertaining to the turning circle. The primary reason for this is safety and usability. A vehicle that cannot safely navigate typical road conditions, including tight corners and junctions, poses a significant risk to its occupants, other road users, and property.
European regulations specify maximum allowable turning circles for different categories of vehicles. These limits are not arbitrary; they are based on extensive research and practical considerations of how vehicles are used in everyday scenarios. For instance, a large commercial vehicle will naturally have a larger turning circle than a small passenger car, and the regulations reflect these differences. Non-compliance can lead to the refusal of Type Approval, preventing the vehicle from being legally sold and operated within the EU.
Why Turning Circle Calculations Matter, Even Without Type Approval
While Type Approval is a definitive requirement for market entry in the EU, the principles behind turning circle regulations are valuable even for vehicles not pursuing this specific certification. Vehicle designers and manufacturers, regardless of their target market, need to understand the turning circle characteristics of their designs for several key reasons:
- Manoeuvrability and Usability: Ensuring a vehicle can be driven and parked practically in real-world conditions is fundamental to customer satisfaction and the vehicle's overall utility.
- Safety: As mentioned, poor manoeuvrability can lead to accidents. Designers must anticipate how their vehicles will interact with their environment.
- Infrastructure Compatibility: Vehicles need to be able to navigate existing road infrastructure, including streets, car parks, and loading bays. Understanding turning circles helps ensure this compatibility.
- Legal and Insurance Requirements: Even outside of EU Type Approval, many jurisdictions have regulations or standards related to vehicle dimensions and manoeuvrability that can impact legal compliance and insurance premiums.

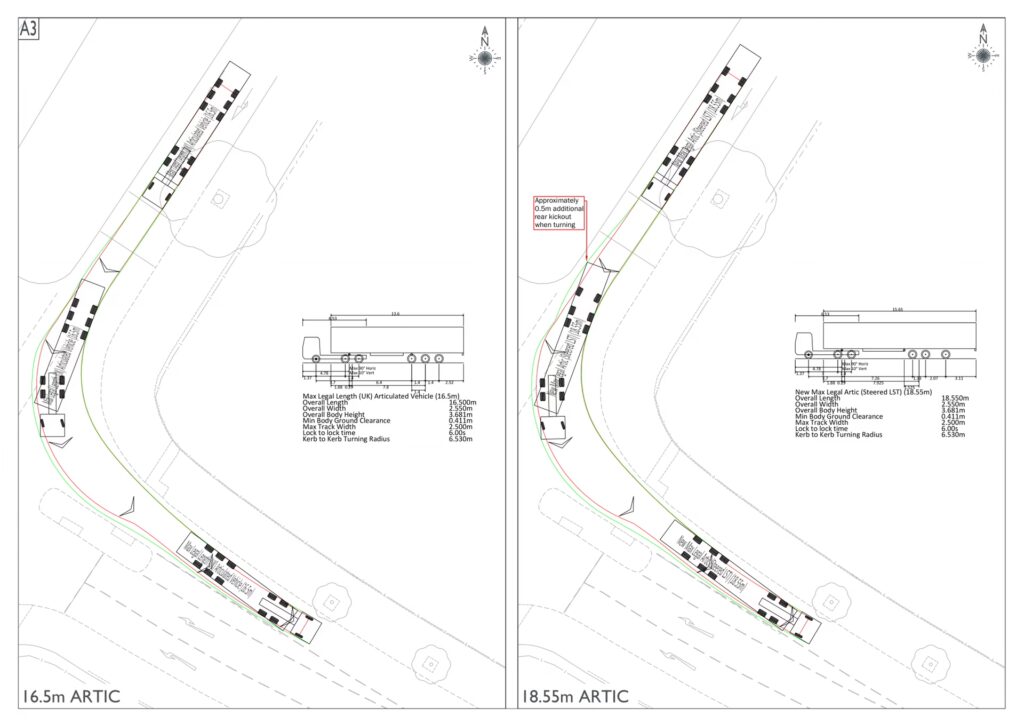

Companies like Granning offer specialised services in vehicle turning circle calculations. These calculations provide designers with crucial data, such as the swept path of the vehicle, which is essential for assessing its ability to navigate specific routes or environments. This proactive approach to understanding manoeuvrability can save significant time and resources during the development process.
Cul-de-Sacs and Turning Circles
The concept of turning circles extends beyond the vehicle itself to the infrastructure designed to accommodate them. In urban planning, particularly for residential areas, the design of dead-end streets, or cul-de-sacs, is directly influenced by vehicle turning requirements. The goal is to allow service vehicles, such as refuse trucks, fire engines, and ambulances, to turn around safely and efficiently without having to reverse for long distances.
When Should a Cul-de-Sac Have a Turning Circle?
A common guideline, as highlighted, is that any cul-de-sac exceeding 110 metres in length should incorporate a turning circle. This length is often considered the point at which reversing becomes impractical and potentially hazardous for longer vehicles. The presence of a turning circle, often a circular area at the end of the street, allows these larger vehicles to complete a 180-degree turn.
Turning Heads as an Alternative
In situations where space is severely limited, precluding the construction of a traditional turning circle, alternative solutions might be considered. One such alternative is a 'turning head' or 'hammerhead' design. These are typically T-shaped or Y-shaped areas that provide just enough space for a vehicle to manoeuvre, often involving a forward and reverse manoeuvre. However, it's crucial to acknowledge the inherent dangers:
- Increased Reversing: Even with a turning head, vehicles may still need to reverse significant distances, increasing the risk of collisions with pedestrians, cyclists, or other vehicles.
- Visibility Issues: Reversing large vehicles presents visibility challenges for the driver, especially in complex layouts.
- Emergency Vehicle Access: The effectiveness of turning heads for emergency services can be a concern, potentially delaying response times.
Therefore, while turning heads can serve as a temporary or space-saving solution, they should not be seen as a direct replacement for a proper turning circle where feasible. The safety implications of prolonged reversing for service vehicles cannot be overlooked.
Table: Turning Circle Considerations
| Factor | Impact on Vehicle Design | Impact on Infrastructure | Regulatory Relevance |
|---|---|---|---|
| Vehicle Type (e.g., Car, LCV, HGV) | Dictates inherent turning radius. | Determines road width and junction design requirements. | Key classification for Type Approval limits. |
| Wheelbase and Overhangs | Directly influences the swept path and turning circle. | Affects the required width of roads and turning areas. | Considered in detailed technical specifications. |
| Steering Angle Limits | Determines the maximum achievable turning angle. | Impacts the minimum radius a vehicle can physically achieve. | Critical for Type Approval compliance. |
| Urban vs. Rural Environments | Design may prioritise manoeuvrability in urban settings. | Requires wider roads and larger turning areas in dense areas. | Influences the stringency of applicable regulations. |
| Cul-de-sac Length | Less direct impact, but influences vehicle suitability for certain areas. | Mandates the need for turning facilities beyond a certain length. | A key trigger for infrastructure design standards. |
Frequently Asked Questions
Do all vehicles need to meet EU turning circle regulations?
Vehicles that are intended for sale and operation within the European Union and require Type Approval must meet these regulations. Vehicles not seeking Type Approval may still be subject to national or regional regulations, or their design may be influenced by the need for practical manoeuvrability, which these regulations aim to ensure.
What is the difference between kerb-to-kerb and wall-to-wall turning circles?
The kerb-to-kerb turning circle measures the diameter of the smallest circle the vehicle can turn without its wheels crossing the boundary. The wall-to-wall turning circle (or swept path) accounts for the entire space the vehicle occupies during the turn, including any front or rear overhangs that swing out. For regulatory purposes and infrastructure design, the swept path is often the more critical measurement.
How can Granning help with turning circle calculations?
Granning provides specialised software and expertise to perform accurate vehicle turning circle calculations. This allows vehicle designers to predict and visualise how their vehicles will manoeuvre, helping them to identify potential issues early in the design process and ensure compliance with relevant standards or usability requirements.
Conclusion
The requirement for vehicles to conform to European turning circle regulations is a fundamental aspect of ensuring safety and usability within the EU market, especially for Type Approved vehicles. However, the principles of understanding and managing a vehicle's turning circle extend far beyond formal approval processes. It impacts vehicle design, customer satisfaction, and the very planning of our urban environments. Whether designing a new car or a new street, a thorough understanding of turning circles is essential for creating functional, safe, and efficient spaces.
