Unpacking Motorcycle Brake Discs: Materials & Design

When it comes to motorcycling, few components are as critical as the braking system. It’s not just about slowing down; it’s about control, safety, and confidence, whether you're navigating urban streets or tackling rugged off-road trails. The effectiveness of your brakes hinges significantly on the quality of their components, particularly the discs. But what exactly goes into making these vital parts, and why are certain materials and manufacturing processes preferred?

This article delves into the core of motorcycle brake disc technology, exploring the materials, manufacturing techniques, and design innovations that define modern braking performance. We'll examine why specific choices, such as Japanese induction hardened steel and precise laser cutting, contribute to superior stopping power and longevity, and how advancements like wavy discs are reshaping the landscape of motorcycle safety.

The Foundation: Japanese Induction Hardened Steel

At the heart of high-performance motorcycle brake discs lies the material from which they are forged. The mention of Japanese induction hardened steel immediately signals a commitment to quality and durability. But what does this mean in practical terms?

Understanding Induction Hardening

Induction hardening is a form of heat treatment that significantly enhances the surface hardness of steel components while maintaining a tough, ductile core. This process involves heating the steel rapidly using electromagnetic induction, followed by immediate quenching. The rapid heating and cooling transform the steel's microstructure at the surface, creating a highly wear-resistant layer.

• Durability: For brake discs, this means an exceptionally hard surface that resists abrasion from brake pads, extending the lifespan of the disc.
• Strength: While the surface is hard, the core remains relatively softer, providing the necessary toughness to withstand the immense forces and thermal stresses generated during braking without becoming brittle.
• Consistency: Japanese steel is renowned globally for its metallurgical purity and consistent quality, ensuring that each disc performs reliably under demanding conditions. This combination of material quality and advanced heat treatment provides greater protection against wear and deformation over time.

Precision Manufacturing: The Role of Laser Cutting

Once the high-grade steel is ready, the manufacturing process determines the disc's final form and, crucially, its accuracy. Traditional stamping or machining methods can introduce stresses or minor imperfections. This is where laser cutting becomes a game-changer.

Unparalleled Accuracy and Cleanliness

Laser cutting technology utilises a focused, high-power laser beam to cut through materials with extreme precision. For brake discs, this offers several distinct advantages:

• Dimensional Accuracy: Laser cutting allows for incredibly tight tolerances, ensuring that the disc's dimensions are precise down to fractions of a millimetre. This accuracy is paramount for consistent brake pad contact and smooth, vibration-free braking.
• Clean Edges: The intense heat of the laser melts and vaporises the material, leaving behind exceptionally clean and burr-free edges. This eliminates the need for extensive post-processing and reduces potential points of stress concentration.
• Complex Designs: Laser cutting can effortlessly create intricate patterns and ventilation holes in the disc, which are crucial for heat dissipation and weight reduction, especially in performance-oriented designs.

The combination of precision laser cutting with induction hardened steel ensures that each brake disc is not only incredibly durable but also perfectly shaped for optimal performance, contributing directly to greater accuracy in braking response.

Disc Types: Solid, Floating, Road & Off-Road Ranges

Motorcycle brake discs come in various configurations, each suited to different applications and performance demands. The core types mentioned are solid, floating, and those tailored for road or off-road use.

Solid Front/Rear Discs

Solid discs are, as the name suggests, a single, rigid piece of metal. They are typically more economical to produce and are commonly found on the rear wheels of many motorcycles, where braking forces and heat generation are generally lower compared to the front. They offer reliable performance for everyday riding.

Floating Front Discs

Floating discs are a more advanced design, predominantly used on the front wheels of performance and larger motorcycles. They consist of two main parts: an inner carrier (or hub) that attaches to the wheel, and an outer friction ring that the brake pads grip. These two parts are connected by 'floaters' or bobbins, which allow the friction ring to move slightly independently of the carrier.

The 'floating' design offers several critical benefits:

• Heat Management: As discs heat up during braking, they expand. A floating design allows the friction ring to expand and contract freely, preventing warping and stress build-up that can occur in solid discs, especially under heavy braking.
• Pad Alignment: The slight movement helps the brake pads maintain optimal alignment with the disc surface, leading to more consistent and efficient braking, as well as reduced uneven pad wear.
• Reduced Brake Fade: By managing heat more effectively, floating discs help to minimise brake fade, ensuring consistent stopping power even during prolonged or aggressive riding.

Road and Off-Road Disc Ranges

The availability of specific ranges for 'Road' and 'Off-Road' motorcycles highlights the different demands placed on braking systems in varying environments:

• Road Discs: Designed for consistent, high-speed braking, often focusing on heat dissipation and silent operation. They need to perform reliably in a wide range of weather conditions.
• Off-Road Discs: These often feature more aggressive designs with larger cut-outs or patterns to help shed mud, dirt, and debris more effectively. They prioritise robust construction to withstand impacts and maintain performance in challenging, unpredictable terrain. While still requiring good heat management, the focus might shift slightly to resistance against clogging and maintaining grip in slippery conditions.

The Innovation of Wavy Discs

A significant leap in brake disc design is the introduction of wavy discs, also sometimes referred to as 'petal' discs due to their distinctive shape. These discs deviate from the traditional circular outline, featuring an undulating, wavy outer edge.

Benefits of the Wavy Design

The unique geometry of wavy discs provides several compelling advantages over standard circular road discs:

• Greater Efficiency Area of Pad Contact: While it might seem counter-intuitive, the wavy edge actually increases the effective surface area where the brake pad interacts with the disc over a full rotation. This design ensures that the entire pad surface is utilised more efficiently, leading to more consistent and powerful braking. The constant varying edge also helps to clean and de-glaze the brake pads, maintaining optimal friction.
• Lighter Weight: By removing material from the non-critical areas along the outer edge, wavy discs are inherently lighter than conventional circular discs of the same diameter and thickness. This reduction in unsprung weight contributes to improved handling, quicker acceleration, and more responsive suspension performance.
• Improved Braking Grip Over OEM Models: The combination of better pad contact efficiency, enhanced heat dissipation (due to the increased edge surface area), and often superior material (like the aforementioned Japanese induction hardened steel) translates directly into improved braking grip. Riders experience a more immediate, powerful, and predictable braking feel compared to many original equipment manufacturer (OEM) discs.
• Enhanced Debris Shedding: For off-road applications, the wavy design is particularly effective at shedding mud, dirt, and water, preventing debris build-up that can compromise braking performance.
• Aesthetics: Beyond performance, the distinctive look of wavy discs often adds a modern, aggressive aesthetic to a motorcycle.

Why These Features Matter: Performance and Safety

The meticulous selection of materials, advanced manufacturing processes, and innovative designs all converge to deliver tangible benefits for the rider. The goal is always to achieve maximum performance and safety.

• Enhanced Safety: More powerful and consistent braking means shorter stopping distances and better control in emergency situations, significantly improving rider safety.
• Improved Control: Accurate and predictable brake response allows riders to modulate braking force with greater precision, enhancing control and confidence, especially in challenging conditions or during aggressive riding.
• Longevity and Reliability: Components made from induction hardened steel and cut with lasers are built to last, resisting wear and maintaining their integrity over countless miles. This means fewer replacements and more reliable performance over the long term.
• Optimised Riding Experience: Lighter components contribute to better handling, while superior grip and fade resistance ensure a more enjoyable and confidence-inspiring ride, allowing riders to push their limits safely.

Maintaining Your Brake Discs

Even the highest quality brake discs require proper maintenance to ensure their continued performance and longevity. Regular inspection is key.

• Visual Inspection: Check for signs of excessive wear, scoring, cracks, or discolouration (blueing indicates severe overheating). The disc should appear smooth and uniform.
• Thickness Check: Use a micrometer to measure the disc thickness at several points around its circumference. Compare this to the manufacturer's minimum thickness specification, usually stamped on the disc itself. Replace discs that are below this limit.
• Cleanliness: Keep discs free from oil, grease, and dirt, as these can contaminate brake pads and reduce braking efficiency. Use a dedicated brake cleaner if necessary.

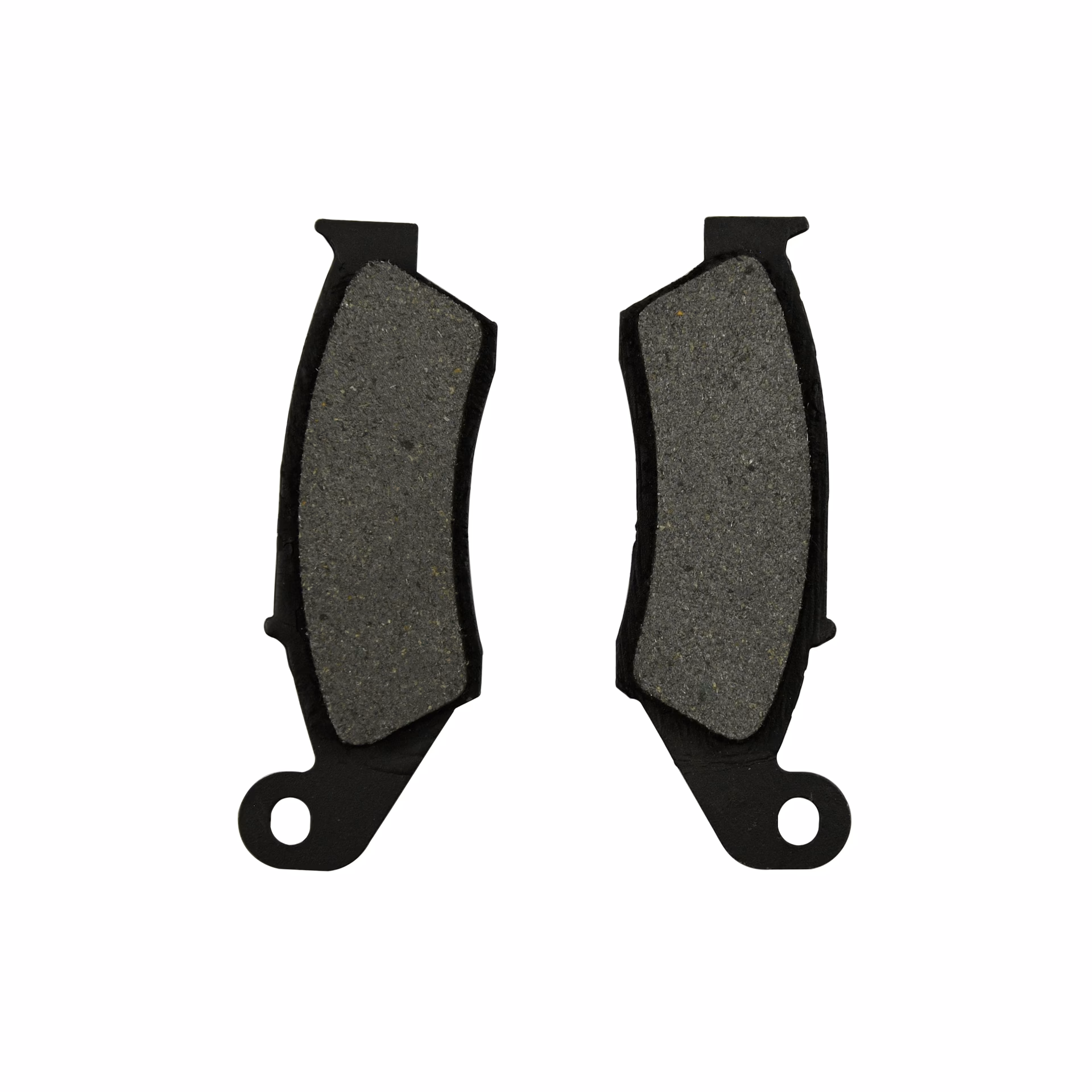

• Pad Condition: Always ensure your brake pads are in good condition and are not excessively worn, as worn pads can damage discs.

Comparative Overview of Disc Types

To summarise the differences, here's a comparative look at the characteristics of standard and wavy discs, and the benefits of floating designs:

Frequently Asked Questions (FAQs)

Q1: Why is Japanese induction hardened steel specifically mentioned as a premium material?

Japanese steel is globally recognised for its exceptional purity, consistent metallurgical properties, and advanced processing techniques. When combined with induction hardening, which selectively hardens the surface while maintaining a tough core, it results in brake discs that offer superior wear resistance, high strength-to-weight ratio, and excellent thermal stability. This leads to greater durability and reliable performance under extreme braking conditions.

Q2: What are the primary benefits of using laser cutting in brake disc manufacturing?

Laser cutting provides unparalleled precision and accuracy, ensuring that the disc's dimensions are exact. This leads to perfectly flat surfaces and clean edges, which are crucial for consistent brake pad contact and smooth braking without vibrations. It also allows for intricate designs that optimise weight and heat dissipation, contributing to overall greater accuracy and performance.

Q3: What's the main difference between solid and floating brake discs?

Solid discs are a single, rigid piece of metal, simpler and often found on rear wheels. Floating discs, typically used on front wheels, have an outer friction ring that is connected to an inner carrier by 'floaters' or bobbins. This allows the friction ring to expand and contract independently when heated, preventing warping, improving heat dissipation, and ensuring consistent brake pad alignment for more reliable and fade-resistant braking.

Q4: Are wavy discs genuinely better than standard circular discs?

Yes, for performance-oriented applications, wavy discs offer several advantages. Their unique shape provides a greater efficiency area of pad contact, leading to improved braking grip and more effective pad cleaning. They are also lighter due to less material around the edge, reducing unsprung weight for better handling. Furthermore, their design can enhance heat dissipation and debris shedding, particularly beneficial for off-road use.

Q5: How often should I inspect my motorcycle's brake discs?

It's advisable to visually inspect your brake discs regularly, ideally as part of your pre-ride checks or during routine maintenance, such as when checking tyre pressures. A more thorough inspection, including measuring disc thickness, should be performed during every service interval as recommended by your motorcycle's manufacturer, or at least annually. Pay close attention to any changes in braking feel, noise, or visible damage.

Q6: Can I use road-specific brake discs for off-road riding?

While a road disc might function off-road, it's generally not recommended for optimal performance or durability. Off-road brake discs are designed with features like more aggressive cut-outs or patterns to better shed mud, dirt, and debris, which are common in off-road environments. Using road discs off-road can lead to quicker wear, reduced braking efficiency due to clogging, and potentially less resistance to impacts. For the best performance and safety, always use components designed for your specific riding conditions.

Conclusion

The humble brake disc is far from a simple piece of metal. It's a testament to advanced engineering, material science, and precision manufacturing. From the robust foundation of Japanese induction hardened steel to the intricate accuracy of laser cutting and the innovative efficiency of wavy designs, every aspect is meticulously crafted to deliver superior stopping power. Understanding these components not only highlights the sophisticated technology beneath your fingers but also underscores the importance of investing in quality parts for your motorcycle. Ultimately, whether you're cornering on a smooth road or navigating a challenging trail, the quality of your brake discs ensures your ride is not just exhilarating, but above all, safe.
