Are Bike Brake Pads Universal?

The question of whether bicycle brake pads are universal is a common one among cyclists, particularly for those new to maintenance or looking to replace worn-out components. The short answer is no, bicycle brake pads are not universal. While they all perform the same fundamental function – to create friction against the wheel rim or rotor to slow or stop the bicycle – their design, compatibility, and performance characteristics vary significantly depending on the type of braking system the bicycle employs.

Understanding Bicycle Braking Systems

To grasp why brake pads aren't universal, it's essential to understand the main types of bicycle braking systems. The two most prevalent are rim brakes and disc brakes. Each has its own set of pad requirements.

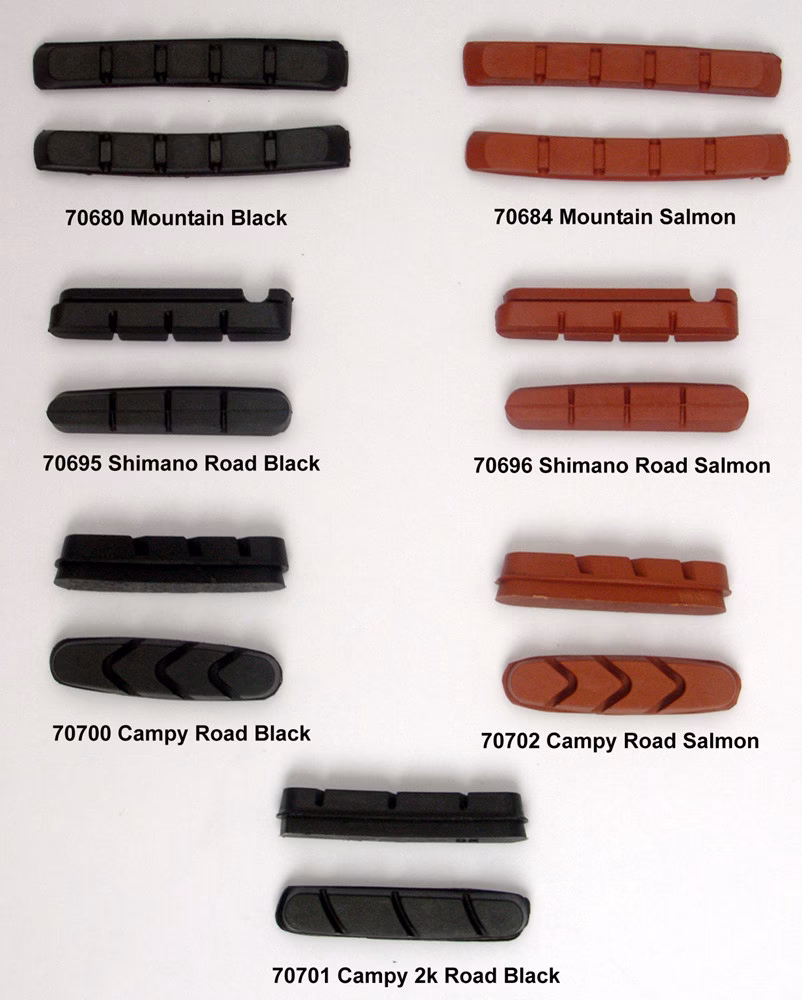

Rim Brakes

Rim brakes operate by pressing brake pads directly against the sidewall (the rim) of the wheel. This is a simpler and often lighter system, commonly found on older bikes, road bikes, and some hybrid or commuter bikes. Within rim brakes, there are further distinctions:

Caliper Brakes

These are perhaps the most recognisable rim brakes. They feature a dual-pivot design that provides good stopping power. Caliper brake pads typically have a metal post that inserts into a threaded holder on the brake arm. The pad itself is usually a block of rubber or a composite material, often with grooves for water and debris dispersion. The shape and mounting method of these pads are specific to the caliper's design.

V-Brakes (or Linear-Pull Brakes)

More powerful than caliper brakes, V-brakes are common on mountain bikes, hybrids, and cyclocross bikes. V-brake pads are generally larger than caliper pads and are mounted on a straddle cable. They have a different mounting system, usually a bolt that passes through the brake arm. The pad shape is also distinct, designed to make better contact with the wider rim surface often found on these types of bikes.

Cantilever Brakes

While less common on modern bikes, cantilever brakes were once standard on touring bikes and cyclocross bikes. They are known for their mud clearance but offer less power than V-brakes. Cantilever brake pads can be either the 'one-piece' type (similar to V-brakes but with a different mounting bolt) or the older 'two-piece' type, where the pad is a separate block that bolts to a boss on the brake arm.

Disc Brakes

Disc brakes have become increasingly popular across all cycling disciplines, from mountain biking to road cycling, due to their superior stopping power, especially in wet or muddy conditions, and their consistent performance. Disc brakes work by clamping a rotor (a metal disc attached to the wheel hub) with brake pads housed within a brake caliper.

Mechanical Disc Brakes

These are operated by a cable, similar to rim brakes. The pads are typically semi-metallic or organic (resin) compounds and are housed in a caliper. The key differentiator for pad compatibility here is the caliper design and the mounting mechanism.

Hydraulic Disc Brakes

These use fluid to actuate the brakes. They offer the best modulation and power. The brake pads are housed within the hydraulic caliper. This is where the concept of 'pad shapes' becomes most critical.

The Importance of Pad Shape and Compound

Even within the same braking system (e.g., hydraulic disc brakes), there isn't one universal pad. The primary reasons for this are:

Pad Shape (Form Factor)

Brake caliper manufacturers design their calipers to accept specific shapes of brake pads. These shapes are often referred to by a manufacturer's designation or a more generic description. For example, Shimano has numerous pad shapes (e.g., M08, M33, J04C), SRAM has its own designations (e.g., Red AXS, Guide R), and other brands like Tektro, Hayes, and Magura all have unique shapes. Trying to force a pad of the wrong shape into a caliper will not only fail to work but can also damage the caliper or the pad itself.

Common disc brake pad shapes include:

Brake Pad Compound

Beyond the shape, the material, or 'compound,' of the brake pad is critical for performance. The most common types are:

• Organic (Resin): These pads use a composite of rubber, fillers, and binding agents. They offer good initial bite (feel responsive), are quiet, and generally gentler on wheel rims (for rim brakes) or rotors (for disc brakes). However, they wear out faster, especially in wet or muddy conditions, and can fade under prolonged heavy braking (heat build-up).
• Metallic (Sintered): These pads are made by sintering metal particles (like copper, steel, and bronze) together. They offer excellent stopping power, perform well in wet conditions, and are more durable, lasting longer. The downsides are that they can be noisier, require a bit more force to engage initially, and can wear down rotors faster. They also generate more heat.
• Semi-Metallic: As the name suggests, these are a blend of organic and metallic materials. They aim to provide a balance between the characteristics of organic and metallic pads, offering better durability and heat resistance than organic pads, while being quieter and having a more progressive feel than metallic pads.

The choice of compound depends on your riding style, the conditions you typically ride in, and your priorities (e.g., quietness, longevity, power).

How to Find the Right Brake Pads

Given the lack of universality, how do you ensure you buy the correct replacement pads for your bicycle?

1. Identify Your Braking System: First, determine if you have rim brakes or disc brakes.
2. Identify Your Brake Model: This is the most crucial step. For disc brakes, you need to know the specific model of your brake caliper (e.g., Shimano Deore M6100, SRAM Level T, Tektro HD-M275). For rim brakes, identify if they are caliper, V-brake, or cantilever.
3. Check the Old Pads: If you can safely remove your old brake pads, look for any markings or part numbers printed on them or their backing plate. This is often the easiest way to find a direct replacement.
4. Consult Your Bike's Manual or Manufacturer's Website: Your bicycle's user manual or the website of the bike manufacturer (or the brake manufacturer) will usually list the compatible brake pad models.
5. Use Online Compatibility Charts: Many brake pad manufacturers and online bike part retailers provide detailed compatibility charts. You can often search by brake model to find the correct pad.
6. Visit a Local Bike Shop: If you're unsure, taking your wheel or your bike to a reputable local bike shop is the best course of action. They have the expertise and resources to identify the correct pads for you.

Common Pitfalls to Avoid

Purchasing the wrong brake pads can lead to:

• Poor Braking Performance: The pads may not make proper contact, leading to reduced stopping power or an inconsistent feel.
• Damage to Components: Incorrectly shaped pads can damage the brake caliper, pistons, or rotor. For rim brakes, the wrong pad can damage the wheel rim.
• Noise and Vibrations: A poor fit can cause excessive noise and vibration.
• Premature Wear: Even if they fit, using a pad not designed for your system can lead to accelerated wear of the pads, rotors, or rims.

Conclusion

In summary, bicycle brake pads are far from universal. The specific design of your brake system dictates the required pad shape, and the intended use and rider preference influence the choice of compound. Always ensure you identify your brake model accurately before purchasing replacements. When in doubt, seek expert advice from a local bike shop to guarantee your safety and the optimal performance of your braking system. Proper brake maintenance, starting with the correct parts, is fundamental to safe cycling.

Frequently Asked Questions

Q1: Can I use Shimano disc brake pads on SRAM brakes?
Generally, no. While some very specific older models might share a rare similarity, most Shimano and SRAM disc brake calipers use proprietary pad shapes. Always check compatibility charts or the markings on your existing pads.

Q2: Are all V-brake pads the same?
While V-brake pads share a general mounting style (bolt-on post), the length and shape of the pad itself can vary slightly. However, they are more interchangeable than disc brake pads. It's still best to match the intended application (e.g., road vs. MTB rim profile).

Q3: Do organic or metallic pads wear out faster?
Organic (resin) pads typically wear out faster than metallic (sintered) pads, especially under demanding conditions. Metallic pads are more durable but may wear rotors faster.

Q4: How often should I replace my brake pads?
This depends heavily on riding conditions, frequency, and pad compound. For rim brake pads, replace them when the wear indicator line is reached or when they are significantly grooved. For disc brake pads, replace them when the pad material (excluding the metal backing plate) is down to about 1mm or less. Regular inspection is key.

Q5: My brakes are squealing. What could be wrong?
Squealing can be caused by several factors: contamination (oil or grease on the pads/rotor), glazed pads (overheated and hardened surface), loose brake components, or simply the nature of the pad compound (some metallic pads are noisier). Cleaning the rotor and pads, or trying a different pad compound, can often resolve this.
