Anti-Roll Bar Issues: Can You Drive On?

The anti-roll bar, also known as the sway bar, is a crucial component of your vehicle's suspension system. Its primary function is to reduce body roll when cornering, ensuring a more stable and comfortable ride. But what happens when this vital part develops a fault? Specifically, can you drive with a faulty anti-roll bar? This is a question many drivers ponder, often after noticing unusual handling or hearing concerning noises. The short answer is that while you *might* be able to drive, it's generally not advisable, and the consequences can range from a less predictable drive to more significant damage. Let's delve into the details of anti-roll bar issues, including common problems, the implications of driving with them, and what might be involved in their repair, such as the role of those elusive split pins.

Understanding the Anti-Roll Bar's Role

To grasp why a faulty anti-roll bar is problematic, it's essential to understand its purpose. When you take a corner, centrifugal force pushes the vehicle's body outwards, causing it to lean or 'roll'. The anti-roll bar is a torsion bar that connects the left and right suspension components. As the body rolls, one end of the bar twists more than the other, counteracting the rolling motion and keeping the car flatter. This leads to improved handling, stability, and passenger comfort, especially during spirited driving or on uneven surfaces.

Common Anti-Roll Bar Faults and Symptoms

Several issues can affect an anti-roll bar and its associated components. The most common problems involve wear and tear in the anti-roll bar bushes and the anti-roll bar links (also known as drop links).

Worn Anti-Roll Bar Bushes

These rubber or polyurethane bushes sit where the anti-roll bar connects to the vehicle's chassis. Over time, they can degrade, crack, or become compressed, leading to a loss of their cushioning and locating properties.

Symptoms of worn bushes include:

• Clunking or rattling noises, especially when going over bumps or uneven road surfaces.
• A feeling of looseness or vagueness in the steering.
• Increased body roll when cornering.
• A knocking sound when turning the steering wheel at low speeds.

Damaged Anti-Roll Bar Links (Drop Links)

Drop links connect the anti-roll bar to the suspension arms or struts. They often have ball joints or a simple stud and nut arrangement at each end, and these can wear out or break.

Symptoms of damaged drop links are similar to worn bushes:

• Knocking, clunking, or rattling sounds from the suspension.
• A feeling of instability or looseness, particularly over bumps.
• Reduced effectiveness of the anti-roll bar, leading to more body roll.

Bent or Broken Anti-Roll Bar

While less common, the anti-roll bar itself can become bent or even break, usually due to severe impact, such as hitting a large pothole or kerb at speed.

Symptoms of a bent or broken bar:

• Significant and sudden increase in body roll.
• Distorted handling characteristics.
• Loud noises from the affected area.
• In severe cases, the vehicle may be undrivable or extremely difficult to control.

Can You Drive With a Faulty Anti-Roll Bar?

The short answer is: it depends on the severity of the fault.

Minor Wear (Slight Signs of Wear/Perishing)

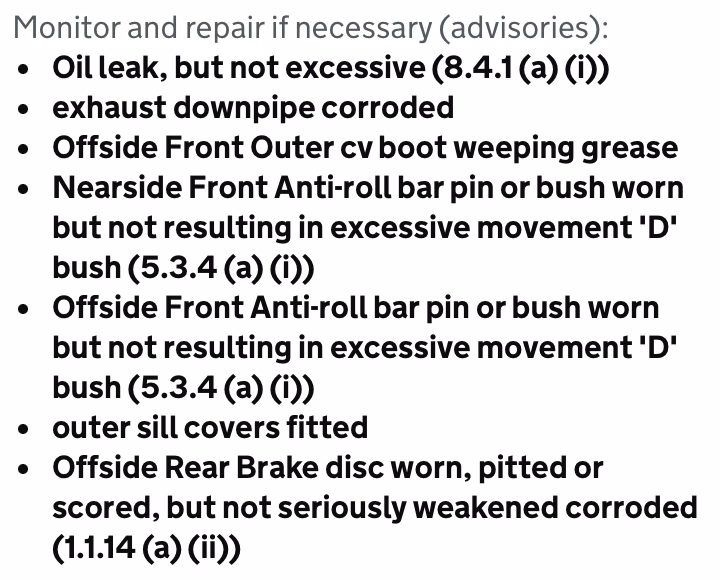

If your MOT advisories mention 'slight signs of wear' in the bushes or 'slight perishing' of rubber covers on track rod ends (which are related but distinct components), you can typically continue driving for a short period. However, these are warnings that the components are degrading and will likely need replacement sooner rather than later. Driving with only minor wear might not be immediately dangerous, but it will compromise your car's handling and could lead to accelerated wear on other suspension parts. You might notice a slight increase in noise or a less precise feel through the steering.

Significant Wear or Damage

If the bushes are severely worn, cracked, or missing, or if a drop link is damaged or broken, driving becomes increasingly risky. The anti-roll bar will not function effectively, leading to:

• Excessive Body Roll: The car will lean significantly more in corners, making it feel unstable and potentially leading to a loss of control.
• Compromised Handling: The vehicle's steering response will be dulled, and it may feel 'floaty' or unpredictable, especially at higher speeds or during emergency manoeuvres.
• Uneven Tyre Wear: The uneven forces on the suspension can lead to premature and irregular wear on your tyres.
• Further Damage: A loose or broken anti-roll bar component can potentially damage other parts of the suspension or braking system. For instance, a broken drop link could swing around and damage brake lines or other delicate components.
• MOT Failure: Significant wear or damage to the anti-roll bar or its components is a common reason for failing the MOT test.

In cases of a bent or broken anti-roll bar itself, driving is strongly discouraged. The car's stability will be severely compromised, making it unsafe for any road use. It's best to have the vehicle recovered by a tow truck.

The Mystery of the Split Pin

The forum post mentions a question about whether anti-roll bars/bushes have split pins. This is an interesting point, as split pins (cotter pins) are typically used to secure castellated nuts on components like track rod ends or ball joints. They prevent the nut from loosening due to vibration. While the anti-roll bar itself doesn't usually have split pins directly involved in its mounting to the chassis (it's typically clamped by the bushes), the drop links often connect to the suspension using a bolt and nut arrangement that *may* use a split pin if it's a castellated nut.

A missing or improperly fitted split pin on a drop link connection could lead to the nut loosening, causing the link to detach or become excessively loose, resulting in the clunking noises and handling issues described. If a garage is referring to a 'little silver thing' in a photo, it could well be a split pin securing a nut on a drop link or a related suspension joint.

Repairing Anti-Roll Bar Issues

The repair process varies depending on the specific fault:

Replacing Bushes

Replacing worn bushes usually involves supporting the suspension, unbolting the bracket holding the bush and anti-roll bar, pressing out the old bush, and pressing in the new one. The anti-roll bar is then re-secured. This is a moderately complex job, often best left to a qualified mechanic, especially if specialised tools are needed for bush removal and installation.

Replacing Drop Links

Replacing drop links is generally more straightforward. It involves unbolting the old link from the anti-roll bar and the suspension arm. New links are then fitted, ensuring any nuts are tightened to the correct torque and secured with a split pin if applicable (e.g., on a castellated nut). As mentioned in the forum post, sometimes only the rubber cover on a track rod end might be perished. While garages might quote for a whole new track rod assembly (which can indeed be expensive, around £140 mentioned), it's often possible to buy just the rubber gaiter or boot separately for many applications. Searching online with the specific part number or vehicle details can often reveal suppliers of these smaller, cheaper components.

Replacing the Anti-Roll Bar

If the bar itself is bent or broken, it needs to be replaced entirely. This involves unbolting it from the chassis brackets and disconnecting the drop links. A new bar is then fitted and secured.

Can You Top Up Power Steering Fluid?

Regarding the question about topping up power steering fluid, the answer is generally yes. Most vehicles have a power steering fluid reservoir, usually marked with 'Power Steering Fluid' or a steering wheel symbol. The fluid level should be checked when the engine is cold. If it's low, you can top it up using the correct type of power steering fluid specified in your vehicle's owner's manual. Low power steering fluid can lead to stiff steering and whining noises. If the fluid level drops significantly and repeatedly, it might indicate a leak in the system, which should be investigated by a mechanic.

Cost Implications

The cost of repair can vary significantly:

• Bushes: Replacing anti-roll bar bushes can range from £80 to £250, depending on the vehicle and labour rates.
• Drop Links: Replacing drop links is typically less expensive, often between £60 and £150 per side, including parts and labour. Sourcing just the rubber covers might cost significantly less if available.
• Full Anti-Roll Bar: Replacing the entire anti-roll bar will be the most expensive option, potentially costing £200 to £500 or more, depending on the part and labour involved.

DIY vs. Professional Repair

While replacing drop links can be a manageable DIY task for those with some mechanical aptitude and the right tools, replacing bushes or the entire anti-roll bar is often best left to professionals. Suspension work requires precision and the correct torque settings to ensure safety. Furthermore, the MOT advisories suggest that professional assessment is valuable for identifying the extent of wear and the best course of action.

Conclusion

Driving with a faulty anti-roll bar, especially with significant wear or damage, is not recommended. It compromises your vehicle's safety, handling, and can lead to further mechanical issues. While minor wear might allow you to continue driving cautiously for a short time, it's crucial to address these advisories promptly. Pay attention to any knocking or clunking sounds from your suspension, and if in doubt, always consult a qualified mechanic to ensure your vehicle remains safe and reliable on the road.

Frequently Asked Questions

Q1: What are the main symptoms of a failing anti-roll bar?
Common symptoms include knocking or clunking noises from the suspension, increased body roll when cornering, and a feeling of looseness or vagueness in the steering.

Q2: Can I fail my MOT for worn anti-roll bar bushes?
Yes, significant wear or damage to anti-roll bar bushes or links is a common reason for an MOT failure.

Q3: How much does it cost to replace anti-roll bar bushes?
The cost typically ranges from £80 to £250, depending on the vehicle model and local labour rates.

Q4: Are anti-roll bar links the same as track rod ends?
No, they are different components. Anti-roll bar links (drop links) connect the anti-roll bar to the suspension, while track rod ends are part of the steering system, connecting the steering rack to the steering knuckle.

Q5: Should I worry about 'slight signs of wear' on suspension components?
While not immediately critical, 'slight signs of wear' indicate that the components are degrading and should be monitored and replaced at the earliest convenient opportunity to maintain optimal handling and safety.
