Arduino EFI: Modernising Classic Engines

For many classic vehicle enthusiasts across the UK, the joy of owning and maintaining a vintage car or motorcycle is unparalleled. However, modern challenges, particularly the evolving composition of pump fuel, pose a significant threat to the longevity and usability of cherished carburetted engines. This often leads to poor running, reduced efficiency, and even damage. While commercial engine management systems (EMS) like Megasquirt offer sophisticated solutions, their considerable cost can be a barrier. This is where the humble Arduino microcontroller enters the scene, presenting a compelling, cost-effective, and customisable alternative for developing bespoke fuel injection and ignition control systems for classic rides.

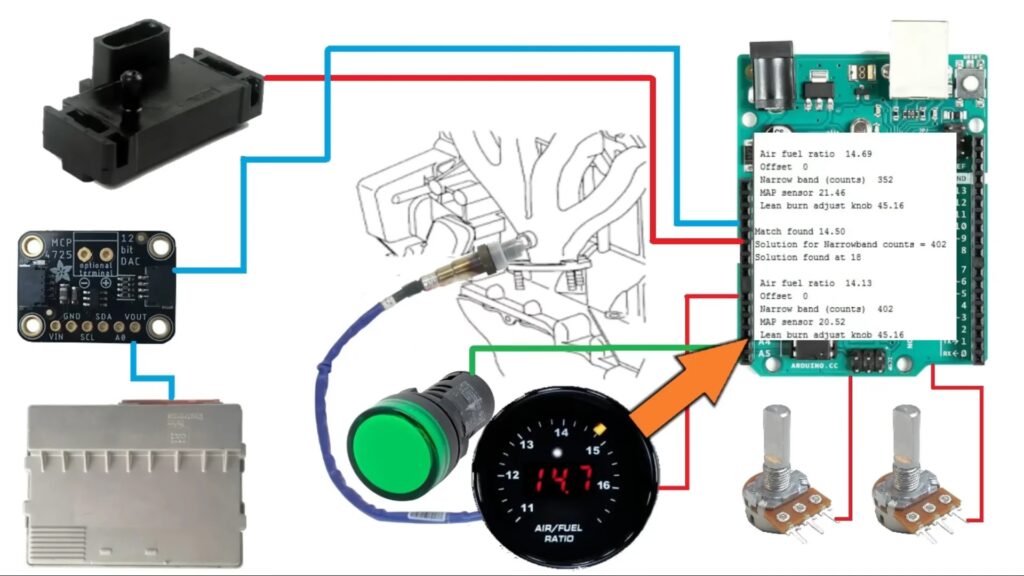

A 'fuel injector project using Arduino' essentially involves leveraging the versatility and processing power of an Arduino board to precisely control the timing and duration of fuel injector pulses, thereby optimising fuel delivery to the engine. Beyond just fuel, these projects often expand to encompass ignition timing, offering a comprehensive engine management solution. This DIY approach empowers enthusiasts to adapt their vehicles to modern fuel standards, enhance performance, and gain unparalleled insight into their engine's operation, all while keeping the spirit of classic motoring alive.

Understanding Arduino as a Fuel Injection Controller

At its core, a fuel injection system requires precise control over when and for how long fuel injectors open. This timing is critical and must be synchronised with engine rotation, manifold pressure, throttle position, and other environmental factors. Can an Arduino, a relatively low-cost, open-source microcontroller, truly manage such a complex task? The answer is a resounding yes, though with important considerations.

For basic fuel injection pulsing, an Arduino is more than capable. It can read sensor inputs (like a crank position sensor) and output signals to control injector driver circuits. This allows for open-loop batch fire injection, where all injectors fire simultaneously or in groups. This is a common starting point for many DIY projects due to its relative simplicity.

However, moving beyond basic pulsing to a full-fledged engine management unit (ECU) capable of controlling both fuel and ignition timing simultaneously presents a greater challenge. The key lies in the Arduino's processing power, memory, and, crucially, its hardware timers and interrupts. Engine timing, especially for ignition, demands millisecond or even microsecond precision. Standard Arduino boards like the Uno (ATMega328) have limited resources. While they can perform the calculations, the real-time constraints of an engine – particularly at higher RPMs – can push them to their limits.

The Importance of Hardware Timers and Interrupts

Engine control is a time-critical application. Missing a crank pulse or delaying an injector fire by even a few microseconds can lead to significant engine performance issues. This is where hardware timers and interrupts become indispensable. Instead of relying on software loops that can be affected by other code execution, hardware timers can trigger events at exact intervals or in response to external signals (like a crank sensor pulse) with minimal latency. An interrupt allows the microcontroller to immediately pause its current task, execute a critical routine (e.g., fire an injector or spark plug), and then return to its previous task. For a classic inline-6 motorcycle, for example, where fitting a cam sensor might be difficult, a precise crank sensor and robust interrupt handling are paramount.

More powerful Arduino variants, such as the Arduino Due (based on the ARM Cortex-M3 microcontroller), or even alternative platforms like the ST Nucleo boards, offer significantly more processing power, memory, and a greater number of high-resolution hardware timers. These platforms are better suited for complex engine management tasks that require multiple simultaneous operations and extremely tight timing tolerances.

Building Your Arduino EFI System: A Progressive Approach

Embarking on an Arduino EFI project is best approached incrementally, allowing for testing and refinement at each stage. This progressive methodology ensures that the project remains manageable and provides tangible benefits along the way, reducing the risk of a complete time sink.

1. Basic Ignition Timing: Start by controlling just the ignition. This involves reading a crank position sensor (e.g., a missing tooth setup) and calculating the precise moment to trigger the ignition coil. Even mimicking a simple mechanical advance mechanism can be a significant improvement over worn-out original units that might have jerky transitions or fixed advance curves.
2. Rev Limiter: Once ignition control is stable, integrating a rev limiter is a logical next step. This prevents over-revving and potential engine damage by cutting spark or fuel when a pre-set RPM limit is reached.
3. Open-Loop Batch Fire Injection: Introduce fuel control. With inputs from a Throttle Position Sensor (TPS) and Manifold Absolute Pressure (MAP) sensor, you can calculate a basic fuel map. Injectors fire in batches, simplifying wiring and initial setup. This is often sufficient for getting an engine running and provides a solid foundation.
4. Adding Essential Sensors: Integrate inputs from an Engine Coolant Temperature (ECT) sensor and Intake Air Temperature (IAT) sensor. These allow the ECU to make corrections for cold starts and varying air densities, improving driveability.
5. Closed-Loop EFI with Lambda Sensor: For optimal fuel efficiency and emissions, incorporate a Lambda (oxygen) sensor. This allows the Arduino to monitor the exhaust gas composition and make real-time adjustments to fuel delivery, targeting an ideal air-fuel ratio. This is a significant step towards modern EFI performance.
6. Idle Control: Implement an idle air control (IAC) valve to maintain a stable idle speed under varying loads and temperatures.
7. Sequential Injection: The most advanced stage, where each injector is fired individually, timed precisely with its corresponding cylinder's intake stroke. This requires a camshaft position sensor in addition to the crank sensor and offers the most efficient and precise fuel delivery.

Challenges and Considerations for DIY EFI

While the allure of a DIY Arduino EFI system is strong, several significant challenges must be acknowledged and addressed:

• Electrical Noise: Automotive environments are notoriously electrically noisy. Ignition systems, alternators, and other electrical components generate significant interference that can corrupt sensor readings or microcontroller operations. Robust shielding, proper grounding, and filtering are absolutely critical.
• Mechanical Ruggedness: An ECU destined for a vehicle needs to withstand vibrations, temperature extremes, and moisture. A benchtop prototype will likely not survive long in a real engine bay without proper enclosure and component selection.
• Software Complexity: Developing robust, real-time code for engine management is a complex task. It requires a deep understanding of C/C++ programming, microcontroller architecture, and engine dynamics. Debugging can be time-consuming.
• Tuning: Once built, the system needs to be meticulously tuned. This involves calibrating sensors and creating detailed fuel and ignition maps. Tools like LabVIEW, as mentioned in some studies, can assist in simulating and visualising injector characteristics, but real-world tuning on a dynamometer or road is essential.
• Safety: Incorrectly implemented fuel or ignition control can lead to engine damage, fire, or dangerous driving conditions. Thorough testing and validation are paramount.

Comparative Overview: DIY Arduino vs. Commercial ECUs

To put the Arduino approach into perspective, it's helpful to compare it briefly with established commercial solutions:

Existing Open-Source Projects and Resources

You don't have to start from scratch. The open-source community has already laid significant groundwork for Arduino-based ECUs. Projects like Chris Jeffries' MyECU, which successfully replaced early Ducati/Guzzi V-Twin injection/ignition, demonstrate the viability of simple controllers. Similarly, the ArduEMS-328 project, based on the original open-source MegasquirtAVR, provides a strong foundation for an Arduino Engine Management System. These projects often provide published code and schematics, serving as invaluable starting points for your own endeavours. Exploring these resources can significantly accelerate your learning and development process.

Frequently Asked Questions About Arduino EFI

Is an Arduino powerful enough to be a full ECU?

While standard Arduino boards like the Uno have limitations, more powerful versions (e.g., Arduino Due) or similar microcontrollers (e.g., ST Nucleo) are certainly capable. The key is careful code optimisation, efficient use of hardware timers and interrupts, and potentially focusing on specific engine management aspects rather than trying to replicate every feature of a modern OEM ECU.

Can Arduino control both fuel injection and ignition timing?

Absolutely. Studies have shown successful implementations where Arduino, combined with sensors like a camshaft position sensor, controls both ignition timing and fuel injection with reliable results. The challenge lies in achieving the necessary precision for both, especially ignition, which often demands tighter tolerances than fuel delivery.

What sensors do I need for an Arduino fuel injector project?

At a minimum, you'll need a crank position sensor (often a missing tooth wheel for accurate RPM and position). For more advanced control, a Throttle Position Sensor (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF) sensor, Engine Coolant Temperature (ECT), Intake Air Temperature (IAT), and a Lambda (O2) sensor for closed-loop operation are essential. A camshaft position sensor is required for sequential injection.

Is a DIY Arduino EFI system safe and reliable for a daily driver?

With meticulous design, robust component selection, thorough testing, and careful tuning, an Arduino EFI system can be reliable. However, it requires a high level of technical expertise and attention to detail, particularly regarding electrical noise suppression and mechanical ruggedness. It's generally recommended for enthusiasts who understand the risks and are prepared for the extensive development and tuning process, rather than a plug-and-play solution for a daily driver without proper validation.

Where can I find code and resources for an Arduino ECU?

Many open-source projects exist online. Searching for terms like "Arduino ECU," "ArduEMS," or "DIY EFI Arduino" will yield various forums, GitHub repositories, and community discussions. These resources often provide example code, wiring diagrams, and valuable insights from other enthusiasts who have undertaken similar projects. Remember to verify the code and hardware designs thoroughly before implementation.

Conclusion

The prospect of using an Arduino to manage your classic vehicle's fuel injection and ignition system is not merely a theoretical exercise; it's a tangible, rewarding project for the dedicated enthusiast. It offers a pathway to overcome the challenges posed by modern fuels, providing enhanced performance, improved fuel economy, and greater control over your engine's behaviour. While demanding in terms of technical skill and time, the adaptability and open-source nature of Arduino provide an unparalleled opportunity for customisation and learning. For those willing to embrace the challenge, an Arduino EFI project can breathe new life into a beloved classic, ensuring it continues to grace our roads for years to come.
