Understanding Your Arctic Cat Diamond Drive Oil

The Arctic Cat Diamond Drive is a crucial component in many of their snowmobiles, delivering power efficiently to the track. However, keeping this unit lubricated properly is a common point of confusion and concern for owners. The question of what oil to use, and how to actually perform an oil change, frequently arises, often accompanied by a significant amount of conflicting advice. This guide aims to demystify the process and provide clear, actionable information to help you maintain your Diamond Drive and keep it performing at its best.

One of the most prevalent issues is the perceived high cost of genuine Arctic Cat Diamond Drive oil. This has led many riders to explore alternative lubricants, with suggestions ranging from Automatic Transmission Fluid (ATF) to tractor hydraulic fluid and various weights of gear oil. While the desire to save money is understandable, using the wrong type of oil can have severe consequences for the internal components of your Diamond Drive, potentially leading to premature wear or catastrophic failure. The extreme differences in viscosity between the suggested alternatives highlight the complexity of this decision. This article will delve into the recommended specifications, explore potential alternatives, and guide you through the oil change process.

Why Proper Lubrication is Key

The Diamond Drive is a complex gearbox that operates under significant stress. It’s responsible for transferring a substantial amount of torque from the engine to the track, often in extreme temperature conditions. The lubricant within the Diamond Drive performs several critical functions:

• Reduces Friction: It creates a thin film between moving parts, such as gears and bearings, minimising friction and preventing metal-on-metal contact.
• Cools Components: As parts move, they generate heat. The oil absorbs this heat and dissipates it, preventing overheating.
• Prevents Wear: By reducing friction and providing a protective film, the oil significantly reduces wear on critical internal components.
• Seals and Protects: The oil helps to seal clearances between moving parts and protects them from moisture and contamination.

Using an oil that is too thin can lead to inadequate protection and increased wear, especially at higher operating temperatures. Conversely, an oil that is too thick can cause increased drag, reduced efficiency, and potentially higher operating temperatures due to increased internal friction. Therefore, selecting the correct viscosity and formulation is paramount.

Arctic Cat Diamond Drive Oil: What Does the Manufacturer Recommend?

Arctic Cat has historically recommended its proprietary Diamond Drive lubricant. While the exact formulation and specifications are not always readily published by the manufacturer, the general consensus and anecdotal evidence point towards a specific type of fluid. Many believe that Amsoil, a well-known producer of high-performance lubricants, may have been involved in the original formulation or provides a compatible alternative. This has fuelled further debate about whether proprietary oils are truly necessary or simply a way to maintain a revenue stream.

The key properties of the recommended oil are believed to be its viscosity and its ability to withstand the extreme operating temperatures experienced by snowmobiles. Without official specifications, owners are left to rely on community knowledge and the advice of experienced mechanics.

Exploring Oil Options: What's Safe and What's Not?

The confusion surrounding Diamond Drive oil options is understandable given the wide array of suggestions found online. Let's break down some of the commonly discussed alternatives:

1. Genuine Arctic Cat Diamond Drive Oil

Pros: Guaranteed compatibility, formulated specifically for the Diamond Drive unit. This is the safest bet if you want to avoid any potential issues.

Cons: Can be significantly more expensive than aftermarket options.

2. Amsoil Synthetic Gear Oil (e.g., Severe Gear 75W-90)

Many users and some aftermarket specialists suggest that Amsoil's synthetic gear oils are excellent alternatives, with some even claiming Amsoil is the original manufacturer. While Amsoil doesn't explicitly label a product as "Diamond Drive Oil," their high-quality synthetic gear oils are often cited as being very close in formulation and performance. The 75W-90 viscosity is a common recommendation, offering a good balance of flow at low temperatures and protection at higher temperatures.

Pros: High-quality synthetic formulation, excellent wear protection, potentially better performance in extreme temperatures, often more readily available and sometimes more cost-effective than genuine Arctic Cat oil.

Cons: Still requires careful selection to ensure it meets the specific needs of the Diamond Drive; some users prefer to stick strictly to OEM recommendations.

3. Other Synthetic Gear Oils (80W-90, 75W-140)

While 75W-90 is a frequent recommendation, some have experimented with other synthetic gear oil viscosities. However, it's crucial to understand the implications:

• 80W-90: Generally thicker than 75W-90, especially at lower temperatures. This could lead to increased drag and potentially less efficient operation in cold weather.
• 75W-140: Significantly thicker, particularly at operating temperatures. This is usually too viscous for most Diamond Drive applications and can cause excessive heat buildup and stress on components.

Recommendation: Stick to 75W-90 or a manufacturer-specified equivalent if you opt for a non-OEM brand. Always check compatibility with your specific snowmobile model and year.

4. Automatic Transmission Fluid (ATF)

ATF is often mentioned due to its smooth shifting properties in automatic transmissions. However, it is generally not suitable for a heavy-duty gearbox like the Diamond Drive. ATF typically has a lower viscosity and different additive packages compared to gear oils designed for high-pressure, high-torque environments. Using ATF could lead to inadequate lubrication and accelerated wear.

Recommendation: Avoid ATF.

5. Tractor Hydraulic Fluid

Tractor hydraulic fluids are designed for a wide range of agricultural equipment, often handling both transmission and hydraulic functions. While some may have similar viscosity ratings, their additive packages are tailored for different applications. They might not provide the necessary extreme pressure (EP) protection or shear stability required for the Diamond Drive. Using tractor hydraulic fluid is a significant gamble with your Diamond Drive’s longevity.

Recommendation: Avoid tractor hydraulic fluid.

How to Change the Oil in Your Arctic Cat Diamond Drive

Changing the oil in your Diamond Drive is a relatively straightforward process, especially on models with an easily accessible drain plug. Here’s a step-by-step guide, incorporating advice from experienced owners:

What You'll Need:

• New Diamond Drive oil (OEM or a trusted synthetic 75W-90)
• Drain pan or suitable container
• Wrench for the drain plug (check your owner's manual for size)
• Funnel and a length of hose (approximately 12-18 inches, snug fit for the fill hole spout)
• Rags or shop towels
• Gloves
• Optional: Torque wrench for drain plug

Step-by-Step Procedure:

1. Warm Up the Drive: It's best to change the oil when the drive unit is slightly warm (not hot). Ride the snowmobile for a short distance or let the engine idle for a few minutes. This helps the oil flow more freely.
2. Locate the Drain Plug: The drain plug is typically located at the lowest point of the Diamond Drive housing. Consult your owner's manual if you're unsure of its exact location.
3. Position the Drain Pan: Place your drain pan directly underneath the drain plug to catch the old oil.
4. Remove the Drain Plug: Using the appropriate wrench, carefully loosen and remove the drain plug. Be prepared for the oil to start flowing out immediately.
5. Drain the Old Oil: Allow all the old oil to drain completely. This may take several minutes. While the oil is draining, you can inspect the drain plug for any metal shavings, which could indicate excessive wear.
6. Clean and Replace the Drain Plug: Once the oil has finished draining, clean the drain plug and the area around the fill hole with a rag. Reinstall the drain plug, ensuring it is snug. If you have a torque wrench, tighten it to the manufacturer's specified torque to prevent leaks or overtightening.

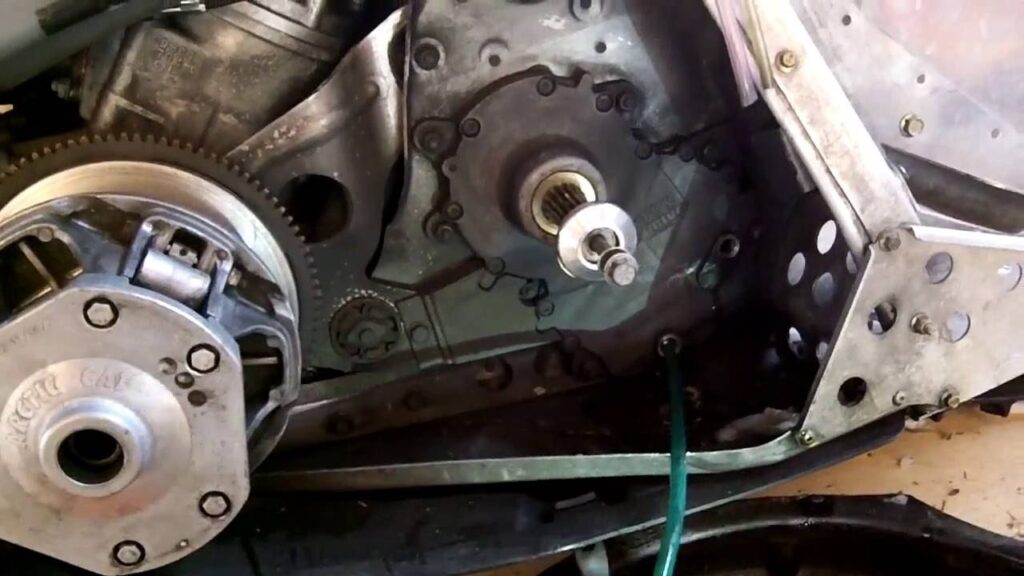

7. Refilling the Diamond Drive: This is where the hose attachment is invaluable. The fill hole is often positioned in a way that makes direct pouring difficult and messy.
8. Prepare for Filling: Attach the length of hose to the spout of your new oil container.
9. Position the Snowmobile: To get the most oil into the Diamond Drive, it's often recommended to tilt the snowmobile. The easiest method, as described by some owners, is to have a helper hold the sled nearly on its side, finding a balance point. Alternatively, you might be able to prop it up safely.
10. Fill the Drive: With the snowmobile tilted and the hose inserted into the fill hole (which is now effectively at the bottom of the unit when tilted), slowly pour the new oil in. Continue filling until the oil begins to flow back out of the fill hole. This indicates the drive is full.
11. Final Steps: Carefully remove the hose. Clean up any spilled oil. Replace the fill plug securely.

A Note on Flushing:

Some people advocate using an oil flush product before refilling. However, as one experienced owner mentioned, they have never used a flush and have never encountered issues. If you choose to flush, ensure you use a product specifically designed for gearboxes and follow the instructions carefully. However, for most routine changes, a simple drain and refill is sufficient, especially if you are using high-quality synthetic oil consistently.

How Much Oil Do I Need?

The exact oil capacity for the Diamond Drive varies slightly depending on the Arctic Cat model and year. Always refer to your snowmobile's owner's manual for the precise capacity. However, a typical capacity is often around 10-12 ounces (approximately 300-350 ml). It's always better to underfill slightly and then check the level (by tilting the sled and seeing if it flows out of the fill hole) rather than overfilling.

When Should I Change the Oil?

Arctic Cat typically recommends an oil change for the Diamond Drive at specific mileage intervals or annually, whichever comes first. For a new machine, an initial oil change might be recommended around 500-1000 miles, with subsequent changes every 1000-1500 miles or annually. Regular inspection of the oil level and condition is also advisable.

Frequently Asked Questions (FAQ)

Q: Can I really use Amsoil in my Diamond Drive?

A: Many users have reported excellent results using Amsoil Synthetic Gear Oil 75W-90. It's a high-quality synthetic that is believed to be very close to, or an improvement upon, the OEM specification. Always check compatibility for your specific model.

Q: Is it okay to use regular 80W-90 gear oil?

A: While it might seem like a suitable alternative, conventional 80W-90 gear oil may not offer the same level of protection or performance in extreme cold as a good synthetic 75W-90. Synthetics generally offer better shear stability and maintain their viscosity properties over a wider temperature range.

Q: My Diamond Drive is making noise. Could it be the oil?

A: Noise from the Diamond Drive can be caused by several factors, including low oil level, incorrect oil viscosity, or internal wear. Ensure your oil level is correct and that you are using the recommended type of oil. If the noise persists, it's advisable to have a qualified mechanic inspect the unit.

Q: How often should I check the Diamond Drive oil level?

A: It's a good practice to check the oil level at the beginning of each riding season and periodically throughout if you are doing a lot of riding. Regular visual inspections can catch low levels before they cause damage.

Q: What's the deal with the cost of Arctic Cat oil? It seems exorbitant.

A: The cost of proprietary OEM fluids can indeed be high. This is why many owners seek out high-quality aftermarket alternatives like Amsoil, which often provide comparable or superior performance at a more competitive price point. However, the decision ultimately rests on your comfort level and risk tolerance.

Conclusion

Maintaining your Arctic Cat Diamond Drive with the correct lubricant is essential for its longevity and performance. While the proprietary Arctic Cat oil is the manufacturer's recommendation, high-quality synthetic gear oils, particularly those with a 75W-90 viscosity rating, are widely considered to be safe and effective alternatives. Always prioritize using a lubricant that offers excellent wear protection and is suitable for extreme temperature operation. By following the correct oil change procedure and staying informed about your options, you can ensure your Diamond Drive remains a reliable powerhouse for many seasons to come.
