Clutch Slave Cylinder Repair: A Comprehensive Guide

Understanding Clutch Slave Cylinder Repair Kits

A clutch slave cylinder repair kit is an essential component for any vehicle equipped with a hydraulic clutch system. Its primary purpose is to address leaks and wear within the clutch slave cylinder, a vital part responsible for actuating the clutch mechanism. When this cylinder begins to fail, it can lead to a range of clutch problems, from a spongy or soft clutch lever to complete clutch failure. This guide will delve into the specifics of these kits, with a particular focus on those designed for popular motorcycle brands like Aprilia and Ducati, and the renowned Brembo brand.

What Exactly is a Clutch Slave Cylinder Repair Kit?

At its core, a clutch slave cylinder repair kit is a collection of replacement parts designed to rebuild or refurbish a leaking or worn clutch slave cylinder. The most common culprit for slave cylinder failure is the seal that separates the hydraulic fluid from the external environment. Over time, this seal can degrade, crack, or become misshapen due to heat, age, and exposure to brake fluid. Brake fluid, while an excellent hydraulic medium, is also highly corrosive to certain types of rubber, making the choice of seal material paramount.

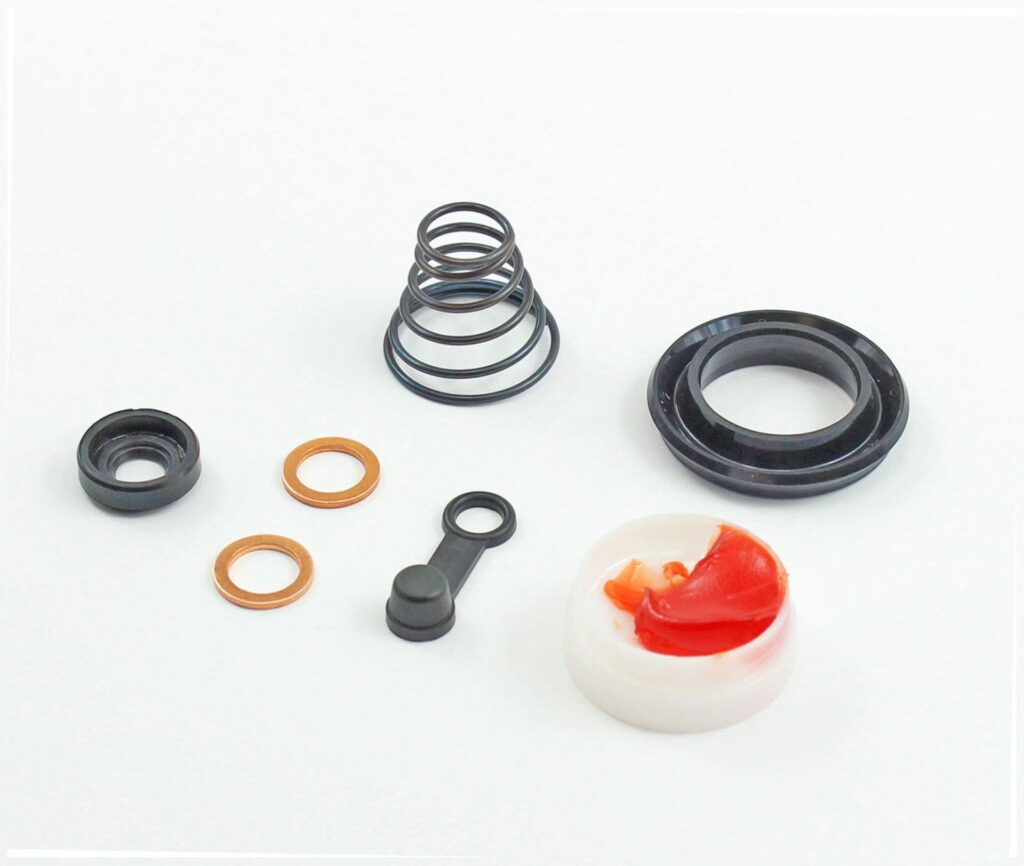

A typical kit will include:

• New Piston Seal: This is the primary seal that prevents fluid leakage. The material is critical; EPDM rubber is the correct choice for components exposed to brake fluid, as it offers excellent resistance. Nitrile rubber, while more flexible, is unsuitable and will degrade rapidly.
• Pushrod Seal (if applicable): Some designs may also require a seal for the pushrod that the slave cylinder actuates.
• Silicone Grease: A small quantity of specialized silicone grease is often included. This lubricant is crucial for easing the installation of the new, often stiffer, EPDM seal and ensuring a good initial seal.
• Bleed Nipple Cover (sometimes): To prevent contamination and corrosion of the bleed nipple.

The Brembo Clutch Slave Cylinder: A Closer Look

Brembo is a highly respected name in the automotive and motorcycle industry, known for its high-performance braking and clutch components. Their clutch slave cylinders are often found on premium motorcycles, including many Aprilia and Ducati models. However, even top-tier components can experience wear and tear.

One notable issue that has affected some Brembo clutch slave cylinders, particularly those fitted to Aprilia and Ducati motorcycles, is the premature failure of the piston seal. As mentioned, this is often due to the use of an incorrect rubber compound. Genuine OEM seals have, in some instances, been manufactured from Nitrile Rubber instead of the more appropriate EPDM. This incompatibility with brake fluid leads to rapid swelling and eventual failure of the seal.

A Brembo clutch slave cylinder repair kit, such as the one described for Ducati and Aprilia motorcycles, is specifically designed to rectify this problem. By providing seals made from the correct EPDM rubber, these kits offer a durable and reliable solution. The inclusion of silicone grease is a thoughtful addition, acknowledging that EPDM seals can be more challenging to fit than their Nitrile counterparts. This grease helps to lubricate the seal, making it easier to slide into place without damage, ensuring a proper seal from the outset.

Why Choose the Right Seal Material? EPDM vs. Nitrile

The material science behind hydraulic seals is critical. Let's break down why EPDM (Ethylene Propylene Diene Monomer) is the preferred choice for clutch and brake systems:

The experience of users who have encountered premature seal failures highlights the importance of using EPDM. As noted, a batch of seals made from Nitrile Rubber for OEM sale famously failed. This underscores the need to source repair kits that explicitly state the use of EPDM seals. While Nitrile rubber might seem appealing due to its flexibility, its incompatibility with brake fluid makes it a false economy in the long run.

DIY Repair: A Step-by-Step Overview (General Guidance)

Repairing a clutch slave cylinder is a task that many DIY enthusiasts can undertake with the right preparation and tools. Here’s a general outline:

Preparation is Key:

1. Safety First: Ensure your motorcycle is securely supported on a stand. Wear appropriate safety gear, including gloves and eye protection, as brake fluid is corrosive.
2. Drain Fluid: Place a container beneath the slave cylinder to catch any spilled fluid.
3. Lever Management: As a preventative measure against fluid loss and to make bleeding easier, pull the clutch lever in slightly and secure it. A small bungee cord or a piece of string can work. This action closes the inlet port, effectively sealing the system and minimizing fluid loss from the reservoir.
4. Access the Cylinder: You may need to remove fairing panels to gain access to the slave cylinder.

Disassembly and Reassembly:

1. Remove the Slave Cylinder: Typically, the slave cylinder is held in place by a couple of bolts. Use the appropriate size Allen key (often 5mm for Brembo units) to remove these.
2. Remove the Old Seal: Carefully remove the old piston seal. A small pick or a flathead screwdriver can be used, but be cautious not to scratch the cylinder bore.
3. Clean the Cylinder: Thoroughly clean the inside of the slave cylinder bore. Ensure no dirt or debris remains.
4. Install the New Seal: This is where the silicone grease is invaluable. Apply a small amount of grease to the new EPDM seal and the inside of the cylinder bore. Carefully work the seal into the bore, ensuring it is seated correctly and evenly. Avoid forcing it, as EPDM can be prone to damage if installed incorrectly.
5. Reassemble: Reinstall the piston and any other components, then refit the slave cylinder to the motorcycle.

Bleeding the System:

1. Connect Bleeding Tube: Attach a length of clear tubing to the bleed nipple on the slave cylinder and place the other end into a container with a small amount of fresh brake fluid.
2. Open Bleed Nipple: Using the correct size ring spanner (often 8mm or 12mm), slightly open the bleed nipple.
3. Operate Clutch Lever: Slowly pull the clutch lever in.
4. Close Bleed Nipple: Close the bleed nipple before releasing the clutch lever.
5. Repeat: Continue this process, topping up the master cylinder reservoir as needed, until no air bubbles are seen in the tubing and the clutch lever feels firm.

Minimising Fluid Loss on Long Journeys

Experiencing a clutch slave cylinder failure during a long trip can be a significant inconvenience. Fortunately, there's a clever trick to temporarily mitigate fluid loss. As mentioned earlier, the inlet port on the slave cylinder is open to the reservoir when the clutch lever is fully relaxed. This port allows fluid to compensate for clutch plate wear and facilitates bleeding. When the seal leaks, fluid escapes through this port.

By partially pulling the clutch lever – just enough to activate the clutch switch or engage the clutch slightly – you effectively close this inlet port. This creates a hydraulic seal lower down in the system, significantly reducing or even stopping the gravity-fed loss of fluid from the reservoir. A simple velcro strap can be used to hold the lever in this partially engaged position. This temporary fix can allow you to complete thousands of miles with only minimal topping up of the reservoir until you can properly repair the cylinder.

Compatibility: Aprilia and Ducati Models

The specific repair kits discussed are known to fit a range of popular Aprilia models, often replacing Aprilia part number AP8106935. These include:

• Aprilia RSV / RSV-R / Tuono / Futura / Falco (all variants from various years)
• RST Futura 1000 (2001-2003)
• RSV Twin 1000 (1998-2008)
• SL Falco (2000-2003)
• Tuono 1000 Twin (2002-2009)
• Caponord (2001-2007)

For Ducati motorcycles, these kits are believed to fit early Ducati Monster slave cylinders and potentially a 1998 Ducati 916. However, it's crucial to note that there can be variations, even within the same model year. A visual check of your existing slave cylinder, particularly its bore size (often 28mm for compatible units), is highly recommended. It's been noted that a 1998 Ducati 916 Biposto might have a different specification, possibly indicating a changeover year. Always verify compatibility before purchasing.

Troubleshooting Common Issues

Q: My clutch lever feels spongy. What could be the cause?

A: A spongy clutch lever is often a sign of air in the hydraulic system. This can be due to a leak in the slave cylinder, master cylinder, or associated lines, or it may simply require bleeding. If you’ve recently replaced the slave cylinder seal, ensure the system has been properly bled.

Q: How often should I replace the clutch slave cylinder seal?

A: There isn't a fixed interval for replacing the seal. It's a wear item. You should replace it when you notice signs of leakage (fluid loss from the reservoir, wetness around the slave cylinder) or a degradation in clutch performance (spongy lever, difficulty engaging/disengaging).

Q: Can I use a standard rubber seal from a local parts store?

A: It is strongly advised against. Standard rubber seals are unlikely to be made of EPDM, the correct material for brake fluid compatibility. Using the wrong material will lead to premature failure, potentially causing more significant issues and requiring repeat repairs.

Q: My Brembo slave cylinder uses a 28mm bore. Will this kit fit?

A: If your Brembo slave cylinder has a 28mm bore, it is highly likely that this kit will fit, especially if you have an Aprilia or Ducati model as listed. However, always double-check any specific model notes or consult with the supplier if you are unsure.

Q: What is the role of the silicone grease?

A: The silicone grease is essential for lubricating the new EPDM seal during installation. EPDM rubber is less flexible than Nitrile, and the grease helps it slide smoothly into the cylinder bore without tearing or getting damaged, ensuring a perfect seal.

Conclusion

A functioning clutch system is paramount for the performance and safety of your motorcycle. Recognizing the signs of a failing clutch slave cylinder and understanding the importance of using the correct repair parts, particularly high-quality EPDM seals, is key to maintaining your bike. Whether you own an Aprilia, Ducati, or another motorcycle utilizing a Brembo slave cylinder, investing in a reputable repair kit can save you significant hassle and ensure a reliable clutch operation for miles to come. Remember to always prioritize correct materials and proper installation techniques for a lasting repair.
