Mastering the Track: Pro 5000 R Brake Calipers

In the high-octane world of motorsport and performance driving, the ability to stop effectively is just as crucial as the power to accelerate. A sophisticated braking system is not merely a collection of components; it's an intricate ensemble designed to manage immense kinetic energy, ensuring precision, control, and ultimately, safety. For enthusiasts and professional racers alike, the quest for the ultimate braking solution often leads to specialised equipment built with race-proven pedigree. It's in this pursuit of excellence that the AP Racing Pro 5000 R range emerges as a formidable contender, bringing cutting-edge technology from the track directly to your performance vehicle.

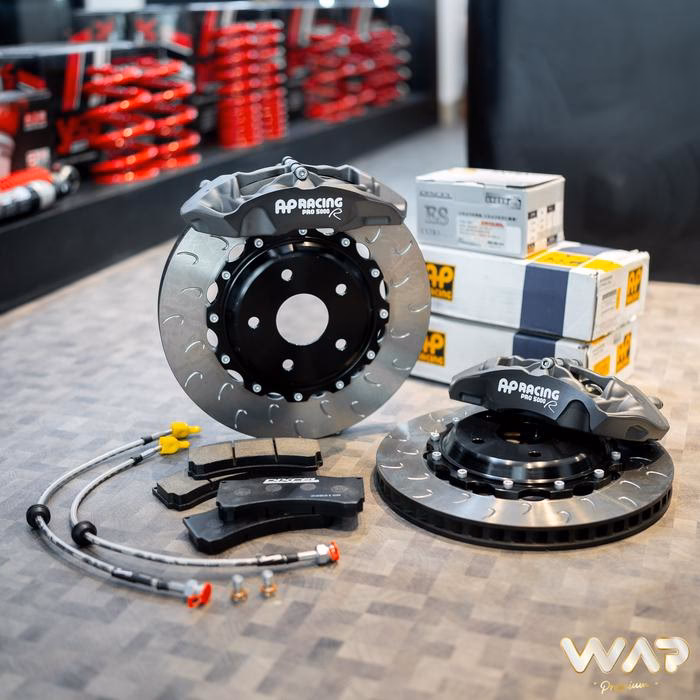

What is a Pro 5000 R Brake Caliper?

The Pro 5000 R is more than just a brake caliper; it represents the next evolution in high-performance braking, building upon the legacy of AP Racing's highly successful Pro 5000 branded ranges. Conceived as an entry-level option within the elite Radi-CAL™ brake caliper family, the Pro 5000 R line is a direct beneficiary of AP Racing's extensive experience gleaned from every facet of motorsport. This means that every design choice, every material selection, and every manufacturing process is informed by the rigorous demands of competitive racing, where failure is not an option.

These calipers boast forged designs, a critical attribute that speaks volumes about their inherent strength and durability. Forging is a manufacturing process that involves shaping metal using localised compressive forces, which results in a grain structure that follows the shape of the part, making it significantly stronger and more resistant to fatigue than cast alternatives. This robust construction is essential for components subjected to the extreme temperatures and forces experienced during aggressive braking.

A hallmark of the Pro 5000 R range, and indeed the broader Radi-CAL™ series, is its pioneering asymmetric design concept. This innovative approach optimises the caliper's stiffness and reduces deflection under braking loads, leading to more consistent pedal feel and improved modulation. By strategically distributing material, AP Racing has managed to create calipers that are not only incredibly strong but also remarkably lightweight, contributing to reduced unsprung mass – a key factor in enhancing vehicle dynamics and handling.

Delving Deeper: The CP9440 & CP9441 Calipers

Within the Pro 5000 R family, the CP9440 and CP9441 models stand out as versatile and highly effective solutions for general motorsport applications, suitable for both front and rear axle fitment. These calipers are engineered to provide consistent and powerful braking performance across a wide range of racing disciplines, from track days to serious competitive events.

Both the CP9440 and CP9441 are distinguished by their 4-piston configuration. A four-piston caliper design offers significant advantages over single or two-piston setups typically found in standard road cars. By distributing the braking force across multiple pistons, pressure is applied more evenly across the brake pad, leading to more consistent wear, improved heat dissipation, and a firmer, more responsive pedal feel. This multi-piston architecture is fundamental to achieving the precision and control required in high-performance driving scenarios.

Constructed with an alloy body, these calipers strike an excellent balance between strength and weight. The use of an aluminium alloy ensures that the caliper can withstand the immense pressures generated during braking while keeping unsprung weight to a minimum, which benefits suspension performance and overall vehicle agility. Complementing the alloy body are stainless steel pistons. Stainless steel is chosen for its superior resistance to corrosion and its ability to withstand high temperatures without deforming, ensuring consistent performance even under extreme thermal loads. This material choice is vital for maintaining optimal brake fluid integrity and preventing caliper binding.

The key differentiator between the CP9440 and CP9441 lies in their piston diameters, catering to different braking force requirements and master cylinder compatibility:

• CP9440: This variant features larger pistons, specifically two pistons with a diameter of 36.0mm and two with 41.3mm. This larger piston area (47.12 cm²) results in a higher clamping force for a given hydraulic pressure, making it suitable for applications requiring maximum braking power, often found on the front axle where most braking occurs.
• CP9441: In contrast, the CP9441 is equipped with smaller pistons, comprising two pistons with a diameter of 31.8mm and two with 36.0mm. While still offering excellent performance, its reduced piston area translates to a slightly lower clamping force, making it ideal for rear axle applications where less braking bias is desired, or for front applications on lighter vehicles.

Understanding these subtle differences is crucial for optimising brake bias and ensuring balanced braking performance across the vehicle.

Detailed Specifications: CP9440 & CP9441

To provide a clearer understanding of these calipers' capabilities and fitment requirements, here's a comprehensive breakdown of their specifications:

The shared specifications highlight the common platform and design principles between the two variants. Both are designed for a disc diameter range of 315mm to 330mm and a disc thickness of 28.0mm, indicating their suitability for performance brake discs that can manage significant heat. Their radial mounting type with standard mounting centres (152.0mm) and offset (44.0mm) simplifies installation on a wide variety of motorsport-specific uprights and hubs. The low weight of 2.16 kg (excluding pads) for the CP9440 further underscores their performance orientation, minimising unsprung mass for improved handling.

The common M10X1.0 hydraulic thread ensures compatibility with standard motorsport brake lines and fittings, simplifying plumbing. The 'PL' dimension, which refers to the distance from the mounting face to the centre of the caliper, is also identical, ensuring consistent packaging and interchangeability where appropriate.

Supporting Your Braking System

Beyond the calipers themselves, the ecosystem of supporting components is crucial for optimal performance and longevity. Reputable suppliers often provide a wide variety of spares and accessories specifically designed for the AP Racing CP9440 and CP9441 Pro5000 calipers. This includes replacement pistons, seals, bleed nipples, and other small parts that may be required for servicing or repair. The availability of such spares ensures that your investment in these high-performance calipers can be maintained over the long term, guaranteeing consistent operation and allowing for routine maintenance.

Furthermore, sourcing compatible brake discs is paramount. While the calipers are designed for discs ranging from 315mm to 330mm in diameter and 28.0mm in thickness, the choice of disc material, ventilation, and rotor design can significantly impact overall braking performance, feel, and durability. Always consult with experts to select the ideal brake discs that complement the CP9440 or CP9441 calipers for your specific application, ensuring maximum thermal capacity and resistance to fade.

The Importance of Brake Caliper Selection

Choosing the correct brake caliper is a nuanced decision that goes far beyond simply fitting the largest possible unit. It involves a meticulous consideration of several factors: the vehicle's weight and power, the intended use (road, track, specific motorsport discipline), existing master cylinder size, brake bias requirements, and wheel clearance. An improperly matched caliper can lead to issues such as premature wheel lock-up, excessive pedal travel, or inadequate stopping power, all of which compromise safety and performance.

The Pro 5000 R series, with its CP9440 and CP9441 variants, offers a tailored solution for those seeking a high-quality, reliable, and adaptable braking upgrade. Their specific piston configurations allow for precise tuning of brake bias, an essential aspect for competitive driving where every tenth of a second counts and vehicle stability under braking is paramount. The robust forged construction and motorsport-derived design principles ensure that these calipers can withstand the incredible stresses of repeated heavy braking, providing consistent and predictable stopping power lap after lap.

Frequently Asked Questions (FAQs)

What is the AP Racing Pro 5000 R range?

The Pro 5000 R is an entry-level range of Radi-CAL™ brake calipers from AP Racing, developed from extensive motorsport experience. It features advanced forged designs and pioneering asymmetric concepts, serving as the next generation of the popular Pro 5000 branded series.

How many pistons does a CP9440 caliper have?

The AP Racing CP9440 caliper has a 4-piston configuration, with two pistons of 36.0mm diameter and two of 41.3mm diameter. This multi-piston design ensures even pressure distribution and superior braking performance.

What is the difference between the CP9440 and CP9441 calipers?

Both the CP9440 and CP9441 are 4-piston calipers for general motorsport use. The primary difference lies in their piston sizes: the CP9440 features larger pistons (36.0mm, 41.3mm) for higher clamping force, while the CP9441 has smaller pistons (31.8mm, 36.0mm) for applications requiring less overall force or different brake bias.

What disc sizes are compatible with CP9440 and CP9441 calipers?

Both the CP9440 and CP9441 calipers are designed to be used with brake discs that have a diameter ranging from 315mm to 330mm and a thickness of 28.0mm.

Are spare parts available for the AP Racing CP9440 and CP9441 calipers?

Yes, Raceparts and other authorised suppliers typically provide a wide variety of spares and accessories for these AP Racing Pro5000 calipers, including replacement pistons, seals, and other essential components for maintenance and servicing.

Conclusion

The AP Racing Pro 5000 R brake caliper range, exemplified by the formidable CP9440 and CP9441 models, represents a significant leap forward in performance braking technology for the motorsport enthusiast. By leveraging decades of race-proven expertise, AP Racing has engineered calipers that are not only incredibly robust thanks to their forged construction but also highly efficient due to their innovative asymmetric and multi-piston designs. Whether you're aiming to shave precious seconds off your lap times or simply seeking the confidence of superior stopping power on the track, these calipers offer a compelling solution. Their detailed specifications, adaptability to various disc sizes, and the availability of comprehensive spares underscore their value as a long-term investment in your vehicle's braking capabilities. Choosing the Pro 5000 R means choosing precision, durability, and the ultimate control when it matters most.
