Can Your Aluminium Cylinder Head Be Saved?

Few things strike fear into the heart of a car owner quite like discovering a damaged cylinder head. For vehicles equipped with aluminium cylinder heads, the news can often feel like a death knell for the engine, leading to immediate thoughts of costly replacements. However, what if we told you that even the most severe damage to an aluminium cylinder head doesn't necessarily mean the end of the road? With the right expertise and state-of-the-art equipment, many damaged heads can be brought back to life, performing as good as, if not better than, a new one.

At TRE, we pride ourselves on not just having the theoretical knowledge, but also the practical ability to tackle and fix virtually any aluminium cylinder head, regardless of how extensive the damage might appear. Our process involves meticulously welding the damaged areas, followed by precise re-machining on our advanced CNC equipment, ensuring the head is restored to its original, factory specifications.

Understanding Aluminium Cylinder Head Damage

Aluminium cylinder heads are renowned for their lightweight properties and excellent heat dissipation, making them a popular choice in modern engines. However, these very attributes also make them susceptible to certain types of damage, particularly cracking and warping. Common culprits include:

• Overheating: This is arguably the most frequent cause. Extreme temperatures can cause the aluminium to expand and contract unevenly, leading to stress fractures, especially around valve seats, spark plug holes, and coolant passages.
• Lack of Coolant or Oil: Running an engine without sufficient cooling or lubrication exacerbates overheating issues, increasing the risk of head damage.
• Thermal Shock: Pouring cold water into a severely overheated engine can cause rapid, uneven cooling, leading to instantaneous cracking.
• Improper Torquing: Incorrectly tightening head bolts can lead to uneven pressure, eventually causing warping or cracking over time.
• Corrosion: Neglecting coolant changes can lead to corrosion within the cooling passages, weakening the material and making it more prone to cracking.
• Fatigue: Over many years and countless heating and cooling cycles, the metal can simply fatigue, leading to cracks.

Identifying the cause of the damage is crucial, not just for the repair itself, but also for preventing recurrence once the head is back in service.

The TRE Approach: Meticulous Repair of Aluminium Heads

When an aluminium cylinder head arrives at our workshop, it undergoes a rigorous, multi-step process designed to restore it to its optimal condition. Our comprehensive repair methodology ensures that every aspect of the damage is addressed with precision and expertise.

Step 1: Thorough Inspection and Cleaning

Before any repair work can begin, the cylinder head must be absolutely pristine. Every trace of grease, oil, carbon, and old gasket material must be removed. This usually involves a chemical cleaning process, often followed by shot blasting or ultrasonic cleaning, to ensure the metal surface is completely free of contaminants. A clean head allows for accurate crack detection and ensures superior weld quality. Once clean, a meticulous inspection is performed, often using dye penetrant testing, to reveal even the most hairline cracks that might not be visible to the naked eye. This step is critical to identify all areas requiring attention.

Step 2: Preparing the Damage for Welding

Once cracks are identified, they are carefully prepared. For cracks in aluminium heads, this almost invariably involves grinding or routing out the crack. The aim is to create a 'V' or 'U' shaped groove that extends fully through the depth of the crack, ensuring that all fractured material is removed. This preparation allows for full penetration of the weld, creating a strong, homogeneous bond. It's a delicate process that requires a steady hand and a deep understanding of metal properties.

Step 3: Precision TIG Welding

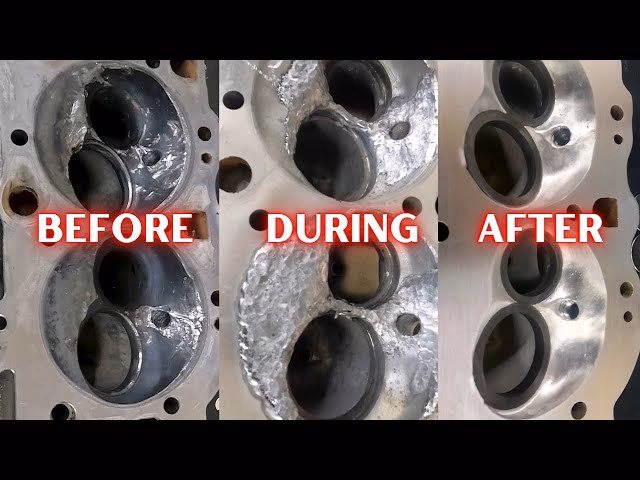

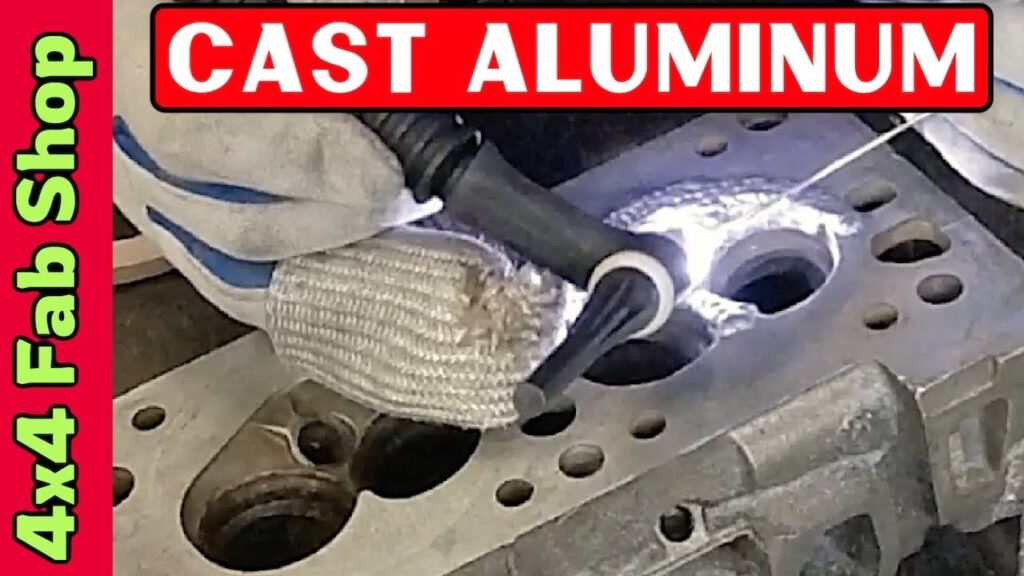

The core of our repair process for aluminium heads is TIG welding (Tungsten Inert Gas). This method is preferred for aluminium due to its ability to produce extremely clean, strong, and precise welds with minimal distortion. Using a non-consumable tungsten electrode and an inert shielding gas (usually argon), a highly concentrated arc is created to melt the base metal and a filler rod. The skill of the welder is paramount here, as they must carefully control the heat input to prevent further warping or stress in the head. Multiple passes may be required to fill the prepared grooves, building up the material until it's slightly proud of the original surface. This extra material is essential for the subsequent machining process.

While TIG welding is our primary method, it's worth noting that for very small, accessible cracks, an alternative technique called 'pinning' can sometimes be employed, though welding offers superior structural integrity for most significant repairs.

Step 4: Advanced CNC Machining

After the welding is complete and the head has cooled, the real magic of precision restoration begins with CNC machining. CNC (Computer Numerical Control) machines are indispensable for returning the cylinder head to its exact original specifications. The welded areas, which are now slightly raised, are machined back to the correct dimensions. More importantly, the entire deck surface (the mating surface with the engine block) is resurfaced to ensure perfect flatness, which is absolutely critical for achieving a proper seal with the head gasket. Any warping, no matter how slight, is eliminated. Beyond the deck surface, our CNC capabilities allow us to address other critical areas:

• Valve Seat Machining: Ensuring valve seats are perfectly concentric and at the correct depth for optimal valve sealing.
• Cam Bore Alignment: Re-machining cam bores to ensure perfect alignment for camshaft rotation, preventing premature wear.
• Port Reshaping: If ports were damaged, they can be carefully reshaped to maintain optimal airflow.
• Thread Repair: Stripped bolt threads, common around exhaust manifolds or cam caps, can be repaired or replaced with inserts.

This phase of the repair guarantees that the repaired head not only looks like new but also functions with the precision required for modern engine performance.

Repair vs. Replacement: A Comparative Look

When faced with a damaged aluminium cylinder head, the decision often boils down to repair versus replacement. While a new head might seem like the simpler option, repair often presents significant advantages.

As the table illustrates, repairing your aluminium cylinder head offers a compelling argument, not just for your wallet, but also for the environment and the preservation of your vehicle's originality.

When is Repair Not Viable?

While TRE can fix even severely damaged aluminium heads, there are extremely rare instances where repair might not be the most practical or safe solution. This typically applies to situations where:

• Catastrophic Structural Failure: If the head has suffered extensive, irreparable structural damage that compromises its fundamental integrity beyond what welding and machining can reliably restore.
• Multiple, Complex Failures: A combination of severe warping, numerous cracks in critical areas, and significant damage to cam bores or other complex machined surfaces might, in some rare cases, make repair economically unfeasible compared to replacement.
• Material Degradation: If the aluminium has been severely degraded due to extreme, prolonged overheating, making it brittle and unsuitable for welding.

However, it's important to stress that these are exceptions. Our experienced technicians will always conduct a thorough assessment and provide an honest appraisal of whether a repair is truly viable and durable.

Frequently Asked Questions About Aluminium Head Repair

Q1: How do you know if my aluminium head is repairable?

A1: The first step is a professional inspection. We thoroughly clean the head and use methods like dye penetrant testing to identify all cracks and damage. Based on the extent, location, and nature of the damage, our experts will advise you on the feasibility and cost-effectiveness of a repair.

Q2: Is a repaired aluminium head as good as new?

A2: When repaired by experienced professionals using advanced techniques like TIG welding and CNC machining, a repaired head can perform indistinguishably from a new one. In some cases, the repaired areas, being welded and re-machined, can even be stronger than the original cast material. The key is the precision in restoring all critical dimensions and surfaces.

Q3: How long does a cylinder head repair typically last?

A3: A properly repaired and correctly re-installed cylinder head should last for many tens of thousands of miles, effectively the remaining life of the engine, assuming proper engine maintenance is followed. The durability is comparable to that of a new head.

Q4: What causes aluminium cylinder heads to crack?

A4: The most common causes are overheating (due to coolant loss, thermostat failure, or radiator issues), thermal shock (sudden cooling of an overheated engine), and sometimes material fatigue over a long lifespan. Improper torquing during installation can also lead to stress points.

Q5: Can all cracks in an aluminium head be welded?

A5: The vast majority of cracks in aluminium heads can be successfully welded. The critical factors are accessibility for the welding torch, the depth and complexity of the crack, and the overall integrity of the surrounding material. Our preparation methods ensure that even deep cracks can be effectively filled and reinforced.

Q6: What is 'pinning' a crack, and is it as good as welding?

A6: Pinning is a repair method where a series of threaded steel pins are inserted along a crack, overlapping each other to essentially stitch the crack together. While it can be effective for very small, non-structural, and easily accessible cracks, it generally doesn't offer the same level of structural integrity or pressure sealing as a properly executed TIG weld, especially for cracks in critical areas like coolant passages or combustion chambers.

Q7: Will a repaired head affect my engine's performance?

A7: Absolutely not. A correctly repaired cylinder head, restored to factory specifications through precision machining, will allow your engine to perform exactly as it was designed to. In fact, addressing warping or poor valve seating can sometimes even improve efficiency that was previously compromised.

Conclusion

The damage to an aluminium cylinder head doesn't have to be a catastrophic event for your vehicle or your wallet. With the sophisticated techniques of TIG welding and the unparalleled accuracy of CNC machining, coupled with the deep knowledge of experienced technicians, most aluminium cylinder heads can be fully restored to a 'like new' condition. This not only offers a significantly more cost-effective solution than replacement but also contributes to environmental sustainability by extending the life of existing components.

If you're facing issues with your aluminium cylinder head, don't rush to replace it. Contact us at TRE. We have the expertise, the equipment, and the proven track record to assess, repair, and return your cylinder head to optimal performance, making it like new again. Let us help you get your vehicle back on the road with confidence.
