Alternator Pulley Removal Guide

The alternator is a crucial component in your vehicle's electrical system, acting as a miniature generator that keeps your battery charged and powers all the accessories when the engine is running. While the battery gets the car started, it's the alternator that sustains its electrical needs on the move, from headlights to the radio. The heart of this operation lies in the alternator pulley, which connects the engine's drive belt to the alternator's rotor. This seemingly small part plays a vital role in converting the engine's mechanical energy into electrical energy. Understanding how it works and how to maintain it can save you from unexpected breakdowns and costly repairs. This guide will delve into the intricacies of alternator pulleys, including how to remove one, common issues, and what to expect regarding replacement.

What Does an Alternator Pulley Do?

At its core, the alternator's function is to generate electricity. This is achieved through a rotor, essentially an electromagnet made of coiled wire around a magnetic metal core. The engine drive belt connects to the alternator via the pulley. As the engine runs, the belt turns the pulley, which in turn spins the rotor. This spinning electromagnet generates an alternating current (AC). The alternator's rectifier then converts this AC into direct current (DC), which is supplied to the car's electrical system and the battery for charging. The pulley's speed directly influences the amount of electricity generated; a faster spin means more power, while a slower spin matches lower electrical demands.

Types of Alternator Pulleys

Over time, alternator pulley technology has evolved to improve efficiency and reduce wear. The primary types you'll encounter are:

Solid Pulley

These are the traditional, straightforward pulleys made from steel. Their sole purpose is to transfer rotational energy from the belt to the alternator. While reliable, they lack any vibration-damping capabilities, meaning engine vibrations can be directly transferred to the alternator, potentially shortening its lifespan.

One-Way Clutch Pulley (Overrunning Alternator Pulley/OAP)

Also known as an Overrunning Alternator Pulley (OAP), this advanced design incorporates an internal clutch. This clutch allows the alternator rotor to continue spinning or slow down independently of the engine's speed for a brief period. This is particularly beneficial during rapid engine deceleration. By decoupling momentarily, it reduces stress on the belt and the alternator's internal components, minimising vibrations and common chirping sounds.

Overrunning Alternator Decoupler (OAD) Pulley

The OAD pulley builds upon the OAP design by adding a torsion spring. This spring acts as a shock absorber, further isolating the alternator from engine vibrations, especially during low and high engine speeds. This results in a smoother operation and reduced noise.

Common Causes of Alternator Failure

While wear and tear are inevitable, several factors can lead to alternator failure:

• Normal Wear and Tear: Over time, all components degrade.
• Fluid Leaks: Oil or coolant leaks can contaminate and damage the alternator.
• Exposure to the Elements: Water, dirt, and road salt can cause corrosion.
• Thermal Damage: Overheating due to heavy loads or poor ventilation can cause internal damage.
• Overworking the Alternator: Idling for extended periods with many electrical accessories running can strain the alternator.
• Wiring Issues: Corroded or loose connections can impede the flow of electricity.
• Pulley Problems: A failing pulley, especially the clutch mechanism, can cause significant issues.

Addressing alternator problems promptly is essential to prevent further damage to the drive system and maintain battery health. In the UK, the cost of replacing an alternator typically ranges from £100 to £700, depending on the vehicle model.

Symptoms of a Faulty Alternator Pulley

A failing alternator pulley can manifest in several ways, often before the alternator itself fails completely. Early detection can save you money and hassle:

• Damage to the Serpentine Belt: A worn or misaligned pulley can cause the serpentine belt to overheat, fray, or tear due to increased friction.
• Burning Smells: Excessive heat generated by a rubbing pulley can produce a distinct burning rubber smell from the engine bay.
• Illuminated Warning Lights: The car's dashboard may display a battery or alternator warning light (often marked 'ALT' or 'GEN'), indicating a power generation issue.
• Dim or Flickering Headlights: As the alternator provides power to the headlights, a fault can lead to reduced brightness or inconsistent lighting.
• Electrical Problems: Non-functioning air conditioning, a malfunctioning radio, or issues with other electrical components can signal alternator trouble.
• Abnormal Noises: A howling, whining, or grinding noise from the engine bay, especially when accelerating or turning the steering wheel, can indicate a misaligned pulley, worn bearings, or a faulty clutch.

When sourcing replacement parts, using your vehicle's registration number or the Original Equipment Manufacturer (OEM) number is highly recommended. Brands like Bosch are popular choices for various car makes, including Ford, Volkswagen, and Peugeot.

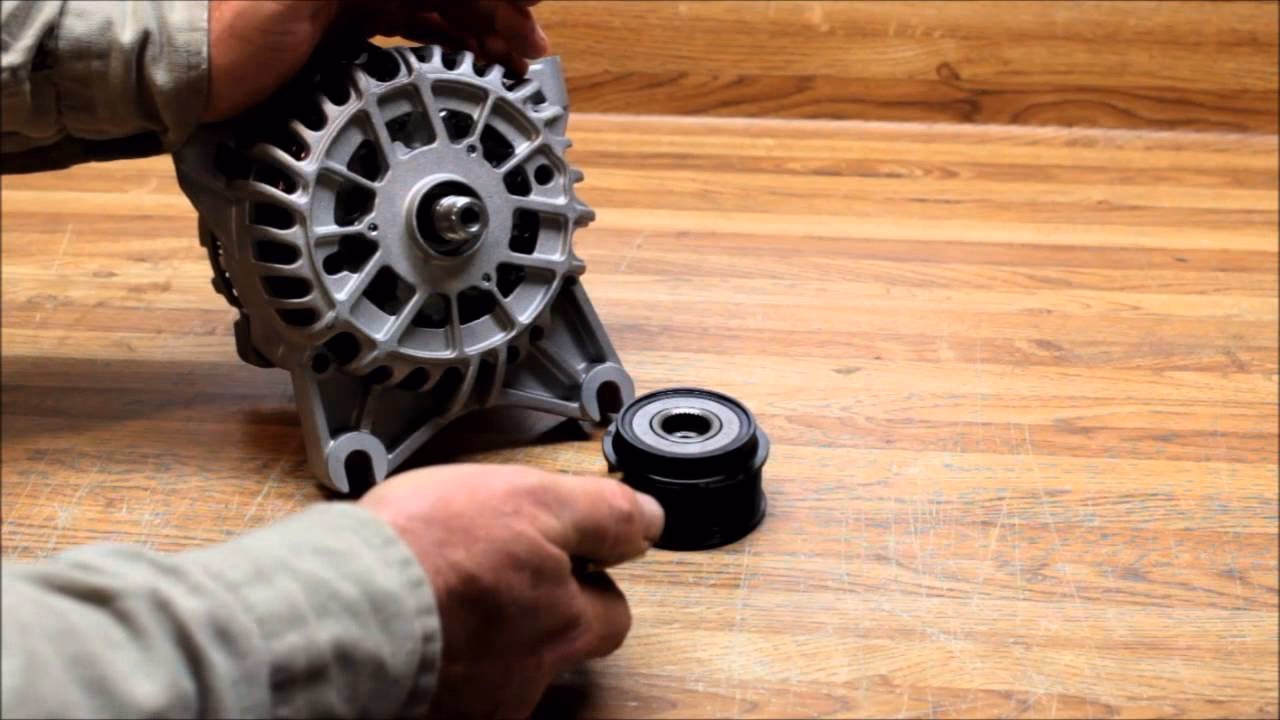

How to Remove an Alternator Pulley

Removing an alternator pulley, particularly a clutch pulley, requires specific tools and a degree of mechanical skill. It's often a task best left to professionals if you're not comfortable with automotive repairs.

Tools You'll Need:

• Alternator Clutch Freewheel Removal Set: This specialised tool is designed to hold the alternator shaft stationary while the pulley is removed. It typically includes various adaptors to fit different pulley designs.
• Wrenches: You'll likely need a set of spanners or socket wrenches to remove the serpentine belt and potentially to secure the alternator assembly.
• Torque Wrench: Essential for tightening the new pulley to the correct specification.

Step-by-Step Removal Process:

1. Safety First: Disconnect the negative terminal of the car battery to prevent electrical shorts.
2. Access the Alternator: You may need to remove other components in the engine bay to gain clear access to the alternator and its pulley.
3. Remove the Serpentine Belt: Locate the belt tensioner and release the tension on the serpentine belt. Slide the belt off the alternator pulley.
4. Secure the Alternator Shaft: This is where the specialised removal tool comes in. Insert the appropriate adaptor into the centre of the alternator pulley. This adaptor will engage with the internal splines or flats of the shaft, preventing it from spinning.

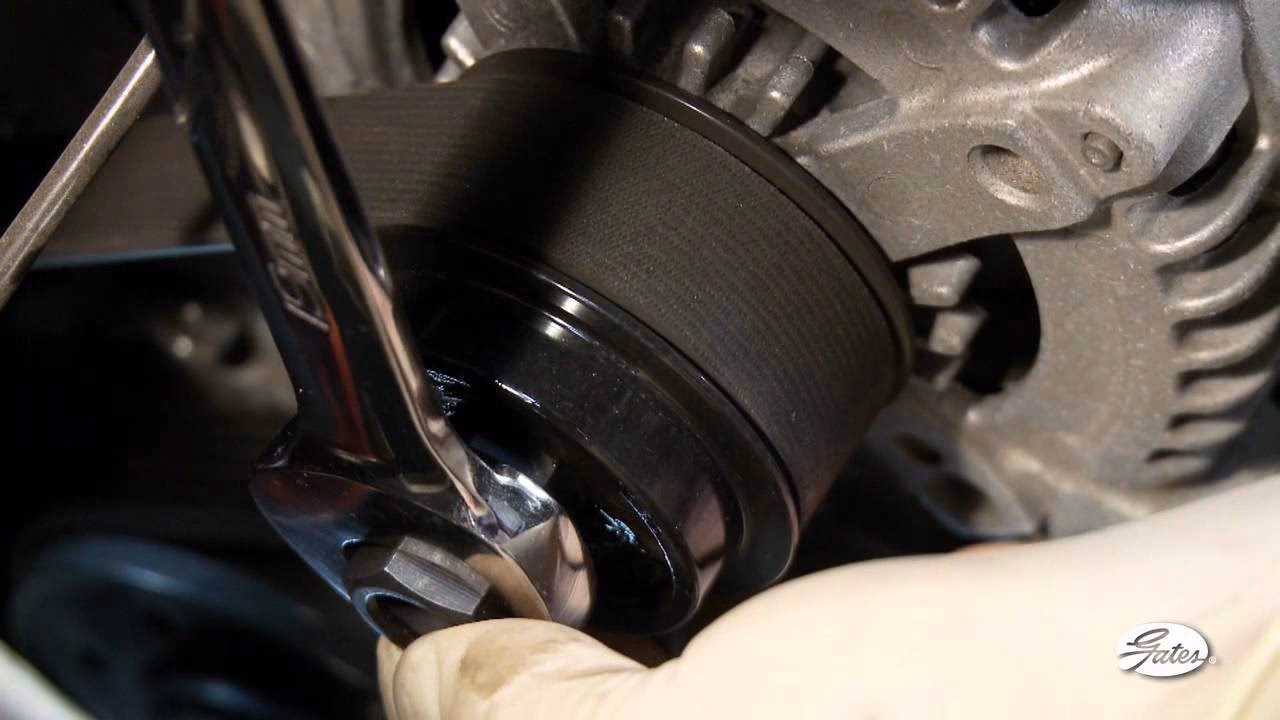

5. Loosen the Pulley: With the shaft secured, use the appropriate wrench or socket on the outer part of the pulley removal tool. Turn the tool counter-clockwise. The tool will grip the pulley's outer edge or internal splines, allowing you to unscrew the pulley from the alternator shaft. Some pulleys are press-fit and require a different approach with the removal tool.
6. Inspect and Replace: Once the old pulley is removed, inspect the alternator shaft for any damage. Install the new pulley, ensuring it's the correct type (solid, OAP, or OAD) and is compatible with your vehicle.
7. Install the New Pulley: Thread the new pulley onto the shaft by hand to avoid cross-threading. Tighten it using the removal tool and a torque wrench to the manufacturer's specified torque. Over-tightening can damage the shaft, while under-tightening can lead to noise and premature failure.
8. Reinstall the Serpentine Belt: Once the new pulley is securely in place, re-route the serpentine belt and release the tensioner. Ensure the belt is properly seated on all pulleys.
9. Reconnect the Battery: Reconnect the negative battery terminal.
10. Test: Start the engine and listen for any unusual noises. Check that the warning lights are off and that the electrical systems are functioning correctly.

Important Note: Always consult your vehicle's owner's manual or a reliable repair guide for specific instructions related to your car model. Some pulleys might have different fitting methods or require unique tools.

Alternator Pulley Replacement Cost

The cost of replacing an alternator pulley can vary significantly based on the type of pulley, the vehicle model, and whether you opt for a DIY approach or professional installation.

Component Costs:

• Replacement Pulley: Expect to pay between £20 and £80 for a new pulley. Standard solid pulleys will be at the lower end, while advanced OAP or OAD pulleys will be more expensive.

Professional Labour Costs:

• Garage Fees: Labour costs typically range from £80 to £150, depending on the garage's hourly rates and the complexity of accessing the alternator on your specific vehicle.

Total Professional Cost:

• Combined: For a professional replacement, the total cost usually falls between £100 and £230.

DIY Considerations:

• Tool Investment: If you plan to do the work yourself, you might need to invest in a specialised pulley removal and installation tool set, which can cost between £30 and £60.

While DIY can save on labour, errors in installation can lead to more significant damage, potentially requiring a full alternator replacement, which would incur much higher costs. Professional installation offers peace of mind, warranty coverage, and the assurance that the job is done to the correct standards.

Frequently Asked Questions (FAQs)

Can a bad alternator pulley cause alternator problems?

Yes, absolutely. A faulty alternator pulley can significantly impact the alternator's performance and longevity. A worn or seized pulley can cause belt slippage, reducing the efficiency of power transfer and leading to undercharging of the battery. If the pulley's overrunning clutch fails, it can lead to inconsistent rotational speeds, stressing the alternator's internal components. Excessive vibration from worn pulley bearings can also damage the alternator shaft and internal windings, potentially leading to complete alternator failure.

What noise does a bad alternator pulley make?

A bad alternator pulley can produce several types of noises. Grinding or rattling sounds during start-up might indicate a worn overrunning clutch. A high-pitched whining noise that increases with engine speed often points to worn bearings within the pulley. Squealing noises, especially when electrical accessories are engaged, can be a sign of belt slippage on the pulley surface, which could be due to the pulley's condition or incorrect belt tension.

How do I know if my alternator pulley is bad?

The most common signs of a bad alternator pulley include unusual noises (whining, grinding, squealing), visible damage or wear on the serpentine belt, a burning rubber smell from the engine bay, dim or flickering headlights, and the illumination of the battery or alternator warning light on the dashboard. Electrical system malfunctions can also be an indicator.

Can I drive with a bad alternator pulley?

It's not advisable to drive for extended periods with a known bad alternator pulley. While the car might still run, a failing pulley can lead to undercharging of the battery, causing the vehicle to eventually stall. It can also cause further damage to the serpentine belt and the alternator itself, leading to more expensive repairs. It's best to address the issue as soon as possible.
