Understanding Dual-Pivot Caliper Brakes
For many cyclists, the braking system is a critical component that dictates confidence and control on the road or trail. While disc brakes have become increasingly popular, the venerable caliper brake remains a staple on many road and hybrid bicycles. Within the realm of caliper brakes, the dual-pivot design stands out as a significant advancement over older, single-pivot systems. This article delves into what a dual-pivot caliper brake is, its core principles, and the benefits it offers to the rider, with a particular look at Shimano's innovative NEW SUPER SLR technology.
The Evolution from Single-Pivot to Dual-Pivot
To truly appreciate the dual-pivot caliper brake, it's helpful to understand its predecessor. The traditional single-pivot caliper brake, often seen on older or more budget-oriented bicycles, features a single mounting bolt. The brake arms pivot around this single point. While functional, these systems often suffer from a lack of leverage and can be prone to flexing under hard braking, leading to reduced stopping power and less precise modulation. The cable pull is also less efficient, meaning more effort at the lever is required to achieve effective braking.
The advent of the dual-pivot caliper brake marked a substantial leap forward. As the name suggests, these brakes utilise two pivot points. These pivots are typically mounted to the fork crown (front brake) and the seatstay bridge (rear brake) of the bicycle frame. This dual-pivot design allows the brake arms to move in a more direct, arching motion towards the rim. This geometry is key to their improved performance.
How Dual-Pivot Caliper Brakes Work
The fundamental principle behind a dual-pivot caliper brake is the leverage and cable routing. When you pull the brake lever, the cable actuates a mechanism that pulls on both brake arms simultaneously. However, the crucial difference lies in how these arms pivot. Unlike single-pivot designs where the entire assembly swings from one point, the dual-pivot system allows the arms to pivot inwards with greater efficiency and less side-to-side flex. This results in:
- Increased Braking Power: The more direct and powerful leverage applied to the rim translates to significantly stronger stopping power.
- Improved Modulation: Riders can feel a more nuanced response from the brake lever, allowing for finer control over braking intensity. This means you can brake harder or softer with more precision.
- Reduced Flex: The stiffer design of the dual-pivot caliper minimises flexing, ensuring that the brake pads remain squarely applied to the rim surface, even under heavy braking.
- Quicker Rim Engagement: The geometry allows the brake pads to reach the rim surface faster, reducing the initial dead stroke of the lever.
Shimano's NEW SUPER SLR Technology
Shimano, a leading manufacturer of bicycle components, has consistently innovated in brake technology. Their NEW SUPER SLR system is a prime example of how design refinements can enhance the performance of dual-pivot caliper brakes. SLR stands for SHIMANO Linear Response, and this technology focuses on minimising friction and optimising the entire braking system, from the lever to the brake pads.
The NEW SUPER SLR design incorporates several key elements:
- Friction-Reducing Mechanisms: Shimano has meticulously designed the caliper, lever, and cable routing to reduce friction at every contact point. This includes smoother cable housing, low-friction cables, and well-engineered pivot points on the caliper itself.
- SERVOWAVE Mechanism (on levers): Many Shimano levers incorporating NEW SUPER SLR technology also feature the SERVOWAVE mechanism. This system provides a progressive lever feel. Initially, the brake pads move rapidly towards the rim (quick contact), offering a snappy initial bite. As you continue to pull the lever, the power increases more gradually, providing a longer stroke for enhanced control and modulation. This means you get both a quick response and the ability to fine-tune your braking.
- Optimised Cable Pull: The overall design ensures a more efficient transfer of force from the lever to the brake arms, meaning less effort from the rider for more braking action.
The synergy of these elements within the NEW SUPER SLR system makes Shimano's dual-pivot caliper brakes a standout choice, delivering more braking power and superior control compared to conventional side-pull brakes.
Advantages of Dual-Pivot Caliper Brakes
Compared to their single-pivot counterparts, dual-pivot caliper brakes offer a compelling set of advantages:
| Feature | Dual-Pivot Caliper | Single-Pivot Caliper |
|---|---|---|
| Braking Power | Significantly higher due to better leverage. | Lower, requires more lever effort. |
| Modulation & Control | Superior, finer control over braking force. | Less precise, can feel grabby. |
| Lever Feel | More direct, less dead stroke, often with SERVOWAVE for progressive feel. | Can be spongier, more dead stroke. |
| Frame Clearance | Generally good, but can vary with specific designs. | Often excellent, especially older designs. |
| Weight | Slightly heavier due to more complex mechanism. | Lighter due to simpler construction. |
Considerations and Maintenance
While dual-pivot caliper brakes are highly effective, they still require proper maintenance to perform at their best. This includes:
- Pad Wear: Regularly inspect your brake pads for wear. Worn pads will significantly reduce braking performance and can damage your rims.
- Cable Tension: Ensure the brake cables are properly tensioned. Too loose, and you'll have excessive lever travel; too tight, and the brakes may drag.
- Centering: The brake arms should be centred so that both pads contact the rim simultaneously and with equal pressure. Most dual-pivot calipers have a small barrel adjuster or a dedicated centering screw for this purpose.
- Rim Surface: Keep your wheel rims clean and free from dirt, oil, or debris, as this can affect braking grip.

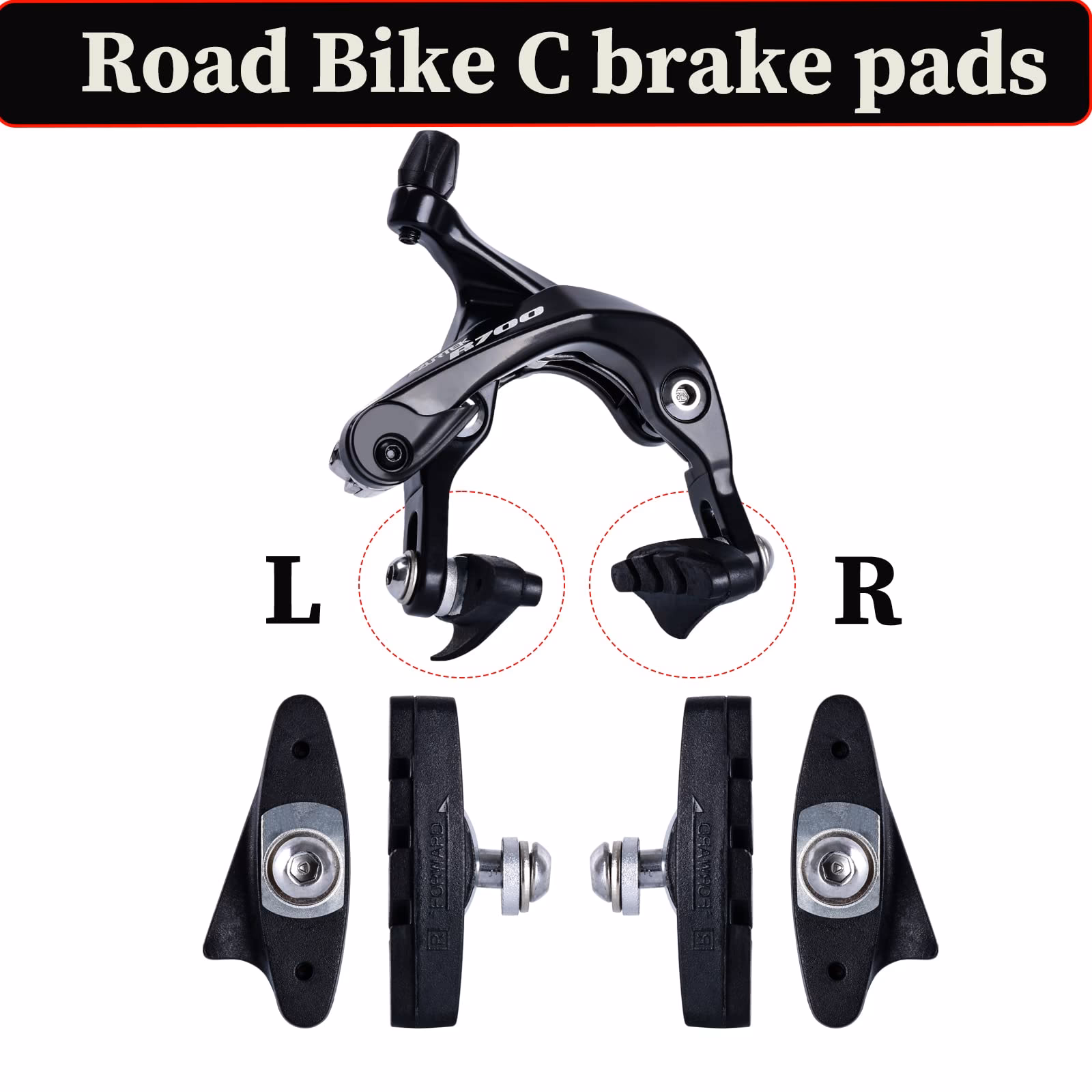

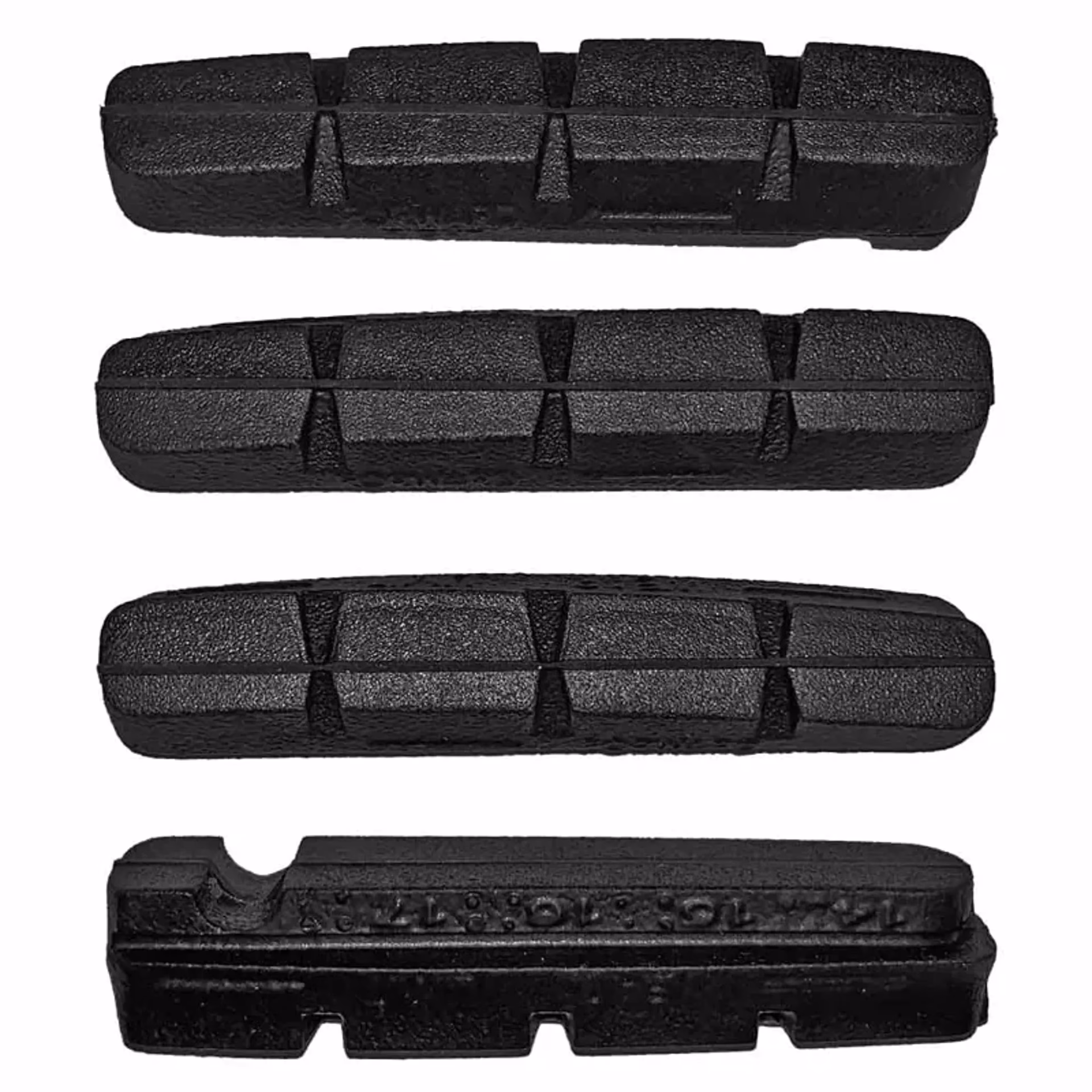

- Brake Pad Material: The material of your brake pads is crucial. For example, TRP RG957 brake pads, often found on higher-end cyclocross or gravel bikes, are typically made from a high-performance compound designed for excellent stopping power in varied conditions, often incorporating materials like ceramic or specific rubber compounds for durability and grip. Always ensure your replacement pads are compatible with your braking system and rim type (e.g., alloy or carbon).
Frequently Asked Questions
Q1: Are dual-pivot caliper brakes good for all types of cycling?
Dual-pivot caliper brakes are excellent for road cycling, commuting, and light touring. For extreme off-road conditions or very wet and muddy environments, disc brakes generally offer superior performance. However, for general riding, they provide a reliable and powerful braking solution.
Q2: How often should I check my caliper brakes?
It's recommended to check your brake pads and cable tension at least once a month, or before any long ride. A professional tune-up, like the one described by a satisfied customer who noted their bike felt "much better now and everything is noticeably smoother and more responsive," is also a good way to ensure your brakes are in top condition.
Q3: Can I upgrade from single-pivot to dual-pivot calipers?
In most cases, yes, provided your bicycle frame has the correct mounting points for dual-pivot calipers. This often involves checking the fork crown and seatstay bridge for the correct hole spacing and threading.
Q4: What does "modulation" mean in braking?
Modulation refers to the rider's ability to control the amount of braking force applied. Good modulation means you can smoothly increase or decrease braking power without the brakes feeling abrupt or "grabby." Shimano's SERVOWAVE technology is designed specifically to enhance brake modulation.
Conclusion
The dual-pivot caliper brake represents a significant evolution in bicycle braking technology, offering riders enhanced stopping power, superior modulation, and a more direct lever feel compared to older single-pivot designs. Shimano's NEW SUPER SLR system, with its focus on reducing friction and incorporating features like SERVOWAVE, further elevates the performance of these brakes. By understanding how they work and maintaining them properly, cyclists can ensure their dual-pivot caliper brakes provide safe, reliable, and confidence-inspiring braking for countless miles of riding.
