Optimising Allison Transmission Service Intervals

Maintaining the health of your Allison automatic transmission is paramount for ensuring the longevity and reliable performance of your vehicle. Just like any sophisticated piece of engineering, these robust transmissions require diligent care, particularly concerning fluid and filter changes. However, the traditional 'one-size-fits-all' approach to service intervals has evolved significantly. Thanks to advancements in technology, modern Allison transmissions, equipped with innovative features like Prognostics, can now offer more flexible and efficient maintenance schedules that truly align with today's diverse operating environments. Understanding these advancements and adhering to the latest recommendations is crucial for maximising your transmission's lifespan and avoiding costly repairs.

This comprehensive guide delves into the intricacies of Allison transmission fluid and filter change intervals, exploring how technology has transformed routine maintenance. We'll cover the pivotal role of Prognostics, the benefits of High Capacity Filters, and the critical importance of using only Allison-approved fluids. By understanding these elements, you can ensure your Allison transmission receives the precise care it needs, when it needs it, leading to unparalleled reliability and performance.

Understanding Allison Prognostics: A Smarter Approach to Maintenance

The advent of Prognostics marked a significant leap forward in Allison transmission maintenance. Introduced in Model Year 2009 for the popular 1000, 2000, 3000, and 4000 Product Families, this sophisticated system represents a paradigm shift from traditional, fixed-interval servicing. Instead of relying solely on predefined mileage or hour milestones, Prognostics actively monitor the real-time condition of your transmission fluid and filters, dynamically assessing their remaining life based on actual operating conditions. This intelligent monitoring system is designed to maximise the lifespan of these critical components, ensuring they are replaced only when truly necessary, thereby optimising operational efficiency and reducing unnecessary expenditure on parts and labour.

For the larger 3000 and 4000 Product Families, Prognostics began to be integrated into transmissions with specific serial numbers, including 6510822005, 6520099957, 6610257671, and 6620007438. Meanwhile, for the lighter-duty 1000 and 2000 Product Families, this advanced feature became available slightly earlier, starting in July of 2008, corresponding with the MY2009 range.

Fluid Compatibility with Prognostics

It's vital to note that the effectiveness of Prognostics is intrinsically linked to the type of transmission fluid used. For Model Year 2009 Allison Prognostics, compatibility was strictly limited to Allison Approved TES 668™, TES 295®, and TES 468® fluids. However, Allison continually refines its technology, and by January 2010, the Prognostics system saw expanded compatibility. Transmissions from the 3000/4000 Product Families, specifically those starting with TCM calibration CIN 4C or later (4C-xxxx-yyy-z), and all January 2010 1000/2000 Product Families Transmissions, became compatible with TES 668™, TES 295®, and the widely used TES 389®-approved fluids. This broader compatibility offers greater flexibility while still ensuring optimal performance and fluid life monitoring.

Enabling Prognostics

While many newer Allison transmissions are equipped with Prognostics capabilities, this feature may not always be 'enabled' or turned ON by default. To utilise this advanced monitoring system, the Original Equipment Manufacturer (OEM) must provide the necessary wiring, and the feature must be activated within the Transmission Control Module (TCM). To determine if Prognostics is enabled on your specific transmission, always refer to the appropriate operator's manual. This manual will provide detailed instructions on how to identify the status of this feature and how to interpret its readings.

The Advantage of High Capacity Filters

Hand-in-hand with Prognostics, High Capacity Filters play a crucial role in extending service intervals for Allison transmissions. These specially designed filters offer superior filtration and a greater dirt-holding capacity compared to standard filters, making them essential for achieving the extended fluid and filter change intervals recommended by Allison.

For all 3000/4000 Product Families Transmissions utilising Prognostics, the use of Allison High Capacity filters is a mandatory requirement. Similarly, 1000/2000 Product Families Transmissions employing Prognostics necessitate the use of the Allison control main spin-on filter, specifically Part Number 29539579.

Identifying High Capacity Filters

Distinguishing High Capacity 'Service' Filters from their predecessors is straightforward. Look for Part Number 29558294 or Part Number 29558295 stamped directly into the filter end cap. Older, non-high capacity filters for Allison 3000/4000 Product Families transmissions can be identified by Part Number 29538231 or Part Number 29538232 stamped into their end caps. It's also worth noting that new Allison 3000/4000 Product Family transmissions are shipped to OEMs with High Capacity 'Factory' Filters, which may feature different part numbers on their end caps. Specific filter kits are also available:

• 3000/4000 Product Families 2-Inch Filter Kit: P/N 29558328
• 3000/4000 Product Families 4-Inch Filter Kit: P/N 29558329
• TC10® Oil Filter Kit: P/N 29554653

Remember, extended fluid and filter change intervals are only permissible when using both an Allison Approved TES 668™, TES 295®, or TES 468® automatic transmission fluid AND Allison High Capacity Filters. Filters must always be changed at or before their recommended intervals, regardless of whether Prognostics are enabled.

Allison Approved Fluids: The Foundation of Transmission Health

The type of automatic transmission fluid (ATF) used in your Allison transmission is not merely a preference; it is a critical factor in its performance, longevity, and maintenance schedule. Allison Transmission rigorously tests and approves specific fluids to ensure they meet their exacting standards. Using unapproved fluids or mixing different types of fluid can lead to severe damage and void your warranty.

For the most up-to-date list of Allison Approved TES 668™ and TES 295® automatic transmission fluids, it is always recommended to consult the official allisontransmission.com website. This ensures you are using the correct lubricant for your specific transmission and operating conditions. The following table provides a snapshot of some historically approved lubricants, but always verify current approvals:

Table 1: Approved Allison Transmission Lubricants (Example List)

Important: Do not mix types of oil. This cannot be stressed enough. Each approved fluid has a specific chemical composition designed to perform optimally within Allison transmissions. Mixing them can compromise their protective properties, leading to premature wear and potential transmission failure.

Detailed Fluid and Filter Change Interval Recommendations (1000/2000 Series)

The following table provides comprehensive recommendations for fluid and filter change intervals for Allison 1000/2000 Series™ transmissions, taking into account whether Prognostics are active and the type of approved fluid used. These intervals are crucial guidelines, and it is imperative to adhere to them, changing fluid and filters at or before the recommended mileage, months, or hours have elapsed, whichever occurs first.

Table 2: 1000/2000 Series™ Fluid and Filter Change Interval Recommendations

*General Vocation: All vocations not classified as Severe. This typically includes vehicles operating under less demanding conditions, such as long-haul trucking on highways with consistent speeds and fewer stop-and-go cycles.

**Severe Vocation: On/Off Highway, Refuse, City Transit, Shuttle Transit. These vocations impose significantly higher stress on the transmission due to frequent shifting, heavy loads, extreme temperatures, and stop-and-go traffic. Examples include buses, garbage trucks, and construction vehicles.

The distinction between 'General' and 'Severe' duty cycle is paramount. Operating your vehicle under severe conditions necessitates more frequent maintenance to prevent premature wear and ensure the transmission's reliability. Always consult your vehicle's operator manual to correctly identify your primary vocation and apply the appropriate maintenance schedule.

When to Change Your Transmission Filter

A common question revolves around the initial filter change for new or recently serviced transmissions. Historically, some transmissions required an initial main filter change after a short break-in period. However, with the introduction of Allison High Capacity Filters, this requirement has largely been eliminated for many models.

Beginning with serial numbers 6510670912 and 6610205144, transmissions equipped with Allison High Capacity Filters no longer require an initial main filter change at 5,000 miles (8,000 km) or 200 hours. This simplification is a direct benefit of the enhanced filtration capabilities of these filters, designed to perform optimally from the outset. As reiterated, these extended fluid and filter change intervals are only permissible when using an Allison Approved TES 295® automatic transmission fluid in conjunction with Allison High Capacity Filters.

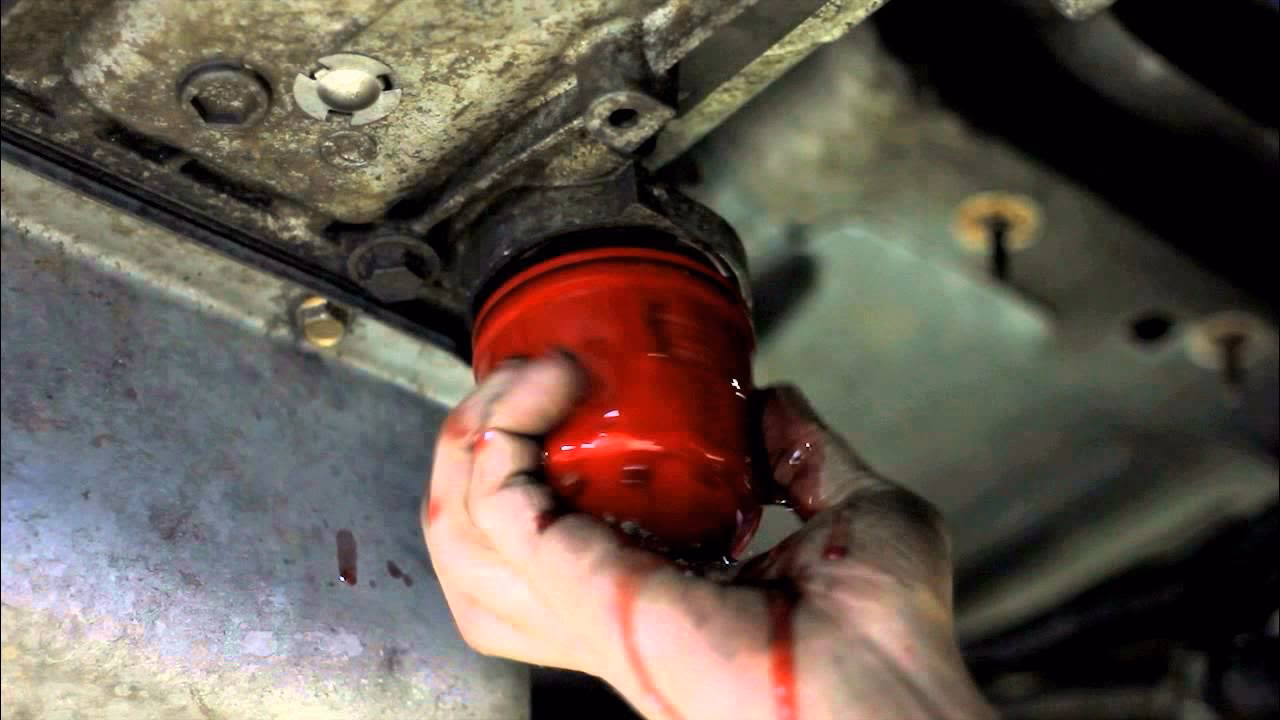

How to Change a Transmission Filter (Spin-On Type)

Changing a spin-on transmission filter is a relatively straightforward process, but it requires care and attention to detail to ensure proper installation and prevent leaks. Always ensure the transmission is cool to the touch before starting any work to avoid burns from hot fluid.

1. Prepare for the Change: Ensure you have the correct new Allison High Capacity filter (or standard filter if Prognostics are not used), an oil filter wrench, a drain pan large enough to catch any spilled fluid, and clean rags.
2. Locate and Loosen the Old Filter: Identify the transmission filter (often labelled 5A in diagrams). Using an oil filter wrench, carefully unscrew the old filter. Be prepared for some residual fluid to drain out as the filter is removed.
3. Remove and Clean the Magnet: For 1000 and 2000 series Allison transmissions, you'll find a magnet (often labelled 5B) on top of the old filter. Carefully pull this magnet off. This magnet collects metallic debris from the transmission fluid, acting as an early indicator of internal wear. Clean any debris off the magnet thoroughly using a clean rag.
4. Prepare the New Filter: Place the cleaned magnet onto the top of the new filter (again, only applicable for 1000 and 2000 series). Before installing, it's good practice to pre-fill the new filter with clean, Allison-approved automatic transmission fluid. This helps to reduce air pockets and ensures immediate lubrication upon start-up. Also, lightly lubricate the rubber gasket on the new filter with some fresh ATF. This helps create a good seal and prevents the gasket from tearing during installation.
5. Install the New Filter: Carefully screw the new filter into place by hand until the gasket makes contact with the housing. Then, use the oil filter wrench to tighten it further, following the manufacturer's specified torque settings (usually a specific number of turns past hand-tight, e.g., 3/4 turn). Do not overtighten, as this can damage the filter or housing.
6. Check for Leaks and Top Up Fluid: After installation, start the engine and allow the transmission to reach operating temperature. Check for any leaks around the new filter. Re-check the transmission fluid level using the dipstick and top up as necessary with the appropriate Allison-approved fluid until it reaches the correct level on the dipstick.

Frequently Asked Questions (FAQs)

Q1: What are Allison Prognostics?

Allison Prognostics are an advanced system that actively monitors the real-time condition of your transmission fluid and filters, dynamically assessing their remaining life based on actual operating conditions rather than fixed intervals. This helps optimise maintenance schedules and extends component life.

Q2: Why are High Capacity Filters important for extended intervals?

High Capacity Filters offer superior filtration and a greater dirt-holding capacity, allowing them to remain effective for longer periods. They are essential for achieving the extended fluid and filter change intervals recommended by Allison when Prognostics are enabled and approved fluids are used.

Q3: Can I mix different types of Allison transmission fluid?

No, you should never mix different types of Allison-approved transmission fluids. Each fluid has a specific chemical composition, and mixing them can compromise their protective properties, potentially leading to premature wear or transmission damage. Always use only Allison-approved fluids, and stick to one type.

Q4: What's the difference between 'General' and 'Severe' vocation for maintenance?

'General' vocation refers to standard operating conditions, typically less demanding, such as highway cruising. 'Severe' vocation involves more strenuous use, like on/off-highway operations, refuse collection, or city transit, which involve frequent stopping, starting, and heavy loads. Severe vocation requires significantly more frequent fluid and filter changes.

Q5: Do new Allison transmissions require an initial filter change at 5,000 miles?

No, for transmissions equipped with Allison High Capacity Filters (starting with specific serial numbers like 6510670912 and 6610205144), the initial main filter change at 5,000 miles (8,000 km) or 200 hours is no longer required. This is due to the enhanced performance of these filters.

Q6: Where can I find a list of current Allison Approved fluids?

For the most current and comprehensive list of Allison Approved TES 668™ and TES 295® automatic transmission fluids, you should always visit the official allisontransmission.com website. This ensures you have access to the latest approved products.

Conclusion

The landscape of Allison transmission maintenance has evolved considerably, moving towards more intelligent and efficient service schedules. By embracing technologies like Prognostics and utilising Allison's specified High Capacity Filters in conjunction with their rigorously tested and approved fluids, vehicle owners and operators can significantly extend service intervals, reduce operational costs, and, most importantly, enhance the reliability and lifespan of their transmissions. Understanding your vehicle's duty cycle, diligently following the recommended intervals, and never compromising on fluid quality are the cornerstones of effective Allison transmission care. Investing time in proper maintenance pays dividends in performance and peace of mind, ensuring your Allison transmission continues to deliver its renowned power and durability for years to come.
