Allis Chalmers WD45: A Timeless Workhorse

The Allis Chalmers WD45 tractor stands as a testament to robust engineering and agricultural innovation from the mid-20th century. First introduced in 1953, this iconic row-crop tractor quickly established itself as a formidable competitor in the agricultural machinery market. Building upon the success of its predecessor, the WD model, the WD45 brought significant upgrades and features that cemented its place in farming history. This article delves into the comprehensive details of the Allis Chalmers WD45, from its inception and key specifications to its engine capabilities, transmission, and the enduring appeal that makes it a favoured choice for many.

A Legacy Forged in the 1950s

The history of Allis Chalmers tractors stretches back to 1847, but their significant impact on the agricultural landscape truly began to take shape in the 1950s. During this era, the company was in direct competition with giants like John Deere, International Harvester, and Massey Harris. The "WD" tractor, introduced in 1948, was a well-received model known for its unique single hitch implements, a dual-clutch system, and a power-shift wheel that allowed for versatile row width adjustments. While the original WD model offered a respectable 24-30 HP, Allis Chalmers aimed higher, seeking to outshine its rivals.

The culmination of this ambition arrived in 1953 with the unveiling of the significantly improved WD45. While sharing many design elements with the WD, the WD45 was a more compact yet powerful machine. At a time when competitors were pushing horsepower boundaries, with John Deere and IH releasing models exceeding 40 HP, the Allis Chalmers WD45 responded with a robust 30-39 HP output at the drawbar. This power increase was substantial enough to position the WD45 firmly within the coveted four-plow class category, making it a capable workhorse for a variety of demanding tasks. Notably, the WD45 was a pioneer, being the first tractor model to feature both a diesel engine option and power steering, innovations that greatly enhanced operator comfort and efficiency. From 1953 to 1957, Allis Chalmers produced and sold an impressive 90,000+ WD45 units, a figure that surpassed even the popular John Deere '60' model, which sold approximately 61,000 units.

The design of the WD45 featured an open operator station, with all essential controls conveniently within reach. For those seeking enhanced protection from the elements, an optional half-cab was also available. Over its production run, the WD45 received further refinements. Later versions, particularly those emerging in the 1970s, incorporated a medium-duty frame and an unsynchronised transmission compatible with Class 4 and Class 5 implements, showcasing the model's adaptability and continued relevance.

Key Specifications of the Allis Chalmers WD45

The Allis Chalmers WD45 is a versatile row-crop tractor that offers a compelling blend of power, size, and functionality. Understanding its core specifications is crucial for anyone considering its purchase, restoration, or ongoing use.

Engine Options: Gas and Diesel Power

A significant advancement for the WD45 was the availability of two distinct engine options: a petrol (gasoline) engine and a diesel engine. This choice allowed farmers to select the power unit best suited to their operational needs and fuel preferences.

Allis Chalmers Gas Engine

The gasoline engine powering the WD45 is a 3.7-litre, four-cylinder unit with a displacement of 226.0 cubic inches. It features a cylinder bore of 4.02 inches and a piston stroke of 4.49 inches. The compression ratio for the standard petrol version is 6.45:1, while an LP gas variant offered a slightly higher compression ratio of 7.2:1. This engine is renowned for its fuel efficiency and compact size, contributing to the tractor's overall agility. Despite not always matching the raw horsepower of some competitors, its efficient design ensured strong performance without unnecessary weight.

Allis Chalmers Diesel Engine

Introduced after 1954, the diesel engine option provided increased torque and fuel economy for heavier operations. This engine is a 3.8-litre unit, typically featuring six cylinders, with a bore of 3.43 inches. The compression ratio for the diesel version is a robust 15.5:1, indicative of its diesel combustion cycle. Both engine types are liquid-cooled, utilising a water-based coolant system to regulate temperature, prevent freezing in cold conditions, and mitigate oxidation.

Transmission and Steering: Ease of Operation

The Allis Chalmers WD45 is equipped with a 2WD chassis and a sliding gear transmission. This transmission system features a wet disc clutch, which is known for its durability and reliability in various operating conditions, often requiring fewer repairs compared to dry clutches. The transmission offers four forward gears and one reverse gear. While effective, the sliding gear mechanism can require a bit more finesse to operate smoothly, particularly for less experienced users. The wet disc clutch, however, significantly contributes to the tractor's longevity and provides a quieter operational experience.

Operator steering was a key area of innovation for the WD45, offering both power steering and manual steering options. While experienced operators might favour the direct feedback of manual steering, the introduction of power steering was a game-changer for ease of use and manoeuvrability, especially in tight spaces or during prolonged periods of operation. This feature significantly reduced operator fatigue and made the tractor more accessible to a wider range of users.

The Innovative Snap-Coupler Hitch

One of the most significant advancements that made the WD45 a standout tractor was its proprietary Snap-Coupler hitch system. Developed and trademarked by Allis Chalmers, this mechanism revolutionized how implements were attached to tractors. Unlike the standard three-point hitches common at the time, the Snap-Coupler allowed farmers to back the tractor up to an implement, and with a satisfying "snap," the implement would securely lock into the hitch. This was a considerable improvement over earlier single hitch attachments, which were sometimes found to be less practical by operators.

The ability to quickly and easily connect a wide range of implements was a major advantage, streamlining fieldwork and enhancing the tractor's versatility. This innovation set Allis Chalmers apart from its competitors and contributed to the WD45's reputation as a practical and efficient farming machine. The tractor also features a live rear PTO (Power Take-Off) with a speed of 540 rpm, allowing for continuous operation of powered implements without needing to engage the tractor's transmission.

Performance and Dimensions

The Allis Chalmers WD45 is a well-constructed tractor, designed for durability and effective performance across various agricultural tasks. Its sturdy build, coupled with the advantageous Snap-Coupler hitch, makes it particularly well-suited for activities such as snow clearing, ploughing, and loader work. The tractor's design incorporates a wide front end, which aids in providing excellent weight balance, contributing to stability during operation.

Furthermore, the rear tire configuration, especially on the diesel models, allowed for operation in narrow fields and between crop rows, a critical feature for row-crop farming. The narrow front end also proved beneficial for precision fieldwork and the attachment of various implements. For those operating in challenging conditions, such as heavy snow, reinforcing the rear tires with chains can significantly enhance traction and capability.

Common Issues and Maintenance Considerations

While the Allis Chalmers WD45 is celebrated for its value and operational capabilities, like any vintage machinery, it can present certain common issues that owners should be aware of. One frequently cited concern relates to the rear wheel rims, which, over time, can be susceptible to rust and deterioration, potentially leading to costly repairs. Similarly, the rear tires, while robust, can be expensive to replace, and their quality might vary depending on whether original or aftermarket parts are used.

Another area of feedback from operators concerns the comfort of the open operator station, particularly for taller individuals. The placement of the hand clutch, while functional, can sometimes interfere with comfortable seating for taller operators. The optional half-cab offered some protection, but the overall ergonomics of the station might feel dated compared to modern machinery. Regular maintenance, including checking fluid levels, lubricating moving parts, and inspecting the condition of tires and rims, is crucial for ensuring the longevity and reliable performance of the WD45.

Frequently Asked Questions (FAQs)

Are Allis-Chalmers tractors good?

Yes, Allis Chalmers tractors are generally considered good, reliable machines. Despite the company no longer producing tractors (AGCO acquired the brand and eventually phased out production), their vintage models like the WD45 are highly regarded for their durability and value. They were known for offering a solid balance of performance and affordability.

What is the most popular Allis-Chalmers tractor?

The Allis Chalmers WD45 is widely considered the most popular tractor produced by the brand. Its success was driven by its innovative features, including power steering and the availability of a diesel engine, combined with strong overall performance that resonated well with farmers of the era.

Are Allis Chalmers tractors still made?

No, Allis Chalmers tractors are no longer manufactured. The last tractors bearing the Allis Chalmers name were produced in 1985, after which the company underwent ownership changes, ultimately leading to the brand's discontinuation by AGCO.

What is the difference between Allis Chalmers WD and WD45?

The primary difference lies in power output and certain features. The Allis Chalmers WD typically offered around 30 HP, whereas the WD45 provided a higher drawbar horsepower of approximately 39 HP. Additionally, the WD45 introduced features like power steering and a diesel engine option, which were not available on the earlier WD models. Transmission gearing, particularly for reverse, also differed, with the WD45 utilising second gear for reverse.

How much horsepower does an Allis Chalmers WD45 have?

The Allis Chalmers WD45 tractor delivers approximately 39 horsepower at the drawbar.

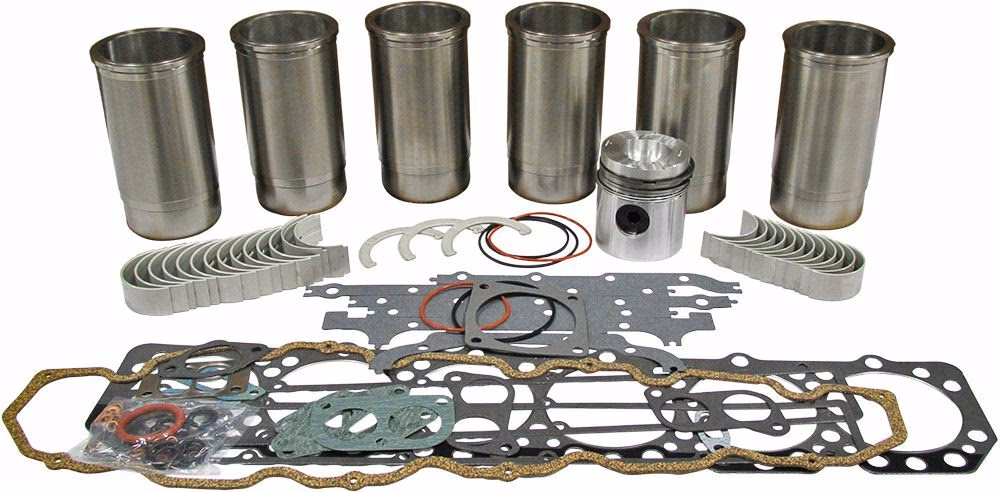

Engine Overhaul Kit Contents

For those undertaking a significant engine refurbishment on an Allis Chalmers WD45 (specifically the 226 CID 4-cylinder Gas engine), an engine overhaul kit typically includes essential components to restore engine performance. A common kit contains a sleeve and piston kit, which includes the sleeves, pistons, wrist pins, retainers, top chrome rings, and oil control rings. These kits often account for an overbore from the standard 4-inch bore to 4 1/8 inches. Additionally, the kit usually includes a cam bearing set and a complete gasket set, which often incorporates main bearing seals where necessary. It's important to note that bearings are often supplied separately.

Final Thoughts

The Allis Chalmers WD45 tractor represents a significant chapter in agricultural machinery history. As one of the first lines to achieve widespread global success, it demonstrated Allis Chalmers' commitment to innovation and quality. While it may not be the ideal choice for extremely demanding modern loader operations, the WD45 remains an excellent tractor for medium-sized farms and collectors. With proper maintenance and care, this enduring workhorse can provide many years of reliable service, a testament to its robust design and the foresight of its creators. The availability of parts and the relative ease of working on these machines further contribute to their lasting appeal, ensuring that the legacy of the Allis Chalmers WD45 continues to thrive.
