1950 Allis Chalmers B: Engine Rebuild & Reliability

There's a unique charm to vintage farm machinery, a testament to a bygone era of engineering where simplicity often equated to robustness. The 1950 Allis Chalmers B tractor is a prime example, a stalwart of small farms across the globe. While known for its straightforward design and inherent durability, even the most resilient machines succumb to the ravages of time and, occasionally, less-than-ideal past repairs. Our particular 'B', a cherished family heirloom, had reached a point where its once legendary reliability had become a distant memory. Plagued by significant oil leaks, dangerously low oil pressure, and a host of other issues, it was clear this old workhorse needed more than just a tune-up; it required a full engine overhaul to reclaim its former glory.

The Allis Chalmers B: A Legacy of Robust Design

The Allis Chalmers B engine embodies a design philosophy characteristic of its era: straightforward, low compression, and, crucially, designed to be field rebuildable. This meant that farmers and mechanics could undertake significant repairs with basic tools and without the necessity for specialist machine shop services. A standout feature contributing to this ease of maintenance is its wet liner design. Unlike engines where cylinders are bored directly into the block, the 'B' utilises removable cylinder liners. These liners, which are in direct contact with the engine's coolant, can be replaced without any machining, simplifying what would otherwise be a complex and costly repair.

Furthermore, these engines often featured magneto ignition systems, which, particularly in earlier models, eliminated the need for a battery, distributor, or coil to generate a spark. While later 'B's, like ours, did incorporate 6V batteries primarily for the starter system and lights, the fundamental design remained geared towards uncomplicated operation and repair. The overall construction, with its sturdy cast-iron components, spoke volumes about a design intended for years of hard graft, making it a truly enduring piece of agricultural engineering.

When Reliability Wanes: Diagnosing the 'B''s Ills

Despite its inherently robust design, our 1950 Allis Chalmers B was far from its prime. The symptoms were numerous and concerning: a colossal oil leak that left a trail wherever the tractor went, glaring holes in the exhaust manifold, a magneto that stubbornly refused to shut off (due to incorrect wiring), a non-functional one-wire Delco alternator conversion, and, most critically, alarmingly low oil pressure. These issues collectively rendered the tractor unreliable, transforming it from a useful farm tool into an occasional, temperamental curiosity. It became clear that while the design was sound, years of wear and possibly some misguided past repairs had taken their toll, masking its true potential for dependable operation.

Diving In: The Engine Teardown and Startling Discoveries

Teardown on a machine as fundamentally simple as the Allis Chalmers B is relatively straightforward. The initial steps involved carefully detaching the front end of the tractor, followed by unbolting the engine from the torque tube. With the engine liberated from its chassis, the real work began. Removing the oil filter housing led to our first, and perhaps most shocking, discovery: in place of the original oil supply tube, someone had inexplicably inserted a wooden dowel. This meant the engine had been running for years with a severely restricted or completely blocked oil passage, a revelation that instantly explained the dire oil pressure readings and likely contributed significantly to the engine's accelerated wear. It was a stark reminder that even the most well-designed engines are vulnerable to improper maintenance.

Further disassembly revealed other insights. The front pulley required drilling and tapping to facilitate its removal, a common technique for stubborn components. Upon flipping the engine and removing the oil pan, we observed the safety wire securing the main caps, a testament to the meticulous assembly practices of the era. The main bearing surfaces still bore the marks of original peel-able shims, designed to fine-tune tolerances. The cylinder sleeves, sticking into the crankcase, clearly illustrated the wet liner design. Though the bearings showed signs of wear, thankfully, there was no scoring or overheating, suggesting the engine's core integrity remained despite the oil starvation. Even the head, with its replaceable valve guides, and the camshaft were in remarkably good condition, further reinforcing the inherent durability of the Allis Chalmers B's components.

Precision and Perseverance: The Rebuild Unfolds

With the engine fully stripped, the meticulous process of cleaning and rebuilding commenced. One of the initial challenges involved removing the cam bearings from within the block. Lacking a specialised tool, we fabricated a pulling device using a round plate and a threaded rod. Our initial attempt with a 1/4-20 rod proved insufficient; the rod stretched under tension. A strategic tap with a hammer, however, liberated the first bearing with a satisfying 'POW!', allowing it to be pulled out. Subsequent bearings required a similar technique, prompting us to switch to a more robust 3/8-16 threaded rod for the remaining ones. We also noted the curious brown paint within the engine block, a common practice in older engines.

Cleaning the block thoroughly was another painstaking task. We discovered stubborn sediment build-up in the chamfers (tapers) at the bottom of the cylinder bores, areas exposed to coolant where the O-rings on the liners must pass. Chisel work was required to clean these areas effectively. We also identified a common crack between the centre cylinder holes, apparently a known characteristic of these blocks, which didn't pose a structural risk.

Main Bearing Shims: The Art of Clearance Setting

One of the most critical aspects of the rebuild was setting the main bearing clearances. The Allis Chalmers B, like many engines of its vintage, relied on shims under the main caps to achieve precise tolerances. Since the original peel-type shims were in poor condition, we opted to fabricate new ones from brass shim stock. The process was iterative and precise:

1. Initial Measurement: With the crank installed and an initial set of 0.010" shims, we used Plastigage to measure the clearance. Our initial reading was approximately 0.004", whereas the specification was closer to 0.002".
2. Shim Adjustment: To reduce the clearance, we needed thinner shims. We reduced the shim stack thickness by 0.002" to 0.008".
3. Bearing Shell Grinding: Crucially, simply reducing shim thickness isn't enough. Bearing shells are designed to be slightly 'too tall' by about 0.0015" per side, creating a 'crush' when the cap is torqued down. This 'crush' ensures the bearing shells are firmly seated in their saddles and caps, preventing rotation and aiding heat transfer. When reducing shim thickness, you must compensate by carefully grinding down the bearing shells. We removed approximately 0.0015" from the top shells using 600-grit sandpaper on a flat surface (our kitchen counter, in true farm-shop style!). This maintained the appropriate 'crush' without binding the crank.
4. Verification: Re-bolting the assembly with the new 0.008" shims, our Plastigage measurement yielded approximately 0.003" clearance. While slightly above the ideal 0.002", we decided this was an acceptable compromise, preferring to err on the side of slightly looser clearances for initial running, with the option to go thinner if oil pressure remained unsatisfactory.

We meticulously tracked each bearing shell set, their associated shim thicknesses, and the amount ground off each shell using a dial gauge. This systematic approach was vital for achieving the desired precision.

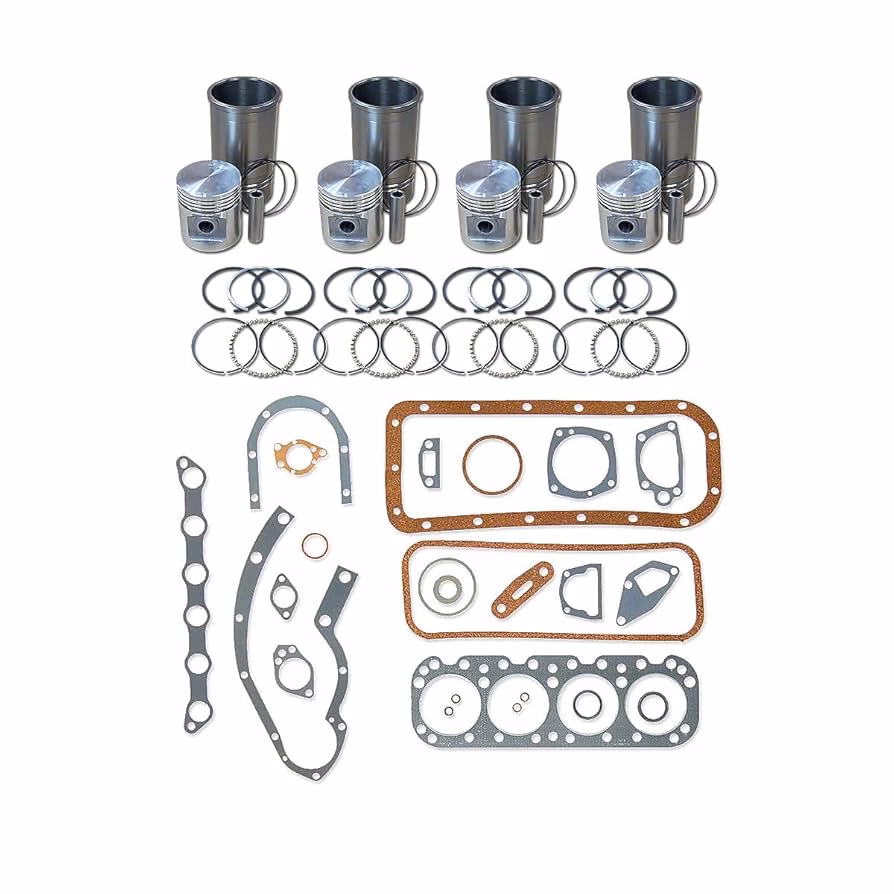

With the main bearings sorted, attention turned to the cylinder liners. Each liner was fitted with two new O-rings, generously lubricated with dish soap to facilitate smooth installation into the block. The tapered chamfers at the bottom of the bores, which we had painstakingly cleaned, guided the O-rings into place. With careful tapping, each shiny, newly honed liner was seated 'home', a satisfying milestone in the rebuild process. The cam was then installed, followed by the crankshaft, completing the heart of the engine. Finally, the engine received a coat of paint – perhaps not the ideal brand, but readily available – preparing it for its journey back into the tractor.

The Rebirth of a Workhorse: Restored Reliability

The extensive engine rebuild transformed the 1950 Allis Chalmers B from an unreliable farm relic into a dependable workhorse once more. The meticulous attention to detail, from addressing the baffling wooden dowel in the oil passage to precisely setting bearing clearances with newly fabricated shims, proved critical. This wasn't merely a repair; it was a restoration of the tractor's inherent design reliability. The 'B's original engineering, focused on simplicity and maintainability, allowed for such a comprehensive overhaul even in a home garage setting. The satisfaction of hearing that engine purr with healthy oil pressure, knowing the journey it had been on, was immense. It stands as a testament to the enduring quality of these vintage machines and the rewarding nature of bringing them back to life.

Comparative Table: Key Features of the Allis Chalmers B Engine Design

The 1950 Allis Chalmers B engine incorporates several design features that contribute to its longevity, ease of maintenance, and suitability for agricultural work. Here's a comparison of some key aspects:

Frequently Asked Questions (FAQs)

Q: How reliable are vintage tractors like the Allis Chalmers B generally?

A: Vintage tractors like the Allis Chalmers B were designed for durability and simplicity, making them inherently reliable for their era. Their low-tech, robust construction often means they can run for decades with proper maintenance. However, like any old machine, they are susceptible to wear, neglect, and past improper repairs, which can lead to unreliability over time. Regular maintenance and addressing issues promptly are key to their continued dependability.

Q: What does 'wet liner engine' mean?

A: A 'wet liner engine' refers to an engine design where the cylinder sleeves, or 'liners', are removable and are in direct contact with the engine's coolant. This differs from 'dry liner' engines where liners are pressed into bores within the block and are not directly exposed to coolant, or engines where cylinders are simply bored into the block itself. The main advantage of wet liners is that they can be easily replaced without requiring machining of the engine block, simplifying rebuilds and repairs.

Q: Why are shims used in older engines for bearings?

A: Shims are thin spacers used in older engines, particularly for main and connecting rod bearings, to precisely set the clearance between the crankshaft journals and the bearing shells. This method allows for very fine adjustments to achieve the exact specified oil film thickness and 'crush' (a slight compression of the bearing shells when torqued down, which holds them securely). It was a common and effective way to achieve precise tolerances without complex machining processes during assembly or rebuilds.

Q: Can I rebuild an engine at home without a machine shop?

A: As demonstrated by this Allis Chalmers B rebuild, it is often possible to rebuild simpler, older engines at home without extensive machine shop work, especially if they feature designs like wet liners and shimmed bearings. However, it requires careful measurement, patience, the right tools, and a good understanding of engine mechanics. For more complex engines or if significant wear (like out-of-round bores or severely worn crankshafts) is present, machine shop services will be essential.

Q: What is Plastigage used for?

A: Plastigage is a thin, plastic thread-like material used by mechanics to measure bearing clearances. A small piece of Plastigage is placed on the bearing journal, the bearing cap is installed and torqued to specification, and then removed. The Plastigage is compressed and flattens out; its width is then compared to a scale on the Plastigage packaging, which indicates the clearance in thousandths of an inch or millimetres. It's a simple, effective, and relatively inexpensive way to check critical engine tolerances.
