AL-KO Secure Wheel Locks: A Comprehensive Guide

When it comes to safeguarding your caravan from theft, robust security measures are paramount. The AL-KO Secure wheel lock system has become a popular choice for many caravan owners, offering a visible and effective deterrent. But how exactly does this system work, and what do you need to know to keep your caravan secure?

Understanding the AL-KO Secure System

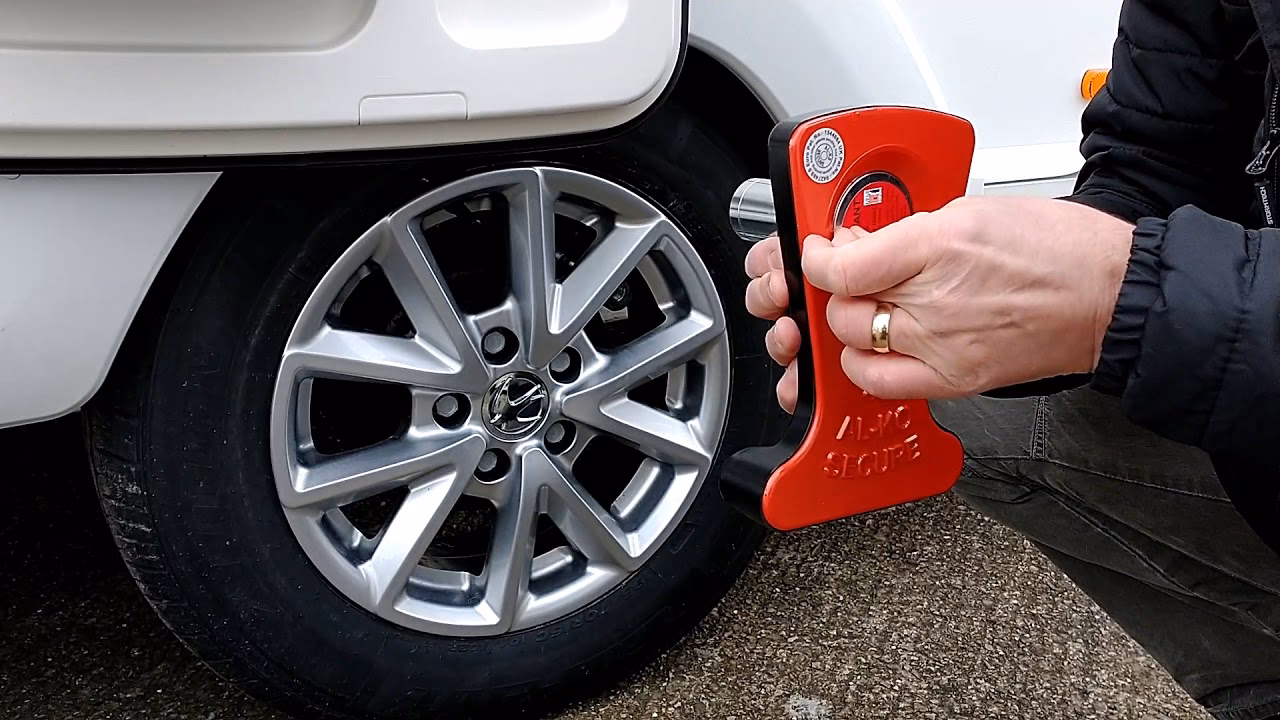

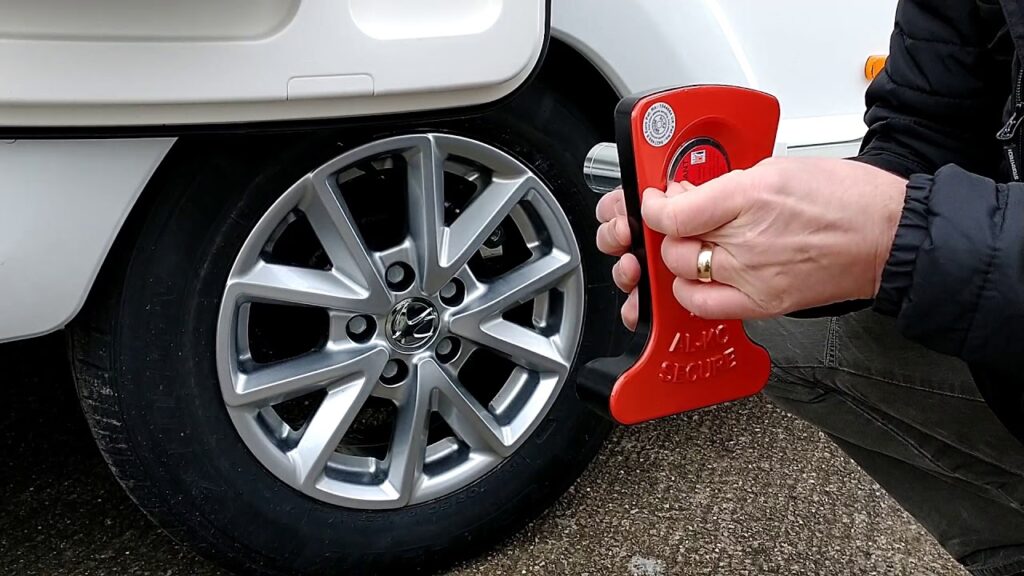

The AL-KO Secure wheel lock is designed to immobilise your caravan's wheel, making it impossible to tow or move the vehicle. It's a two-part system that integrates directly with your AL-KO chassis. The core components are:

• The Wheel Lock Unit: This is the main body of the lock, typically a bright, highly visible unit that attaches to the wheel.
• The Receiver Socket: This is permanently fitted to the caravan's chassis, usually near the wheel it's designed to protect. The wheel lock unit engages with this socket.

The principle is straightforward: when fitted, the wheel lock unit envelops part of the wheel and securely locks into the receiver socket on the chassis. This linkage prevents the wheel from rotating freely and thus stops the caravan from being moved. The bright colour of the lock also acts as a strong visual deterrent, signalling to potential thieves that your caravan is protected.

How to Fit and Use Your AL-KO Secure Lock

Fitting the AL-KO Secure lock is designed to be a relatively simple process, though it requires precision. The key is to ensure the lock is correctly aligned with the receiver socket on your chassis.

Step-by-Step Fitting Guide:

1. Preparation: Ensure your caravan is on level ground and the handbrake is firmly applied. If you have a motor mover, ensure it is switched off and disengaged.
2. Locate the Receiver Socket: Identify the receiver socket fitted to your AL-KO chassis. It will have a specific shape designed to accept the wheel lock unit.
3. Align the Lock: Position the wheel lock unit so that its engaging mechanism aligns with the receiver socket. This might require slight jiggling or adjustment of the wheel's position.
4. Insert the Key: Once aligned, insert the dedicated key into the lock cylinder.
5. Lock the Mechanism: Turn the key to engage the locking mechanism. You should feel and hear it lock into place within the receiver socket. The key will typically turn about a quarter turn.
6. Remove the Key: Remove the key. The lock is now secured. The key itself is often designed with a specific protrusion that aids in its withdrawal once unlocked, and this protrusion needs to align with a slot in the lock cylinder.

Key Management:

The AL-KO Secure system uses a keyed alike system for many users, meaning one key can operate multiple locks if purchased as a set. However, each lock's key is unique. It is crucial to keep your keys safe and in a secure location. Losing your keys can be a significant inconvenience and expense.

Important Note on Key Inserts: If you purchase a new caravan with an AL-KO chassis but already own an AL-KO Secure wheel lock, you don't necessarily need to buy a whole new kit. AL-KO offers a cost-effective solution where you can purchase a wheel-specific insert for a starting price of around £109.95 (including free delivery). This allows you to keep your existing barrel lock, keys, locking bolt, and socket, simply updating the insert to match your new vehicle. If your lock is already registered, AL-KO will only need your new caravan details to update your registration. You can call AL-KO on 01926 818 500 for assistance with this.

Troubleshooting Common Issues

While the AL-KO Secure system is generally reliable, like any mechanical device, it can occasionally present issues. One common problem reported by users is difficulty in inserting or turning the key, often due to misalignment of the lock cylinder.

The "Clicked" Lock Cylinder Problem:

A user named Tim experienced a situation where his AL-KO lock cylinder would not accept the key. This was diagnosed by Lowe and Fletcher (L&F), the lock manufacturers, as a "clicked" lock. This occurs when the locking mechanism moves further than it should, often due to undue pressure on the lock casing, such as the caravan shifting slightly after the lock was engaged.

The Solution (as detailed by Tim):

The problem was resolved by carefully filing off the outer protrusion on the key. This protrusion is normally used for gripping the mechanism when withdrawing the key and also aids in alignment. When the cylinder is out of alignment, this lug prevents the key from being fully inserted.

Here’s the process:

1. Identify Misalignment: The inner part of the keyway on the rotating cylinder may not line up with the outer part of the key.
2. File the Key: Carefully file off the outer lug on the key. This will allow the key to be inserted into the cylinder even if it's slightly out of alignment.
3. Insert the Filed Key: With the lug removed, the key should now slide into the lock cylinder.
4. Unlock: Insert the filed key and turn it to unlock the mechanism. The inner tumblers will now align with the filed key.
5. Remove the Cylinder: Once unlocked, the cylinder might still not pull out because the filed-off protrusion was also part of the withdrawal mechanism. In this case, remove the filed key and insert the unfiled key. The original key, with its protrusion intact, should now be able to withdraw the unlocked cylinder as normal.

Preventative Advice: A crucial takeaway from this experience is to ensure that the caravan cannot move at all before engaging the AL-KO Secure lock. This includes making sure the nose weight is correctly set and the caravan is stable. It’s also vital to have your lock registered with AL-KO (via L&F), as they can only provide specific advice once they have checked your registration details.

Comparing Wheel Security Options

The AL-KO Secure system is one of many options available for caravan security. Here's a brief comparison:

When to Use Which Security Device:

• AL-KO Secure: Ideal if your caravan has an AL-KO chassis and you want a high-security, integrated solution that makes towing impossible and also deters wheel theft.
• Hitch Locks: A good primary or secondary security measure, particularly effective when the caravan is stored or when you want to prevent unauthorised towing.
• Wheel Clamps: Versatile and can be used on many types of caravans and trailers. They offer good visual deterrence and prevent wheel rotation. Some high-security wheel clamps can be very robust.

Many owners opt for a layered security approach, using a hitch lock and a wheel lock or clamp for maximum protection.

Frequently Asked Questions (FAQs)

Q1: Can I buy replacement keys for my AL-KO Secure lock?

Yes, replacement keys can be ordered, but you will need your lock's registration number or key code. It's essential to keep this information safe. Contact AL-KO or the manufacturer (Lowe and Fletcher) for assistance.

Q2: What if I lose my AL-KO Secure keys?

If you lose your keys, you'll need to contact AL-KO or Lowe and Fletcher with your lock's registration details to order replacements. As a last resort, if the lock cannot be opened, it may need to be professionally removed, which can be costly.

Q3: How do I know if my caravan has an AL-KO chassis?

AL-KO is a major manufacturer of caravan chassis and running gear. Look for the AL-KO branding on the chassis beams, suspension units, or hitch head. If you're unsure, consult your caravan's documentation or ask your dealer.

Q4: Is the AL-KO Secure lock universal?

No, the AL-KO Secure lock is designed specifically for caravans and trailers fitted with an AL-KO chassis that has the corresponding receiver socket. While the lock unit might fit various wheels in terms of size, its integration with the chassis is specific.

Q5: How often should I check my AL-KO Secure lock?

It's good practice to visually inspect the lock for any signs of damage or tampering before each trip. Ensure the mechanism operates smoothly. Periodically check that the receiver socket on the chassis is secure and free from corrosion.

Conclusion

The AL-KO Secure wheel lock system offers a robust and visible layer of security for your caravan. By understanding how it works, fitting it correctly, and managing your keys responsibly, you can significantly deter theft and protect your valuable asset. Remember the importance of proper caravan positioning before locking and be aware of the troubleshooting steps for common issues like cylinder misalignment. Investing in quality security like the AL-KO Secure system provides peace of mind, allowing you to enjoy your caravanning adventures without unnecessary worry.
