Thrustmaster T500RS: Setup and Calibration Guide

Embarking on the world of sim racing can be a thrilling experience, and a high-quality racing wheel is paramount to achieving that immersive feeling. The Thrustmaster T500RS has long been a popular choice for enthusiasts looking for a robust and responsive setup. However, getting the most out of this impressive piece of hardware, especially within a demanding simulation like iRacing, requires careful setup and calibration. This guide will walk you through the essential steps, from initial setup and firmware updates to fine-tuning your pedals and force feedback, ensuring you're ready to hit the virtual track with confidence.

Getting Started: Unboxing and Initial Connections

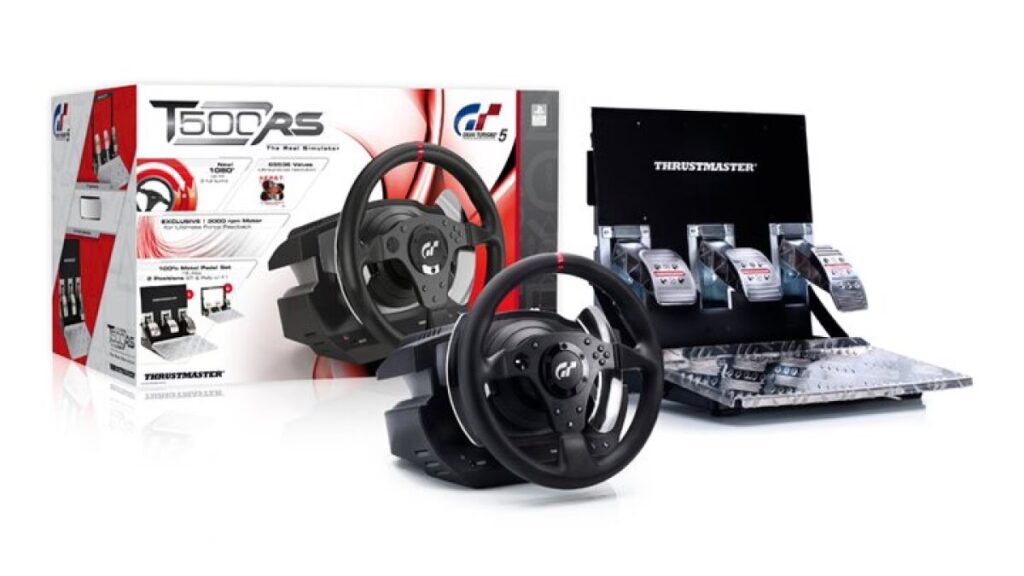

Once you've acquired your Thrustmaster T500RS, whether it's a new purchase or a pre-loved unit, the first step is to ensure all components are present and correctly connected. This typically includes the steering wheel base, the steering wheel itself, the pedal set (often the T3PA Pro pedals for this setup), and the necessary power and USB cables. It's crucial to ensure the steering wheel is properly mounted onto the base before connecting any power or USB. Always test with a Thrustmaster wheel mounted on the base. Using the base without a wheel, or with an incompatible wheel, can potentially affect its correct operation. This initial connection and testing can be performed on a PC, or if you're using it with a console, on your Xbox or PlayStation.

Firmware Updates: Keeping Your Wheel Up-to-Date

Like any sophisticated piece of electronics, keeping your Thrustmaster hardware updated with the latest firmware is essential for optimal performance, bug fixes, and compatibility. The process is generally straightforward and can be done directly from your PC.

To update your Thrustmaster firmware:

1. Connect your Thrustmaster T500RS to your PC via USB.
2. Navigate to the Thrustmaster Control Panel. You can usually find this by clicking the Start button, scrolling down to the Thrustmaster folder, and then clicking on Control Panel.
3. Within the Control Panel window, there should be a link or button for 'Firmware Update'.
4. Clicking this link will likely prompt you to download the latest firmware or guide you through the update process. Follow the on-screen instructions carefully.
5. Alternatively, you can access the device settings by going to Start > Settings (the cog icon) > Type 'USB Game Controllers' in the search box and select 'Set up USB game controllers'. In the window that appears, select your Thrustmaster device and click 'Properties'. Look for an 'Update' button within the properties window.

It's a good practice to periodically check for updates, as Thrustmaster frequently releases improvements.

Configuring in Windows: Control Panel Settings

Before diving into iRacing, it's vital to configure your wheel and pedals within Windows' own control panel. This ensures the operating system recognises your hardware correctly and allows for basic testing.

Accessing the Control Panel

As mentioned, you can access the Thrustmaster Control Panel directly. Once open, select your T500RS and click 'Properties'.

Test Input Tab

The 'Test Input' tab is where you'll verify that your steering and pedals are functioning as expected.

• Steering Rotation: Set your steering rotation to 900° or higher. iRacing will only utilise up to 900°, so anything beyond that is essentially ignored. Rotate your wheel fully left and right to ensure it registers the full range of motion.
• Pedal Calibration: Gently press each pedal to confirm they are registering input. If you have a brake mod installed, apply firm pressure to the brake pedal. You should aim to get the brake slider all the way to 100%. With a standard brake pedal, this is achievable with firm pressure. If you have a load cell modification, you may need to apply significant force to reach the 100% mark.

Note on Load Cell Calibration: If you have a load cell modification, some users find that the calibration instructions provided by the manufacturer might not be perfect. A common recommendation is to simply press the brake pedal hard enough until the calibration slider in the Thrustmaster control panel reaches 100%, and then leave it at that. Experimentation might be needed to find the sweet spot for your setup.

Gain Settings Tab

The 'Gain Settings' tab allows you to adjust the overall force feedback strength.

• Overall Strength of all forces: iRacing generally recommends setting this between 50% and 60%. This is largely down to personal preference. Some drivers prefer a lighter force feedback for less fatigue, especially on demanding tracks or with cars that require a lot of steering input. Experiment with this setting; starting around 50-55% is a good baseline. Remember, you can also fine-tune force feedback within iRacing itself.

Once you're satisfied with the Windows configuration, you're ready to move into the simulation.

Setting Up in iRacing: Calibration and Force Feedback

With your Thrustmaster hardware connected and configured in Windows, it's time to integrate it with iRacing.

Initial Calibration

When you first launch iRacing with your wheel connected, you'll likely be prompted to calibrate your input device. You can skip this if you've already done the Windows calibration, but it's often beneficial to run through it again within the simulation to ensure perfect compatibility.

Click 'Calibrate' or go to 'Options' to access the calibration screen.

Steering Calibration

Follow the on-screen instructions precisely. When prompted to turn your wheel 90° to the left or right, do so by sight, rather than relying solely on the on-screen numbers. This ensures your physical wheel's center is accurately mapped.

Pedal Calibration and Settings

When calibrating your pedals, pay close attention to the following settings:

• Force factor (under BRAKES): If you are using a load cell brake, this setting must be set to zero. If you are not using a load cell, you can experiment with this setting, but setting it to zero or around 1.8 is often recommended. Any changes to the brake force factor typically require a recalibration of your pedals.
• Dampen oscillations: Set the strength here anywhere from 2 to 15. A value of 5 is a good starting point. This setting helps to smooth out any unwanted vibrations or oscillations in the force feedback.
• Damping: It's generally recommended to set this to zero for the T500RS.
• Min force: Setting this to zero is recommended for this particular wheel.
• Use custom controls for this car: This is a crucial setting if you want to tailor your force feedback and other controls on a per-car basis. Check this box if you plan to do so.

Load Cell Brake Force Adjustment

If you're using a load cell brake, calibrating the force required for maximum braking is a matter of personal preference and driving style. You'll need to experiment to find a force that feels comfortable and allows you to consistently achieve 100% braking input without excessive effort. Some users find they need to press very hard to reach the maximum, while others prefer to calibrate at a point where less force is required, even if it means the slider doesn't reach the absolute far end of the calibration range. For instance, calibrating so the slider is between 250 and 300 (on a 0-255 scale) is a common approach, providing a good balance of sensitivity and required force. This is especially important for heavier cars or those with less powerful braking systems.

Optimising Force Feedback in iRacing

Achieving the perfect force feedback (FFB) is key to both immersion and performance. iRacing offers robust tools for this.

Saving Per-Car FFB Settings

To fine-tune your FFB for each car you drive, ensure 'Use custom controls for this car' is checked in the iRacing Options. This will require a one-time calibration for each car, but it's well worth the effort.

Follow these steps to set your FFB:

1. Drive a few laps: Get at least two good, consistent laps in the car you're using.
2. Open the Graphics Adjustment Black Box: While still in the car, press the F9 key.
3. Adjust FFB Strength: At the bottom of the black box, you'll see the FFB strength setting. If you've completed at least two laps, there should be an 'Auto' button in the lower right corner.
4. Click 'Auto': This will automatically set the FFB strength based on your recent driving.

Remember, this setting is specific to the car you are currently driving, provided 'Use custom controls for this car' is enabled. You'll need to repeat this process for each car you frequently drive to get the best feel from your T500RS.

Where to Buy Your Thrustmaster T500RS

If you're looking to purchase a Thrustmaster T500RS, there are several reputable retailers:

• Amazon: Often the quickest option, especially if you have Amazon Prime, due to faster shipping times.
• Ricmotech: A specialist in sim racing hardware, Ricmotech offers the advantage of providing the T500RS with the load cell modification pre-installed. This can save you the hassle of installation and potentially save you money on the modification itself. However, be aware that Ricmotech's free shipping, while available on orders over $100, can be slower, and their order processing may take a few days.

Recommendation: For the ultimate brake pedal feel, purchasing a Thrustmaster T500RS with the load cell modification pre-installed from Ricmotech is highly recommended. If you prefer a standard brake pedal, both Amazon and Ricmotech are viable options, with Amazon generally offering faster delivery.

Pedal Modifications: The Load Cell Advantage

The addition of a load cell modification to your brake pedal can dramatically enhance the realism and control of your sim racing setup. Unlike potentiometer-based pedals that measure pedal travel, load cells measure the actual force applied. This translates to a much more nuanced and consistent braking input, mimicking the feel of a real race car's brake pedal. While the Thrustmaster T500RS comes with a decent brake pedal and an optional conical brake mod for added resistance, a load cell offers a significant upgrade for serious sim racers. As mentioned, Ricmotech offers this modification pre-installed, making it a convenient option.

Troubleshooting and FAQ

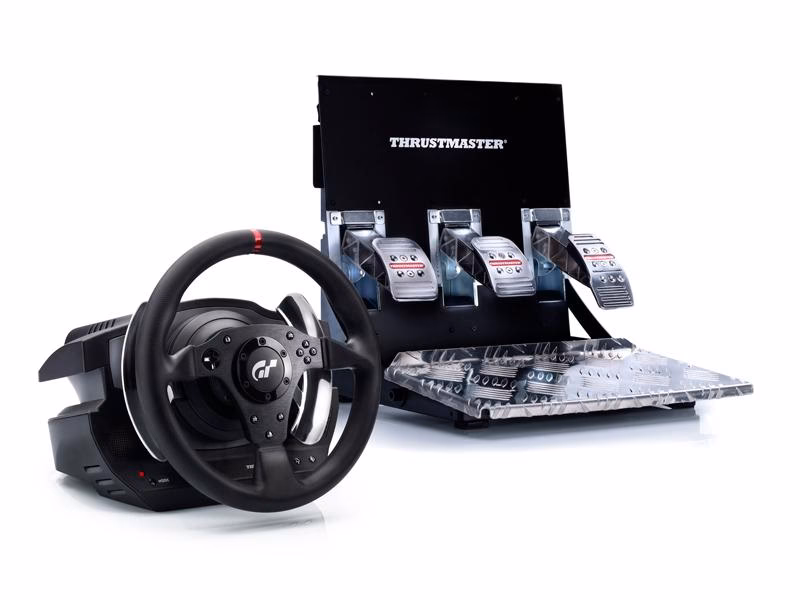

Can I use a Thrustmaster wheel without a wheel mounted?

No, it is strongly advised against using a Thrustmaster wheel base without a compatible Thrustmaster wheel mounted. This can lead to incorrect operation. Always ensure the correct wheel is securely attached before powering on or connecting the base.

My brake pedal isn't reaching 100% in calibration. What should I do?

This is common with load cell pedals. You may need to apply significant force. Experiment with applying more pressure. If using a load cell, consider calibrating at a slightly lower maximum force (e.g., where the slider reaches 250-300) if full force is too strenuous. Ensure your iRacing settings (like Force Factor) are correctly set for your load cell (typically zero).

How do I adjust force feedback strength for different cars?

Ensure 'Use custom controls for this car' is checked in iRacing's Options. Then, drive a few laps and use the F9 key to bring up the Graphics Adjustment box. Click 'Auto' on the FFB strength setting to have iRacing automatically determine an appropriate level based on your driving.

Is the conical brake mod included with the T500RS worth installing?

Yes, the conical brake mod that comes with the Thrustmaster T500RS is a good addition that improves the feel of the brake pedal, offering more resistance and a progressive feel. It's easy to install following the provided instructions.

By following these comprehensive steps, you can ensure your Thrustmaster T500RS is perfectly set up and calibrated for an unparalleled sim racing experience in iRacing. Happy racing!
