Sturmey Archer 3-Speed Hub Gear Adjustment

Internal hub gears offer a robust and low-maintenance alternative to traditional derailleur systems. Their enclosed nature protects the delicate gear mechanisms from the elements and impacts, making them a popular choice for commuters and touring cyclists. Among the most iconic and widely used internal hub gears are those produced by Sturmey Archer. While generally very reliable, there are times when a Sturmey Archer 3-speed hub gear may require adjustment to ensure optimal performance. This guide will walk you through the common reasons for adjustment and provide clear, step-by-step instructions to get your gears shifting smoothly again.

When Does Your Sturmey Archer Hub Gear Need Adjustment?

Several indicators suggest your hub gear might be out of sync. Paying attention to these signs can help you maintain your bike and prevent more significant issues down the line. The most common scenarios include:

• Gears Not Engaging Properly: If, after shifting, the gears feel vague, jump between positions, or you experience a sensation where pedalling doesn't effectively move the bike forward, it's a strong sign that the gear cable tension is off. This means the internal mechanism is likely sitting in a 'blind spot' between gears.
• Wheel Adjustment or Replacement: Whenever you remove and refit your rear wheel, or if you've adjusted the chain tension by moving the wheel within the dropouts, the gear cable tension can be inadvertently altered. Even a slight shift can throw the indexing out.
• New Gear Cable Installation: If you've recently replaced a gear cable, it's essential to set the correct tension from the outset. A new cable will also stretch slightly as it beds in, often requiring a minor re-adjustment.

Understanding How a Sturmey Archer 3-Speed Hub Works

To effectively adjust your Sturmey Archer hub, it helps to have a basic understanding of its operation. The system relies on a gear cable connected to a shifter. This cable, in turn, operates an 'indicator chain' or rod that protrudes from the hub's axle.

In a typical Sturmey Archer 3-speed setup (like the classic AW hub), the highest gear is achieved with no tension on the cable. As you move the shifter, the cable is pulled, which tightens the indicator chain. This chain is screwed into an 'axle key' that moves the internal mechanism into specific positions, selecting the lower gears. The precise position of this indicator chain relative to the axle end is the key to correct adjustment.

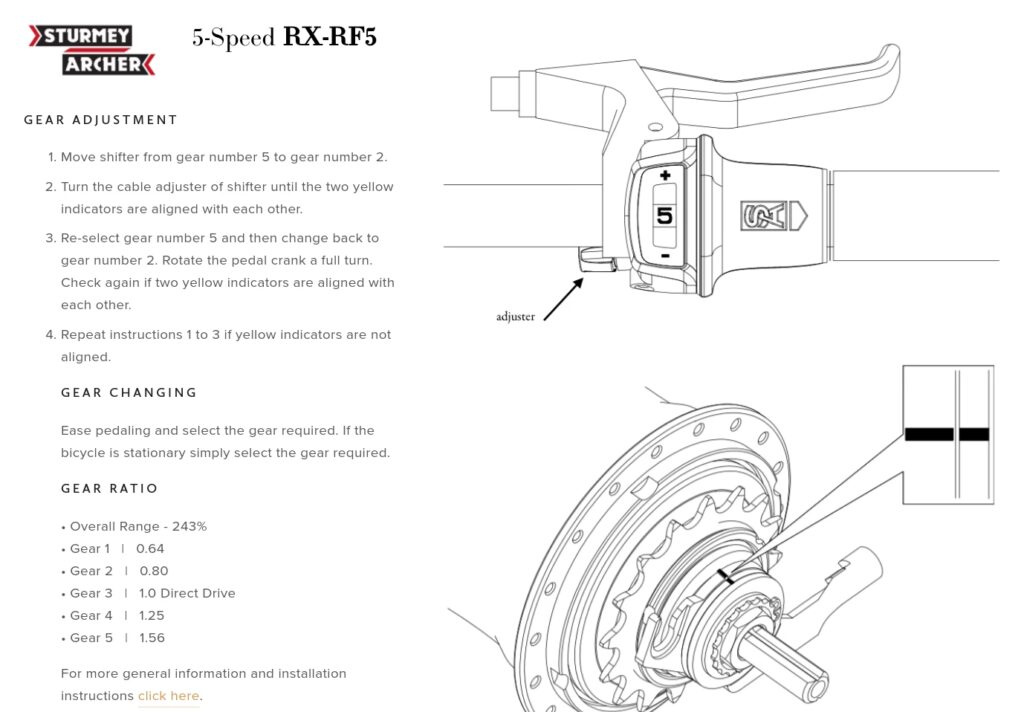

How to Adjust Your Sturmey Archer 3-Speed Hub Gear

The adjustment process for a Sturmey Archer 3-speed hub is relatively straightforward and primarily involves fine-tuning the tension of the indicator chain. You'll need to be able to identify a specific point on the rear axle.

Step-by-Step Adjustment Guide:

1. Select Second Gear: Begin by shifting your bike's gear lever to the second gear position. This is the baseline for our adjustment.
2. Locate the Adjustment Point: Look at the rear wheel axle on the side where the gears are located (the drive side, usually the right side). You should see the wheel nut. On some axles, there's a small circular hole or window that allows you to see the very end of the axle.
3. Check the Indicator Rod: Peer into this hole. You're looking for the end of the indicator rod. There are two primary conditions:
   • Rod Protrudes Too Far: If the end of the rod sticks out significantly beyond the end of the axle, the gear cable is too tight.
   • Rod Not Visible: If you cannot see the end of the rod at all, or it's recessed deep within the axle, the cable is too loose.
4. Adjusting for a Tight Cable (Rod Protruding):
   • Locate the cable anchorage adjuster. This is usually a knurled nut where the gear cable housing meets the hub.
   • There will also be a small knurled locking nut on the indicator chain itself, often near the cable anchorage. You may need to slightly undo this locking nut with your fingers or a small tool to allow the adjuster to turn.
   • Hold the cable anchorage adjuster steady. With your other hand, grasp the indicator chain.
   • Turn the anchorage adjuster anti-clockwise (counter-clockwise). You're aiming to retract the indicator chain slightly so that the end of the rod is just flush, or perfectly in line, with the end of the axle.
   • Once the rod is correctly positioned, re-tighten the knurled locking ring against the cable anchorage adjuster. It only needs to be hand-tight to secure the adjuster.
5. Adjusting for a Loose Cable (Rod Not Visible):
   • Locate the cable anchorage adjuster and its associated locking nut on the indicator chain.
   • Undo the knurled locking nut on the indicator chain completely, allowing the adjuster to move freely.
   • Hold the cable anchorage adjuster steady. With your other hand, grasp the indicator chain.
   • Turn the anchorage adjuster clockwise. You need to advance the indicator chain outwards until the very end of the rod becomes visible and is perfectly in line with the end of the axle.
   • Once the rod is correctly positioned, re-tighten the knurled locking ring against the cable anchorage adjuster. Again, hand-tight is sufficient.

A Note on the 'Classic' AW Hub Adjustment

For the very popular 'classic' Sturmey Archer AW hub (manufactured from the 1930s to the 1990s), there's a slightly nuanced adjustment method that prioritises the integrity of the high gear spring. This method also applies to other older Sturmey Archer hubs with similar mechanisms, such as coaster brake hubs (TCW, SC3), the FW four-speed, and twin-cable five-speeds.

The core principle here is to ensure that the spring responsible for holding the hub in high gear is allowed to function correctly.

Alternative Adjustment Method:

1. Select High Gear: Shift to the highest gear (Gear 3 on a 3-speed).
2. Take Up Slack: Loosen the locking nut on the indicator chain. Turn the adjuster until the tiny chain is just taut – not tight, but with all slack removed.
3. Introduce Slight Slack: Back off the adjuster just a fraction so that the indicator chain has a tiny amount of play. You should be able to wiggle it side-to-side very slightly without feeling any resistance. This ensures the spring in high gear is fully engaged.
4. Secure: Tighten the locknut to hold the adjuster in place.
5. Check Neutral: Shift to what should be neutral (often between 2nd and 3rd gear). With the cranks stationary, you should be able to turn the pedals slightly without the wheel moving. If the shifter is roughly centred and you have neutral, you're likely set. Minor tweaks to the adjuster may be needed if it feels off.

Adjusting Shimano Hub Gears (For Comparison)

While this guide focuses on Sturmey Archer, it's useful to understand how Shimano hub gears are adjusted, as they use a different visual indicator.

How Shimano Hub Gears Work:

Shimano hub gears typically operate in reverse to Sturmey Archer. With no cable tension, the bike is in its lowest gear. Tightening the cable moves the internal mechanism via a rod (3-speed) or a cassette joint unit (5-speed and above) to achieve higher gears.

Adjusting Shimano 3-Speed Hub Gears:

Tools Needed: 10mm spanner.

1. Set the shifter to 2nd gear.
2. Locate the 'bell crank indicator' on the hub. This unit typically has two white lines and a yellow indicator.
3. Cable Too Loose: If the yellow indicator is closer to the outer white line, the cable is too loose. Undo the lock ring on the barrel adjuster (usually integrated into the shifter or cable end) with a 10mm spanner. Turn the barrel adjuster anti-clockwise until the yellow indicator is centred between the two white lines. Tighten the lock ring.
4. Cable Too Tight: If the yellow indicator is closer to the inner white line, the cable is too tight. Undo the lock ring. Turn the barrel adjuster clockwise until the yellow indicator is centred. Tighten the lock ring.

Adjusting Shimano 5, 7, 8, and 11-Speed Hub Gears:

These hubs use a different visual cue, usually two yellow indicators on a cassette joint unit.

1. Ensure the cable moves freely by shifting through all gears.
2. For 5-Speed: Set the lever to 3rd gear.
3. For 7/8-Speed: Set the lever to 4th gear.
4. For 11-Speed: Set the lever to 6th gear.
5. Observe the two yellow indicators on the cassette joint unit.
6. Cable Too Loose: If the top yellow indicator line is to the right of the bottom indicator, the cable is too loose. Unscrew the barrel adjuster on the lever (or inline adjuster) until the two yellow indicators align.
7. Cable Too Tight: If the top yellow indicator line is to the left of the bottom indicator, the cable is too tight. Unscrew the barrel adjuster until the indicators align.

Troubleshooting Tips and FAQs

Q1: My Sturmey Archer still doesn't shift correctly after adjustment. What else could be wrong?

A: Ensure the gear cable itself isn't frayed or kinked. Check that the cable outer casing is properly seated in its stops. Also, verify that the indicator chain isn't damaged or stretched significantly. In rare cases, the internal mechanism itself might have an issue, which might require a more in-depth service.

Q2: How often should I check the adjustment on my hub gear?

A: It's good practice to check your gear indexing periodically, perhaps every few months or after a significant event like a wheel removal. Listen for any changes in shifting performance.

Q3: Can I use a cable tension adjuster like those found on road bikes?

A: Yes, many people fit inline adjusters to their hub gear cables. This allows for on-the-fly adjustments without needing to access the hub directly, which can be very convenient.

Q4: My Sturmey Archer hub makes a clicking noise in certain gears. Is this normal?

A: Some internal hub gears, particularly older ones, can produce a subtle clicking or whirring sound as they operate. This is often normal. However, loud, irregular clicking might indicate a problem with the internal workings.

Q5: What is the 'neutral' position on my Sturmey Archer?

A: On many Sturmey Archer 3-speed hubs, there's a position between high gear and second gear where the pedals can turn freely without engaging the wheel. This is the neutral position. Correct adjustment helps define this point accurately.

Conclusion

Maintaining the correct cable tension is crucial for the smooth operation of your Sturmey Archer 3-speed hub gear. By understanding the indicators and following these adjustment steps, you can ensure your internal hub gears perform reliably for many miles to come. Remember to always work carefully and make small adjustments, testing the shifting after each change.
