TF-80SC Transmission: Common Issues & Solutions

The Aisin-Warner TF-80SC (and its closely related sibling, the TF-81SC) is an automatic transmission that has graced a variety of vehicles, particularly those from Volvo, Ford, and Mazda. Designed to handle a respectable torque output, up to 450 Newton meters, and originally intended for engines around 2.2 litres, it was later adapted for larger, up to 4-litre, powerplants. This transmission is a marvel of modern engineering, being almost entirely electronically controlled, with the selector lever being the primary, and often the only, mechanical link. While many owners experience seamless operation for years, the TF-80SC is not without its quirks and potential pitfalls. Understanding these common issues is crucial for proactive maintenance and timely repairs, potentially saving you a significant amount of money and hassle down the line.

Understanding the TF-80SC's Design Philosophy

The complexity of the TF-80SC means that driver behaviour plays a significant role in its longevity. The transmission's reliance on electronic control and hydraulic pressure means that abrupt changes in driving modes, especially while the vehicle is still in motion, can lead to premature wear. A particularly common scenario that can lead to expensive repairs involves engaging 'Drive' before the vehicle has come to a complete stop when reversing. This sudden shift can stress the internal friction materials, leading to slippage and eventual failure of the clutch packs within the automatic transmission. It's a simple habit to adopt, but one that can have a profound impact on the health of your TF-80SC.

Common TF-80SC Transmission Problems

The TF-80SC, despite its sophisticated design, can suffer from a range of issues. These problems can manifest in various ways, from subtle changes in driving feel to more overt and concerning symptoms.

Harsh Shifting and Jerking

One of the most frequently reported issues with the TF-80SC is harsh shifting. This can present as noticeable jolts or jerks when the transmission changes gears, particularly between lower gears or when downshifting. This symptom often points towards problems within the transmission's solenoids or the valve body. Aggressive driving, which puts extra strain on the transmission's components, can exacerbate this issue. Over time, the friction materials can start to degrade, leading to less smooth engagement.

Hydraulic Unit Failures

As transmissions age, the hydraulic unit, which is responsible for controlling fluid pressure to actuate the clutches and bands, can begin to develop issues. Problems with the hydraulic unit in the AW TF-80SC can lead to a variety of symptoms, including delayed gear engagement, slipping gears, or a complete loss of drive. These issues often require significant dismantling of the transmission for diagnosis and repair, making them some of the more costly problems to address.

Solenoid Malfunctions

The solenoids are electro-hydraulic valves that control the flow of transmission fluid to engage and disengage different gear sets. If a solenoid fails or becomes clogged with debris, it can cause erratic shifting, delayed engagement, or even prevent certain gears from being selected. Many repair kits for the TF-80SC specifically target solenoid issues, and in some cases, replacing faulty solenoids can resolve a wide range of transmission problems.

Torque Converter Issues

While not as common as solenoid or valve body problems, the torque converter can also be a source of trouble. Symptoms can include shuddering at certain speeds, a feeling of slipping, or difficulty in locking up the torque converter. If the torque converter is failing, it will often require replacement, which is a labour-intensive job.

Wear and Tear on Friction Materials

Like any clutch system, the friction materials within the TF-80SC transmission will eventually wear out, especially with high mileage or aggressive driving. This wear can lead to slipping, particularly under load, and the aforementioned harsh shifting. When friction materials fail significantly, a full transmission rebuild is often necessary.

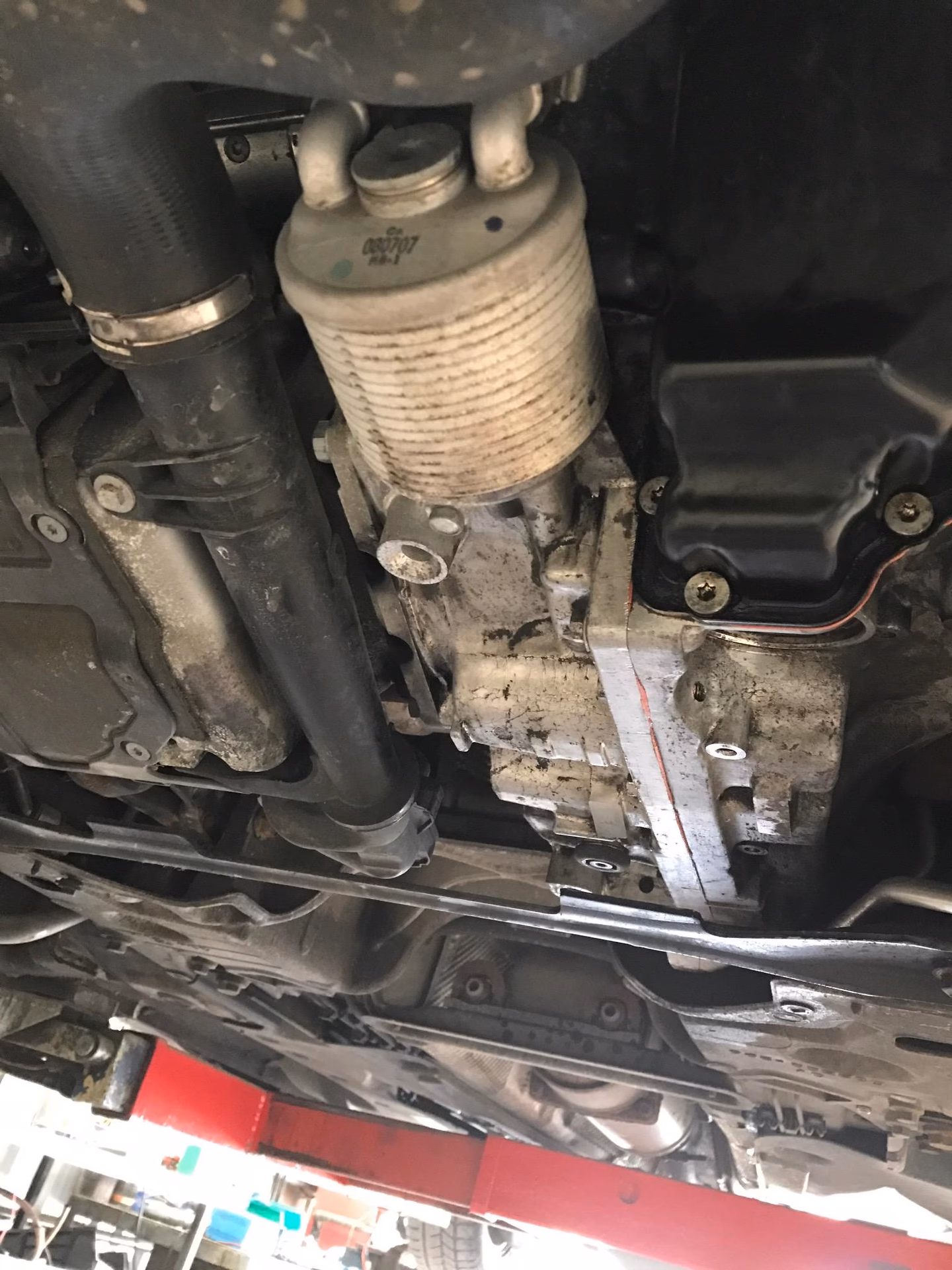

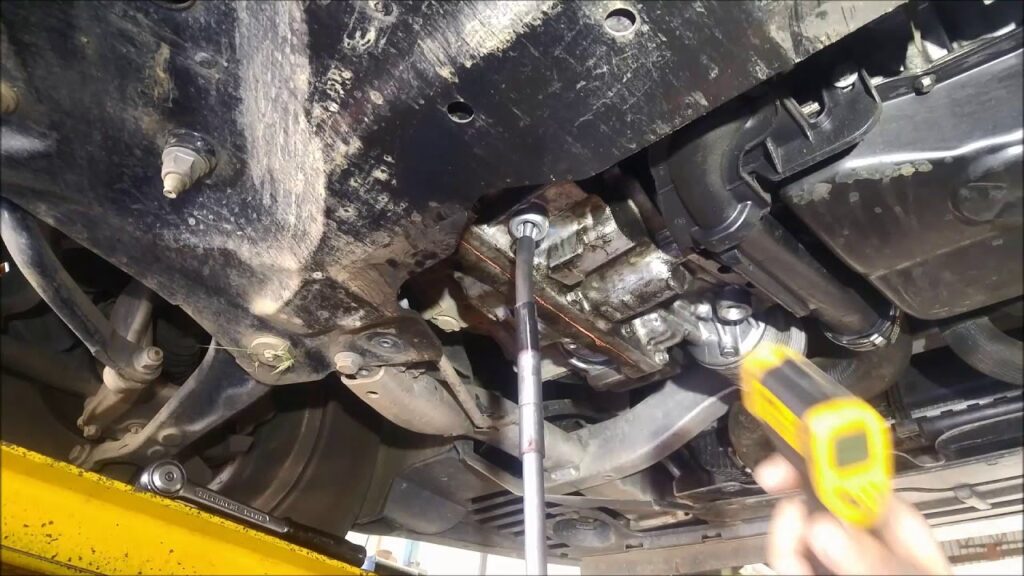

Maintenance is Key: TF-80SC Transmission Fluid Change

Regular maintenance, particularly a transmission fluid change, is paramount for the longevity of the TF-80SC. The recommended capacity is approximately 8.9 quarts. Crucially, the correct transmission fluid must be used. While Toyota Type T-IV or Toyota WS fluids are often cited as compatible, it is always best to consult your vehicle's owner's manual or a trusted mechanic to confirm the precise fluid specification for your particular model. The filter is integrated within the gearbox and is generally not a routine replacement item during a fluid change, but its condition should be assessed during more in-depth servicing.

What You Need for Repair: A Breakdown

When the inevitable happens and your TF-80SC requires attention, having an understanding of the necessary components can be beneficial. Repairing or rebuilding this transmission typically involves:

• Master Kits: These comprehensive kits contain a wide array of seals, gaskets, O-rings, and often friction and steel clutch plates, providing the essential components for a thorough overhaul.
• Solenoids and Valve Body: As discussed, solenoids are frequent culprits. Valve body issues can also arise due to wear or contamination. Purchasing new or reconditioned solenoids and potentially a reconditioned valve body is a common repair strategy.
• Torque Converter: If the torque converter is suspected to be faulty, it will need to be replaced.
• Bushing Kit: Bushings are small, wear-prone components that support rotating shafts. A bushing kit ensures all critical wear points are addressed during a rebuild.
• Piston Kit: Piston seals can degrade over time, leading to leaks and loss of hydraulic pressure. A piston kit replaces these critical seals.

Frequently Asked Questions About the TF-80SC

Q1: How often should I change the transmission fluid in my TF-80SC?

A1: While manufacturers' recommendations vary, a transmission fluid and filter change every 60,000 to 100,000 miles is a good general guideline for maintaining the health of the TF-80SC.

Q2: Can aggressive driving damage the TF-80SC transmission?

A2: Yes, aggressive driving, such as frequent hard acceleration, heavy braking, and rapid mode changes, can significantly shorten the lifespan of the TF-80SC and increase the likelihood of problems like harsh shifting and friction material wear.

Q3: What are the signs of a failing solenoid in the TF-80SC?

A3: Signs of failing solenoids include erratic shifting, delayed gear engagement, the transmission getting stuck in a particular gear, or the transmission warning light illuminating on the dashboard.

Q4: Is it possible to rebuild a TF-80SC transmission at home?

A4: While technically possible for experienced mechanics with specialized tools and knowledge, rebuilding a TF-80SC is a complex task. It is generally recommended to have this done by a professional transmission specialist to ensure correct assembly and calibration.

Q5: What is the most common cause of failure for the TF-80SC?

A5: The most common causes of failure tend to be issues related to the solenoids and the valve body, often exacerbated by a lack of regular maintenance and fluid changes, or by aggressive driving habits.

Conclusion

The Aisin-Warner TF-80SC is a capable transmission that, with proper care and maintenance, can provide reliable service. However, its complex electronic and hydraulic nature means it's susceptible to specific issues, particularly harsh shifting, hydraulic unit problems, and solenoid malfunctions. By understanding these common faults, adhering to a regular maintenance schedule including timely transmission fluid changes, and adopting a smoother driving style, you can significantly mitigate the risks and ensure your TF-80SC continues to perform optimally for many years to come.
