Understanding Your EAT6 Gearbox and the JWS 3324 Specification
Many car owners find themselves in a quandary when it comes to selecting the correct transmission fluid for their vehicles. This is particularly true for those with automatic transmissions, where the wrong fluid can lead to costly damage. A common query revolves around the use of Aisin AM6 oil, often in relation to the JWS 3324 specification. If you've recently serviced your Peugeot, Citroën, or another vehicle equipped with the EAT6 (Efficient Automatic Transmission 6-speed), you might have encountered this specification. Your vehicle's service manual or a check with the manufacturer's service portal, using your VIN, will likely point to JWS 3324 as the required fluid standard.

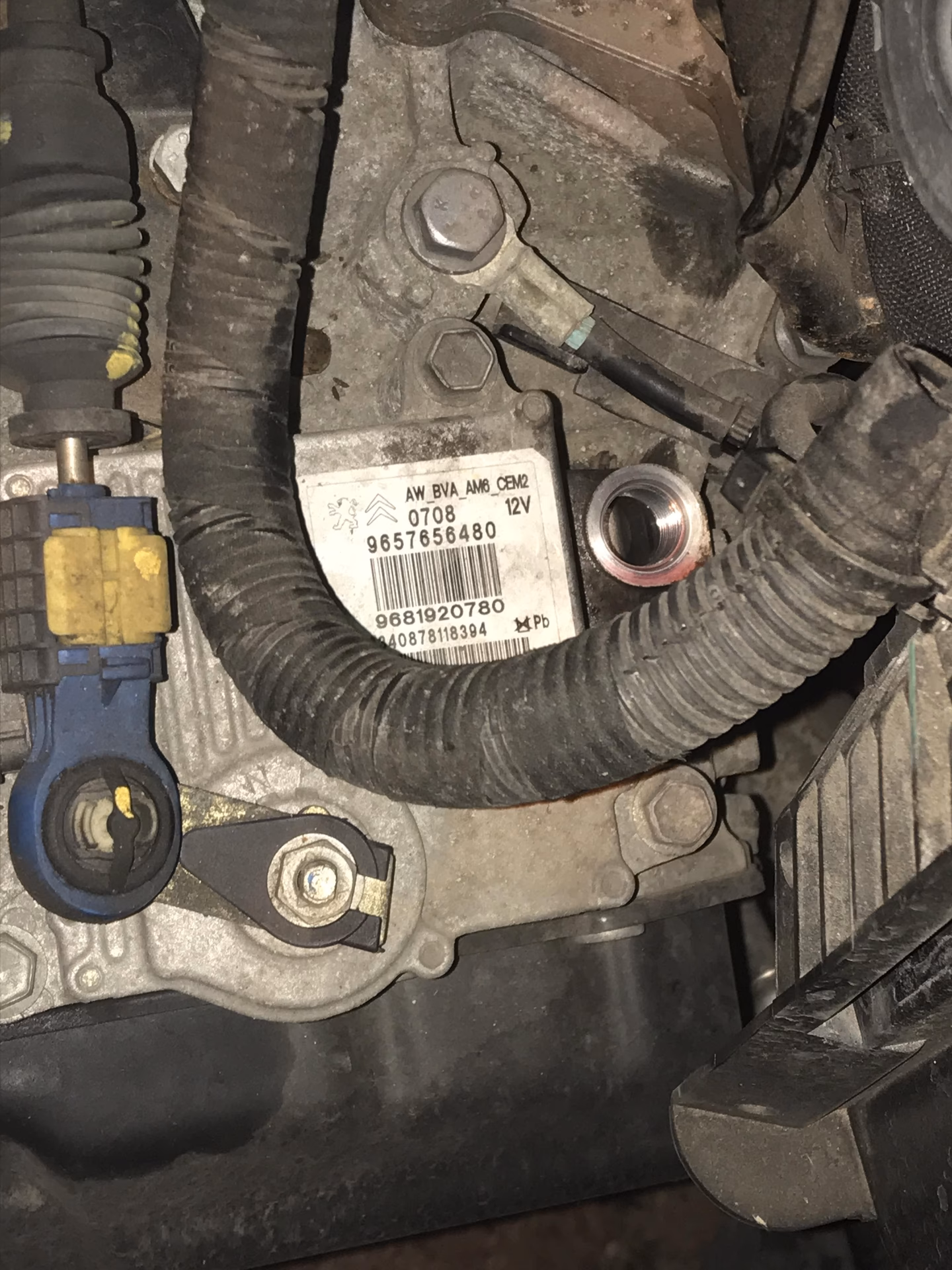

The EAT6, also known by its Aisin internal designation AWF6F25 (or AWF45), is a robust and widely used automatic transmission. Introduced around 2005 and produced until 2019, it's been fitted to a vast array of vehicles globally. Many owners report that, under normal driving conditions and without heavy towing or consistent hard use, this transmission is exceptionally reliable, often requiring no fluid changes throughout the life of the vehicle. Its design shares similarities with well-regarded transmissions from other manufacturers, offering smooth shifts and intelligent gear selection. However, when a fluid change is necessary, ensuring you use the correct fluid is paramount.
The JWS 3324 Specification: What Does It Mean?
The JWS 3324 specification is a fluid standard developed by Aisin Warner, a leading manufacturer of automatic transmissions. This standard dictates the precise properties required for a transmission fluid to function optimally within their gearboxes, including the EAT6. These properties encompass viscosity, friction modifiers, oxidation stability, and other chemical characteristics. Using a fluid that meets this specification ensures that the transmission's clutch packs engage smoothly, the hydraulic system operates correctly, and wear and tear are minimised.
When you consult your vehicle's documentation or the dealership, you'll likely find that the genuine manufacturer-branded fluid, which adheres to JWS 3324, comes with a significant price tag. As highlighted by some owners, a small quantity of this fluid can cost upwards of €130. This often leads to questions about whether there are more affordable alternatives that still meet the required standard.
The substantial price difference between dealership-supplied fluid and fluids from independent auto-parts stores can be startling. You might find fluids labelled as meeting JWS 3324 for as little as €12-€14 per litre. This price disparity naturally raises concerns about the quality and suitability of these aftermarket fluids. However, the key is to look for fluids that explicitly state compliance with the JWS 3324 specification.
Companies like Total, with their Fluidmatic MV LV, are known to produce fluids that meet various OEM specifications, including JWS 3324. When choosing an alternative, it's crucial to verify that the product packaging clearly states that it meets or exceeds the JWS 3324 standard. Reputable brands invest in ensuring their fluids meet these stringent requirements to be compatible with the intended transmissions.
Can I Use Aisin AM6 Oil?
The term 'Aisin AM6 oil' is somewhat generic. Aisin manufactures a range of transmission fluids, and their specific product names might vary. If you're referring to an Aisin-branded fluid that is specifically designated for use in transmissions requiring the JWS 3324 specification, then yes, it is likely suitable. However, it's always best to cross-reference the specific Aisin fluid product code with the JWS 3324 standard or your vehicle manufacturer's recommendations. Often, the JWS 3324 specification is the critical factor, rather than a specific brand name like 'AM6' unless that name is directly linked to the correct specification.
What is the Aisin AW F25 gearbox like?
The Aisin AW F25 gearbox, or the EAT6 as it's known in many European vehicles, is generally considered a very good and reliable automatic transmission. Its widespread use in vehicles from major manufacturers is a testament to its robust design and performance.
Reliability: As mentioned, these gearboxes are known for their durability. In many lighter vehicles, such as the Peugeot 2008 with a 1.2 PureTech 130hp engine, they can often last the lifetime of the car without needing a fluid change, provided they aren't subjected to excessive strain like heavy towing or aggressive driving. They are built to handle significant mileage.
Smoothness and Performance: The EAT6 is praised for its smooth gear changes, comparable to other high-quality automatic transmissions. It's designed to be intelligent, selecting the appropriate gear for the driving conditions, and often provides a quick and responsive kick-down. The gearing in many applications, like the example of the 1.2 PureTech engine, tends to be set for fuel efficiency, with higher gears engaged at lower speeds. This means that for cruising, manually selecting a higher gear might sometimes be beneficial, although the gearbox's own logic usually prevents the engine from labouring.
Intelligent Operation: The transmission's control unit is sophisticated. It monitors throttle input, vehicle speed, and other parameters to optimise gear selection. Even in manual mode, the gearbox will often downshift if the engine speed is too low for the selected gear, or prevent an upshift if the vehicle is travelling too slowly for that gear. This ensures the engine operates within its optimal range and prevents potential damage.
When to Change Transmission Fluid
While the EAT6 is often marketed as a 'sealed for life' unit, this typically assumes ideal operating conditions. Factors that might necessitate a transmission fluid change include:
- High Mileage: Even in light use, transmission fluid degrades over time due to heat and shear forces.
- Towing or Heavy Loads: Repeatedly towing trailers or carrying heavy loads puts extra stress on the transmission, accelerating fluid degradation.
- Aggressive Driving: Frequent hard acceleration, braking, and high-speed driving can generate more heat and stress.
- Age: Over many years, even without heavy use, the additives in the fluid can break down.
- Specific Service Intervals: Some manufacturers may recommend a fluid change at certain mileage or time intervals, even if not strictly necessary for function. Always consult your service schedule.
If you are unsure, a qualified mechanic can assess the condition of the transmission fluid. Signs of degraded fluid can include a burnt smell, a dark or murky appearance, or the presence of metallic particles.
Important Considerations for Fluid Changes
When changing the transmission fluid, it's crucial to follow the correct procedure. This often involves not just draining and refilling, but also flushing the system to remove old fluid and contaminants. The exact procedure, including the amount of fluid required and any specific filling or bleeding steps, should be followed meticulously. If you're not confident in performing this yourself, it's best left to a professional mechanic experienced with this type of transmission.
What to Look for on the Bottle
When purchasing transmission fluid for your EAT6, prioritise the following:
| Key Feature | What to Look For |
|---|---|
| Specification Compliance | JWS 3324 (or Aisin Warner JWS 3324) |
| Manufacturer Approval | Explicit mention of compatibility with Aisin transmissions that require JWS 3324 (e.g., EAT6, TF-80SC, TF-81SC) |
| Fluid Type | Automatic Transmission Fluid (ATF) |
| Brand Reputation | Reputable brands known for producing quality automotive fluids (e.g., Total, Mobil, Castrol, or Aisin itself) |
Frequently Asked Questions (FAQs)
Q1: Can I mix JWS 3324 fluids from different brands?
A1: It is generally not recommended to mix fluids from different brands, even if they meet the same specification. While the specification ensures basic compatibility, minor differences in additive packages could potentially affect performance or longevity. It's best to use fluid from a single source for a complete fill.
Q2: How much transmission fluid does the EAT6 typically require?
A2: The exact amount can vary depending on the vehicle model and whether it's a simple drain and refill or a more comprehensive flush. However, for a drain and refill, typically around 3 to 4 litres are needed. Always check your vehicle's specific service manual or consult a professional.
Q3: Is the Aisin EAT6 the same as the ZF 6HP?
A3: While they share some design philosophies and are both respected 6-speed automatic transmissions, they are manufactured by different companies (Aisin and ZF respectively) and have distinct internal components and fluid requirements. The EAT6 is Aisin's product.
Q4: My car has an EAT8 transmission. Does it use the same fluid?
A4: The EAT8 is a newer generation transmission. While some might share fluid specifications, it's crucial to check the specific JWS/other OEM specification required for the EAT8. It's not safe to assume it's the same as the EAT6 (AWF25).
Q5: Can I use a universal ATF fluid?
A5: Universal ATFs are designed to cover a broad range of specifications, but they may not offer the optimal performance or protection for a specific transmission like the EAT6. Given the cost savings are often minimal and the risk of using the wrong fluid is high, it's always best to stick to fluids that explicitly meet the JWS 3324 specification.
In conclusion, while the cost of genuine manufacturer-branded transmission fluid can be high, numerous reputable aftermarket fluids that meet the critical JWS 3324 specification are available. Always verify the product's compliance, and if in doubt, seek professional advice to ensure the longevity and smooth operation of your reliable Aisin EAT6 gearbox.
