AC Compressor Clutch Replacement: Your UK Guide

There's nothing quite like the refreshing blast of cold air conditioning on a sweltering British summer day. However, when your car's AC system starts to falter, it can quickly turn a pleasant drive into a sticky, uncomfortable ordeal. Often, the culprit behind a struggling AC is a component you might not immediately consider: the AC compressor clutch. Understanding the symptoms of a failing clutch, knowing how to test it, and appreciating its critical role in your vehicle's cooling system can save you both discomfort and potential repair costs. This comprehensive guide will walk you through everything you need to know about your AC compressor clutch, from identifying the warning signs to understanding replacement options and costs, ensuring you can get your cabin back to a comfortable temperature.

Symptoms Of A Failing AC Compressor Clutch

When the AC compressor clutch begins to fail, the efficiency and even the functionality of your air conditioning system can be severely compromised. Recognising these symptoms early can prevent further damage and help pinpoint the exact issue, differentiating it from other potential AC problems.

1. No Cold Air From The Vents

This is perhaps the most obvious and frustrating symptom. If your air conditioning system is blowing only warm or ambient air, despite being switched on, a failing compressor clutch is a strong possibility. While a lack of refrigerant is a common cause for this, a non-engaging clutch means the compressor isn't pressurising the refrigerant, thus preventing the cooling cycle from initiating. It's crucial to rule out other issues with a thorough diagnostic process before jumping to conclusions, but a completely absent cold airflow should certainly put the clutch on your suspect list.

2. Intermittent AC Operation

Before a complete failure, your AC might work sporadically. You might experience periods where the air is cool, followed by times when it's just warm, only for it to cycle back to cool again. This inconsistency often indicates that the compressor clutch is struggling to engage reliably. It might engage for a short period, disengage due to overheating or mechanical wear, and then re-engage once it cools down or conditions change slightly. This intermittent behaviour is a clear warning sign that the clutch is on its way out and requires attention sooner rather than later.

3. Loud Noises From The AC Compressor Area

Unusual noises emanating from the engine bay, particularly when the AC is switched on, are a strong indicator of a failing compressor clutch or its bearings. These noises can range from a high-pitched squealing, especially noticeable upon initial engagement, to a grinding or rattling sound. A squeal often suggests worn or failing clutch bearings, which can lead to excessive friction and heat. A grinding noise might indicate severe internal damage within the clutch assembly itself, requiring immediate investigation to prevent more extensive and costly repairs to the compressor or even the serpentine belt.

4. Visually Confirming The Clutch Has Stopped Moving

A simple visual inspection can sometimes confirm a clutch issue. With the engine running and the AC switched on, observe the front of the AC compressor. The outer part of the clutch, known as the pulley, should be spinning continuously with the serpentine belt. However, the inner hub of the clutch should only spin when the AC is activated. If the inner hub is not spinning when the AC is on, it indicates the clutch isn't engaging. Conversely, if the inner hub is always spinning, even when the AC is off, the clutch has seized, meaning the compressor is constantly running, which can lead to overheating and further damage.

5. Inability To Turn The Air Conditioning On Or Off

If the compressor clutch seizes in either an engaged or disengaged position, you might lose control over your AC system. If it seizes engaged, the compressor will run continuously, even when you try to turn the AC off from the control panel. This can lead to excessive wear on the compressor and potentially other engine components. If it seizes disengaged, the AC will simply never turn on, regardless of your input. This loss of control is a direct result of the clutch's inability to respond to electrical signals, highlighting a significant mechanical or electrical fault within the clutch mechanism.

6. Leaking AC Refrigerant

While not a direct symptom of clutch failure, a failing compressor clutch can indirectly lead to refrigerant leaks. When the clutch is not engaging or disengaging smoothly, or if its bearings are failing, it can put undue stress on the compressor's front shaft seal. This increased stress and vibration can cause the seal to wear prematurely or even rupture, leading to refrigerant escaping from the system. If you notice a greasy residue or a sweet smell near the compressor, it could indicate a refrigerant leak, often accompanied by a reduction in cooling performance.

Common Reasons The AC Compressor Clutch Won’t Engage

Beyond mechanical wear, several other factors can prevent the AC compressor clutch from engaging. Understanding these can help in a more accurate diagnosis, potentially saving you from unnecessary part replacements.

1. Blown Fuse

The simplest explanation for a non-engaging clutch is often a blown fuse. The AC compressor, like many other electrical components in your car, relies on a dedicated fuse for power. If this fuse blows, the electrical circuit to the clutch is interrupted, preventing it from receiving the necessary power to engage. Checking the fuse box and replacing any blown AC-related fuses with one of the correct amperage should always be the first step in diagnosing a non-engaging clutch.

2. Faulty AC Pressure Switch

Modern AC systems incorporate various pressure switches (low-pressure and high-pressure) and temperature sensors (like the evaporator temperature sensor) to monitor system conditions. These switches are crucial for protecting the system; for instance, the low-pressure switch prevents the compressor from running if refrigerant levels are too low, while the high-pressure switch disengages the clutch if system pressure becomes excessively high. A faulty pressure switch, even if the system's pressure is normal, can send incorrect signals, preventing the clutch from engaging.

3. Faulty Wiring Or Connectors

The AC compressor clutch relies on a precise electrical signal to engage. This signal travels through a network of wires and connectors. Any damage, corrosion, or loose connection within this wiring harness can interrupt the signal, preventing the clutch from activating. Diagnosing wiring issues can be complex, often requiring a multimeter to test for continuity and voltage at various points in the circuit leading to the compressor.

4. Incorrect Refrigerant Charge

Both an undercharged and an overcharged AC system can prevent the compressor clutch from engaging. As mentioned, the low-pressure switch will prevent engagement if there isn't enough refrigerant, protecting the compressor from running without adequate lubrication and cooling. Conversely, an overcharged system can cause excessively high pressures, prompting the high-pressure switch to disengage the clutch as a safety measure. Ensuring the system has the correct refrigerant charge is fundamental for proper AC operation and clutch engagement.

Testing The AC Compressor Clutch

Accurately testing the AC compressor clutch can help confirm if it's the source of your AC woes. A combination of visual, auditory, and practical tests can provide a definitive answer.

1. RPM Fluctuation Test

A simple yet effective test involves observing your engine's RPMs.

1. Start your car and let the engine idle.
2. Turn on your vehicle's air conditioning system to its coldest setting and highest fan speed.
3. Carefully observe your car's RPM gauge.

When the AC compressor engages, it places a load on the engine, causing a slight, momentary increase in RPMs before the engine management system stabilises them. If you don't observe this slight RPM fluctuation when the AC is switched on, it suggests the compressor, and therefore its clutch, isn't engaging.

2. Sensory Inspection

Use your senses to gather more clues:

• Feel for Vibration: With the engine running and AC on, carefully place your hand on the compressor (ensure hands are clear of all moving belts and pulleys). You should feel a distinct vibration if the compressor is engaged and running. A lack of vibration indicates it's not working.
• Listen for Sounds: A properly engaging compressor clutch will often make an audible "click" sound as it engages. Once engaged, the compressor should produce a steady humming or whirring sound. If you only hear a click without the subsequent hum, or no sound at all, the clutch might not be fully engaging or the compressor itself isn't operating.
• Visual Pulley Check: As mentioned previously, observe the pulley at the front of the compressor. The outer part should always spin with the serpentine belt. When the AC is on, the inner hub of the clutch should also spin. If the inner hub remains stationary while the outer pulley spins, the clutch is not engaging.

3. Jumping The Compressor Clutch (With Caution)

This test directly checks the clutch's electromagnet. Exercise extreme caution and ensure you understand electrical circuits before attempting this, as serious injury or damage can occur. Keep hands clear of all moving parts.

1. Locate the electrical connector for the AC compressor. This is typically a two-wire connector.
2. Unplug the connector from the compressor.
3. Using two jumper wires (ideally with spade connectors that fit the compressor's terminals), connect one jumper wire to the positive terminal of your car battery and the other to one of the compressor's connector terminals.
4. Connect the second jumper wire to the negative terminal of your car battery and the other to the remaining compressor's connector terminal.

If the electromagnet within the clutch is functional, you should hear a distinct "clunk" or "click" as the clutch engages. The inner hub of the clutch should also visibly spin. If it engages, the clutch's electromagnet is working, suggesting the problem lies upstream in the electrical circuit (fuse, relay, pressure switch, wiring). If it does not engage, the clutch's electromagnet is likely faulty, confirming the clutch itself is the problem. Disconnect the positive wire first when done.

Where Is The AC Compressor Clutch Located?

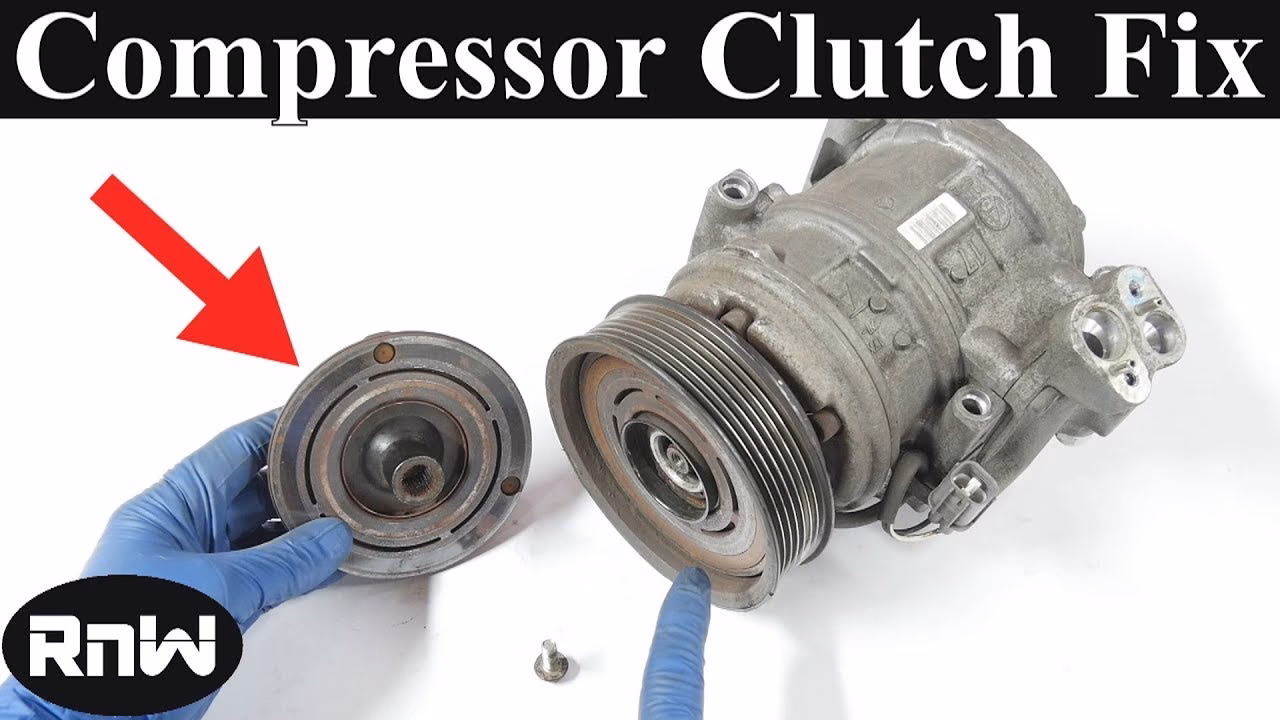

The AC compressor clutch is an integral part of the air conditioning compressor unit itself. You'll find it mounted directly on the front of the compressor. The compressor is typically located towards the front of the engine bay, usually on one side, and is easily identifiable by the drive belt (the serpentine belt) that wraps around its pulley. Its position makes it accessible for visual inspection and some testing, though specific location can vary slightly between vehicle models. If you're unsure, consulting your vehicle's owner's manual or a service manual will provide the exact location and a diagram of your engine bay components.

The Function Of The AC Compressor Clutch

The AC compressor clutch plays a pivotal role in your vehicle's air conditioning system, acting as the on-off switch for the compressor. When you activate the AC from your car's control panel, an electrical signal is sent to the compressor clutch. This signal energises an electromagnet within the clutch. The electromagnet then pulls the clutch's pressure plate against the pulley, which is constantly spinning via the serpentine belt. This engagement locks the pulley to the compressor's input shaft, causing the compressor to spin.

Once engaged, the compressor begins its primary job: to compress the gaseous refrigerant. This compression increases the refrigerant's temperature and pressure, allowing it to then release heat in the condenser and absorb heat from the cabin in the evaporator, ultimately providing cool air. When the desired cabin temperature is reached, or if system pressures are too high/low, the electrical signal to the clutch is cut, the electromagnet de-energises, and the clutch disengages the compressor from the pulley, stopping the compression cycle. This cyclical operation is essential for efficient cooling and to prevent the compressor from running unnecessarily, saving fuel and reducing wear.

AC Compressor Clutch Replacement Cost

When it comes to replacing just the AC compressor clutch, it's a topic that often leads to debate among mechanics and vehicle owners. While it is technically possible to replace only the clutch assembly, the prevailing advice from automotive professionals is to replace the entire AC compressor unit. This is largely due to the fact that if the clutch has failed, the compressor itself may have experienced undue stress or is nearing the end of its lifespan, making a full replacement a more reliable long-term solution.

The cost of replacing an AC compressor can vary significantly based on several factors, including your vehicle's make and model, the type of compressor required, and where you have the work carried out. On average, you can expect to pay anywhere from £650 to £1,400 in the UK for a full AC compressor replacement. This cost typically breaks down into two main components:

• Parts: The compressor unit itself can range from £400 to £900, depending on the vehicle and whether you opt for an OEM (Original Equipment Manufacturer) part or a high-quality aftermarket alternative.
• Labour: Labour costs will account for the remainder, usually between £250 and £500. The job typically takes between two to three hours, but shops charge varying hourly rates.

Factors Influencing Cost:

• Vehicle Type: Luxury or high-performance vehicles often have more expensive parts and can sometimes be more complex to work on, driving up costs.
• Location: Labour rates can vary significantly across different regions of the UK, with urban centres generally having higher rates than rural areas.
• Garage Choice: Independent garages often offer more competitive pricing compared to main dealerships, though both have their advantages in terms of expertise and warranty.

DIY vs. Professional Replacement

While the idea of saving money by performing the replacement yourself might be appealing, replacing an AC compressor is a complex task that requires specific knowledge and specialised tools. The AC system is sealed and contains refrigerant under pressure, which must be safely recovered and recharged. This process requires specialist equipment that is not typically available to the average home mechanic.

Given the complexities, the need for specialist equipment, and the environmental regulations regarding refrigerant handling, a professional diagnosis and replacement is strongly recommended for AC system repairs. Attempting a DIY replacement without the proper tools and expertise can lead to further damage, wasted money, and potential personal injury.

Frequently Asked Questions About AC Compressor Clutches

Is it worth replacing just the AC compressor clutch?

In most scenarios, particularly for older vehicles or those with high mileage, it is generally not considered worth replacing just the AC compressor clutch. Modern compressors are often designed as integrated units, and by the time the clutch fails, other internal components of the compressor may also be worn or nearing the end of their service life. The labour involved in replacing just the clutch is often nearly as much as replacing the entire compressor, and opting for a full compressor replacement provides a new component with a fresh warranty, offering greater peace of mind and reducing the likelihood of another AC system failure in the near future. While the initial outlay is higher, it often proves more cost-effective in the long run.

Can I drive my car with a bad AC compressor clutch?

While you might be able to drive your car with a bad AC compressor clutch, it is strongly advised to have it repaired sooner rather than later. If the clutch has seized in the engaged position, the compressor will run continuously, leading to excessive wear and potential damage to the compressor itself, as well as putting unnecessary strain on the engine and consuming more fuel. If the clutch has seized in the disengaged position, the AC simply won't work, but there's generally less immediate risk to other components. However, if the clutch bearings are failing, they can cause excessive friction, heat, and potentially catastrophic failure of the serpentine belt. A broken serpentine belt can lead to a loss of power steering, alternator function (battery charging), and water pump operation (engine cooling), potentially causing your engine to overheat or leave you stranded.

What causes a car AC compressor clutch to get burnt?

A car AC compressor clutch can get burnt due primarily to excessive heat generated by constant slipping or electrical issues. Common causes include:

• Slipping Clutch: If the clutch is constantly slipping rather than fully engaging, friction generates immense heat, which can burn the clutch material. This can be caused by low refrigerant levels (leading to the clutch cycling on and off rapidly), an incorrect air gap in the clutch, or a weak electromagnet.
• Electrical Faults: Problems with the AC relay or pressure switches can cause the clutch to receive an incorrect voltage or an intermittent power supply. If the voltage is too low, the electromagnet may not be strong enough to fully engage the clutch, leading to slippage and burning. Conversely, a faulty relay could cause the clutch to remain energised constantly, leading to overheating.
• Overload: An overcharged AC system can cause the compressor to work harder, putting excessive strain on the clutch and generating more heat.

How long does an AC compressor clutch last?

The lifespan of an AC compressor clutch is inherently tied to the lifespan of the AC compressor itself. On average, a car's AC compressor is designed to last between 10 to 12 years, or around 100,000 to 150,000 miles, assuming regular maintenance and no external issues. As a moving part, the clutch is subject to significant wear and tear from repeated engagement and disengagement cycles, as well as exposure to engine heat and vibrations. It's not uncommon for the clutch to fail before the main compressor unit, especially if its bearings wear out. However, due to the integrated nature of modern units and the labour involved, as discussed, most professionals recommend replacing the entire compressor unit rather than just the clutch, ensuring the longevity of the entire cooling system.

Keeping your car's air conditioning system in top working order is essential for comfortable driving, especially during warmer months. Understanding the signs of a failing AC compressor clutch and taking prompt action can prevent further damage and ensure your cabin remains cool and pleasant. While some diagnostic steps can be performed at home, the complexities of the AC system, involving high-pressure refrigerants and intricate electrical circuits, mean that a professional diagnosis and repair are almost always the safest and most effective course of action. Don't hesitate to consult a qualified mechanic if you suspect an issue with your AC compressor clutch; they have the expertise and equipment to get your system back to peak performance.
