The suspension system in a modern vehicle is a complex network of components designed to provide a comfortable and stable ride. Among these, air springs and their associated pressure lines play a crucial role, especially in vehicles equipped with air suspension. When these components wear out or develop faults, their replacement becomes a necessary task to restore optimal performance and safety. This article delves into the typical duration required for replacing air springs and pressure lines, exploring the factors that can influence this timeframe.
Understanding Air Springs and Pressure Lines
Before discussing the replacement process, it's essential to understand what air springs and pressure lines are and why they are important. Air springs, also known as air bellows or air cushions, are rubber bags filled with compressed air. They act as the primary suspension element, absorbing shocks and vibrations from the road. Unlike traditional coil springs, air springs allow for adjustable ride height and stiffness, offering superior comfort and load-carrying capabilities.

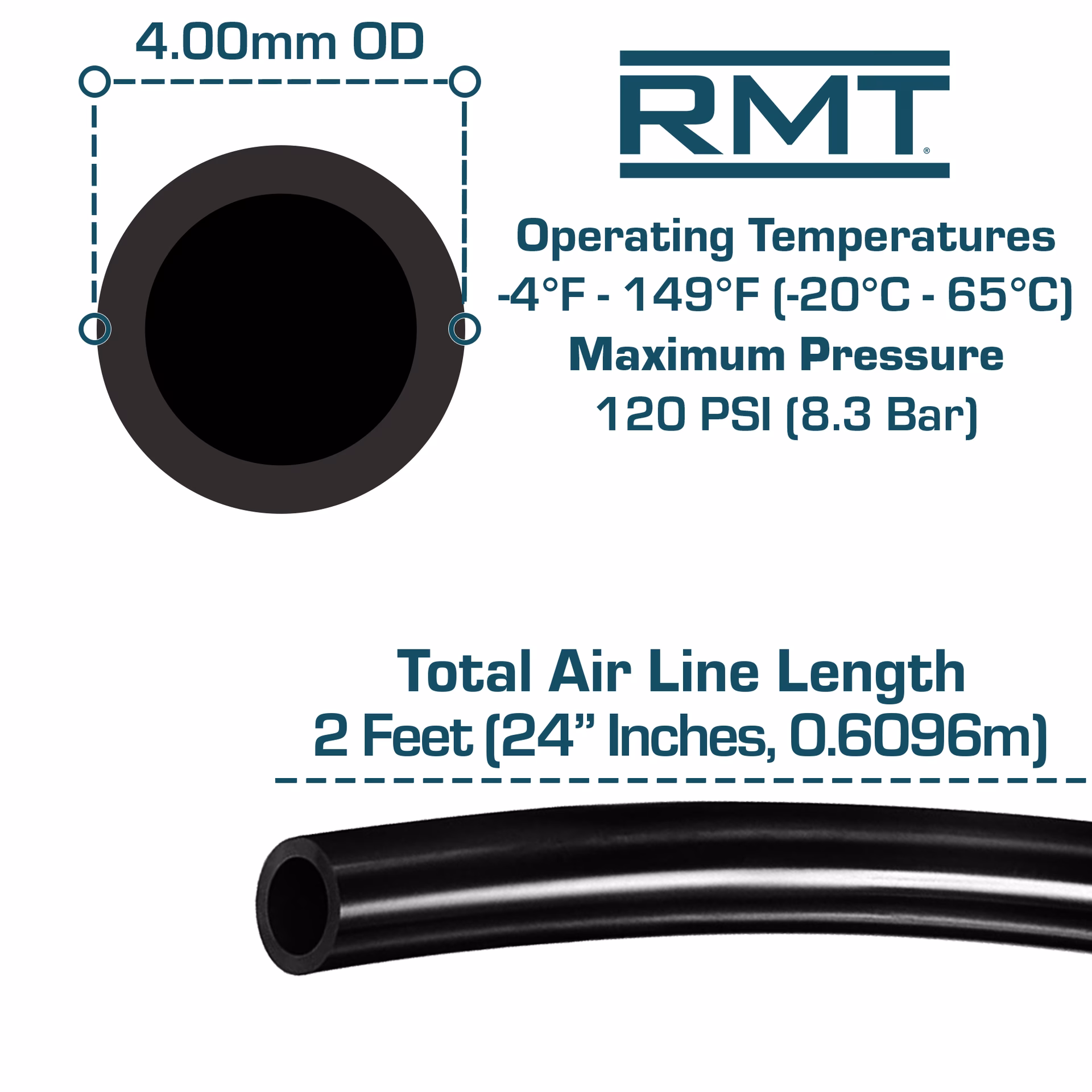

Pressure lines, or air lines, are the conduits that carry compressed air from the air compressor to the air springs. These lines are typically made of durable rubber or plastic and are designed to withstand high pressures and varying temperatures. A leak or blockage in these lines can significantly impair the functionality of the air suspension system.
Factors Influencing Replacement Time
The time it takes to replace air springs and pressure lines can vary considerably depending on several key factors:
- Vehicle Make and Model: Different manufacturers design their suspension systems in unique ways. Some vehicles have more accessible components, while others require extensive disassembly to reach the air springs and lines. For instance, replacing an air spring on a luxury SUV might take longer than on a commercial vehicle with a more straightforward design.
- Type of Air Spring: There are generally two main types of air springs: the bag-style (convoluted) and the sleeve-style (rolling lobe). Sleeve-style springs are often simpler to replace as they typically have fewer mounting points.
- Condition of Associated Components: If the pressure lines are being replaced along with the air springs, the complexity can increase. If the lines are integrated with the spring, the replacement is more straightforward. However, if they are separate and require routing through the vehicle's chassis, it can add significant time. Furthermore, the condition of other suspension components, such as shocks, mounts, and valves, can also impact the overall repair time. If these also need attention, the job will naturally take longer.
- Accessibility of Components: The ease with which a mechanic can access the air springs and pressure lines is a major determinant of the time taken. Vehicles with higher ground clearance or modular body panels will generally be quicker to work on than those with low profiles or complex underbody shielding.
- Mechanic's Experience and Tools: An experienced mechanic familiar with air suspension systems will likely complete the job more efficiently than a novice. The availability of specialized tools, such as diagnostic equipment for testing the system and appropriate lifting gear, also plays a vital role.
- Diagnostic Time: Before replacement, a mechanic will need to diagnose the problem accurately. This might involve checking for leaks, testing the compressor, and verifying the functionality of the control module. This diagnostic phase can add to the overall time.
Typical Replacement Timeframes
While it's difficult to provide an exact figure, we can offer general estimates based on common scenarios:
Replacing a Single Air Spring
For a straightforward replacement of a single air spring on a vehicle where components are easily accessible, a skilled mechanic might take anywhere from 1 to 3 hours. This estimate usually includes the time for diagnosis, removal of the old spring, installation of the new one, and basic system testing. However, if the pressure line connected to that spring also needs replacement, or if access is more challenging, the time could extend to 3 to 5 hours.
Replacing a Pair of Air Springs
It is often recommended to replace air springs in pairs (front or rear axle) to ensure consistent performance and to avoid uneven suspension behaviour. Replacing both front or both rear air springs, including their associated lines if necessary, typically takes longer. For a pair, you can expect the job to take between 3 to 6 hours. This accounts for the increased labour involved in jacking up the vehicle, removing wheels, and working on both sides of the axle.
Complete Air Suspension System Overhaul
In some cases, multiple components of the air suspension system might require replacement, such as all four air springs, pressure lines, the compressor, and control valves. A comprehensive overhaul of the entire system can be a much more involved process, potentially taking 8 to 12 hours or even longer, depending on the extent of the work and the specific vehicle.
The Replacement Process: A Step-by-Step Overview
To better understand the time commitment, here’s a simplified overview of the typical steps involved in replacing an air spring and its pressure line:
- Vehicle Preparation: The vehicle is safely lifted and supported, often using a hydraulic lift and jack stands. Wheels are removed for access.
- Diagnostic Checks: The mechanic uses specialized tools to identify the faulty component(s) and check for leaks in the system.
- Depressurisation: The air suspension system is depressurised to safely remove the air spring.
- Removal of Old Air Spring: The old air spring is disconnected from its mounting points and the pressure line.
- Removal of Old Pressure Line: If the pressure line is being replaced, it is carefully disconnected and routed out of the vehicle.
- Installation of New Pressure Line: The new pressure line is routed and connected to the appropriate points, ensuring it is secured and free from kinks or abrasion.
- Installation of New Air Spring: The new air spring is fitted and secured to its mounting points, and the pressure line is connected.
- Reassembly: Wheels are reinstalled, and the vehicle is lowered.
- System Test and Inflation: The air suspension system is pressurised, and the vehicle's height is checked. The mechanic will monitor for leaks and test the system's responsiveness.
- Final Checks: A final inspection is performed to ensure all components are secure and functioning correctly.
Can I Replace Air Springs and Lines Myself?
While some DIY enthusiasts may be tempted to undertake this repair, replacing air springs and pressure lines is a complex task that requires specific knowledge and tools. Working with compressed air systems can be dangerous if not handled correctly. Incorrect installation can lead to leaks, system malfunction, or even component failure, potentially causing damage to the vehicle or posing a safety risk. It is generally advisable to leave this job to qualified professionals.
Frequently Asked Questions
Q1: What are the signs that my air springs need replacing?
Common signs include a sagging suspension, uneven ride height, a constantly running air compressor, a rough or bouncy ride, and warning lights on the dashboard related to the suspension system.
Q2: How often should air springs be inspected?
It's recommended to have your air suspension system inspected annually as part of your regular vehicle maintenance. However, if you notice any of the symptoms mentioned above, you should have it checked immediately.
Q3: Is it necessary to replace pressure lines every time I replace air springs?
Not necessarily. If the pressure lines are in good condition, free from cracks or leaks, they may not need replacement. However, it is often a good idea to replace them preventatively, especially if they are old or have been subjected to harsh conditions, as a leak in a new air spring will render the repair ineffective.
Q4: Can I drive with a faulty air spring?
Driving with a faulty air spring is not recommended. It can lead to an uneven ride height, affecting handling and braking. It can also put additional strain on other suspension components and the air compressor, potentially leading to more extensive and costly damage.
Conclusion
The time required to replace air springs and pressure lines is a variable that depends on numerous factors, from the specific vehicle to the complexity of the repair. While a single component replacement might take a few hours, a comprehensive system overhaul can extend significantly. Understanding these variables and consulting with a reputable mechanic can help you anticipate the time and cost involved in restoring your vehicle's air suspension to optimal working order. Proper maintenance and timely replacement of worn components are key to ensuring the longevity and performance of your vehicle's air suspension system.
