Air Spring Woes: A Cautionary Tale

The allure of significant cost savings can be a powerful motivator when it comes to vehicle maintenance. Faced with the need to replace a rear air spring on my vehicle, I stumbled upon a UK-based supplier offering replacements at a fraction of the price of the premium brands I was accustomed to. At just over £60 each, compared to the usual £200+ for Arnott units, the temptation was undeniable, especially given the advertised two-year warranty. The job itself, as described elsewhere, is remarkably straightforward, particularly with a second person, potentially reducing the replacement time to a mere 15 minutes without even needing to remove the shock absorber's top mount.

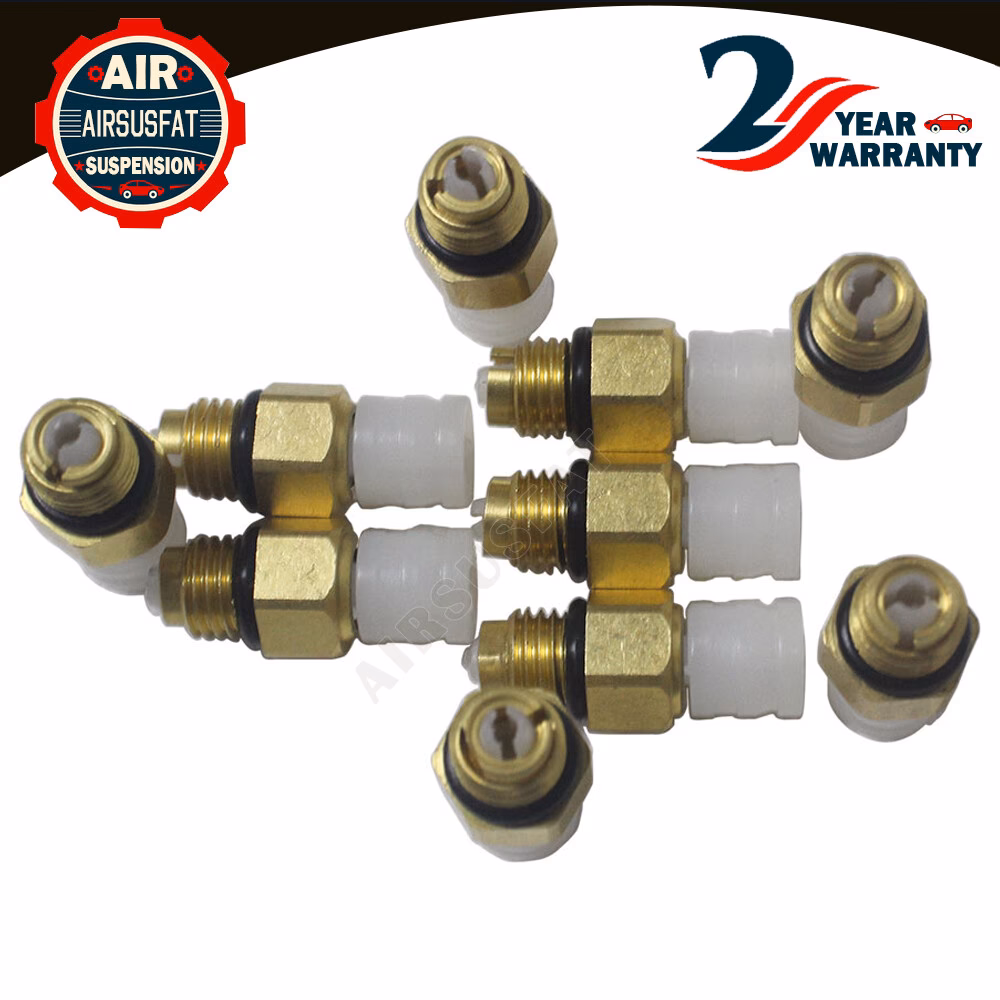

My previous experience with air suspension systems had taught me the importance of a reliable air supply connection. Therefore, I proactively replaced the existing connector with a push-fit type, utilising a liquid PTFE sealer specifically designed for this purpose. These connectors are virtually guaranteed to create a seal and can be fitted before the spring is mounted, significantly simplifying the installation process. Once the spring is in place, you simply push the air hose in. For those undertaking a similar repair, it's worth noting that these connectors typically have an M8x1mm pitch thread, and the air hose is usually 4mm in diameter.

With the new spring fitted and all connections seemingly secure, I embarked on a longer journey. Sadly, my optimism was short-lived. Approximately four hours into the drive, a deafening bang echoed from the rear of the car, followed by the unmistakable sensation of the rear end collapsing. The newly fitted air spring had catastrophically failed.

The Aftermath and the Supplier's Response

Upon returning home, I contacted the supplier, providing them with photographic evidence of the damage, including a clear image of the burst spring. Initially, their response was to offer a replacement unit. However, I inquired whether this was an isolated incident. Their initial response was a denial, stating it was a unique occurrence and simply bad luck. I pressed for written confirmation of this claim, making it clear that without it, I would require a full refund. After a couple of days, a different response emerged. They admitted that the failure was not unique; in fact, it had happened a number of times previously. Consequently, they issued me a full refund, and I proceeded to purchase an Arnott replacement.

A Crucial Warning: The Perils of Cheap Air Springs

This experience serves as a stark warning to all vehicle owners who might be tempted by significantly cheaper air suspension components. These budget-friendly options carry a history of failure, and as my case demonstrates, they can leave you stranded. More worryingly, a burst air spring can have a domino effect, potentially damaging your compressor and other associated suspension components. In my instance, the spring exploded on the motorway. Positioned in the outside lane, the debris scattered, and the sudden collapse of the suspension could easily have precipitated a serious accident, especially considering the distance I had to travel before I could safely manoeuvre to the hard shoulder.

Why Quality Matters in Air Suspension

The incident highlighted the critical importance of choosing reputable manufacturers for air suspension parts. While the initial cost may be higher, the long-term benefits in terms of reliability, safety, and peace of mind are immeasurable. Premium brands like Arnott invest heavily in research and development, rigorous testing, and high-quality materials to ensure their products meet stringent performance standards. This translates to components that are less likely to fail prematurely and are designed to withstand the stresses and strains of daily driving.

Understanding Air Spring Failure

Air springs, in essence, are heavy-duty rubber diaphragms or bellows that contain pressurised air. This pressurised air is what supports the vehicle's weight and allows for adjustable ride height. When an air spring fails, it's typically due to a rupture in the rubber component. This can be caused by:

• Material Defects: Inferior quality rubber or manufacturing flaws can lead to weak points that eventually give way under pressure.
• Excessive Pressure: While rare in modern systems, over-inflation or a malfunctioning levelling valve could theoretically over-pressurise a spring.
• Environmental Factors: Exposure to road salt, debris, and extreme temperatures can degrade the rubber over time.
• Installation Errors: Pinching the rubber during installation or incorrect fitting can create stress points.
• Age and Wear: Like any rubber component, air springs have a finite lifespan and will eventually degrade.

In my case, the rapid and catastrophic failure strongly suggested a material defect or a fundamental design flaw in the cheaper spring. The force of the explosion indicated it couldn't withstand even normal operating pressures.

The Potential for Wider Damage

It's not just the air spring itself that is at risk when a cheaper, unreliable unit is fitted. When an air spring bursts, the sudden loss of air pressure can cause the vehicle to drop rapidly. This can:

• Damage the Compressor: The compressor may continue to run in an attempt to re-inflate the system, potentially overheating and failing if it cannot maintain pressure.
• Damage Other Suspension Components: The sudden drop can cause other parts of the suspension, such as shock absorbers or linkages, to be subjected to extreme forces they are not designed to handle, leading to further damage.
• Compromise Vehicle Control: A sudden loss of ride height, especially at speed, can significantly affect the vehicle's handling and stability, increasing the risk of an accident.

Choosing the Right Air Spring: What to Look For

When it comes to replacing air springs, particularly for vehicles that rely on them for their primary suspension, it's a decision that shouldn't be taken lightly. Here’s what to consider:

When purchasing, always opt for suppliers who are transparent about their product specifications and manufacturing processes. Reading reviews from other users can also provide valuable insights into the reliability of a particular brand.

Frequently Asked Questions (FAQs)

Q1: Can I use a generic air spring if the part number matches?
While a matching part number is a good starting point, it doesn't guarantee quality or compatibility under stress. Material quality and manufacturing tolerances can vary significantly between brands.

Q2: How long should an air spring typically last?
With proper maintenance and quality components, air springs can last for many years and tens of thousands of miles. However, their lifespan is influenced by driving conditions, climate, and the quality of the original or replacement part.

Q3: What are the symptoms of a failing air spring?
Common symptoms include a sagging suspension (especially when parked overnight), uneven ride height, a constantly running compressor, and a bouncy or harsh ride.

Q4: Is it safe to drive with a leaking air spring?
It is not recommended. A leaking air spring puts extra strain on the compressor and can eventually lead to a complete system failure or, as in my case, a sudden collapse of the suspension, which is a significant safety hazard.

Q5: Where can I buy reliable air springs?
Reputable specialist automotive parts suppliers and directly from established air suspension manufacturers like Arnott are generally the safest options. Always check for warranties and customer reviews.

Conclusion

The temptation to save money on car parts is understandable, but when it comes to critical safety components like air springs, the risks associated with choosing the cheapest option can far outweigh the perceived savings. My experience serves as a potent reminder that quality, reliability, and a proven track record are paramount. Investing in reputable brands not only protects your vehicle from potential secondary damage but, more importantly, safeguards your safety and the safety of others on the road.
