Essential Car Engine Sensors Explained

Your car's engine is a marvel of modern engineering, a complex symphony of components working in harmony to deliver power and efficiency. At the heart of this intricate system lies the engine management system (EMS), a sophisticated network that relies heavily on a variety of sensors. These unsung heroes act as the 'eyes and ears' of your engine, constantly gathering vital data to ensure optimal performance, fuel economy, and reduced emissions. Understanding the function and importance of these sensors is key to maintaining your vehicle's health and preventing costly repairs down the line. Let's delve into the world of engine sensors and uncover how they keep your car running smoothly.

The Indispensable Role of Sensors in Modern Vehicle Management

In today's automotive landscape, sensors are not just helpful; they are absolutely essential. Modern vehicles can be equipped with anywhere from 60 to over 100 sensors, a number expected to climb even higher in the coming years. The primary Engine Control Unit (ECU), often referred to as the 'brain' of the engine, relies on the constant stream of information from these sensors to make real-time adjustments. This allows for precise control over fuel injection, ignition timing, and various other engine parameters, ultimately leading to a more efficient, powerful, and environmentally friendly operation.

Key Engine Sensors and Their Functions

While a modern vehicle boasts a multitude of sensors, several play a particularly critical role in the engine management system. Understanding these core components will provide valuable insight into how your engine operates:

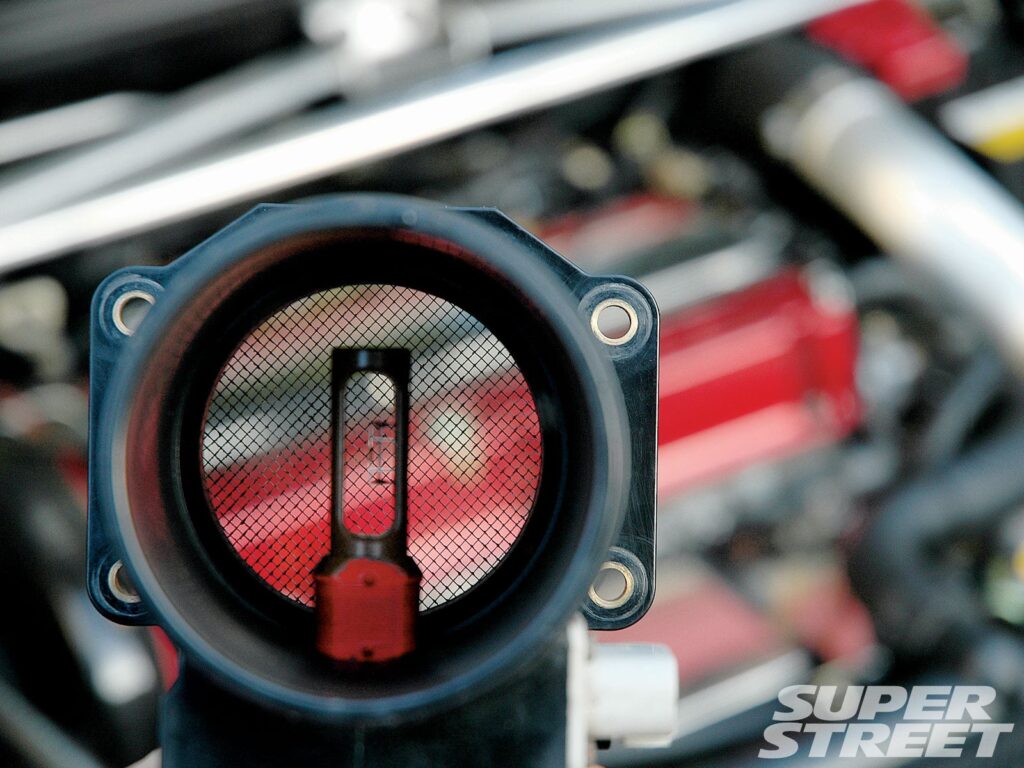

Mass Air Flow (MAF) Sensor: Measuring the Air You Breathe

The Mass Air Flow (MAF) sensor is fundamental to calculating the correct amount of fuel to inject into the engine. It measures the volume and density of air entering the engine's intake system. By accurately determining the mass of air, the ECU can precisely adjust the fuel delivery, ensuring the optimal air-to-fuel ratio for efficient combustion. Many MAF sensors utilise a 'hot-wire' design, where a heated wire's temperature changes with the airflow. The ECU interprets this resistance change to gauge the air mass. Common issues with MAF sensors include contamination from dirt or oil, leading to inaccurate readings, poor fuel economy, and reduced engine performance. Regular cleaning with a specialised electrical parts cleaner is often recommended, but it's crucial to avoid touching the delicate internal components.

Manifold Absolute Pressure (MAP) Sensor: Gauging Engine Load

The Manifold Absolute Pressure (MAP) sensor plays a crucial role in monitoring engine load. It measures the pressure within the intake manifold, providing the ECU with vital information about the vacuum or boost pressure present. This data is essential for adjusting fuel injection and ignition timing. MAP sensors typically output a voltage signal that varies with engine load, generally ranging from 1 to 5 volts. They can also function as barometric pressure sensors when the engine is off, aiding in altitude compensation. Issues such as vacuum leaks, wiring problems, or sensor failure can lead to poor engine performance, reduced fuel efficiency, and increased emissions.

Intake Air Temperature (IAT) Sensor: Optimising the Mix

The Intake Air Temperature (IAT) sensor measures the temperature of the air entering the engine. This information is critical because cold air is denser than warm air, meaning it contains more oxygen. The ECU uses IAT data to adjust the air-fuel mixture accordingly. For instance, colder air requires a slightly richer fuel mixture for optimal combustion. The sensor's resistance changes with temperature, typically ranging from around 200 ohms at 100°F to 5000-7000 ohms at 30-50°F. This allows the ECU to maintain the ideal air-fuel ratio, crucial for balanced performance, fuel economy, and emissions control. IAT sensors come in two main types: open-tip, which respond quickly and are ideal for performance applications, and closed-tip, which offer more stable readings for everyday driving.

Throttle Position Sensor (TPS): The Accelerator's Voice

The Throttle Position Sensor (TPS) is directly linked to the throttle body and monitors the position of the throttle plate. It sends a voltage signal to the ECU, indicating how much the accelerator pedal is being pressed. This data is vital for the ECU to adjust fuel injection, ignition timing, and even transmission shift points. A typical TPS will output around 0.5 volts at idle and up to 4.5 volts at wide-open throttle. Malfunctions, such as wear, contamination, or electrical issues, can lead to problems like poor idling, hesitation during acceleration, or incorrect gear changes. Replacing a TPS typically costs between £150 and £250, with labour being the primary expense.

Oxygen (O2) Sensors: Guardians of the Air-Fuel Ratio

Oxygen (O2) sensors are critical for maintaining the optimal air-to-fuel ratio, typically around 14.7:1 for efficient combustion and minimal emissions. They are located in the exhaust system and measure the amount of unburned oxygen in the exhaust gases. This feedback allows the ECU to make precise adjustments to the fuel injection system. There are two main types: narrowband and wideband. Narrowband sensors provide a simple 'rich' or 'lean' signal, common in older vehicles, while wideband sensors offer more precise readings, crucial for modern engines and performance tuning. Malfunctioning O2 sensors can lead to decreased fuel efficiency, increased emissions, and potential damage to the catalytic converter. Regular checks and replacement, typically every 60,000 to 90,000 miles, are important for maintaining engine health.

Crankshaft and Camshaft Position Sensors: The Heartbeat of Timing

The Crankshaft Position Sensor (CKP) and Camshaft Position Sensor (CMP) are vital for engine timing. The CKP sensor monitors the engine's speed and the exact position of the crankshaft, which directly relates to piston position. The CMP sensor tracks the position of the camshaft, which dictates valve timing. Together, these sensors provide the ECU with the precise information needed to synchronise ignition timing and fuel injection events. If either of these sensors fails, it can result in starting difficulties, misfires, or the engine shutting down entirely. Modern vehicles often use Hall Effect sensors (digital output) or Variable Reluctance sensors (analog output) for these critical functions.

Engine Coolant Temperature (ECT) Sensor: Managing the Heat

The Engine Coolant Temperature (ECT) sensor monitors the temperature of the engine coolant. This data is used by the ECU to control various engine functions, including fuel injection, ignition timing, and transmission shifts. The sensor itself is a thermistor, meaning its electrical resistance changes with temperature. It typically sends a voltage signal between 0.5V (hot) and 5V (cold). Accurate ECT readings are crucial for proper cold-start enrichment, efficient operation at normal temperatures, and preventing overheating. Engine coolant temperatures should ideally be between 70-105°C for optimal performance. Issues with the ECT sensor can manifest as poor fuel economy or inaccurate temperature readings, necessitating regular checks of coolant levels and potential leaks.

Knock Sensor: Protecting Against Detonation

The Knock Sensor is designed to detect engine knock or detonation, which is a harmful condition where fuel ignites prematurely in the combustion chamber. It uses piezoelectric elements to sense the vibrations caused by knocking. When detected, it sends a signal to the ECU, which then retards the ignition timing and may adjust the air-fuel mixture to prevent further detonation. This protects the engine from potential damage to pistons and gaskets. A malfunctioning knock sensor can lead to reduced engine performance and potential long-term damage if knock events are not detected and corrected.

Troubleshooting and Maintaining Your Engine Sensors

Proactive maintenance and timely troubleshooting of engine sensors are paramount for ensuring your vehicle's optimal performance and longevity. Utilising an OBD-II scanner is the first step in diagnosing potential sensor issues, as it can retrieve diagnostic trouble codes (DTCs) that point to specific sensor malfunctions (e.g., P0335 for CKP sensor, P0118 for ECT sensor, P0131 for O2 sensor).

Sensor calibration and cleaning are often necessary. For instance, the MAF sensor may require cleaning with a dedicated cleaner, while a TPS might need recalibration if the vehicle exhibits jerky acceleration. The lifespan of sensors can vary; O2 sensors typically need replacement around 60,000 to 90,000 miles, while an ECT sensor might last the vehicle's lifetime unless compromised by coolant issues.

Regular inspection of sensor wiring, connectors, and mounting points can prevent many common problems. Understanding how to interpret DTCs is invaluable; for example, P0300 (random misfires) could indicate issues with ignition sensors, while P0102 might point to a MAF sensor problem. By taking good care of your engine sensors, you ensure your vehicle runs more efficiently, uses less fuel, and performs at its peak.

Frequently Asked Questions

Q1: What is the primary function of an Oxygen (O2) sensor?
A1: The O2 sensor monitors the amount of oxygen in the exhaust gases to help the ECU maintain the optimal air-to-fuel ratio for efficient combustion and reduced emissions.

Q2: How does the Mass Air Flow (MAF) sensor contribute to fuel efficiency?
A2: The MAF sensor measures the density and volume of air entering the engine, allowing the ECU to calculate and deliver the precise amount of fuel needed, thus optimising fuel consumption.

Q3: What happens if the Throttle Position Sensor (TPS) malfunctions?
A3: A malfunctioning TPS can lead to poor idling, hesitation during acceleration, incorrect gear shifts, and illuminated "Check Engine" lights.

Q4: Why is the Engine Coolant Temperature (ECT) sensor important?
A4: The ECT sensor provides crucial data for controlling fuel injection, ignition timing, and preventing the engine from overheating, ensuring optimal operating temperatures.

Q5: Can I clean my MAF sensor myself?
A5: Yes, you can clean a MAF sensor using a specialised electrical parts cleaner. However, it is crucial to avoid touching the internal components to prevent damage.
