Airblast Fuel Injectors: Your Guide to Efficiency

In the relentless pursuit of more efficient and cleaner engines, the method by which fuel is introduced and mixed with air is paramount. From the roaring jets of an aircraft to the steady thrum of industrial boilers, the quality of air/fuel mixing dictates not only power output but also environmental impact, particularly concerning nitrogen oxides (NOx) emissions. Among the various fuel injection technologies, the airblast fuel injector stands out, having found widespread application, especially within the demanding realm of aviation. These ingenious devices are designed to ensure a remarkably thorough blend of air and fuel, a critical factor for optimal combustion performance.

An airblast fuel injector is fundamentally a device that uses compressed air to atomise and mix fuel with air before it enters the combustion chamber. Unlike simpler pressure-atomising injectors, which rely solely on fuel pressure to break the fuel into fine droplets, airblast injectors utilise a high-velocity air stream to shear the fuel into a fine spray. This co-flow or cross-flow of air dramatically improves the quality of atomisation, leading to smaller, more uniform fuel droplets and a more homogeneous air-fuel mixture. This superior mixing is crucial for achieving high combustion efficiency and, significantly, for reducing harmful emissions.

The Genesis and Operational Principle of Airblast Systems

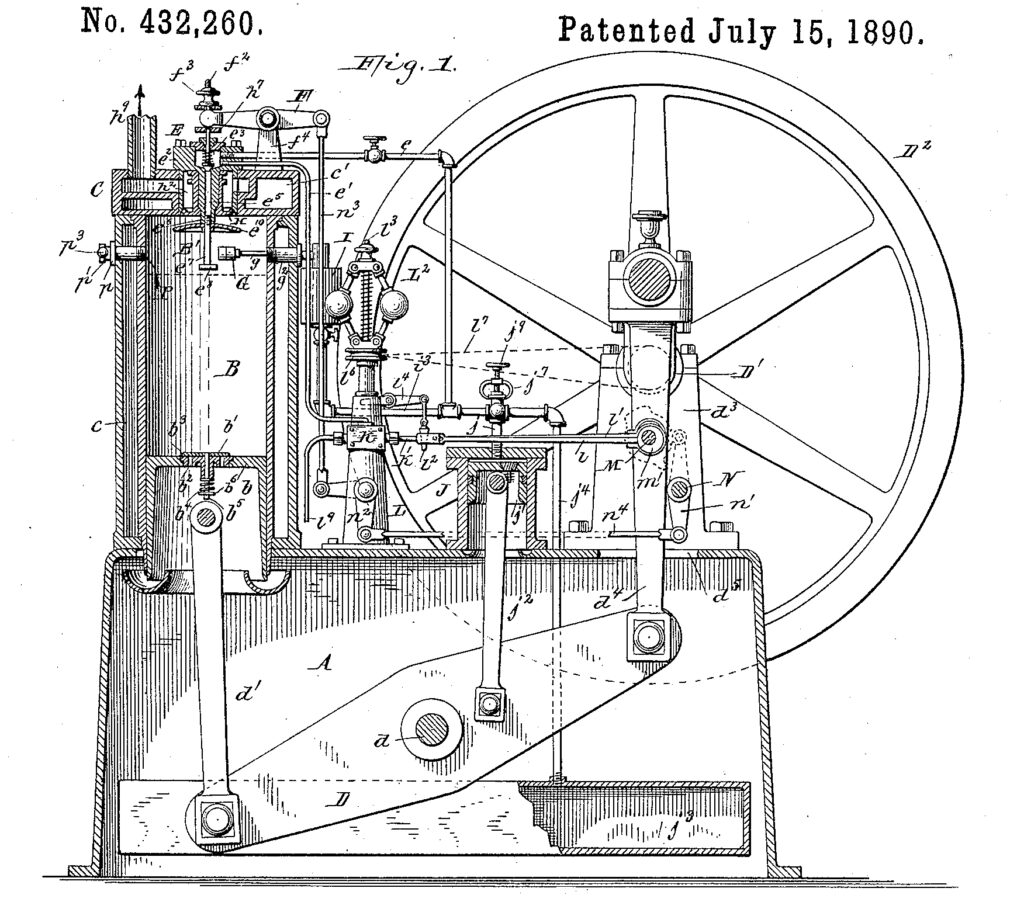

The concept of using air to assist fuel injection dates back to the early days of internal combustion engines. Rudolf Diesel himself, the inventor of the diesel engine, pioneered an 'air blast' injection system. His design employed highly compressed air to literally blow the fuel into the engine's cylinder. This innovative approach not only injected the fuel but also simultaneously aided in its mixing with the air already present in the cylinder, thereby creating the ideal conditions for a more complete and controlled combustion process. While revolutionary for its time, these early air blast systems were inherently bulky and complex, typically limiting their practical application to large, stationary engines where size and intricacy were less of a constraint.

Modern airblast fuel injectors, especially those used in gas turbines, operate on a similar principle but with significantly refined designs. Fuel is typically introduced into an air passage where it is then subjected to a high-velocity airflow. This airflow, often from the compressor section of the engine, flows around and through the fuel, stripping off tiny droplets. The kinetic energy of the air is thus transferred to the fuel, breaking it down into a fine mist. This process ensures that the fuel is not only atomised but also intimately mixed with a substantial amount of air even before it enters the primary combustion zone. This pre-mixing is a key differentiator and a major advantage.

Advantages of Airblast Fuel Injectors

The primary advantage of airblast fuel injectors lies in their ability to produce a very fine and well-distributed fuel spray. This leads to several benefits:

• Superior Fuel-Air Mixing: The high-velocity air stream ensures excellent mixing, resulting in a more uniform fuel-air ratio throughout the combustion zone.
• Reduced Emissions: Better mixing leads to more complete combustion, which in turn reduces the formation of pollutants, particularly NOx. Lower peak flame temperatures, often a result of more distributed combustion, also contribute to lower NOx.
• Wider Operating Range: Airblast injectors tend to offer a wider stable operating range, especially at lean conditions, compared to simple pressure atomisers.
• Lower Soot Formation: Improved atomisation and mixing generally lead to less localized fuel-rich zones, thereby reducing the production of soot and unburnt hydrocarbons.
• Durability: With fewer moving parts and less reliance on very high fuel pressures for atomisation, they can be robust and reliable.

Challenges and Limitations

Despite their advantages, airblast fuel injectors are not without their challenges. One significant issue arises in aircraft engines, particularly at low flight Mach numbers. Under these conditions, the combustor's inlet airflow experiences lower temperatures and pressures. This reduction in air density and velocity can lead to an increase in the mean droplet diameters of the fuel spray, which severely deteriorates the quality of spray atomisation, evaporation, and subsequent chemical reaction. Larger mean droplet sizes have several detrimental effects:

• Reduced Evaporation Rate: A smaller ratio of surface area to volume means slower evaporation, hindering the formation of a combustible vapour cloud.
• Higher Minimum Ignition Energy (MIE): Larger droplets require more energy to ignite, making engine start-up and re-light more difficult.
• Slower Flame Speed: The rate at which the flame propagates through the mixture is reduced, impacting combustion stability and efficiency.

Achieving a critical mean droplet size is, in fact, often more crucial for improving ignition performance than merely adjusting the lean fuel/air ratio limit. Therefore, ensuring a well-atomised fuel spray remains an essential prerequisite for enhancing ignition performance and overall combustion efficiency.

The Quest for Enhanced Atomisation

Numerous studies have been dedicated to improving fuel atomisation quality in various injection systems. Traditional methods employed to enhance atomisation in airblast fuel injectors typically involve reducing orifice diameter, increasing injection pressure, or increasing the air/fuel ratio or air flow velocity. While these approaches can yield positive results, they often come with practical limitations. For instance, significantly increasing injection pressure or air flow velocity can be very expensive or simply impractical to implement under real engine operating conditions, especially given the inherent constraints of existing engine designs.

Revolutionary Advancements: Plasma-Assisted Airblast Injectors (PAFI)

Given the limitations of conventional methods, researchers have turned to more innovative strategies. Non-equilibrium plasma technology has emerged as a particularly promising approach for ignition and combustion enhancement. Plasma influences combustion through three primary mechanisms: thermal effects (local heating), kinetic effects (production of reactive species), and transport effects (enhanced mixing due to plasma-induced flow). Non-equilibrium gliding arc plasma, for example, generates a plethora of radicals, ions, and excited species such as O3, NO, O, and NH. These highly reactive species can open entirely new reaction pathways or significantly accelerate existing ones by bypassing the energy-intensive initiation steps.

The integration of plasma technology with fuel atomisers represents a significant leap forward. Early concepts included plasma fuel nozzles designed to assist combustion using transient DC discharge. More recently, studies have explored the impact of nanosecond repetitively pulsed discharge on combustion stability, demonstrating significant reductions in the lean equivalence ratio required for stable operation. For example, in a lean premixed swirled propane/air burner, the lean extinction boundary was reduced by an impressive 72% with plasma assistance.

A notable development is the plasma-assisted multi-point lean direct injection (LDI) injector, which has shown that the lean extinction boundary of a fuel/air mixture can be reduced by 24% while consuming only about 1% of the flame's thermal power in electrical energy for the plasma. A specific type, the gliding arc plasma fuel injector using AC discharge, has also been proposed and tested. This innovation demonstrably extended the lean ignition boundary. Crucially, it was observed that the droplet size of kerosene spray injected from such a gliding arc plasma fuel injector was drastically decreased from approximately 150 µm to a mere 30 µm at low temperatures, signifying a profound improvement in atomisation.

While the combination of plasma technology with pressure fuel atomisers in swirled combustors has shown significant enhancement in both atomisation and combustion performance, its integration with airblast fuel injectors, particularly in demanding applications like turbojet afterburners or ramjets, remains an area of ongoing research. The precise effects of gliding arc plasma on droplet size distribution, mean and representative diameters, and spray cone angle of airblast fuel injectors are still being thoroughly investigated.

Comparing Conventional Airblast Injectors (AFI) with Plasma-Assisted Injectors (PAFI)

To highlight the advancements, let's compare the characteristics of a conventional Airblast Fuel Injector (AFI) with a novel Plasma-Assisted Airblast Fuel Injector (PAFI):

The introduction of plasma excitation at the injector tip, as seen in PAFI, represents a targeted approach to overcome the persistent challenges associated with atomisation at low temperatures and pressures. By precisely controlling the plasma discharge characteristics and synchronising them with the fuel injection process, researchers aim to unlock unprecedented levels of atomisation quality and combustion efficiency.

Frequently Asked Questions (FAQs)

What is the primary function of an airblast fuel injector?

The primary function is to finely atomise liquid fuel and thoroughly mix it with air before combustion, ensuring efficient and clean burning, especially in gas turbine engines.

Why is good fuel atomisation so important?

Good fuel atomisation creates a larger surface area for the fuel to evaporate quickly. This rapid evaporation is crucial for forming a homogeneous fuel-air mixture, which leads to faster ignition, more complete combustion, higher efficiency, and reduced pollutant emissions.

How does plasma technology improve airblast fuel injection?

Plasma technology, particularly non-equilibrium plasma, improves airblast fuel injection by further reducing fuel droplet sizes (enhanced atomisation), creating reactive species that accelerate chemical reactions, and extending the lean ignition and stability limits of the flame.

Are airblast fuel injectors used in cars?

While the underlying principle of using air to assist fuel mixing has been explored, modern car engines predominantly use high-pressure direct injection or port fuel injection systems. Airblast systems, due to their complexity and bulk, are primarily found in larger applications like aircraft engines, industrial gas turbines, and some marine diesel engines.

What is Sauter Mean Diameter (SMD) and why is it relevant to airblast injectors?

The Sauter Mean Diameter (SMD) is a key metric used to characterise the fineness of a spray. It represents the diameter of a droplet that has the same volume-to-surface area ratio as the entire spray. A lower SMD indicates finer atomisation, which is highly desirable for efficient combustion and is a critical performance indicator for airblast fuel injectors.

What are the environmental benefits of improved airblast fuel injection?

Improved airblast fuel injection, particularly with advanced techniques like plasma assistance, leads to more complete combustion. This results in significant reductions in harmful emissions such as nitrogen oxides (NOx) and soot, contributing to cleaner air and meeting stricter environmental regulations.

Conclusion

Airblast fuel injectors have been, and continue to be, indispensable components in high-performance combustion systems, particularly within the aerospace industry. Their ability to achieve superior fuel-air mixing has been instrumental in the development of efficient and relatively clean engines. However, as demands for even lower emissions and broader operational envelopes intensify, the limitations of conventional designs at challenging conditions, such as low Mach numbers, become apparent. The advent of plasma-assisted airblast fuel injectors represents a significant technological leap. By integrating non-equilibrium plasma, researchers are now capable of dramatically improving atomisation quality and extending the operational limits of these critical components. This innovative synergy not only addresses existing challenges but also paves the way for a new generation of even more efficient, reliable, and environmentally friendly propulsion and power generation systems.
